Yamaha ZG01BL Gaming Mixer
Ideal for gamers who use voice chat and for game streamers, this innovative audio mixer with USB interface gives you full command of your game sound, chat and voice levels — plus mic/vocal effects, immersive 3D surround sound and competitive-gaming focus modes — all with the premium audio performance you expect from Yamaha.

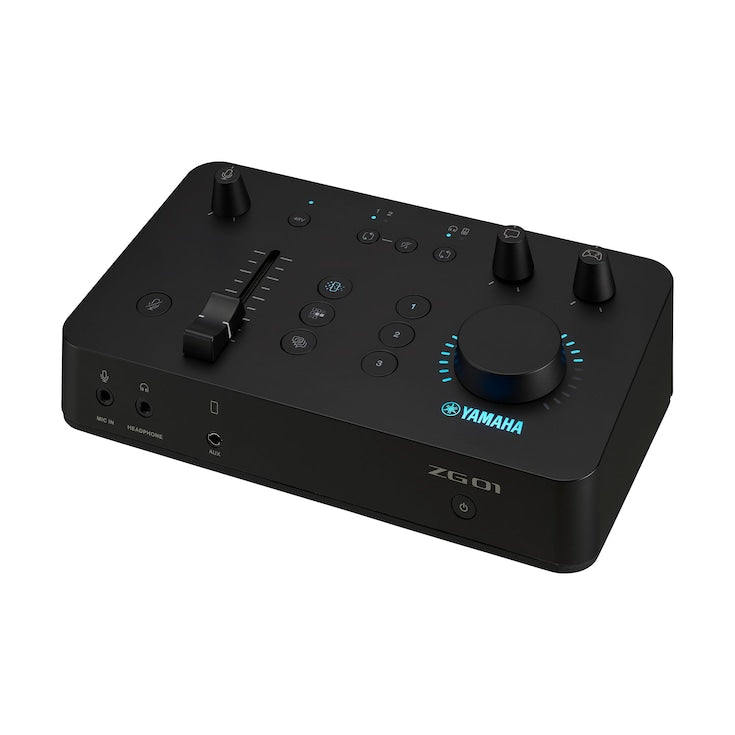

- Intuitive controls let you quickly manage sound levels and effects in real-time
- Advanced mic settings and voice effects (compression, limiter, reverb, pitch, radio voice and more) to fine-tune and personalize your voice, plus echo and censor beep buttons

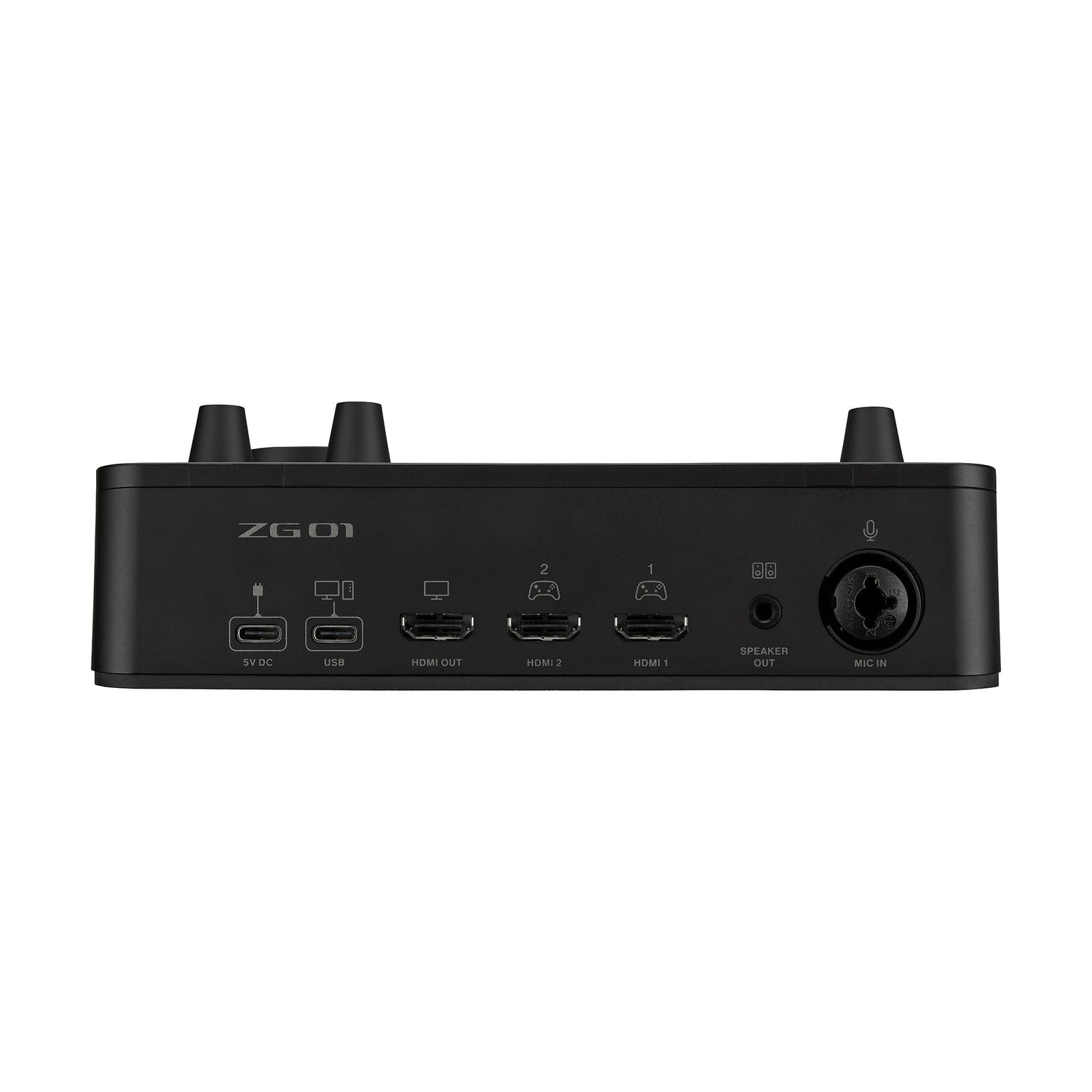

- Supports gaming headsets with a built-in mic or a dedicated mic via the rear-panel XLR / TRS combo jack; 48V phantom power for condenser mics
- 3D surround sound and unique gaming focus modes immerse you in the action and give you an edge up on your competitors
- Works with Windows/Mac computers via versatile USB-C interface; driver allows audio to be assigned to two different apps — perfect for use with Discord and OBS/Streamlabs
- Access audio from gaming consoles via a built-in 2-in/1-out HDMI switcher (up to 4K/60 video pass-through; does not capture video)
- ZG Controller app for Windows/Mac lets you go deep with settings and customizations that can be saved and quickly recalled from preset buttons on the mixer
- Compatible with the Elgato Stream Deck family of controllers
| ZG01 | ||
|---|---|---|
| Input Channels | Microphone | 1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| HDMI | 1 - Switchable input HDMI 1 or HDMI 2 by button; Audio input: 2ch 24-bit/192kHz (Max.), Video signal *1: No video capture function | |
| USB | 2 - Virtual devices (Voice, Streaming) | |
| Output Channels | PHONES | 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones) |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| MONITOR OUT | 1 - Stereo mini (Speaker out) | |
| HDMI | 1 - Audio out: 2ch 24-bit/48kHz fixed, Video signal *1: Pass-through | |
| USB | 2 - Virtual devices (Voice, Speaker) | |
| Functions | MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3) | |
| On-board processors | DSP | ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects. Detailed settings made via the ZG Controller software. |
| USB | USB Audio | Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 1.5 A | |
| Power requirements | 5 V DC, 1.5 A | |
| Power consumption | Max. 7.5 W | |
| Dimensions | W | 195 mm (7.7") |
| H | 47.5 mm (1.9") | |
| D | 110 mm (4.3") | |
| Net weight | 1.8 lbs | |
| Included Accessories | USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide | |
| Others | Operating Temperature: 0 to + 40 ℃ (32 to 104° F) | |
