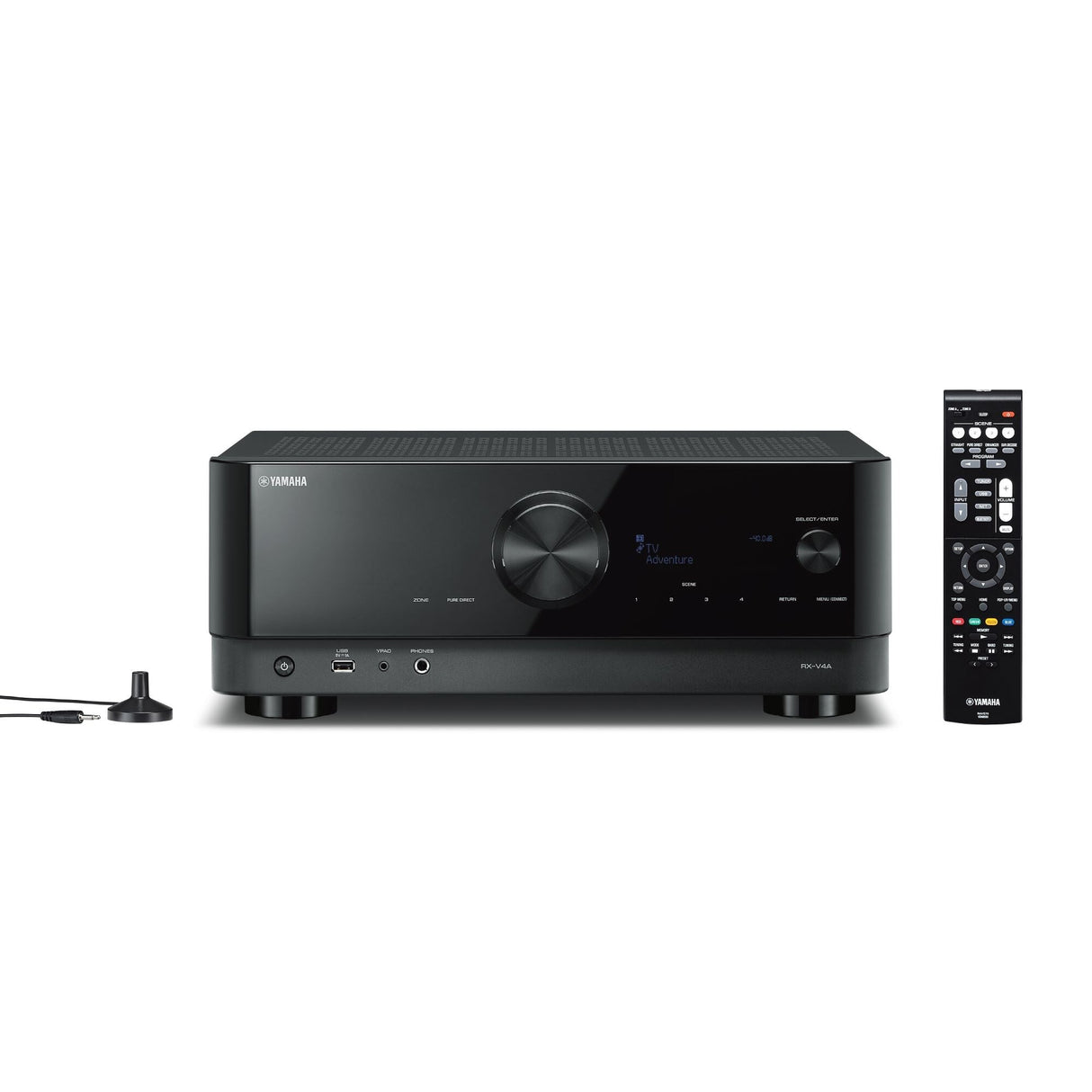

Yamaha YHT-5960U 5.1-Channel Home Theater System with 8K HDMI and MusicCast
Enjoy a complete, all-in-one home theater system with the YHT-5960U. This 5.1-channel surround sound system will transform how you listen and watch at home with a powerful subwoofer and complete set of surround speakers. The YHT-5960U home-theater-in-a-box includes an AV receiver with the latest in video processing, Dolby TrueHD, DTS-HD Master Audio, wireless streaming and more.
- 5.1-channel 80-Watt powerful surround sound system
- 4K60, 4K120AB and 8K60B HDMI 2.1 with HDCP 2.3 and eARC (4 in/1 out)
- Dolby Vision™, Hybrid Log-Gamma and BT.2020
- Supports enhanced media and gaming – ALLM and VRR
- YPAO automatic room calibration
- Wi-Fi, Bluetooth®, MusicCast multi-room audio, AirPlay 2 and Spotify Connect
- Voice control with Amazon Alexa, Siri® (via AirPlay 2) and Google Assistant
- Pandora®, Spotify, Napster, SiriusXM, TIDAL, Deezer, Qobuz, Amazon Music HD

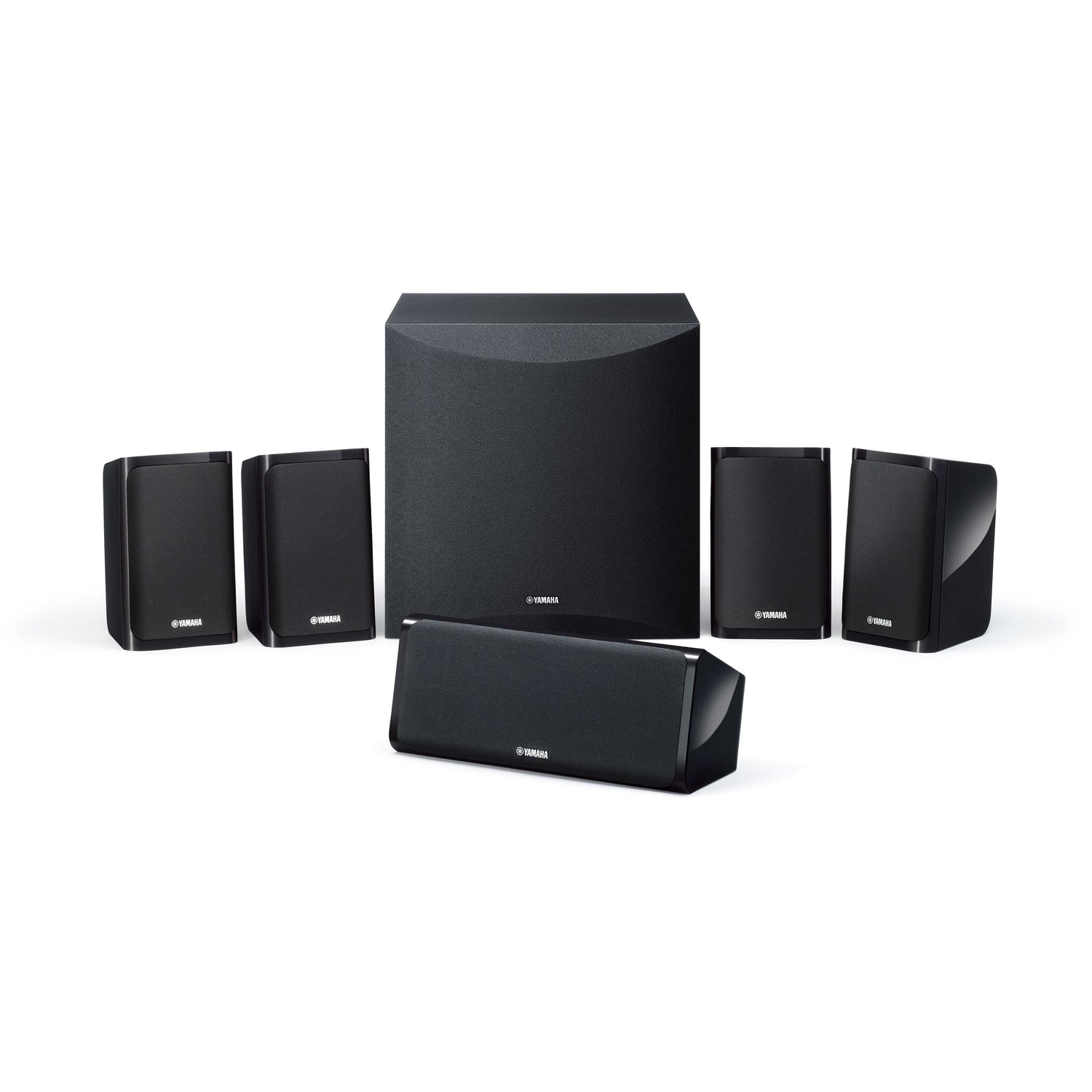

- Front, rear and center speakers place easily in your room
- Designated subwoofer for powerful bass
- Speaker wire perfectly matched for each speaker
| YHT-5960U | ||
|---|---|---|
| Amplifier Section | Channels | 5.2 |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.06% THD) | |
| High Slew Rate Amplifier | Yes | |
| Surround Sound Processing | Cinema DSP | Yes |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | N/A | |
| Dialogue Lift | N/A | |
| SILENT Cinema / Virtual Cinema DSP | Yes | |
| Dolby Atmos | N/A | |
| Dolby Atmos Height Virtualization | N/A | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | N/A | |
| DTS:X | N/A | |
| DTS-HD Master Audio | Yes | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| YPAO Multipoint Measurement | N/A | |
| YPAO Volume | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume and Maximum Volume Setting | Yes | |
| Bi-amp Capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit BB PCM5101A | |
| YPAO Sound Optimization | Yes | |
| Video Features | HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 4K120AB, 8K60B, 4K60 and 24GBPS | |
| HDMI Upscaling | Yes up to 4K | |
| Dolby Vision | Yes | |
| HDR 10+ | Yes | |
| VRR & ALLM | Yes | |
| 4K Ultra HD Pass-through and Upscaling | Yes | |
| HDMI 3D Pass-through | Yes | |
| Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync | Yes | |
| Connectivity | MusicCast Surround | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Phono Input | N/A | |
| Extensive Connections | HDMI Input/Output | 4 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible) |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Front AV Input | USB | |
| Digital Audio Input / Output: Optical | 1 / 0 | |
| Digital Audio Input / Output: Coaxial | 1 / 0 | |
| Analog Audio Input / Output | 3 / 0 | |
| Preout | 0.2-ch | |
| Headphone Output | 1 | |
| Composite Video Input / Output | N/A | |
| Tuner Section | FM / AM Tuner | Yes |
| User Interface | On-Screen Display | Graphical User Interface |
| SCENE | Yes (4 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | N/A | |
| Remote Control Unit | Yes | |
| General | Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO Mode | Yes | |
| Dimensions (W x H x D) | 17-1/8" x 6-3/4" x 14-7/8" D (with antenna up:17-1/8" x 9-5/8" x 14-7/8") | |
| Weight | 19.4 lbs. | |
| Channels | 5.1 | |
| Speaker System | System Frequency Response | 28 Hz–25 kHz |
| Impedance | 6 ohms (without subwoofer) | |
| Front Speaker | Type | Full-range bass-reflex |
| Driver | 2-3/4" full-range cone | |
| Nominal Input Power | 30 W | |
| Maximum Input Power | 100 W | |
| Sensitivity | 83 dB / 2.83 V / 1 m | |
| Dimensions (W x H x D) | 4-3/8 " x 6-7/8" x 4-5/8" | |
| Weight | 1.3 lbs. / unit | |
| Center Speaker | Type | Full-range acoustic suspension |
| Driver | 2-3/4" full-range cone | |
| Nominal Input Power | 30 W | |
| Maximum Input Power | 100 W | |
| Sensitivity | 84 dB / 2.83 V / 1 m | |
| Dimensions (W x H x D) | 10-7/8" x 4-3/8" x 4-5/8" | |
| Weight | 1.61 lbs. | |
| Surround Speaker | Type | Full-range bass-reflex |
| Driver | 2-3/4" full-range cone | |
| Nominal Input Power | 30 W | |
| Maximum Input Power | 100 W | |
| Sensitivity | 83 dB / 2.83 V / 1 m | |
| Dimensions (W x H x D) | 4-3/8" x 6-7/8" x 4-5/8" | |
| Weight | 1.3 lbs. / unit | |
| Subwoofer | Type | Advanced YST II |
| Driver | 8" cone | |
| Output Power | 50 W (5 ohms, 100 Hz, 10% THD) | |
| Dynamic Power | 100 W (5 ohms) | |
| Frequency Response | 28–200 Hz | |
| Twisted Flare Port | Yes | |
| Power Consumption | 40 W | |
| Dimensions (W x H x D) | 11-1/2" x 11-1/2" x 13-3/8" | |
| Weight | 18.7 lbs | |
