Yamaha XDA-AMP5400RKBL Multi-Room Amplifier (4 Zone, 8 Channel)
Specially designed for custom integration of whole home audio systems, the "AMP" serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.
- Works together with Yamaha XDA-QS5400RK to expand speaker coverage in custom integrated multi-room audio systems
- Eight channels of audiophile-grade Class D amplification, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design

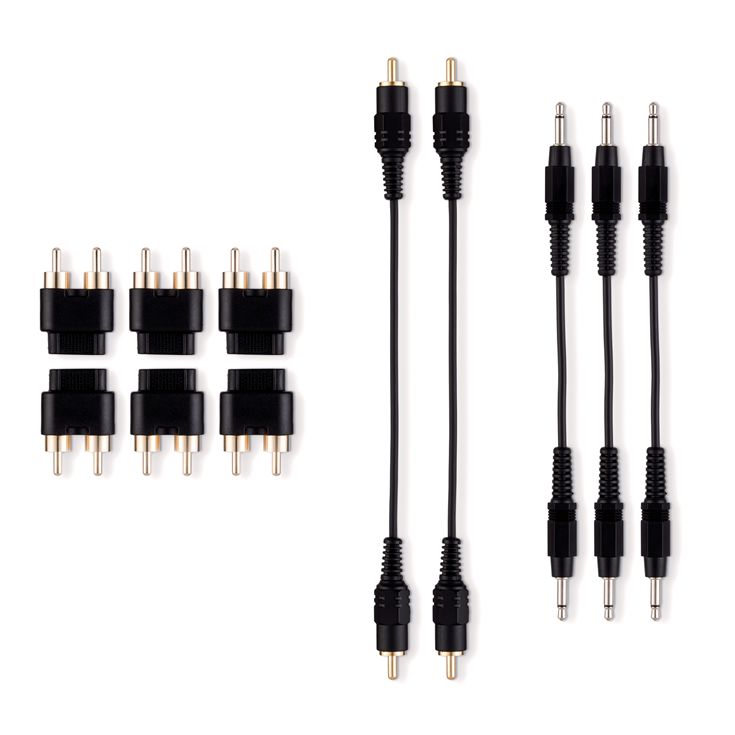

- Four audio buses and included jumpers allow for wide variety of speaker configurations
- Interlocks power on/off with XDA-QS5400RK via Trigger I/O
- Integration-friendly features include audio sensing inputs, IR I/O and more

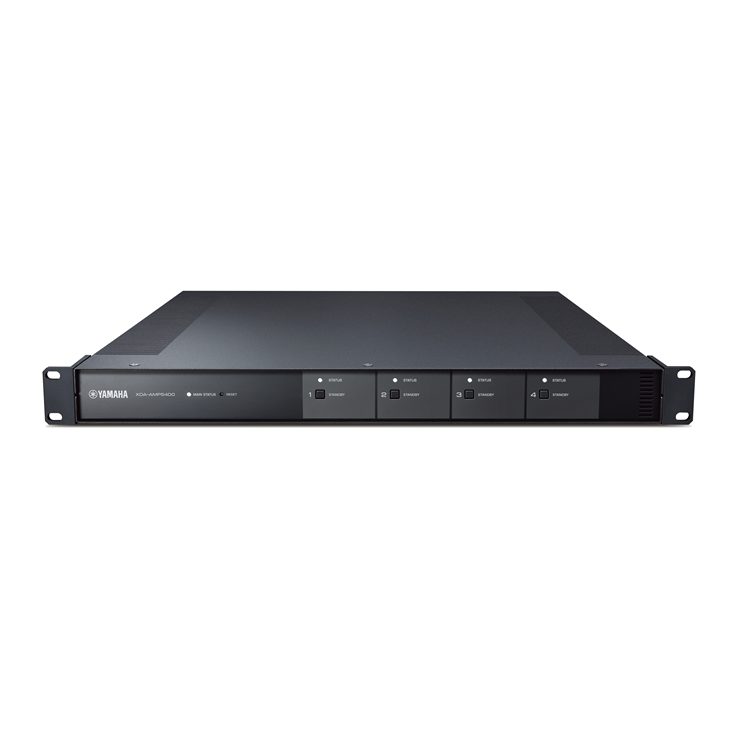

- 1U-high, rack-wide enclosure; removable rack ears and faceplate included
| XDA-AMP5400RK | ||
|---|---|---|
| Audio Specifications | Channel | 8 Channel (2 channel x 4) |
| Minimum Speaker load Capability | 4 Ohm | |
| BTL Connection | Yes | |

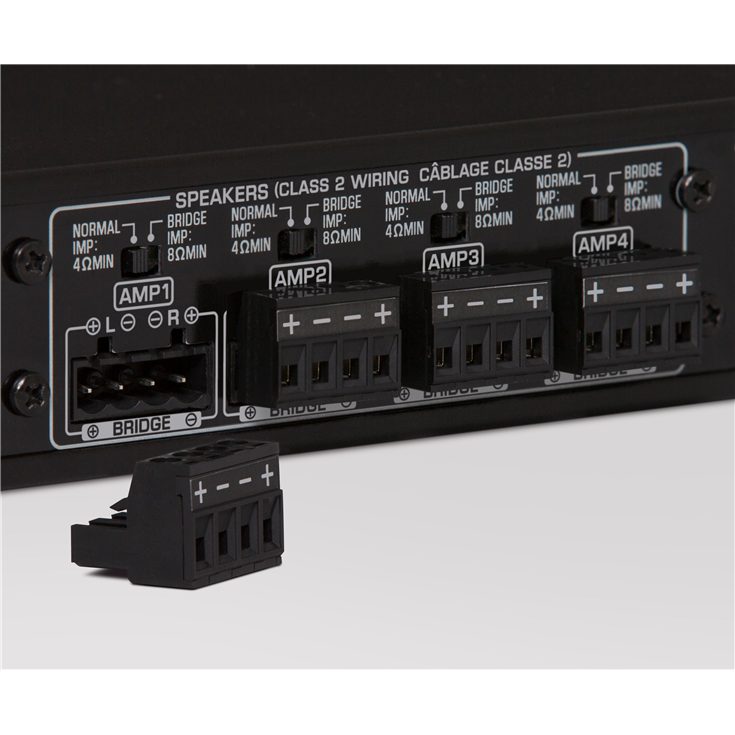

| Speaker Output Terminal | 4 (Euroblock) | |
| Audio Input Terminal | RCA: 4 | |
| Audio Output Terminal | RCA (2-ch through out): 4 | |
| Trigger In / Out | 4 / 4 | |
| Remote In / Out | 1 / 1 | |
| Rated Output Power (1 kHz, 0.9% THD, 2ch driven) | Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W | |
| Rated Output Power (1 kHz, 0.9% THD, 1ch driven) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W | |
| Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W | |
| Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W | |
| Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W | |
| Maximum Effective Output Power | [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm):130 / 65 W, Bridge (8 ohm): 260 W | |
| Total Harmonic Distortion | [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04% | |
| Frequency Response | [1 kHz + 0 / -3 dB] SP OUT AUX IN: 5 Hz-40 kHz | |
| Signal to Noise Ratio | [SP OUT AUX IN] 108 dB | |
| Maximum Input Signal | [PRE OUT L / R, 0.9% THD] 1 V | |
| Gain | [SP OUT 1 V Input] 25.8 dB | |
| Input Sensitivity | [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V | |
| General | Power Consumption | 130 W, [All Zone On] No Signal Condition: 32 W, [All Zone Off] Audio Sense On: 14.8 W |
| Standby Power Consumption | Audio Sense Disable: 0.3 W, Audio Sense Enable / Mode Standby: 0.5W | |
| Power Management (Auto Power Standby) | Yes (On / Off) | |
| Dimension (W × H × D) mm | [Table Top Mount with Adhesive Feet] 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 18-7/8” x 1-3/4” x 17-7/8” | |
| Weight | 13.2 lbs. | |
