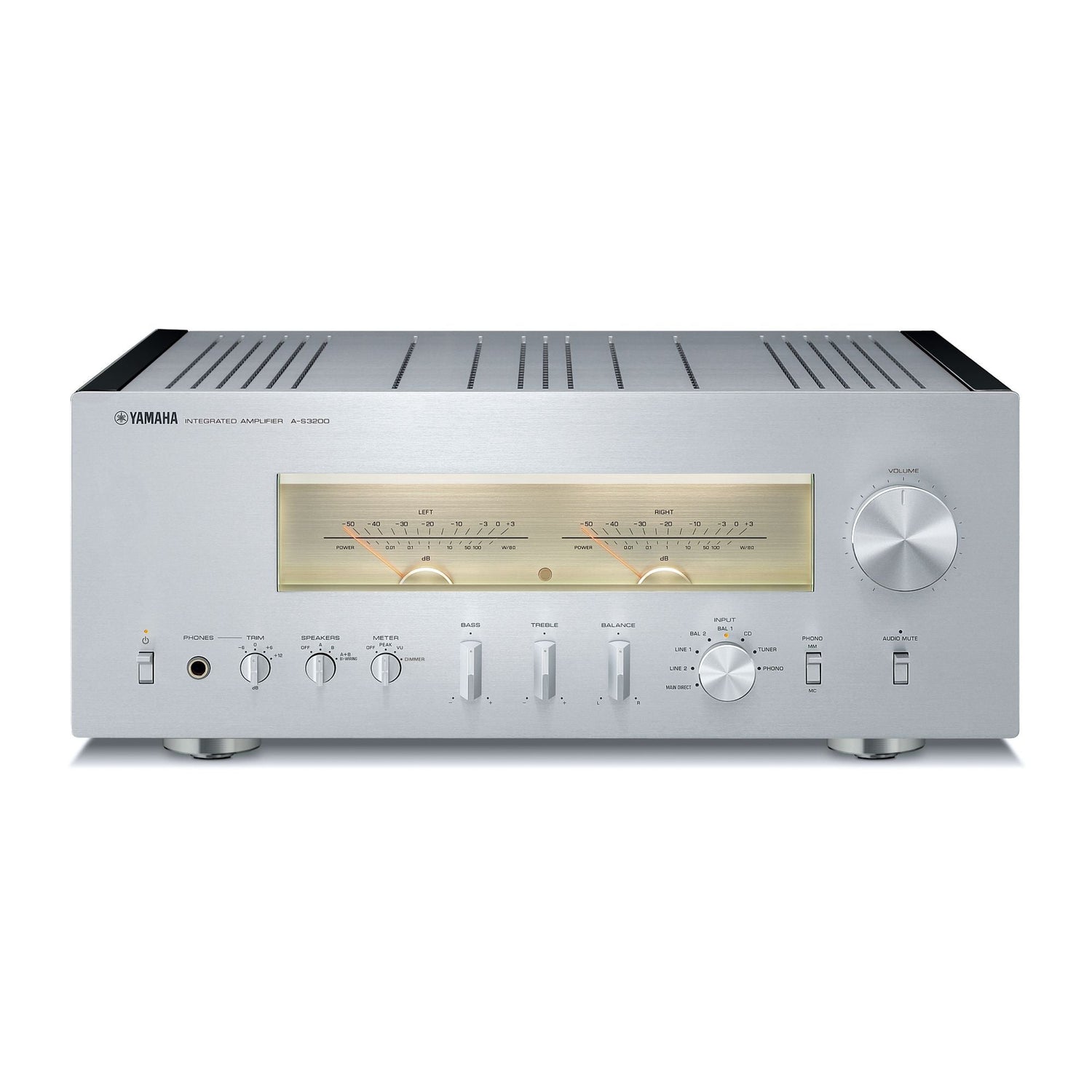

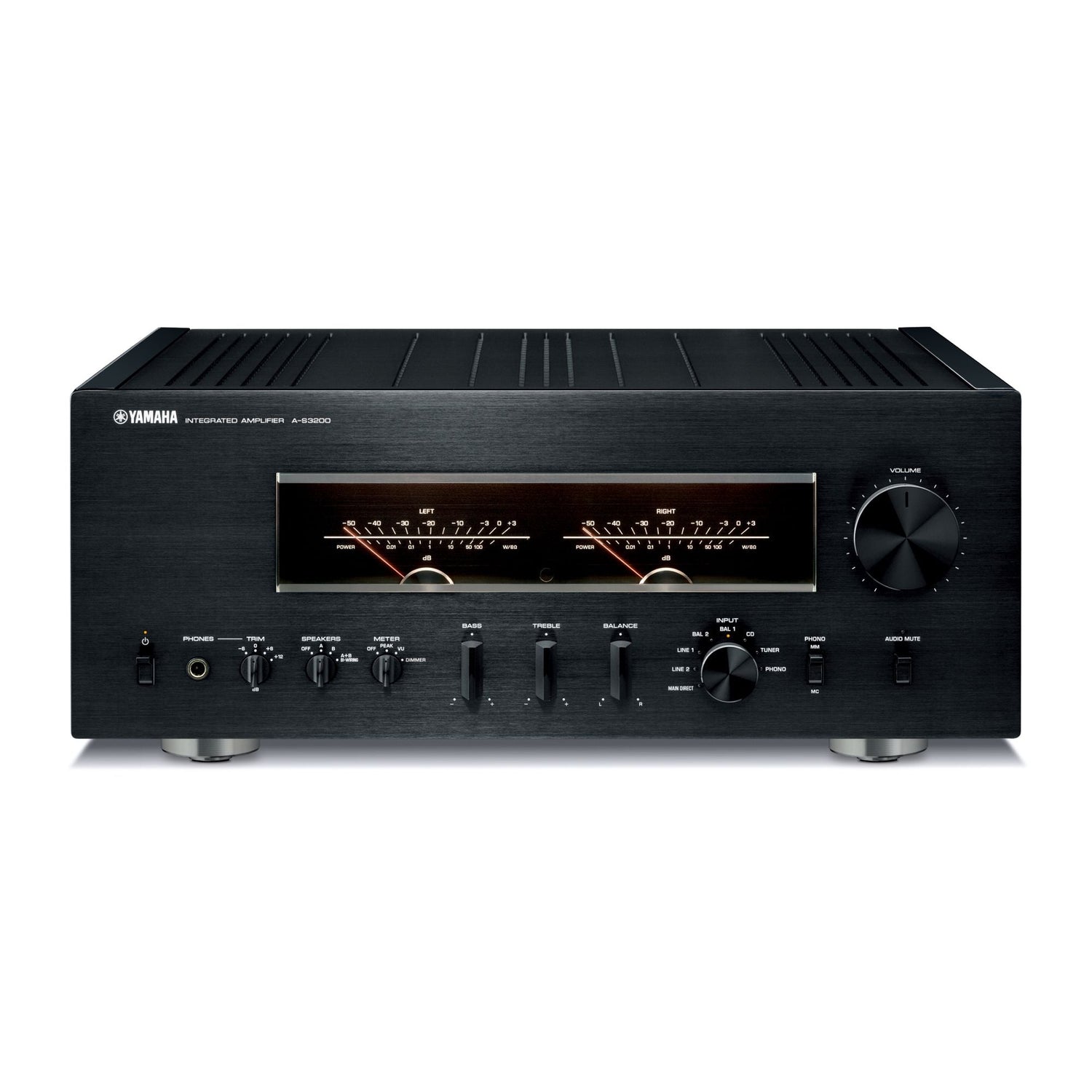

Yamaha A-S3200 Integrated Amplifier
In the unyielding pursuit of innovation and musicality, Yamaha is proud to present its flagship integrated amplifier – the A-S3200. Meticulously designed from the ground up, the A-S3200 realizes the ambitions of the artist and establishes a new benchmark in high-fidelity audio.
- Fully balanced circuitry to deliver impressively low signal-to-noise ratio and improved channel separation
- Large toroidal transformer in the pursuit of pure musicality
- Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration
- High-quality PPS capacitors for delivering an authentically musical sound
- Exquisite level meters visually present the dynamics and pulse of the music
- Obsessive, meticulous switch design
- Heavy-duty brass feet with spikes or scratch-resistant base
- Original speaker terminals cut from pure brass with highly secure connection
| A-S3200 | ||
|---|---|---|
| Rated Output Power | [20 Hz-20 kHz, 0.07 %THD] 100 W ＋ 100 W (8 ohms), 150 W ＋ 150 W (4 ohms） | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 120/150/200/300 W | |
| Damping Factor | ≧ 250 (1 kHz, 8 ohms) | |
| Frequency Response | +0 /-3 dB (5 Hz-100 kHz) , ＋0 / -0.3 dB (20 Hz-20 kHz) | |
| RIAA Equalization Deviation | ＋/-0.5 dB (PHONO (MM/MC)) | |
| Total Harmonic Distortion (20Hz to 20kHz) | PHONO MC→LINE2 OUT: 0.02 % (1.2 Vrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL1,2 →SP OUT: 0.035 % (50 W/8 ohms) | |
| Signal-to-Noise Ratio | PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL1,2: 114 dB | |
| Input Sensitivity | [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL1,2: 200 mVrms/100 kohms | |
| Transformer | 623 VA (Toroidal) | |
| Dimensions (W x H x D) | 17-1/8" x 7-1/8" x 18-1/4" | |
| Weight | 54.5 lbs | |
