WIIM  |  SKU: ASR004G

WiiM Ultra - Space Grey (Single pack)

Regular price $251.75


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

Product Details

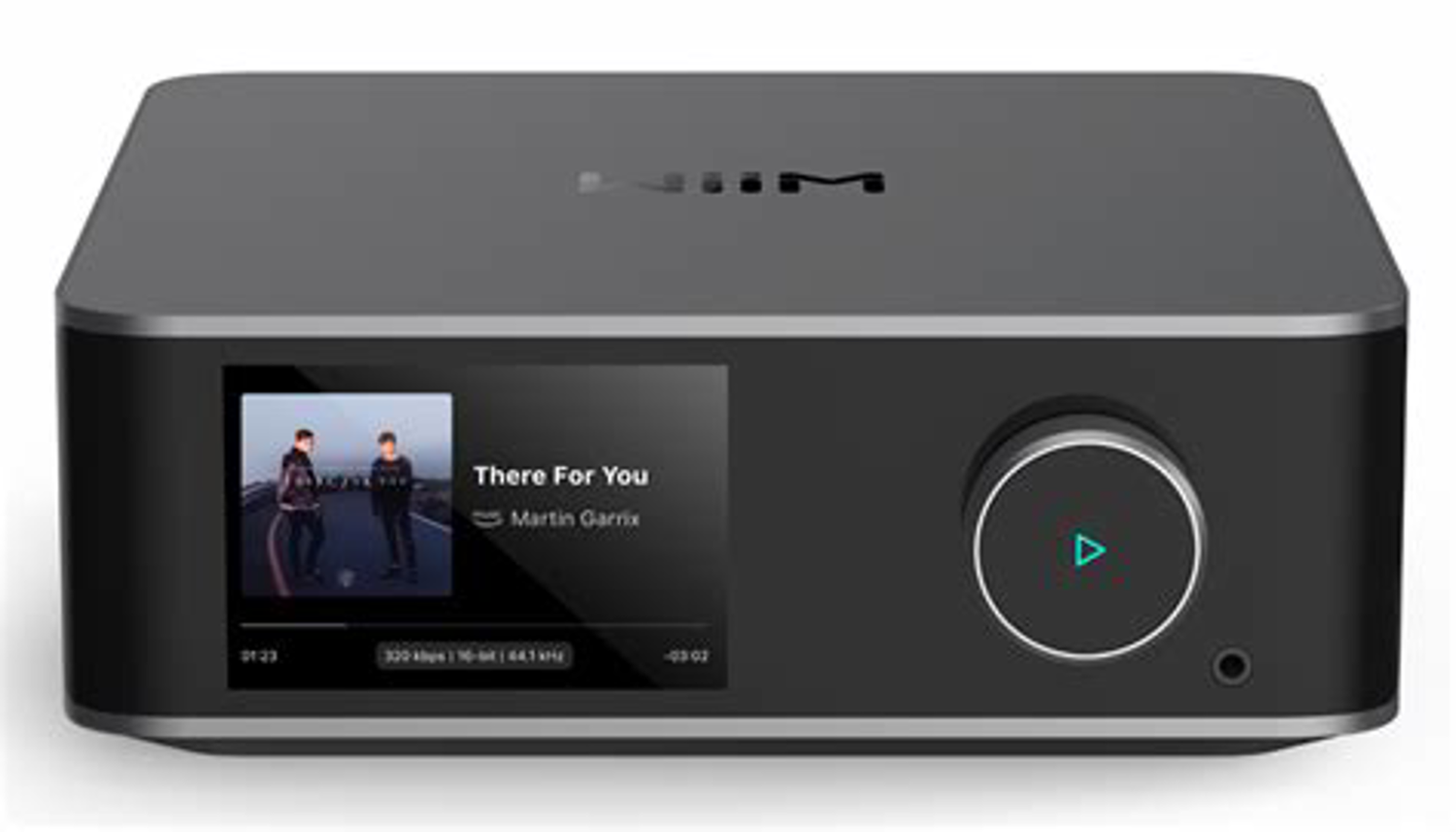

WiiM Ultra Streaming music player and digital preamp with Wi-Fi®, Google Cast, Bluetooth®, and 3.5" touchscreen (Space Gray)

Dimensions8.3″ x 7.87″ x 2.83″ (211 mm x 200 mm x 72 mm)

Dimensions for WiiM Pro & Pro Plus

Weight(3.13 lbs) 1.42 kg

Touch Display

Glass-covered 3.5″ vibrant touchscreen display:

Displays App widgets, large album pictures, playback control, playing queue.presets, EO, audio input and output, and device settings

Guides users through the OOBE and OTA

Provides feedback when there’s a change in the play mode

Controls

Volume knob, play/pause, setup, and more

LED

4 Color RGBW LED indicates the device status

Audio Input

HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz

Audio Output

RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bit

Wireless to another BT, DLNA receiver

Performance

Line out

Maximum output: 2.1V RMS

SNR: 121 dB (A-wt)

THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k

FR curve:+/-0.05 dB

Headphone out

300 ohms: SNR (119 dB), THD+N (-99 dB)

32 ohms: SNR (119 dB), THD+N (-92 dB)

EQ

24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ

Subwoofer Output

Comprehensive bass management

Adjustable crossover frequency, level, phase, and latency.

Power Supply

100-240V AC input, 50/60 Hz, 0.5A Max

Network

Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.

10M/100 Mbps LAN

External Storage

Access personal media library and use it as a media server for other WiiM and DLNA devices,

Support FAT32, NTFS, and EXT4 file systems.

Bluetooth

Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.

Supported Streaming

Protocol

Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Squeezelite

  • Type:

    Streamer

  • Brand:

    WiiM
