The 064-400s & 064-600s Series CAT6A UTP CMR cable is a high-performance, riser-rated Ethernet cable designed for 10 Gigabit network applications. Featuring solid bare copper conductors and unshielded twisted pair (U/UTP) construction, this cable exceeds ANSI/TIA-568-C.2 and ISO/IEC 11801 performance standards. Ideal for high-speed data transmission in commercial riser spaces, it is ETL-listed, PoE Type 4 compliant, and RoHS compliant. Here’s why professionals trust it:
1
of
3
Loading...
Vertical Cable | SKU:
064-688/A/GY
Vertical CAT6A U/UTP CMR (Riser-Rated) 23 AWG Solid Bare Copper, Wooden Spool, 1000 ft
Regular price
$225.00
Unit price
/
Unavailable
Vertical CAT6A U/UTP CMR (Riser-Rated) 23 AWG Solid Bare Copper, Wooden Spool, 1000 ft - Gray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Vertical CAT6A U/UTP CMR (Riser-Rated) 23 AWG Solid Bare Copper, Wo...
Regular price
$225.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description

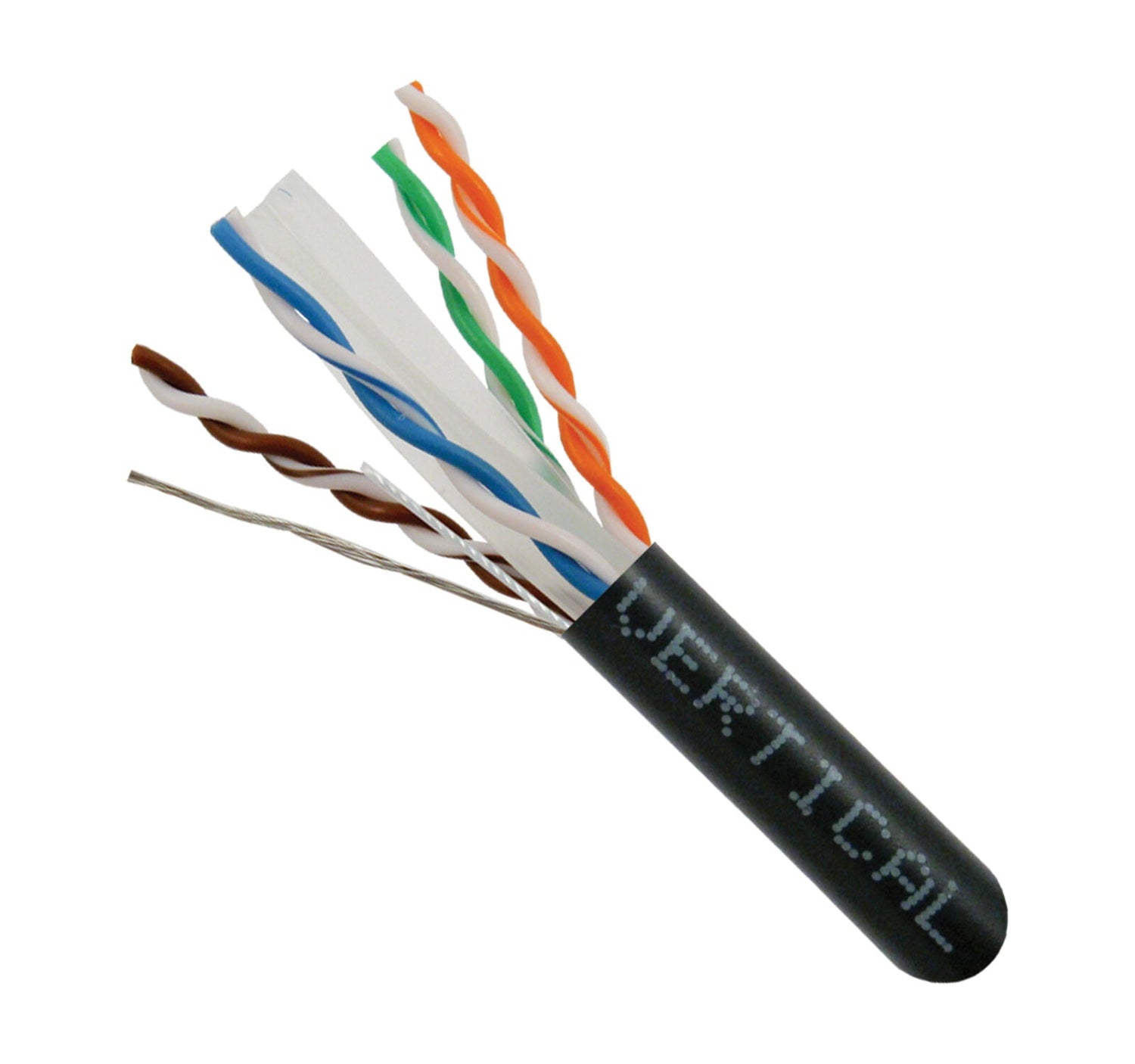

Vertical CAT6A U/UTP CMR (Riser-Rated) 23 AWG Solid Bare Copper, Wooden Spool, 1000 ft

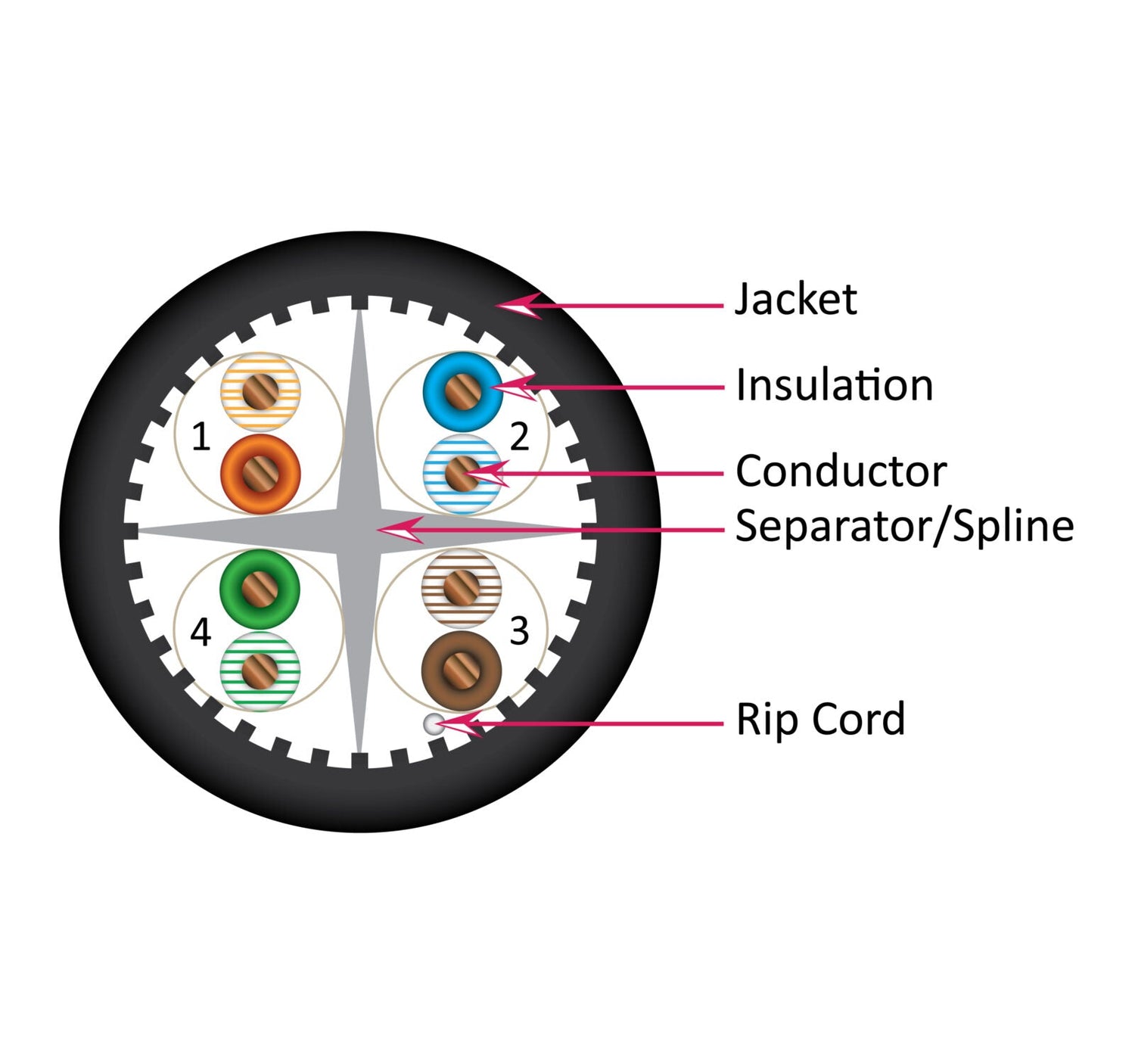

This high-performance CAT6A data communications cable supports 10Gb high-speed applications and is designed for indoor riser installations. It features 4-pair unshielded twisted pairs with easily identifiable color stripes, 23 AWG solid copper conductors, and offers excellent attenuation and crosstalk characteristics per ANSI/TIA-568.2-D standards.
KEY FEATURES
- 23 AWG Solid Bare Copper: Ensures maximum conductivity and performance.
- Unshielded Twisted Pair Design: Delivers reliable signal integrity without shielding bulk.
- Riser-Rated (CMR): Certified for vertical runs between floors in commercial buildings.
- PoE Type 4 Ready: Supports high-power PoE applications (IEEE 802.3bt compliant).
- 10 Gb Speed Support: Built for high-bandwidth networks and long-term infrastructure upgrades.
- High-Visibility Jacket & Conductor Colors: Simplifies identification and installation.
- ETL-Listed & RoHS Compliant: Third-party tested for safety and environmental standards.

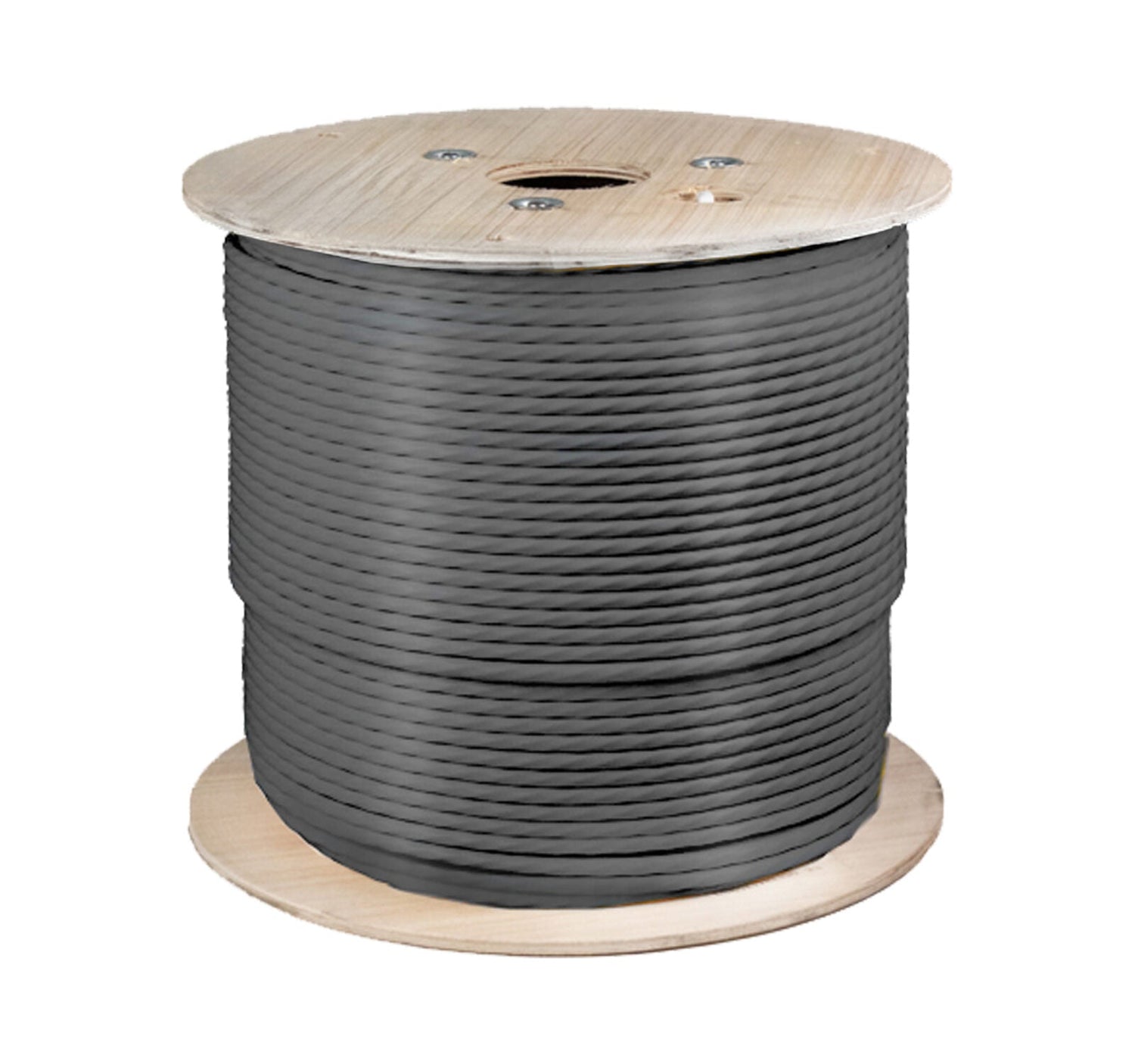

- Available on Wooden Spool: 1000 ft packaging for large-scale installations.
- Temperature Rated: Operates in environments from −20 °C to +75 °C.
APPLICATIONS
The 064-400s & 064-600s Series is designed for performance-critical environments where bandwidth, fire safety, and long runs between floors are required. Ideal for:
- Commercial Office Networking
- Data Centers and Server Rooms
- VoIP and Video over IP Systems
- Riser Pathways Between Floors
- Enterprise-Grade Structured Cabling
WHY CHOOSE THE 064-400s & 064-600s SERIES CAT6A UTP CMR?
When performance, compliance, and scalability matter, this cable series provides exceptional value and peace of mind:
- Certified High-Speed Performance: Exceeds Cat6A specs for 10 Gigabit transmission.
- Riser-Safe & Flame-Tested: Meets CMR standards for vertical runs in multi-floor buildings.
- PoE Ready: Handles higher wattage PoE devices with ease and reliability.
- Color Variety: Available in multiple jacket colors for better cable organization.
- Engineered for Longevity: Rugged PVC jacket and durable internal construction for long service life.
WHAT’S NEXT?
After installing your CAT6A UTP CMR cable:
- Terminate with CAT6A Jacks – Maintain performance with shielded or unshielded keystone jacks.
- Add Patch Panels & Patch Cords – Build out a complete end-to-end solution.
- Label and Document – Simplify future maintenance with clear labeling and cable mapping.
Download:
