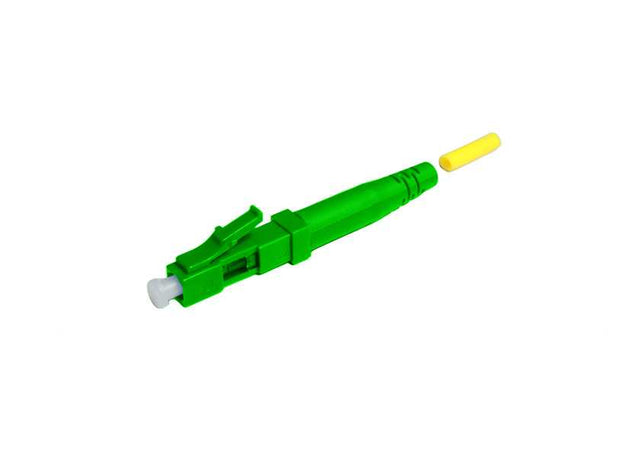

Vertical 263-OSP04-1FY12 Optical Fiber Splice-on Plugs (Mechanical) | 263-OSP Series

Vertical Cable 263-OSP04-1FY12 Optical Fiber Splice-on Plugs (Mechanical) | 263-OSP Series

Product Details

Our splice-on plugs feature factory pre-polished 900-µm buffered or 2–3-mm OD tight-buffer round cables with a “V” groove fiber retention mechanism. They offer a fast termination time of about 15 seconds, an impressive yield of over 98%, more than 10 reusability cycles, and meet Telcordia GR-326-CORE standards.

When it comes to efficient and reliable fiber optic connectivity, Vertical Cable’s Optical Fiber Mechanical Splice-on Plugs stand out as a superior choice. Designed for optimal performance, these plugs provide a robust solution for terminating and splicing fiber optic cables, catering to a range of applications in telecommunications, data centers, and network infrastructure.

Features

The Optical Fiber Splice-on Plugs are meticulously crafted to ensure ease of use and durability. Below, we outline their standout features:

• 900-µm buffered fiber or 2–3-mm OD tight-buffer round cables
• Factory pre-polished
• Singlemode (UPC, APC) or Multimode (OM1, OM3) options
• “V” groove fiber retention mechanism
• Polyetherimide (PEI)
• Termination time: ~15 s (excluding fiber preparation)
• Termination yield: >98 %
• Reusability: >10 times
• Tensile strength: >5 N (1.1 lbf)
• Telcordia GR-326-CORE compliant

In summary, the Optical Fiber Splice-on Plugs (Mechanical) are an essential component for any fiber optic project, offering reliability, efficiency, and versatility. For more information and to explore our full range of products, visit our Optical Fiber Splice-on Plugs category page.
