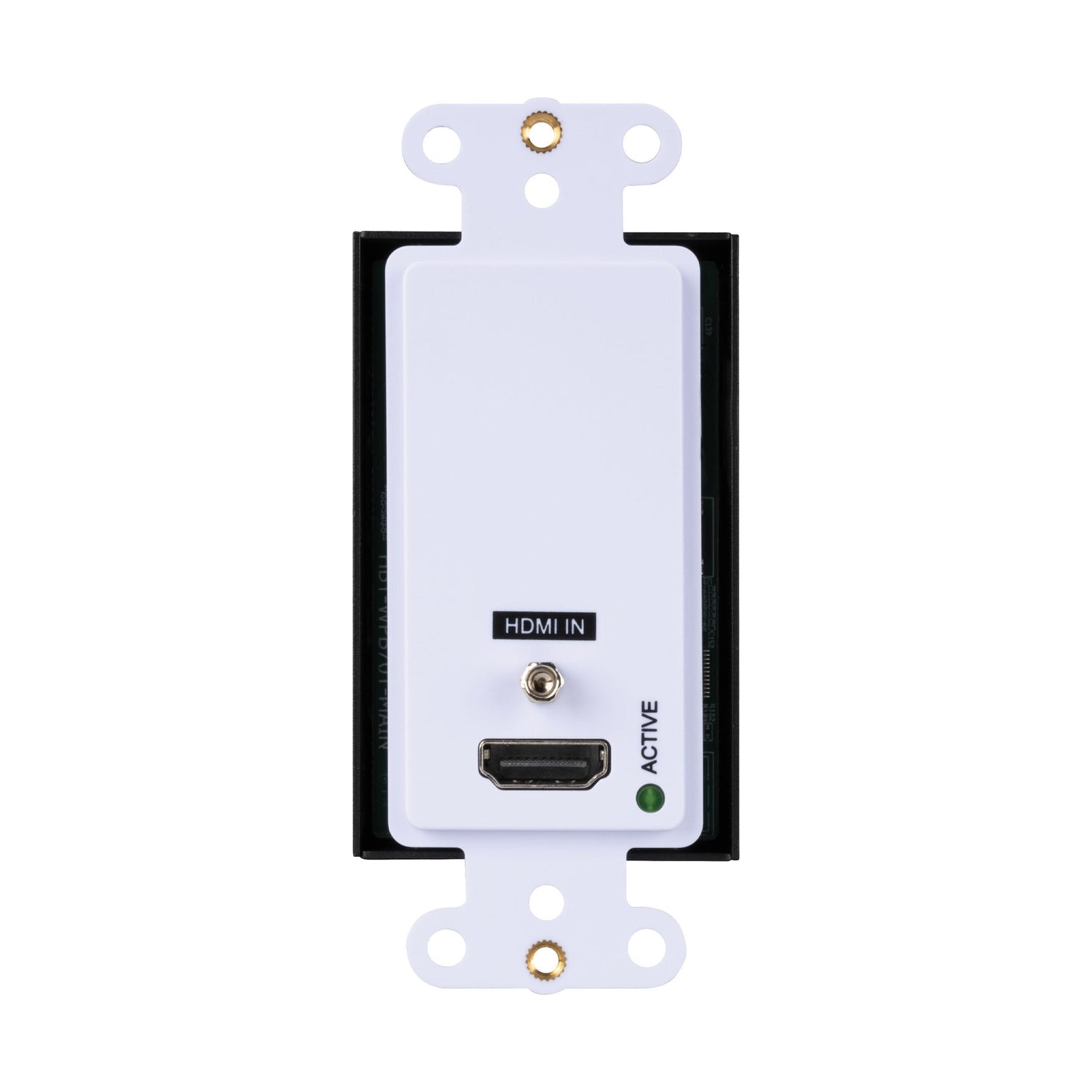

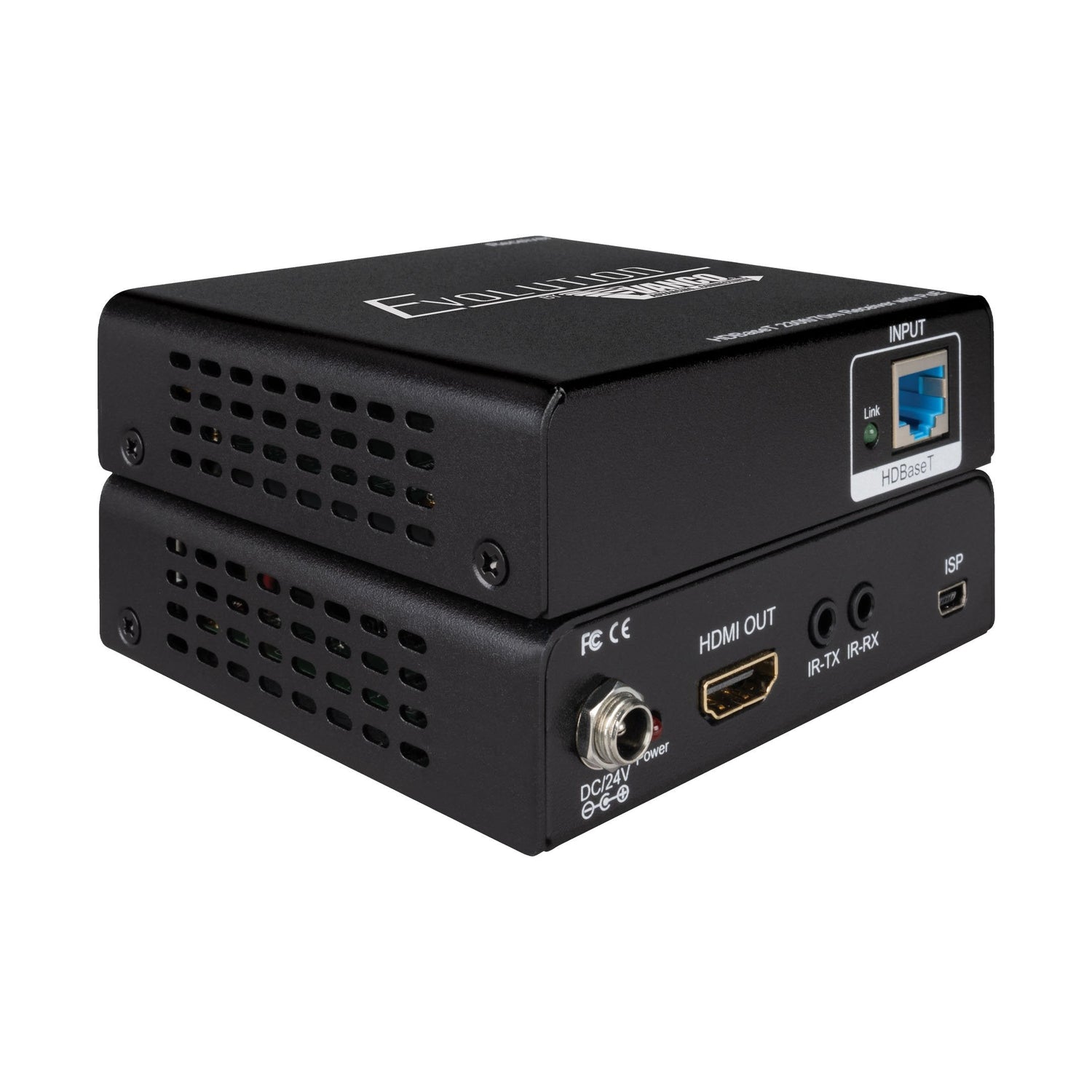

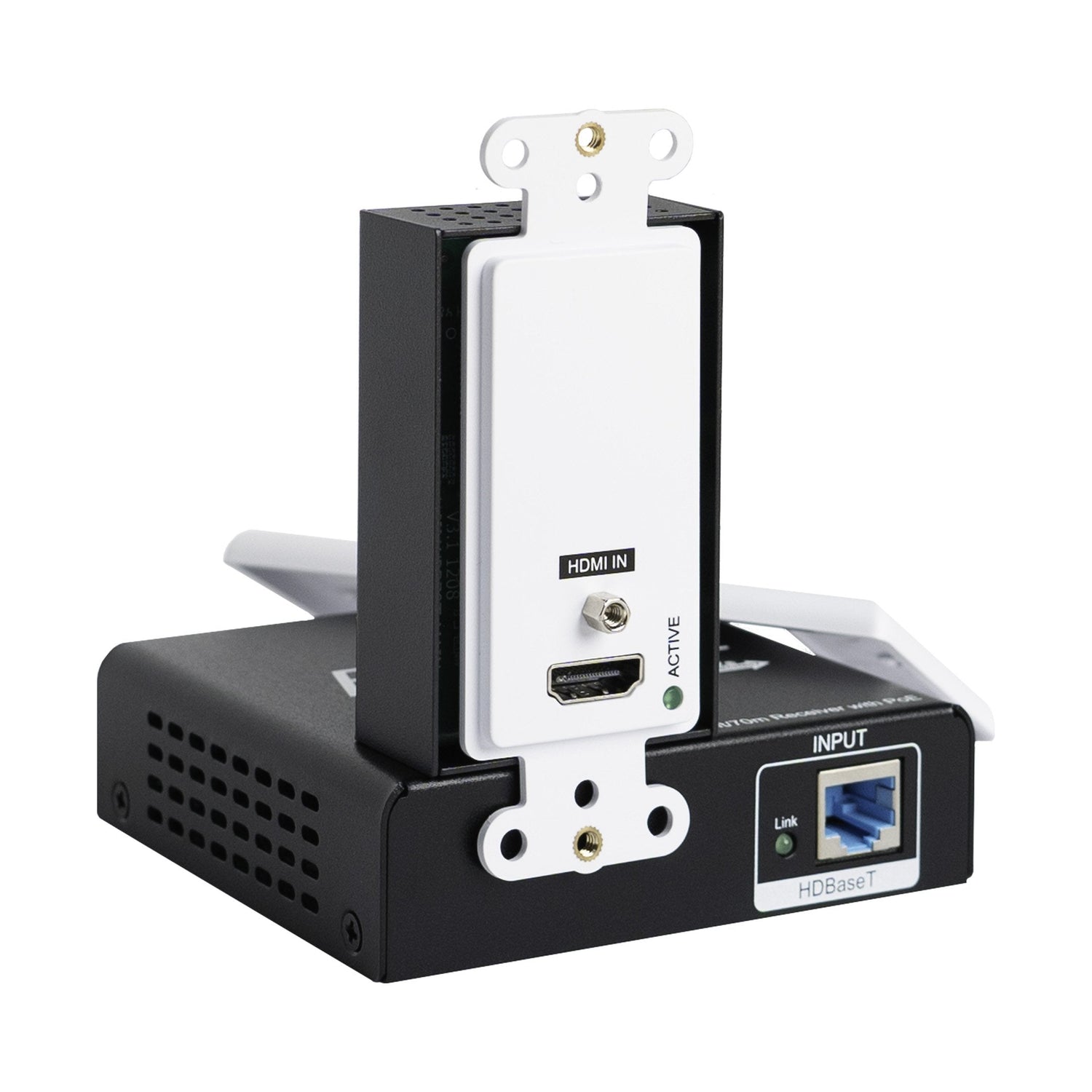

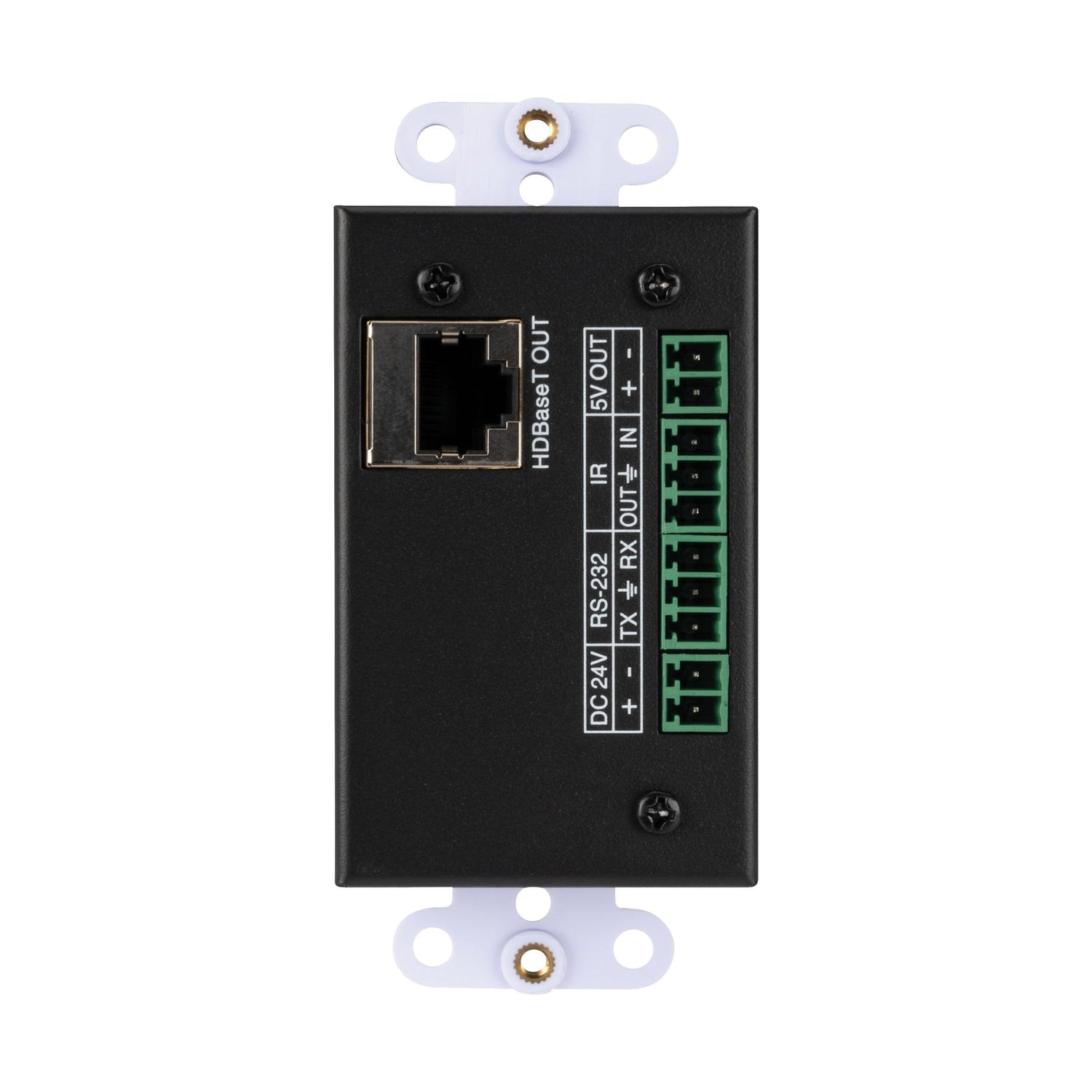

Evolution EVWP3000 HDBaseT Extender Set with Wall-Plate Transmitter

Evolution EVWP3000 HDBaseT Extender Set with Wall-Plate Transmitter

Product Details

A wall-plate solution for extending 4K HDMI signals using HDBaseT technology up to 131ft (40m) over a single Cat5e/6 cable.

The Evolution by Vanco EVWP3000 HDBaseT extender with single-gang wall-plate transmitter supports resolutions up to 4K@60Hz, 4:4:4 chroma over a single Cat5e/6 cable up to 131ft (40m) or 1080p@60Hz up to 230ft (70m). Featuring HDBaseT technology, this extender set supports audio, video, IR, and Power over HDBaseT (PoH) that transmits power over the Cat5e/6 cable. The EVWP3000 is a great wall-plate solution for extending HDMI signals using HDBaseT technology for both residential and commercial installations.

Features

• Features HDBaseT technology that distributes uncompressed high-definition signals at twice the distance of HDMI cables
• Extends 1080p resolutions up to 230ft (70m) and 4K@60Hz resolutions up to 131ft (40m) over a single Cat5e/6 cable
• Transmits power over a single Cat5e/6 cable using Power over HDBaseT (PoH) technology that provides power to the transmitter or receiver without the need for an additional power supply
• HDCP Compliant
• TAA Compliant
• Includes auto equalization and EDID
• Supports LPCM 2/5.1/7.1CH, Dolby Digital, Dolby Digital Plus, DTS, and DTS-HD audio formats
• Features bi-directional IR at 38KHz
• Includes a single-gang transmitter and wall mountable receiver

Downloads

Manual
