Ubiquiti UXG-Pro Gateway Pro
Regular price
$528.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Ubiquiti UXG-Pro Gateway Pro
Product Details
10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
Specifications
Overview
Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Max. WAN Port Count: 3
Default WAN Ports: (1) 10G SFP+ (1) GbE RJ45

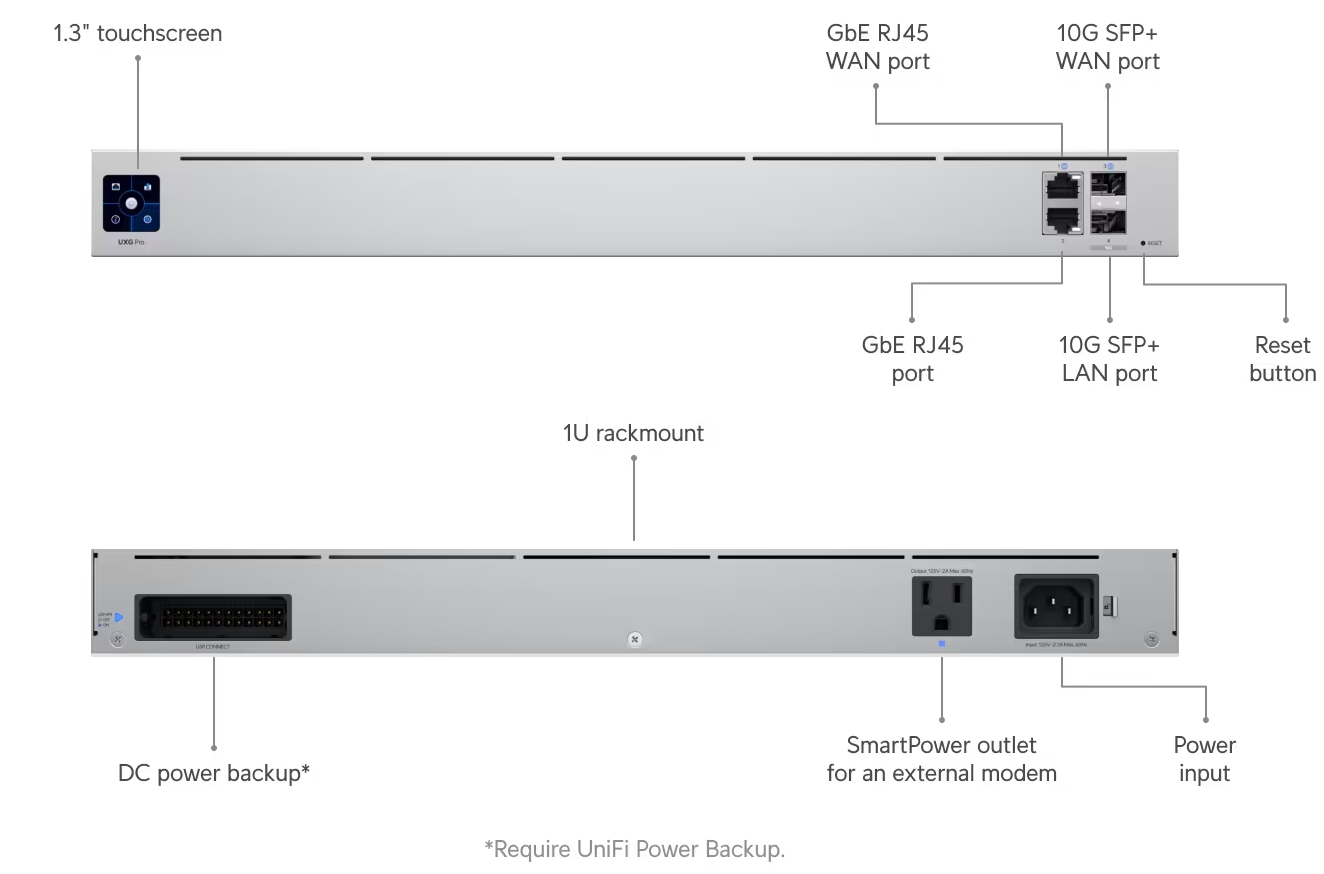

Port Layout
10G SFP+: 2 (10G/1G)
IDS/IPS Throughput: 3.5 Gbps
Form Factor: Rack mount (1U)
Redundancy: DC Power Backup
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 55,000+ With CyberSecure
License-Free SD-WAN: ✓
Site-to-Site VPN
Site Magic: ✓
IPsec: ✓
OpenVPN: ✓
VPN Server
Teleport Zero-Configuration VPN: ✓
WireGuard: ✓
OpenVPN: ✓
L2TP: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Multi-WAN Load Balancing: ✓
Dynamic Routing
OSPF: ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
Internet Quality and Outage Reporting: ✓
Max. Power Consumption: 30W
Power Method: US: (1) Universal AC input, 125V AC, 2.7A Max., 60 Hz (1) RPS DC input, 11.5V DC, 2.87A Worldwide: (1) Universal AC input, 200-240V AC, 1.7A Max., 50/60 Hz (1) RPS DC input, 11.5V DC, 2.87A
Power Supply: AC/DC, internal, 50W
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 2 GB
Weight: 3.4 kg (7.5
Enclosure Material
Front panel: Aluminum CNC Top cover/base: SGCC steel
LCM Display: 1.3" touchscreen
Management: Ethernet
LEDs
Ethernet: ✓
SFP+: ✓
RPS: ✓
AC Outlet: ✓
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Application Requirements
UniFi Network: Version 8.3.32 and later
Features
- Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 3.5+ Gbps routing with IDS/IPS
- (1) 10G SFP+* and (1) GbE WAN port
- (1) 10G SFP+* and (1) GbE LAN port
- UniFi Power Backup ready
