Ubiquiti | SKU:
UXG-Max
Ubiquiti UXG-Max Gateway Max
Regular price
$210.00
Unit price
/
Unavailable
Ubiquiti UXG-Max Gateway Max is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti UXG-Max Gateway Max
Regular price
$210.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Ubiquiti UXG-Max Gateway Max
Product Details
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
Specifications
Overview
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
5 (2.5G/1G/100M/10M)
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Compact desktop
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 55,000+ With CyberSecure
License-Free SD-WAN: ✓
Site-to-Site VPN
Site Magic: ✓
IPsec: ✓
OpenVPN: ✓
VPN Server
Teleport Zero-Configuration VPN: ✓
WireGuard: ✓
OpenVPN: ✓
L2TP: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Multi-WAN Load Balancing: ✓
Dynamic Routing
OSPF: ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
Internet Quality and Outage Reporting: ✓
MAC Address Table Size: 2,000
Max. Power Consumption: 9.6W
Power Method: USB type C (5V DC/3A)
Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 2 GB
Weight: 520 g (1.1 lb)
Enclosure Material: Polycarbonate
Management: Ethernet Bluetooth
LEDs
Ethernet: ✓
System: ✓
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Application Requirements
UniFi Network: Version 8.1.113 and later

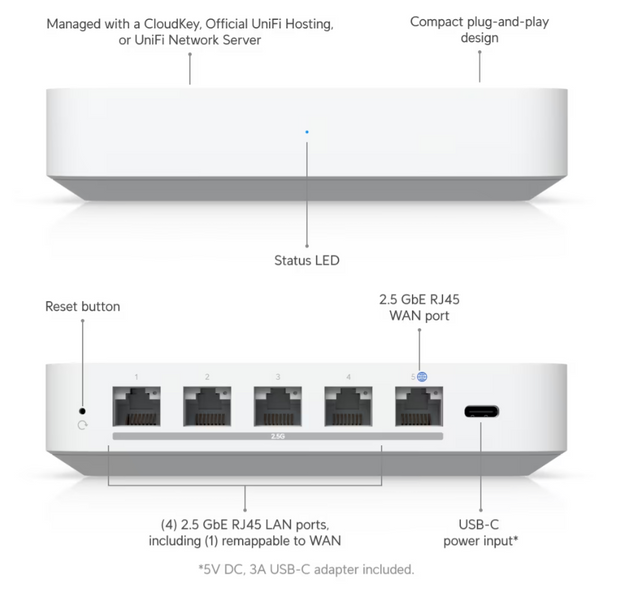

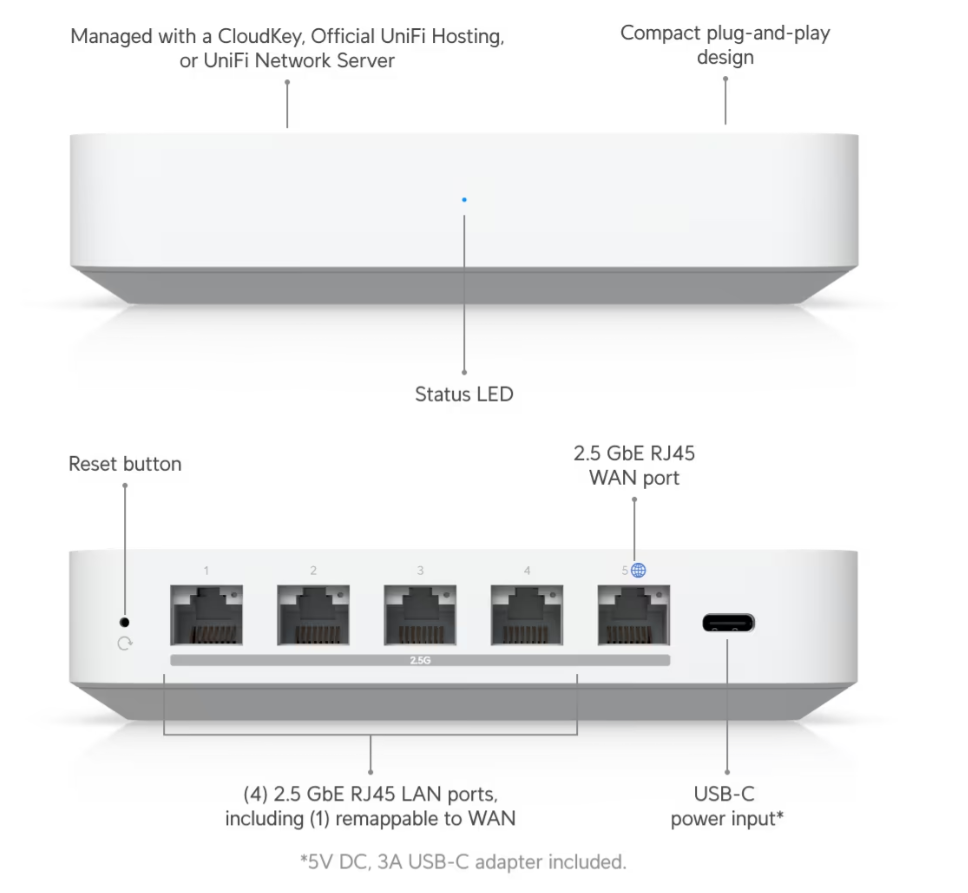

Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- Up to 2.3 Gbps routing with IDS/IPS
- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
- Managed with UniFi Network 8.1.113 and later
