Ubiquiti | SKU:
USW-Ultra-210W

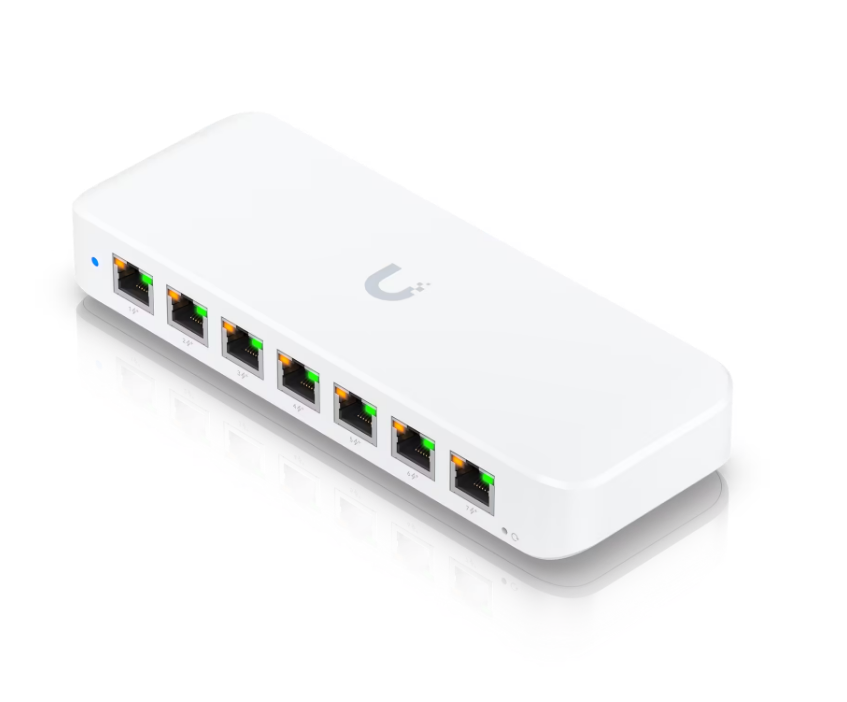

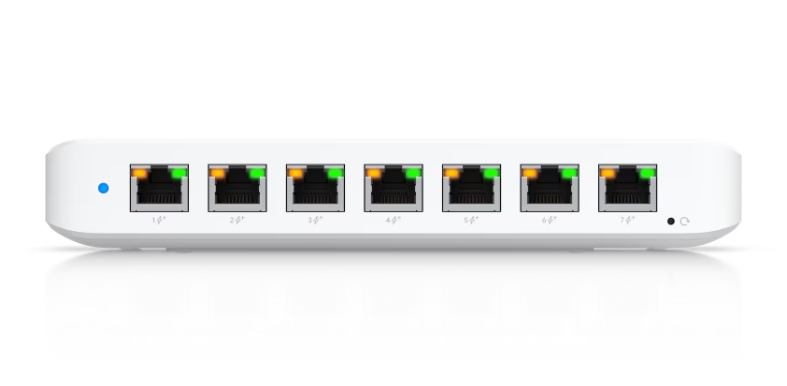

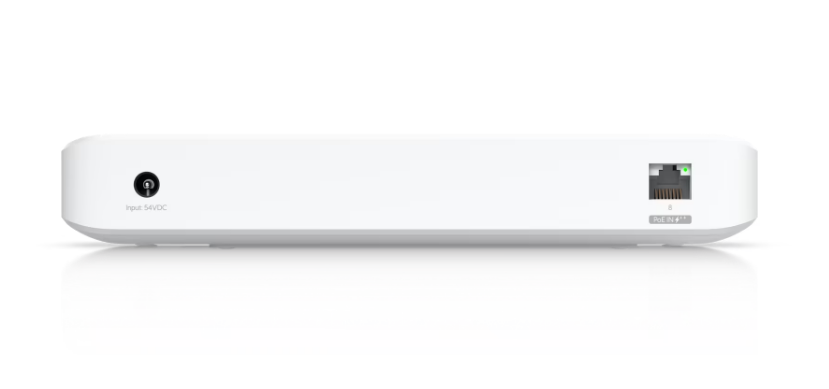

Ubiquiti USW-Ultra-210W Switch Ultra 210W
Regular price
$219.00
Unit price
/
Unavailable
Ubiquiti USW-Ultra-210W Switch Ultra 210W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti USW-Ultra-210W Switch Ultra 210W
Regular price
$219.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Ubiquiti USW-Ultra-210W Switch Ultra 210W
Product Details

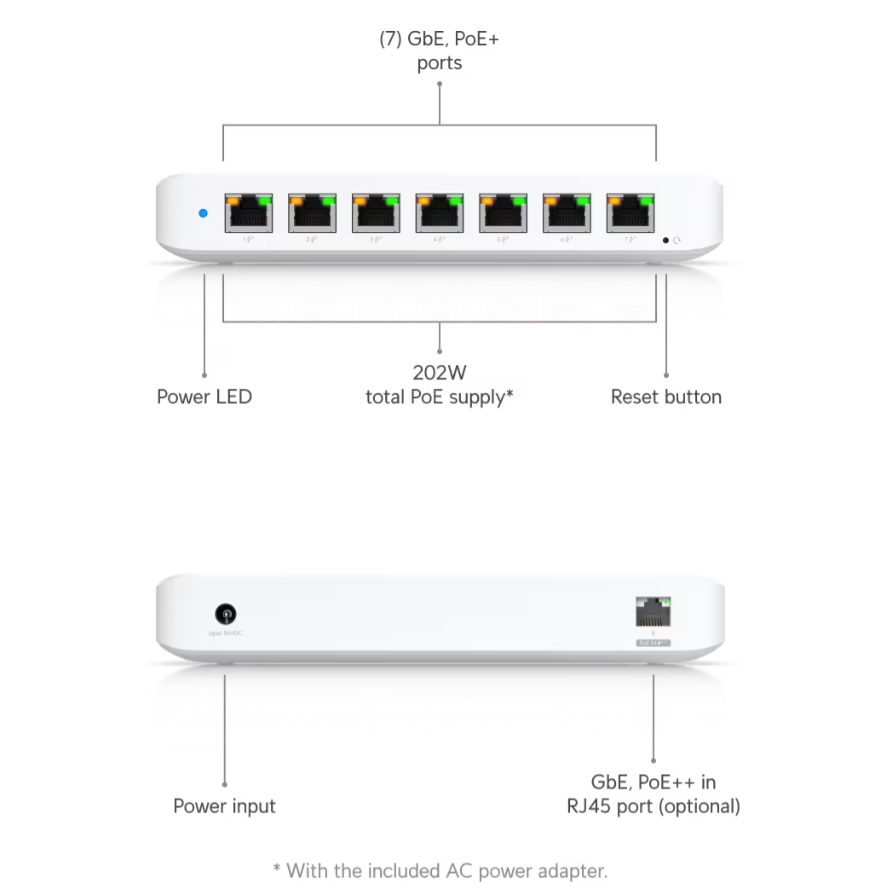

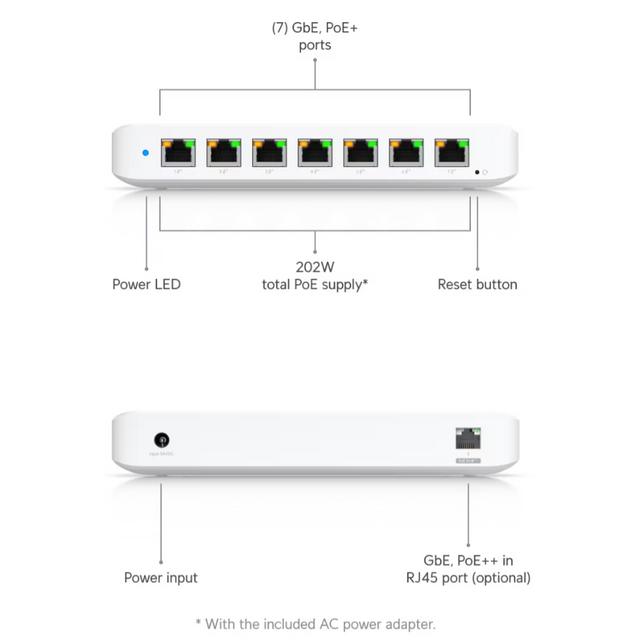

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input
- 202W PoE availability with the included AC power adapter
Specifications
Overview

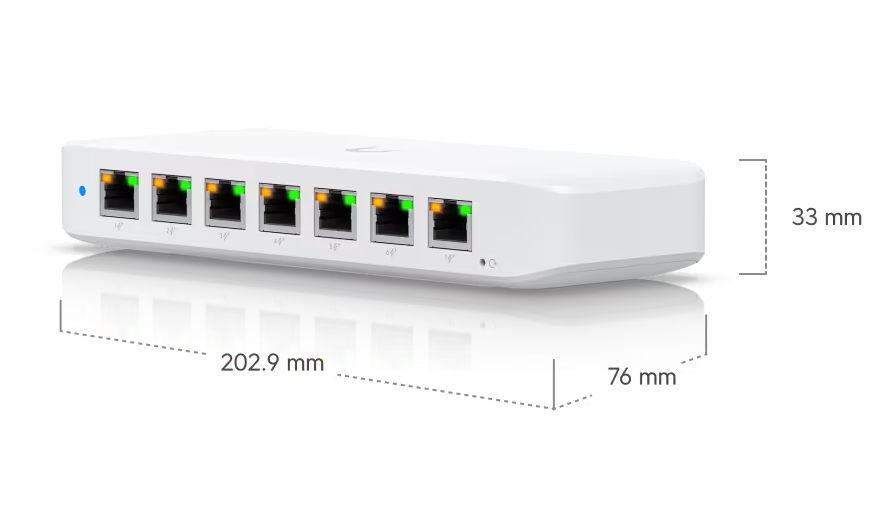

Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")
Port Layout: 1 GbE RJ45
8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE Output: Up to PoE+
Total PoE Availability: PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202
Form Factor: Compact desktop, wall, magnetic
Switching Capacity: 16 Gbps
Total Non-Blocking Throughput: 8 Gbps
Forwarding Rate: 12 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000
STP & RSTP: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
Loop Protection: ✓
PoE Ports
PoE+: 7
PoE++: 1
Max. PoE Wattage per Port by PSE
PoE+: 30W
Max. Power Consumption: 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input
Power Method: (1) AC/DC adapter (Included) (1) PoE++
Power Input Method: DC Input PoE
Power Supply: AC/DC, external, 210W
Supported Voltage Range: 50—57V DC/PoE
Management: Ethernet
Heat Dissipation (Excluding PoE Output): 30.708 BTU/hr 27.296 BTU/hr
Weight: Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 770 g (1.7 lb)
Enclosure Material: Polycarbonate
Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
Application Requirements
UniFi Network: Version 8.0.7 and later
