Ubiquiti USL-Gateway SuperLink Gateway

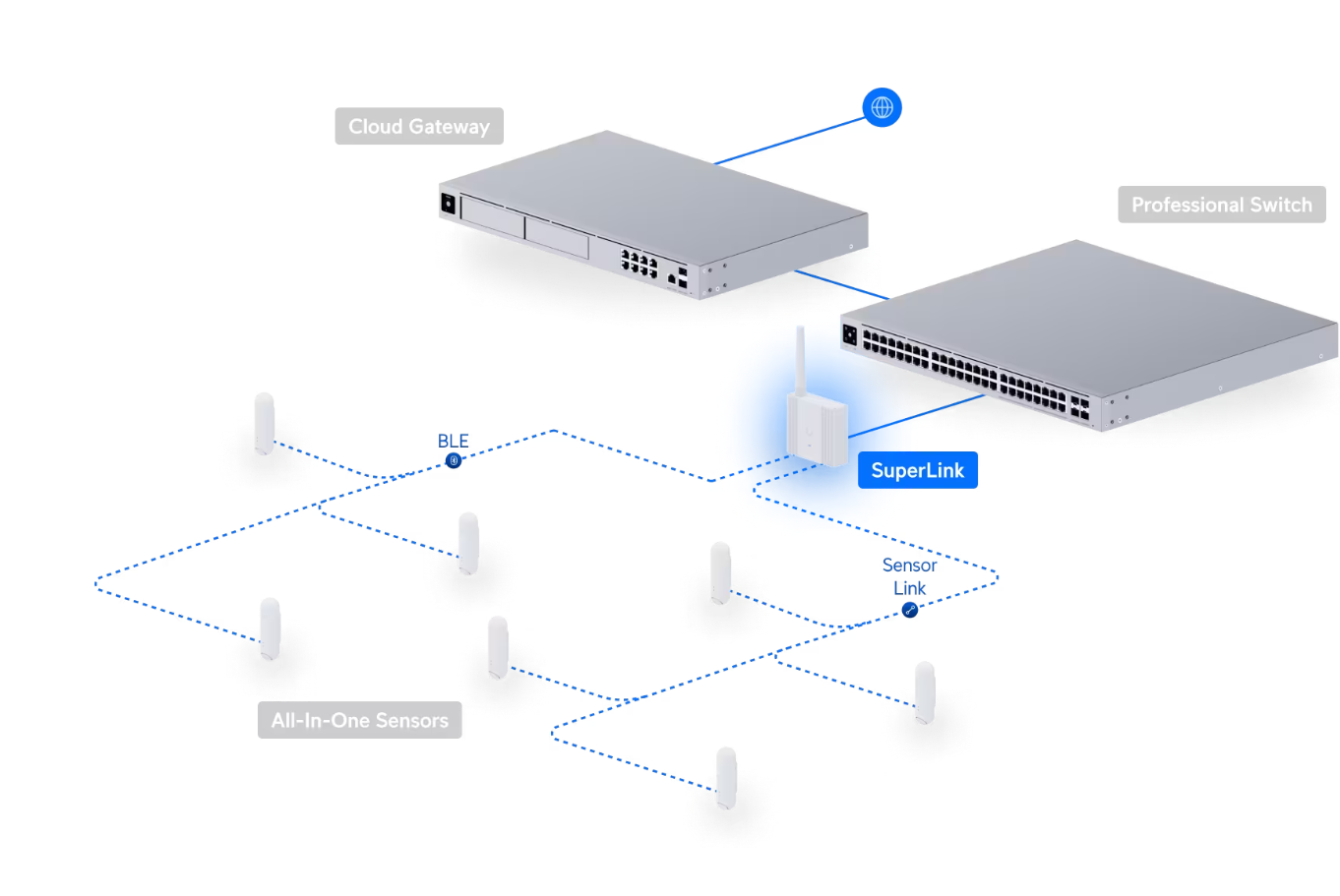

Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
Specifications:
| Category | Parameter | Details |
| Overview | Dimensions |

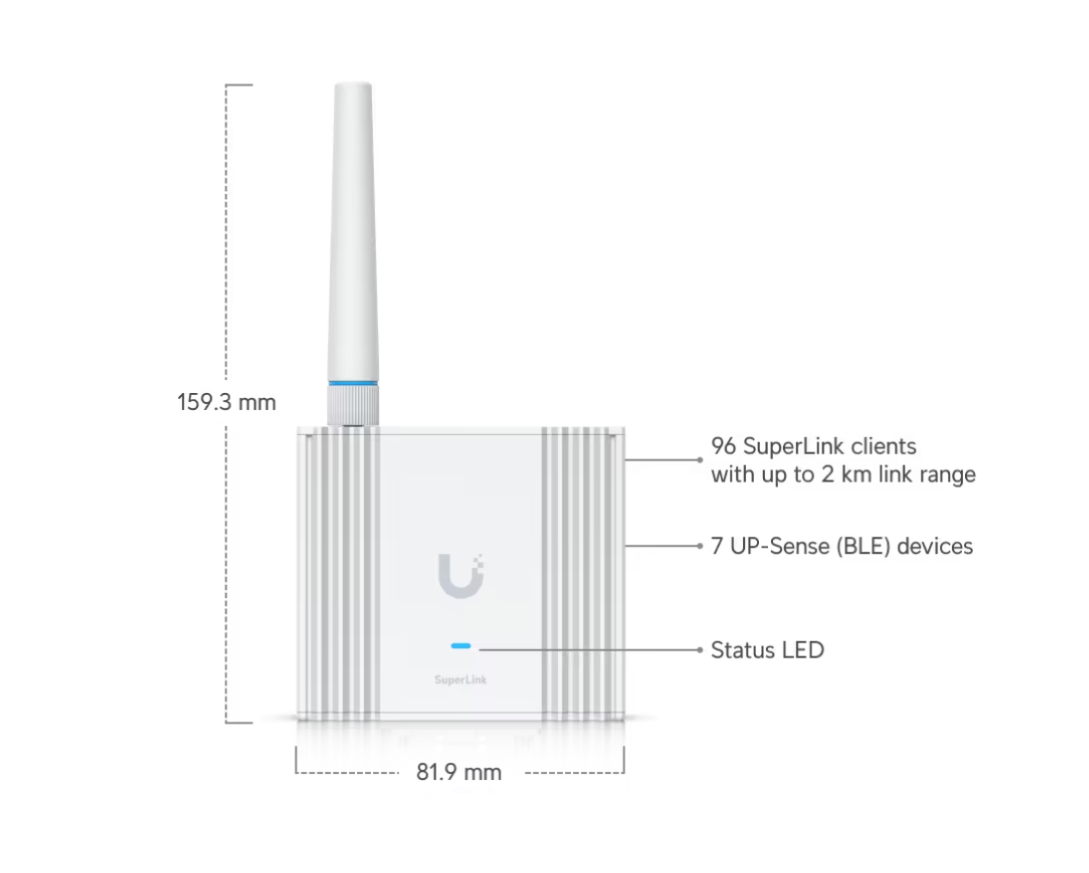

With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Weight | 179 g (6.3 oz) | |

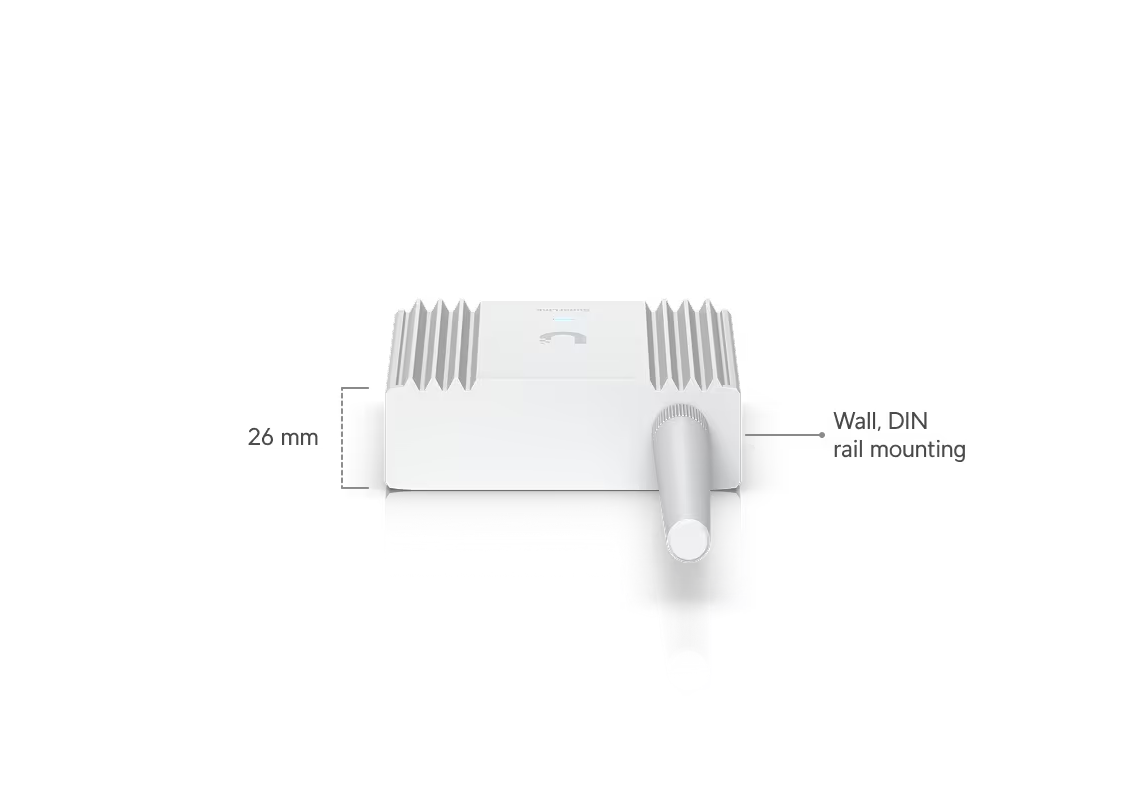

| Mounting | Wall and DIN rail mount | |
| Enclosure Material | Polycarbonate, aluminum alloy | |
| UniFi Application Suite | Protect | |

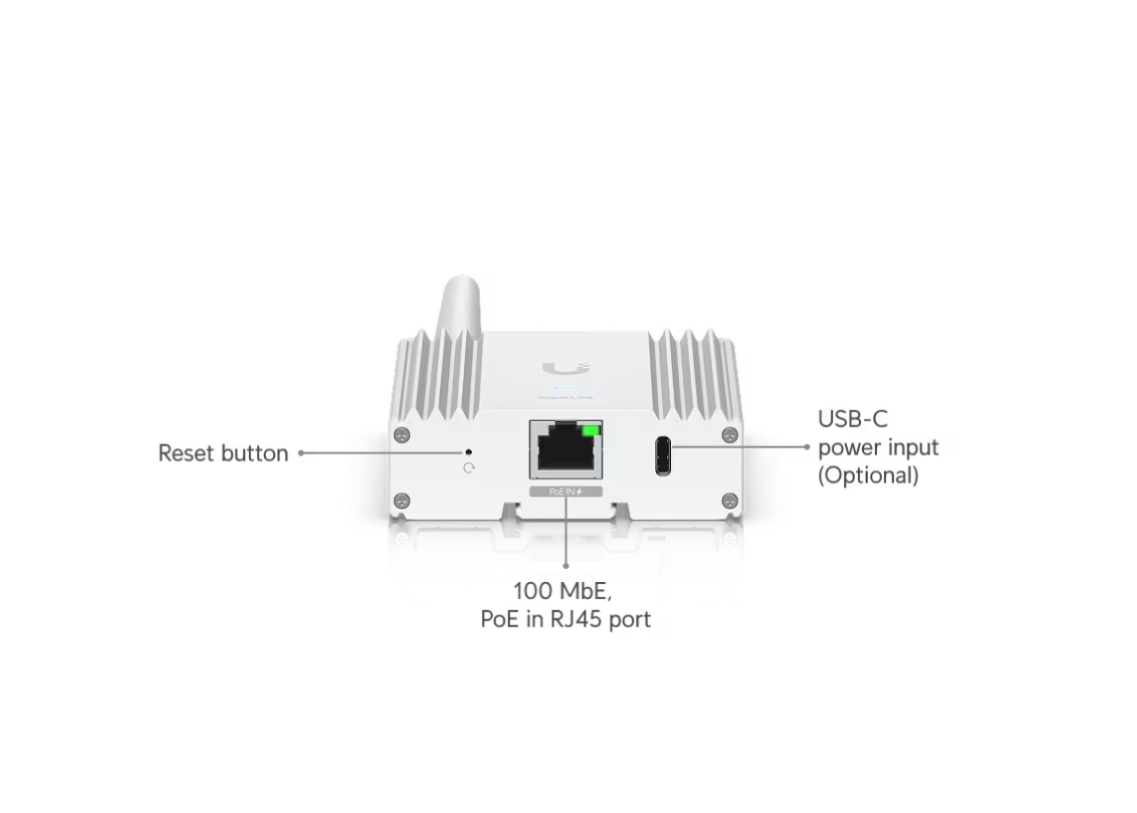

| Performance | Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth® 5.2, SuperLink (Proprietary) | |
| Bluetooth Range | Up to 100 m (328 ft) | |
| SuperLink Range | 2 km (1.2 mi) | |
| Max. Client Count | Bluetooth: 7 / SuperLink: 96 | |
| RF Specs | Operating Frequency |
Bluetooth: 2400–2480 MHz SuperLink: US: 915.6–927.6 MHz; EU: 865.1–869.5 MHz |
| Antenna Gain | Bluetooth: 3 dBi / SuperLink: 2 dBi | |
| Max. TX Power | Bluetooth: 10 dBm / SuperLink: 27 dBm | |
| Hardware | Power Method | PoE; USB Type-C, 5V, 1A (Optional) |
| Max. Power Consumption | 3.4W | |
| Buttons/LEDs | (1) Factory reset; (1) Status LED: B/W | |
| Operating Temp. | 0 to 40° C (32 to 104° F) | |
| Operating Humidity | 10 to 90% noncondensing | |
| Compliance | Certifications | CE, FCC, IC |
| NDAA Compliant | Yes | |
| Software | Application Req. |
Web: UniFi Protect Mobile: UniFi Protect iOS™ and Android™ |
