Ubiquiti  |  SKU: UPL-Amp-B-US

Ubiquiti UPL-Amp UniFi PowerAmp

Regular price $599.00

Color

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

Ubiquiti UPL-Amp UniFi PowerAmp

Product Details

Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.

Specifications

Mechanical
Dimensions: With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight: 2.4 kg (5.3 lb)
Enclosure Material: Chassis: Polycarbonate Knob: Aluminum
Mounting: Compact Desktop
Available Colors: Black White

Audio
Per Channel Power (Continuous power): 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
Amplifier Class: Class D
Output: Mono / Stereo sound
Surround Format
Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Zone: Up to 32 PowerAmps

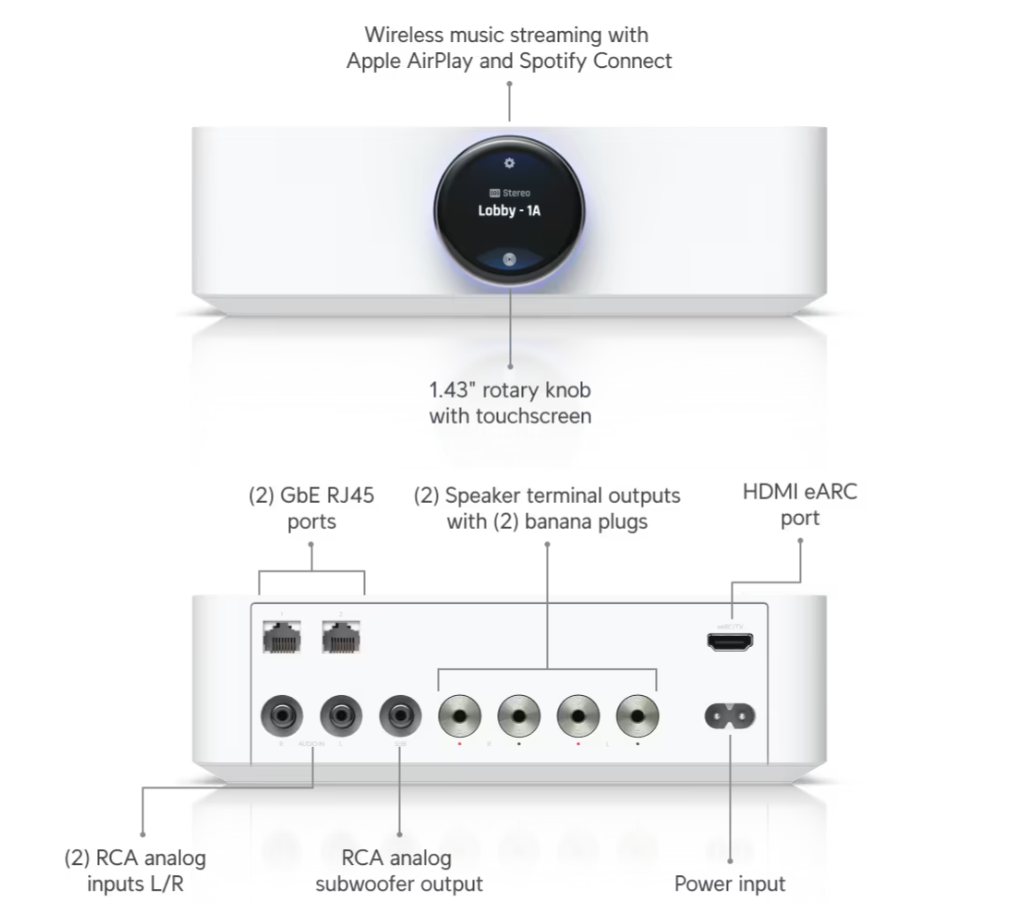

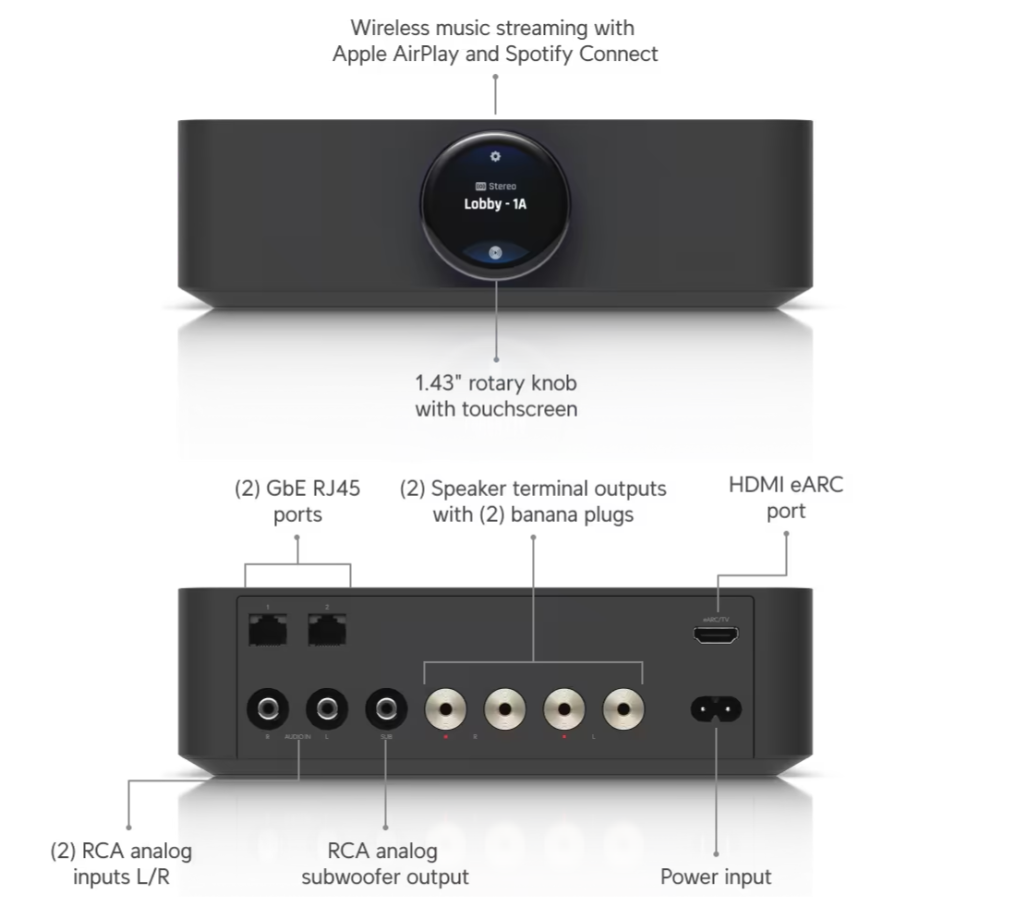

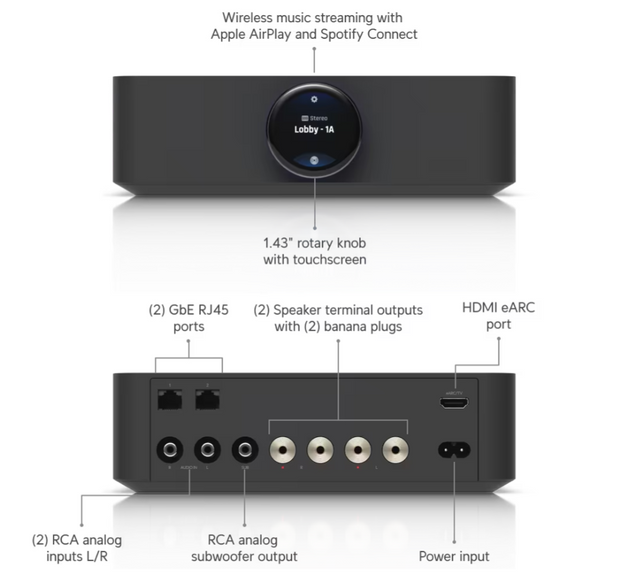

Audio Input: (1) HDMI eARC input (2) RCA analog inputs L/R
Audio Output: (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs
Streaming: AirPlay, Spotify Connect, Soundtrack Your Brand

Hardware
Networking Interface: (2) GbE RJ45 ports
WiFi Standards: 802.11 a/b/g/n/ac
Connectivity: WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz
Power Method: (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
Max. Power Consumption: 17W
LCM Display: 1.43" rotary knob with touchscreen
Button: (1) Factory-reset
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 5 to 90% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, CE

Software
UniFi Application Suite
Play: UniFi Play iOS™ and Android™: Version 1.0.0 and later

Features

  • Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
  • 130 watts per channel at 8 ohms
  • (2) speaker terminal outputs with (2) custom-designed banana plugs included
  • (1) RCA analog subwoofer output
  • (2) RCA analog inputs for left and right channels
