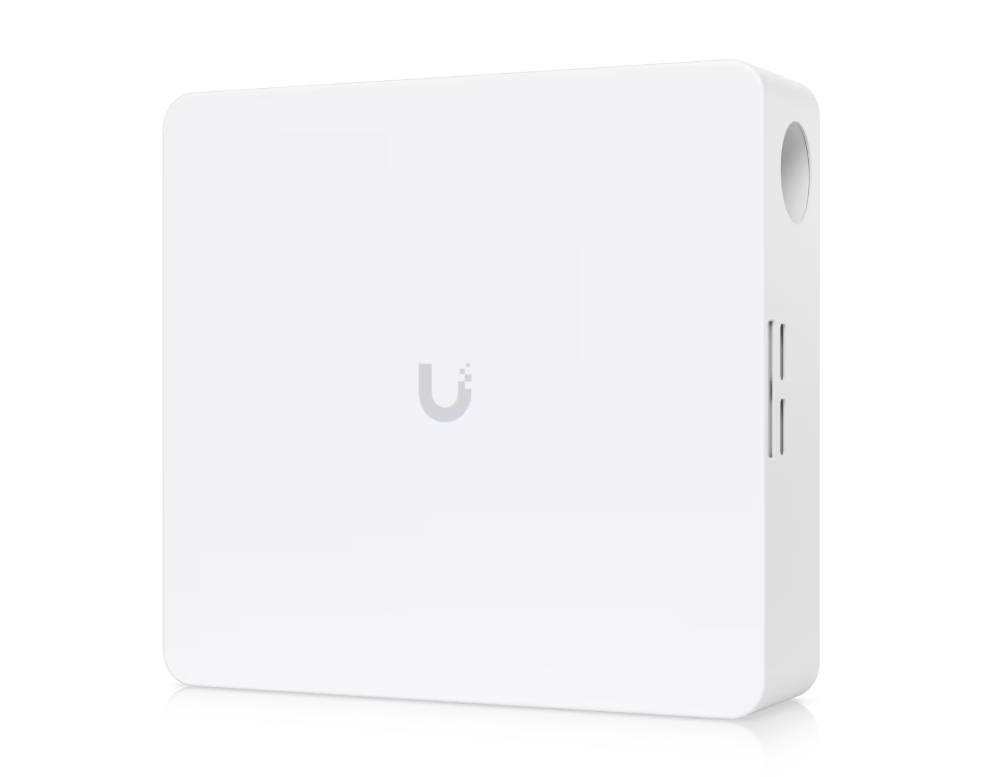

Ubiquiti UP-AlarmHub Alarm Hub Kit

Name: Ubiquiti UP-AlarmHub Alarm Hub Kit
Brand: Ubiquiti
SKU: UP-AlarmHub
Price: 399.00 USD
Availability: InStock

$399.00

Ubiquiti UP-AlarmHub Alarm Hub Kit is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Ubiquiti UP-AlarmHub Alarm Hub Kit

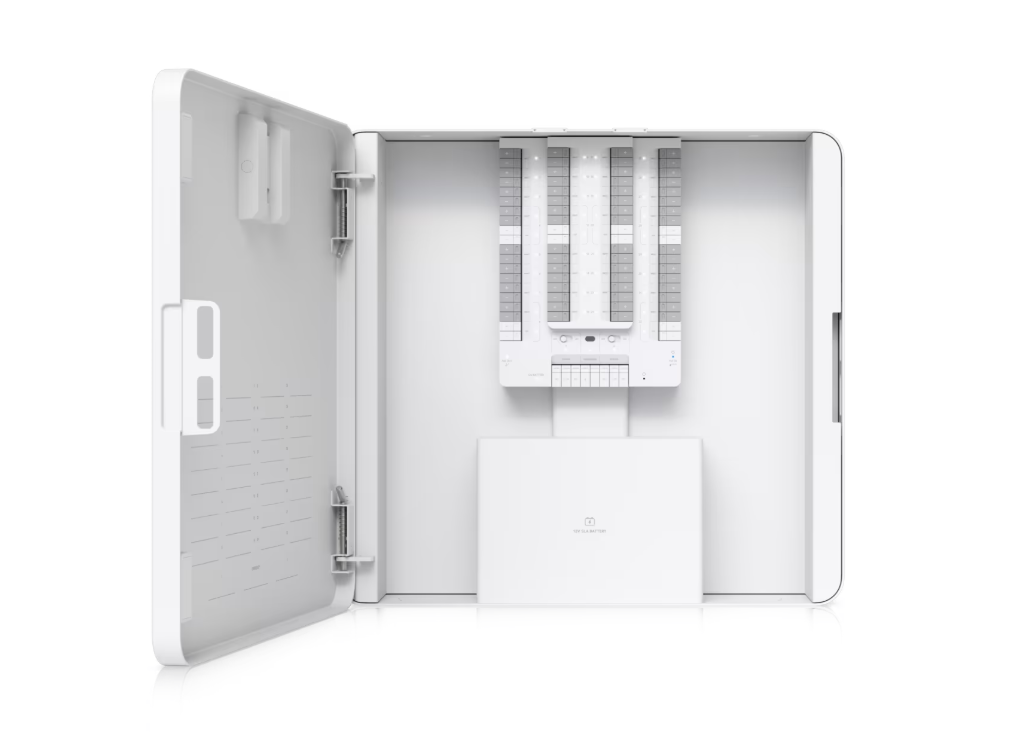

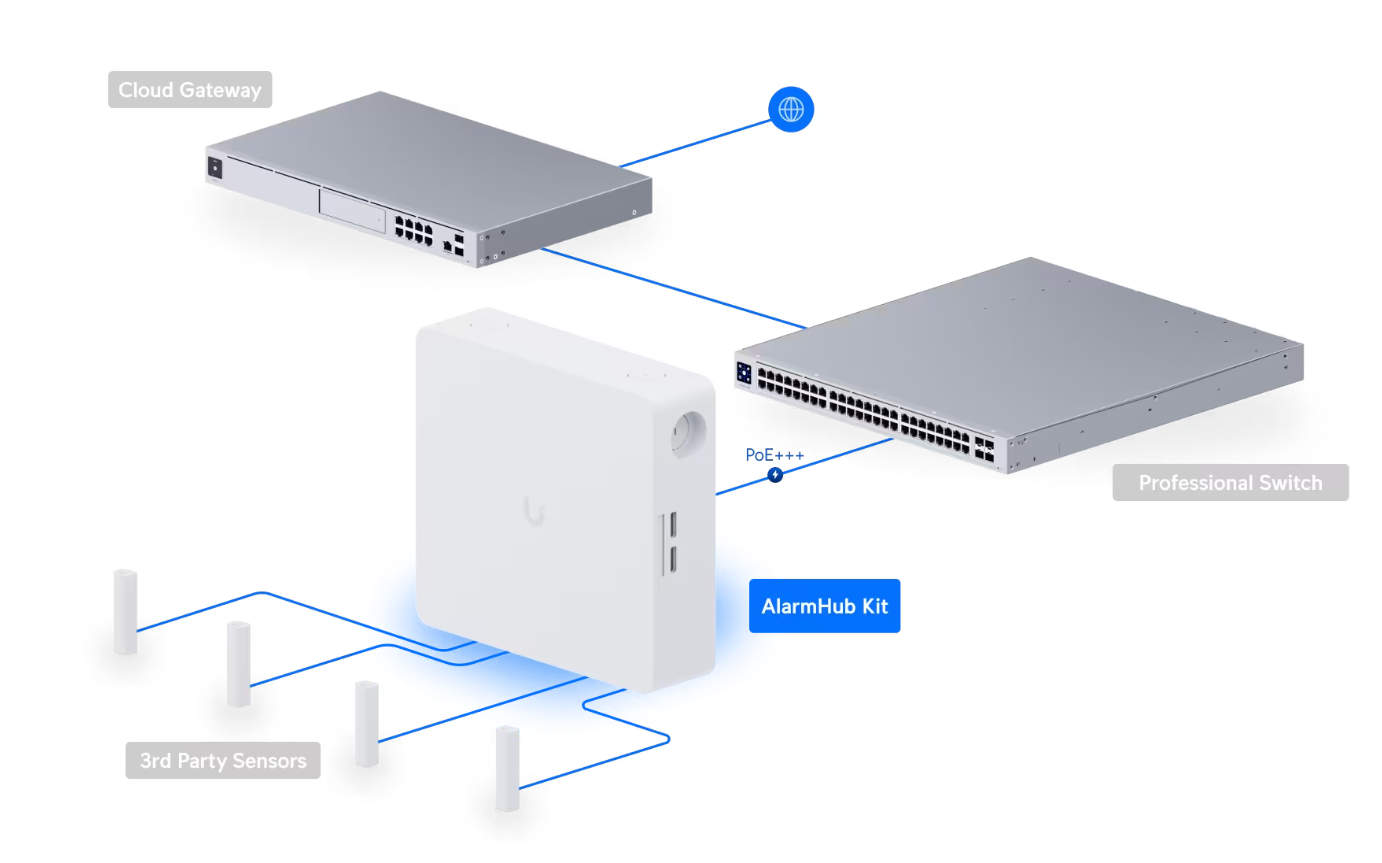

32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.

Category	Parameter	Details

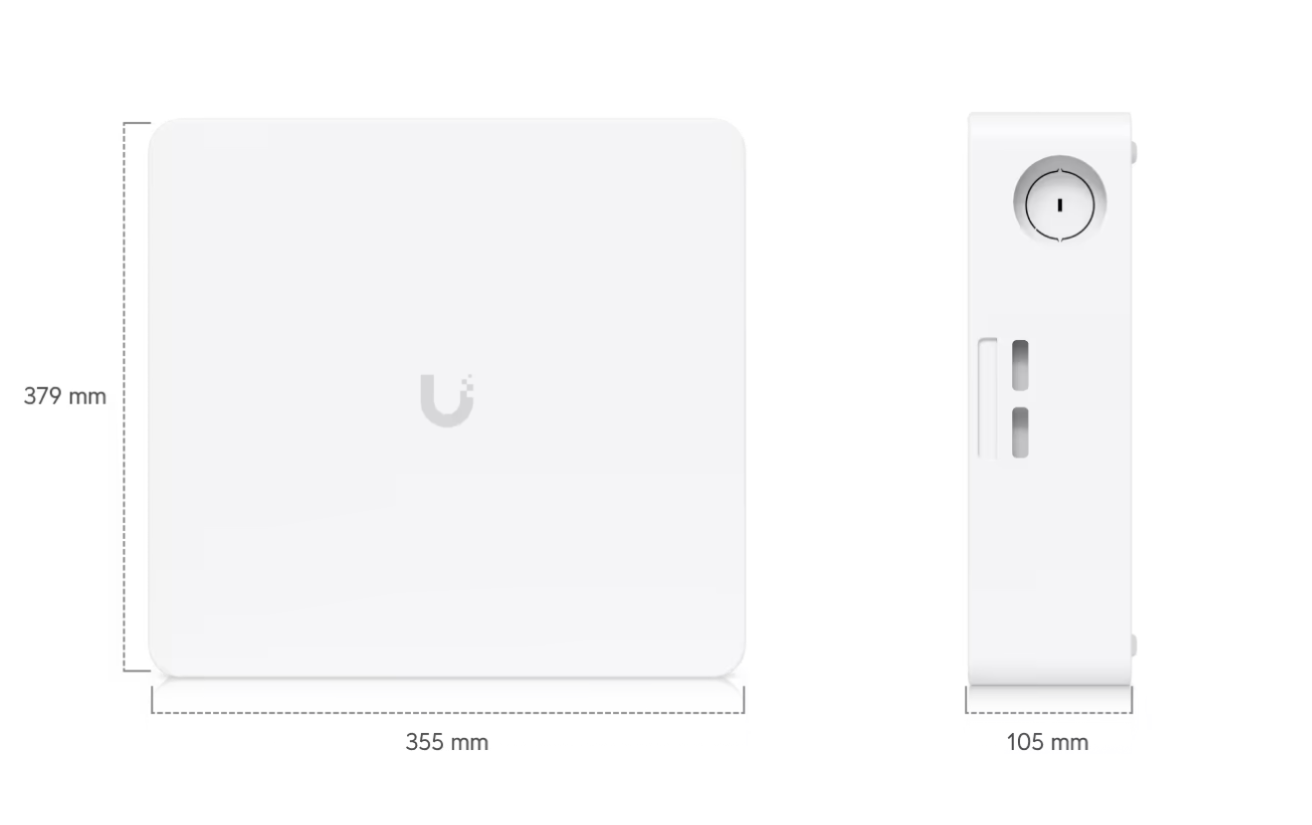

Overview	Dimensions	379 x 355 x 105 mm (15 x 14 x 4.1")
	Weight	Device: 8.3 kg (18.3 lb) / Mount: 624 g (1.4 lb)
	Input Terminals	(32) Alarm sensor, (1) Emergency
	Enclosure Material	SGCC steel housing with polycarbonate cover
	NDAA Compliant	Yes
Power	Power Method	PoE++/PoE+++ or 12V SLA battery
	Power Availability	PoE+++ input: 68W / PoE++ input: 42W
	Max. Consumption	90W
	Battery Charge	SLA backup battery, 12V, 0.3A

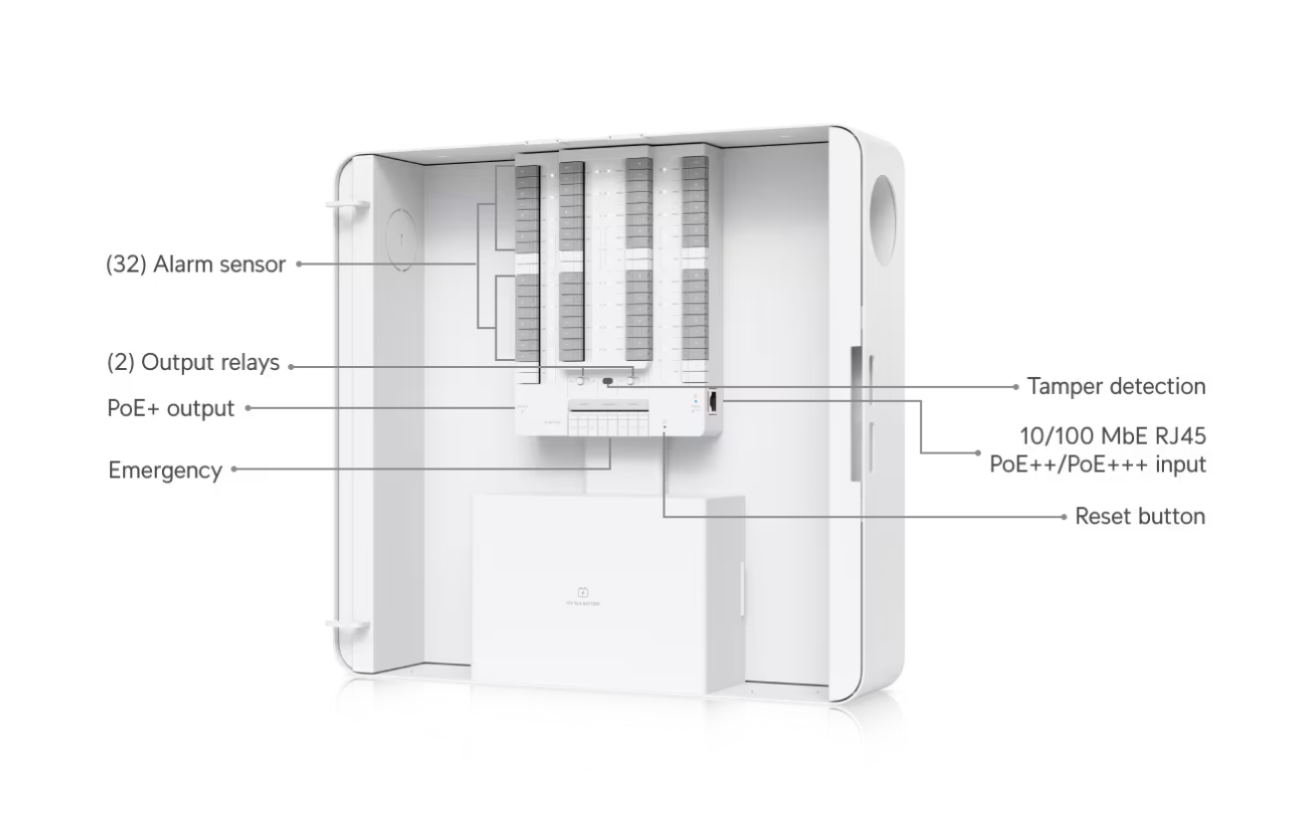

Hardware	Networking	(1) 10/100 MbE RJ45 port
	PoE Interface	(1) PoE++/PoE+++ input (60W/90W) (1) PoE+ output (30W)
	Digital Input	(32) Alarm sensor inputs (EOL compatible: 1–5.6kΩ) (1) Emergency input
	Output Relay	(2) Wet/Dry (Wet: 12V DC, 1A; Dry: 30V DC, 1A)
	Aux Power Output	(3) 12V DC, 1A (Left total); (3) 12V DC, 1A (Right total)
	Buttons/LEDs	(1) Reset; (2) Dry/Wet switches; White/Blue LED
Environment	Mounting	Wall mount (Indoor only)
	Operating Temp.	-10 to 40° C (14 to 104° F)
	Operating Humidity	5 to 95% noncondensing
Software	UniFi Protect	Version 7.0.88 and later
	Mobile Apps	iOS: Version 3.3.0+ / Android: Version 3.2.0+
Compliance	Certifications	CE, FCC, IC
