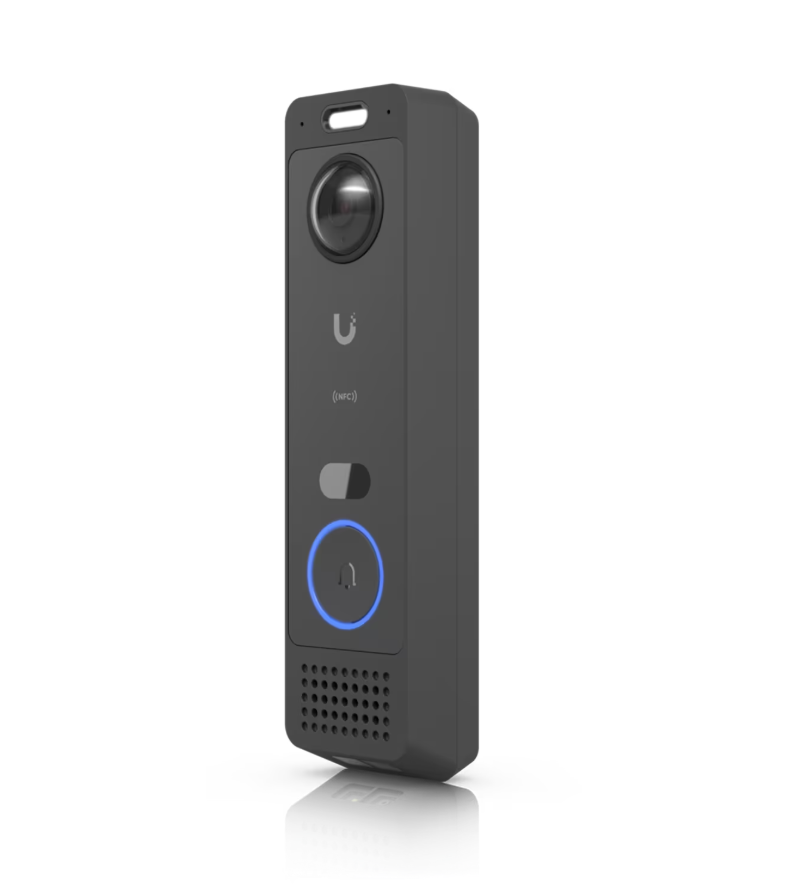

Ubiquiti UniFi Video Camera G6 Entry

Ubiquiti UniFi Video Camera G6 Entry

An intelligent door entry system with native UniFi Protect and UniFi Access integration.

Technical Specifications

Physical & Mechanical

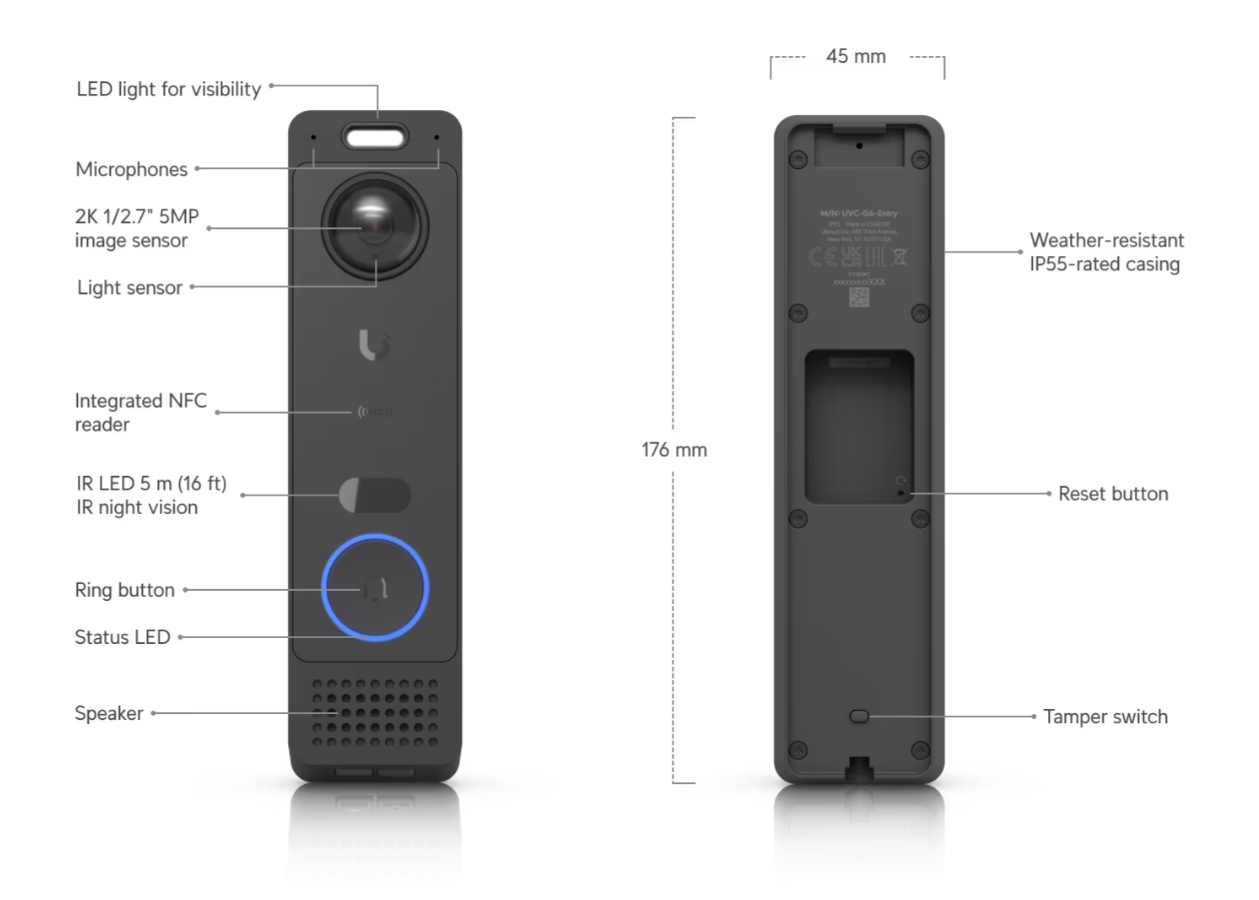

• Dimensions: 176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2")

• Weight: 275 g (9.7 oz)

• Enclosure Material: Aluminum

• Mounting: Wall mount, Gangbox mount plate, 20° wedge mount (Included); Junction box (Optional)

• Mounting Materials: * Wall/Wedge mount: Aluminum/Stainless steel

  • Gangbox plate: SGCC steel

  • Gangbox cover: Polycarbonate

• Weatherproofing: IP55

• Tamper Resistance: IK07

Video & Optics

• Main Camera: 5MP CMOS Sensor (1920 x 2560, 3:4)

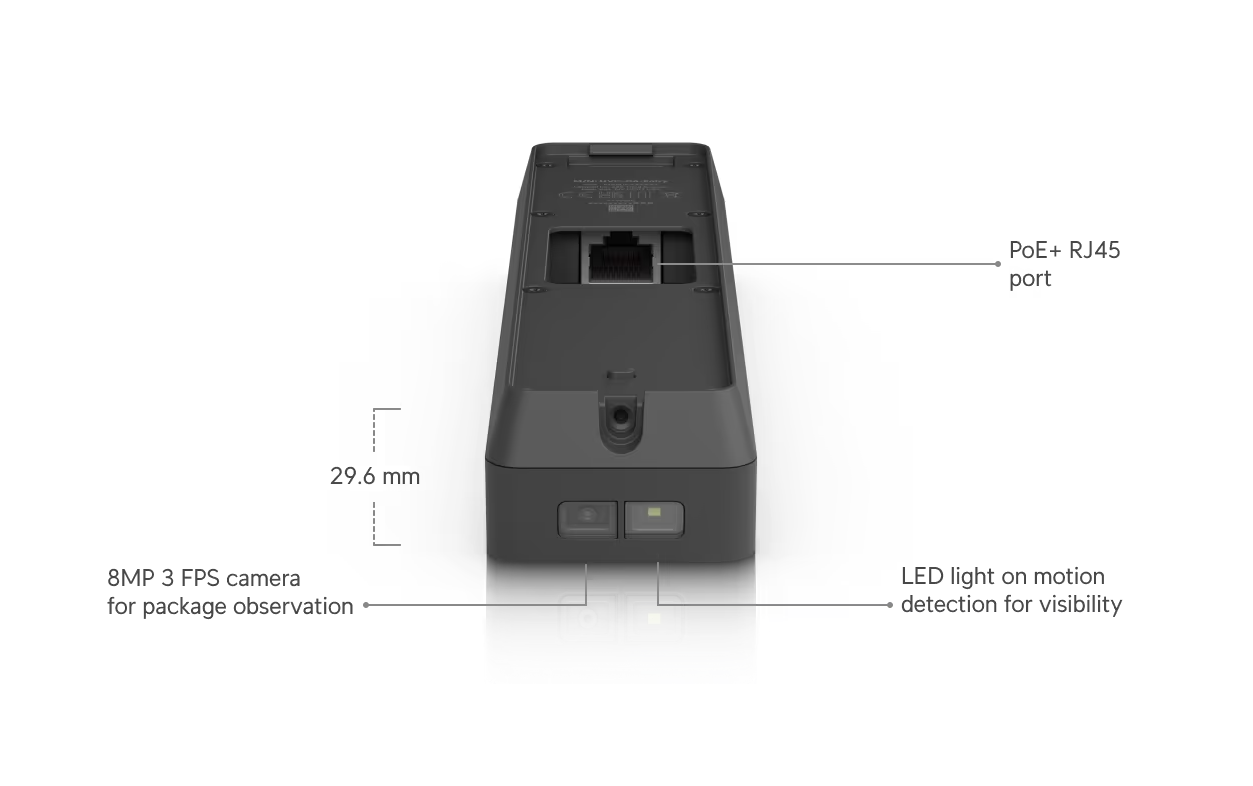

• Package Camera: 8MP CMOS Sensor (3264 x 2448, 4:3)

• Max Frame Rate: 30 FPS (Main) / 3 FPS (Package)

• Field of View (Main): H: 100°, V: 135°, D: 180°

• Field of View (Package): H: 66°, V: 51.7°, D: 78°

• Night Vision: IR LED illumination with IR cut filter (5 m / 16 ft range)

• Image Settings: HDR, Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay.

Hardware & Connectivity

• Processor: Quad-core Arm® Cortex®-A53

• Networking Interface: GbE RJ45 port

• Connectivity: BLE 4.1, NFC

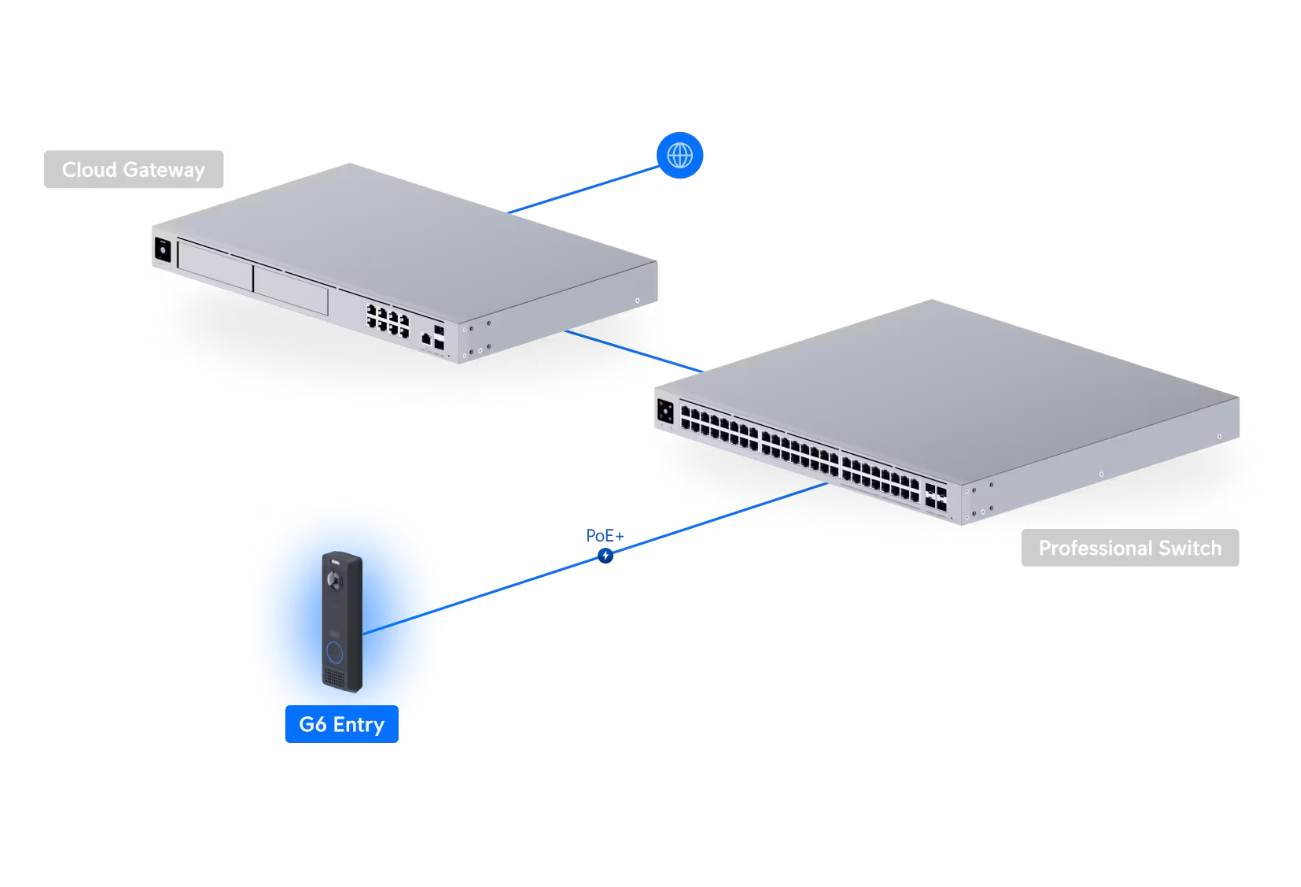

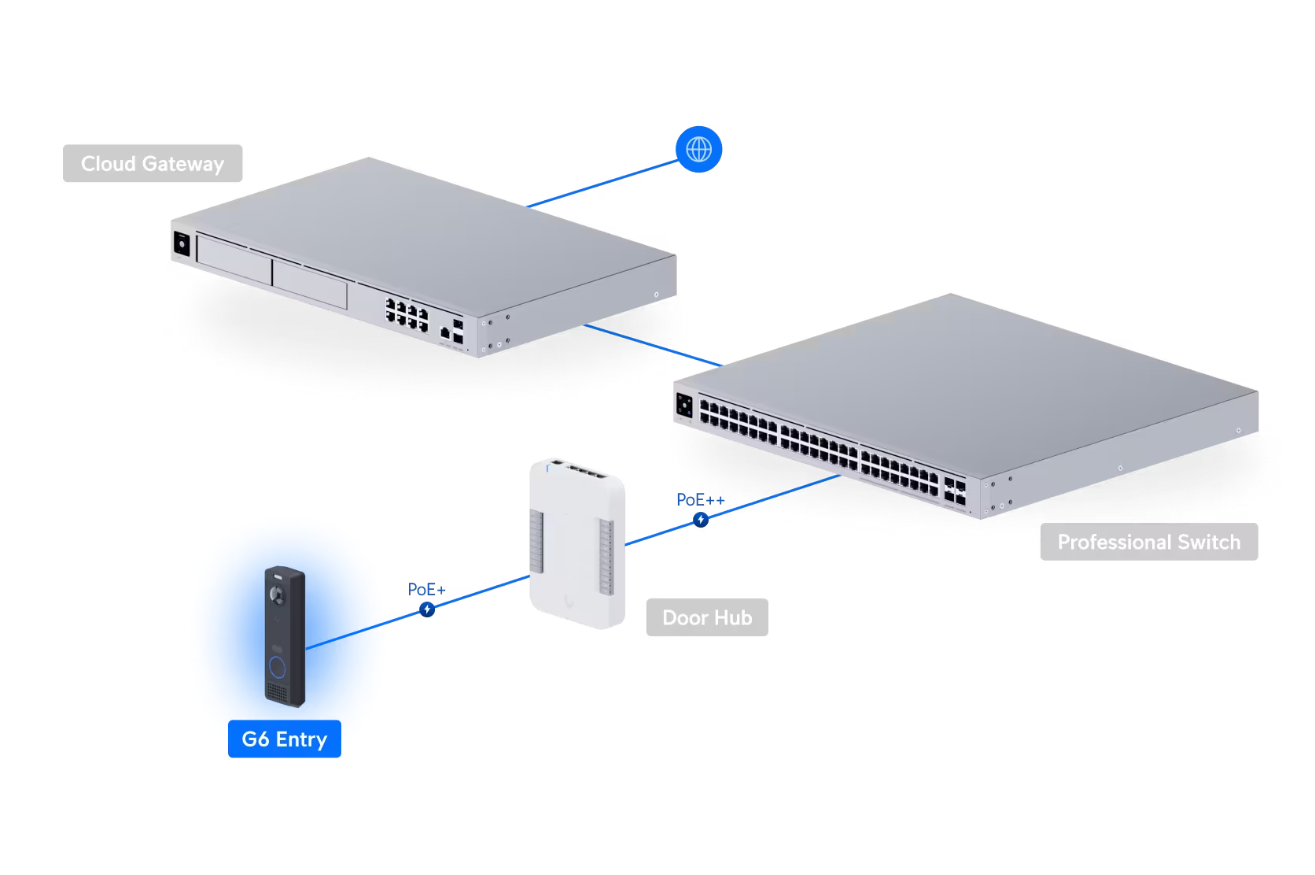

• Power Method: PoE+

• Supported Voltage Range: 42—57V DC

• Max. Power Consumption: 16W

• LEDs: R/G/B/W

Features & Access Control

• Access Methods: NFC Card, Keyfob, Apple/Google Wallet, Mobile Unlock

• Audio: Two-way intercom with integrated doorbell access

• Smart Detections: People, Vehicles, Animals

• Security: Face Recognition, NDAA Compliant

• Software Support: UniFi Protect, UniFi Access

Environmental & Certifications

• Operating Temperature: -30 to 50° C (-22 to 122° F)

• Operating Humidity: 5 to 90% noncondensing

• Certifications: CE, FCC, IC
