Ubiquiti  |  SKU: UMR-Industrial-US

Ubiquiti UMR-Industrial Mobile Router Industrial

$199.00

Ubiquiti UMR-Industrial Mobile Router Industrial is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

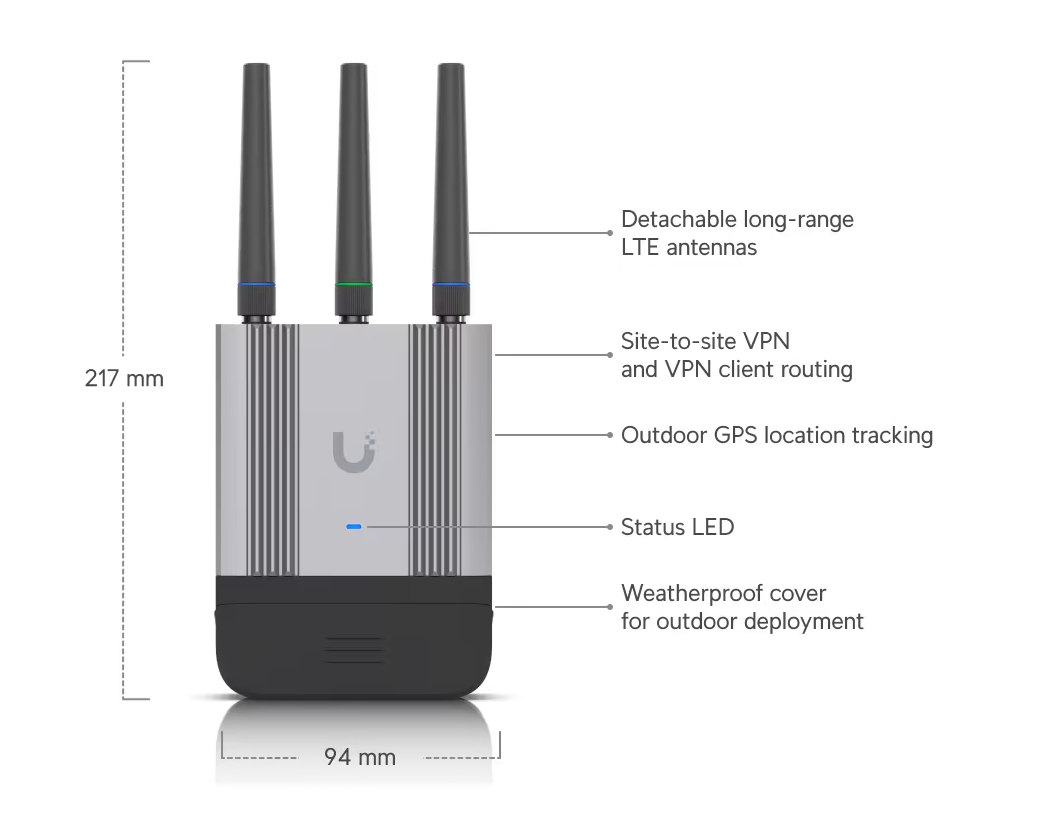

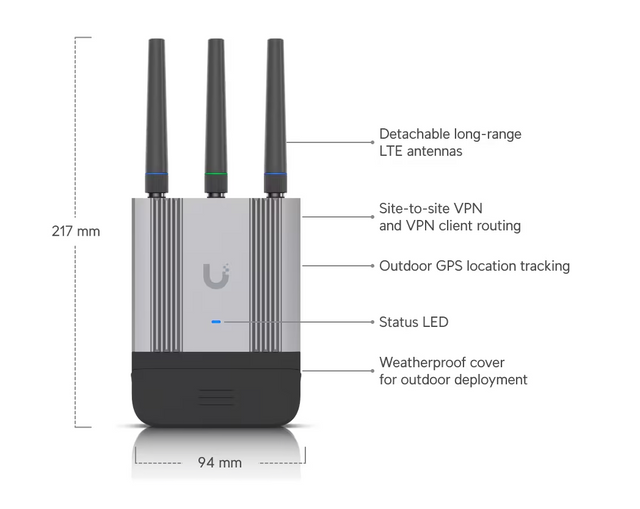

Ubiquiti UMR-Industrial Mobile Router Industrial

Product Details

Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

Specifications

Overview
Dimensions: Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3") With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3") With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Networking Interface: (2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM: Nano SIM
LTE Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
PoE Interface: (1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch)
Mounting: DIN rail, Wall, Pole (Mounts Included)
Weatherproofing: IP66

Mechanical
Weight: Device: 360 g (12.7 oz) Device with outdoor cover: 395 g (13.9 oz) DIN rail/wall mounts: 25 g (0.9 oz)
Enclosure Material: Polycarbonate, aluminum
Mount Material: Wall, Pole, DIN Rail Mount: Polycarbonate
Pole Mount Diameter: 1–2" on pipe outer diameter
Wind Loading: 38.8 N at 200 km/h (8.7 lbf at 125 mph)

Features
WAN
Priority & Fallback: ✓
Cellular: ✓
WiFi: ✓
Ethernet: ✓
LTE Passthrough mode: ✓
Ethernet Bridge Mode: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Site-to-Site VPN
IPsec: ✓
WireGuard: ✓
WiFi Standard: WiFi 4
Port Forwarding: ✓
Firewall: ✓
Static Routes: ✓

Networking
Supported Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)

Hardware
Management: Ethernet WiFi
LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
GPS: ✓
Antennas
Ports: (1) Mobile 1: SMA female (1Tx/1Rx) (1) Mobile 2: SMA female (1Rx) (1) GPS: SMA female (2) WiFi: RP-SMA female
Type: (2) External LTE antenna (2) External WiFi (1) External GPS
Max. TX Power: 22 dBm
WiFi MIMO: 2 x 2
Max. Power Consumption: 12.5W
Power Method: PoE+ (48—54V DC) USB Type-C (5V DC) 4-pin ATX DC (9—30V DC)
Power Supply: USB Type-C, 5V DC, 3A (Adapter included)
Buttons: (1) Factory-reset
Ambient Operating Temperature: -40 to 70° C (-40 to 158° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

Features

  • Site-to-site VPN and VPN client routing
  • (2) GbE ports with (1) PoE output
  • Powered using PoE, USB Type-C, or 4-pin DC power socket
  • Outdoor GPS location tracking
  • Flexible wall, pole, and DIN rail mounting
