Ubiquiti  |  SKU: UC-EV-Station-Lite

Ubiquiti UC-EV-Station-Lite EV Charging Station Lite

Regular price $499.00

Ubiquiti UC-EV-Station-Lite EV Charging Station Lite is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

Ubiquiti UC-EV-Station-Lite EV Charging Station Lite

Product Details

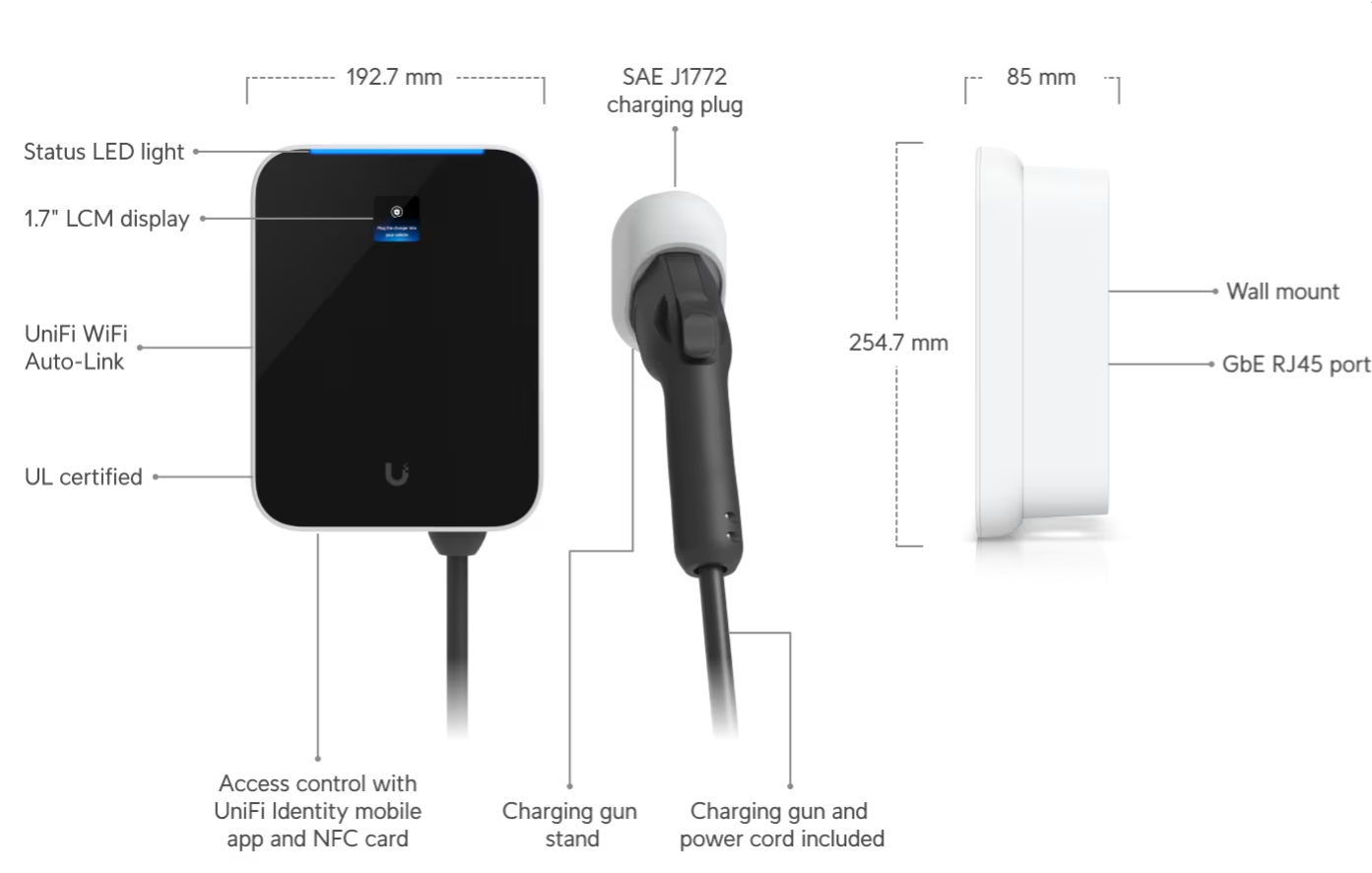

Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.

Specifications

Overview
Dimensions: 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”)
Mounting: Wall Mount or Stand
Power Input: 200–240V ~ 50A, 50/60Hz, 1φ
Power Output: 200–240V ~ 50A, 50/60Hz, 1φ
Weatherproofing: Type 3R

Mechanical
Weight: 5.9 kg (13 lb)
Enclosure Material: Polycarbonate
Charging Cable Length: 7 m (23 ft)

Hardware
Display
Size: 1.7" LCM display
Resolution: 240 x 240 (1:1)
Processor: Dual-core Arm® Cortex®-A53, 1 GHz
Connectivity: (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi

Circuit Rating
Max. load: 70A: 50A 60A: 48A 50A: 40A 40A: 32A 30A: 24A 20A: 16A
Plug-in: 70A: No 60A: No 50A: Yes 40A: Yes 30A: Yes 20A: Yes
Hardwired: 70A: Yes 60A: Yes 50A: Yes 40A: Yes 30A: Yes 20A: Yes
Ambient Operating Humidity: 5 to 90% noncondensing
Ambient Operating Temperature: -40 to 50° C (-40 to 122° F)
NDAA Compliant: ✓
Certifications: FCC, IC, UL

Software
Management Application: UniFi Connect: Version 3.14.4 and later. UniFi Connect iOS™ and Android™: Version 2.18 and later.

Features

  • 11 kW max charging output with SAE J1772 charging plug
  • 1.7 LCM display
  • Access control with UniFi Identity mobile app and NFC card
  • Connected with UniFi WiFi Auto-Link or Ethernet
  • UL certified
