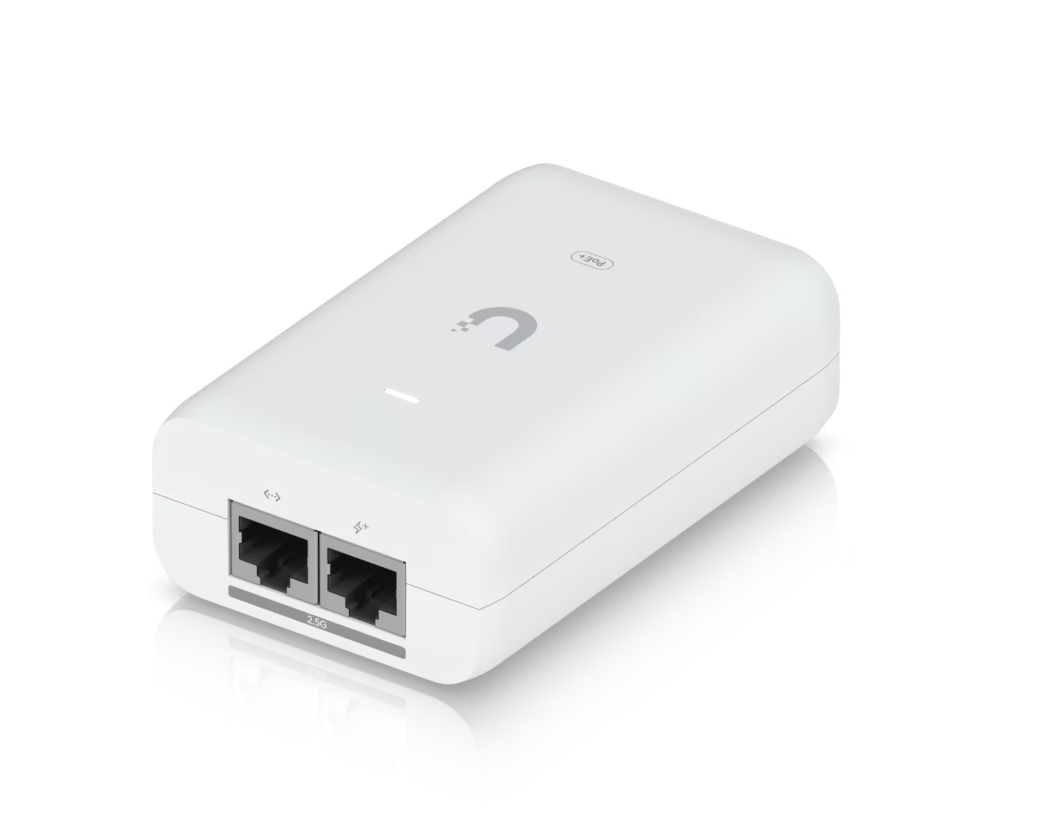

Ubiquiti UACC-PoE+-2.5G 2.5G PoE+ Adapter (30W)
Product Details
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Features
- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection

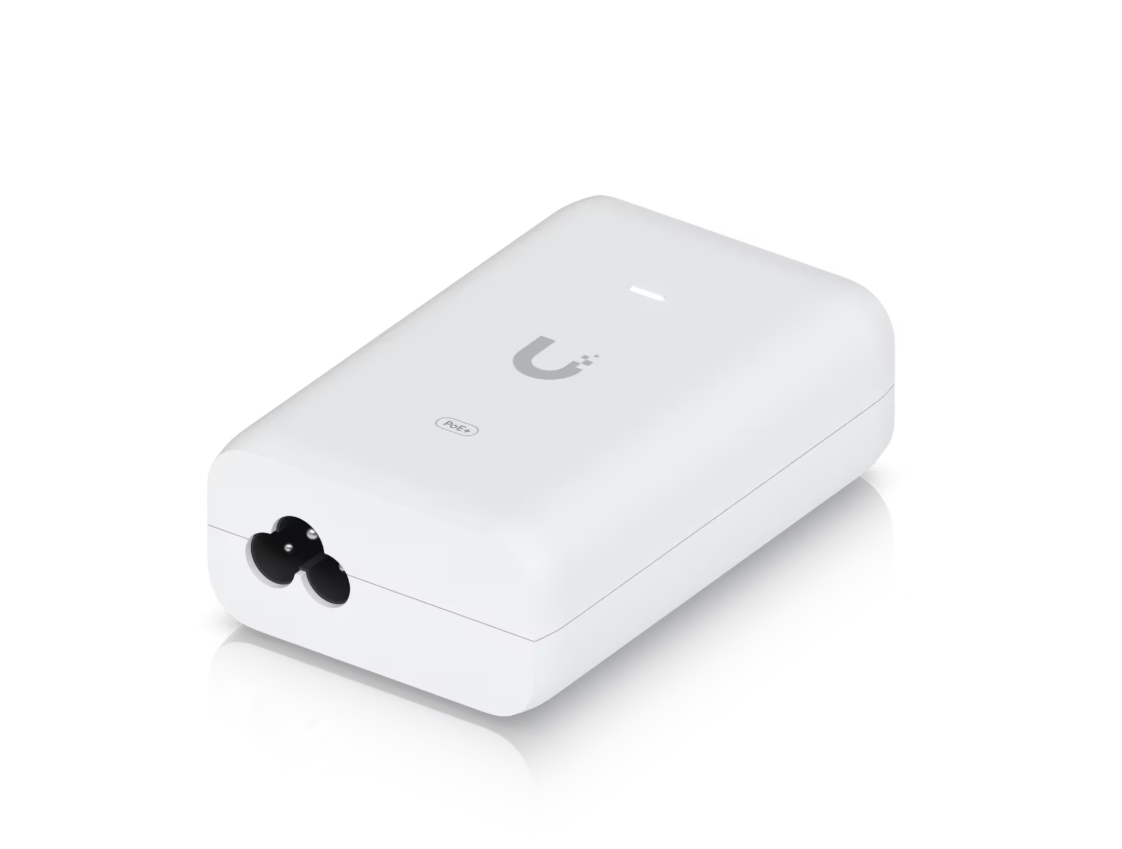

- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
Specifications
| Feature | Specification |
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 0.75A Max. |
| Inrush Current | <150A peak @ 230V AC |
| Gigabit LAN Port | Yes (✓) |
| Data In / PoE | RJ45 Shielded Socket |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| Efficiency | >87% |
| Switching Frequency | 65 kHz Max. |
| Output Ripple | 1% Max. |
| Line / Load Regulation | Line: ≤ 1% / Load: ≤ 3% |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF Data |
| Surge Protection | Difference and Common Mode |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes (✓) |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| LAN Activity / Reset | Not Supported (—) |
