Ubiquiti | SKU:
UACC-LRE
Ubiquiti UACC-LRE Long Range Ethernet Repeater
Regular price
$29.00
Unit price
/
Unavailable
Ubiquiti UACC-LRE Long Range Ethernet Repeater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti UACC-LRE Long Range Ethernet Repeater
Regular price
$29.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Ubiquiti UACC-LRE Long Range Ethernet Repeater
Product Details
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Specifications
Overview
Dimensions: 196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")
Weight: 350 g (12.3 oz)
Enclosure Material: UV stabilized polycarbonate

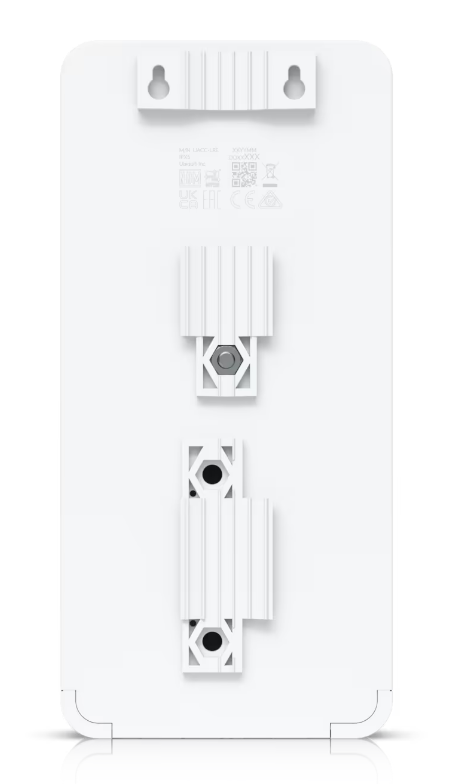

Mounting Material: Stainless steel
Weatherproofing: IPX5
Power Method: PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)
Max. Power Consumption: 1.5W (Excluding PoE output)
Networking Interface: (2) GbE RJ45 ports
PoE Interface: (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
Total Non-Blocking Line Rate: 2 Gbps
Switching Capacity: 4 Gbps
Forwarding Rate: 1.488 Mpps
Total Available PoE: 22.5W
Voltage Range PoE Mode: 37—57V DC
ESD/EMP Protection: Air/contact: ± 30kV
DC Sparkover Voltage: 90V at 100V/s
Max. Impulse Sparkover Voltage: 700V at 1kV/μs
Discharge Current: 10kA+
Max. MTU: 1,500 bytes
LEDs
System: Blue: power ON
Ethernet: Green: 1 Gbps Amber: 10/100 Mbps
PoE: Amber: passthrough PoE out
Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)
Ambient Operating Humidity: 10 to 95% noncondensing
Features
- Extend PoE connections up to 1 km*

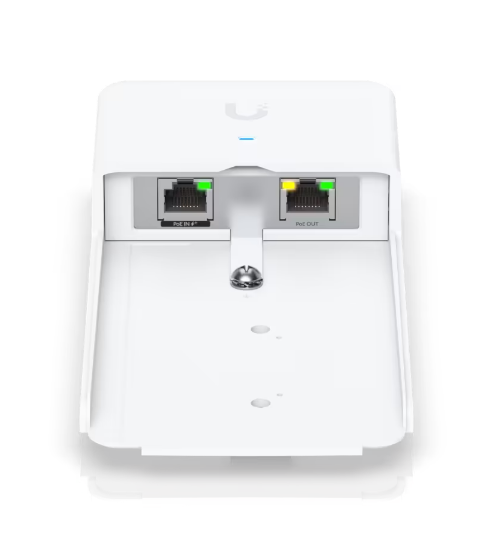

- (1) GbE RJ45 port for PoE/PoE+ input**
- (1) GbE RJ45 port for passthrough PoE output
- 10kA+ surge protection
- Works reliably in extreme temperatures (-40 to 80° C)
