Ubiquiti UACC-Lock-Strike-Safe-15mm Fail-Safe Strike Lock 15mm
Product Details

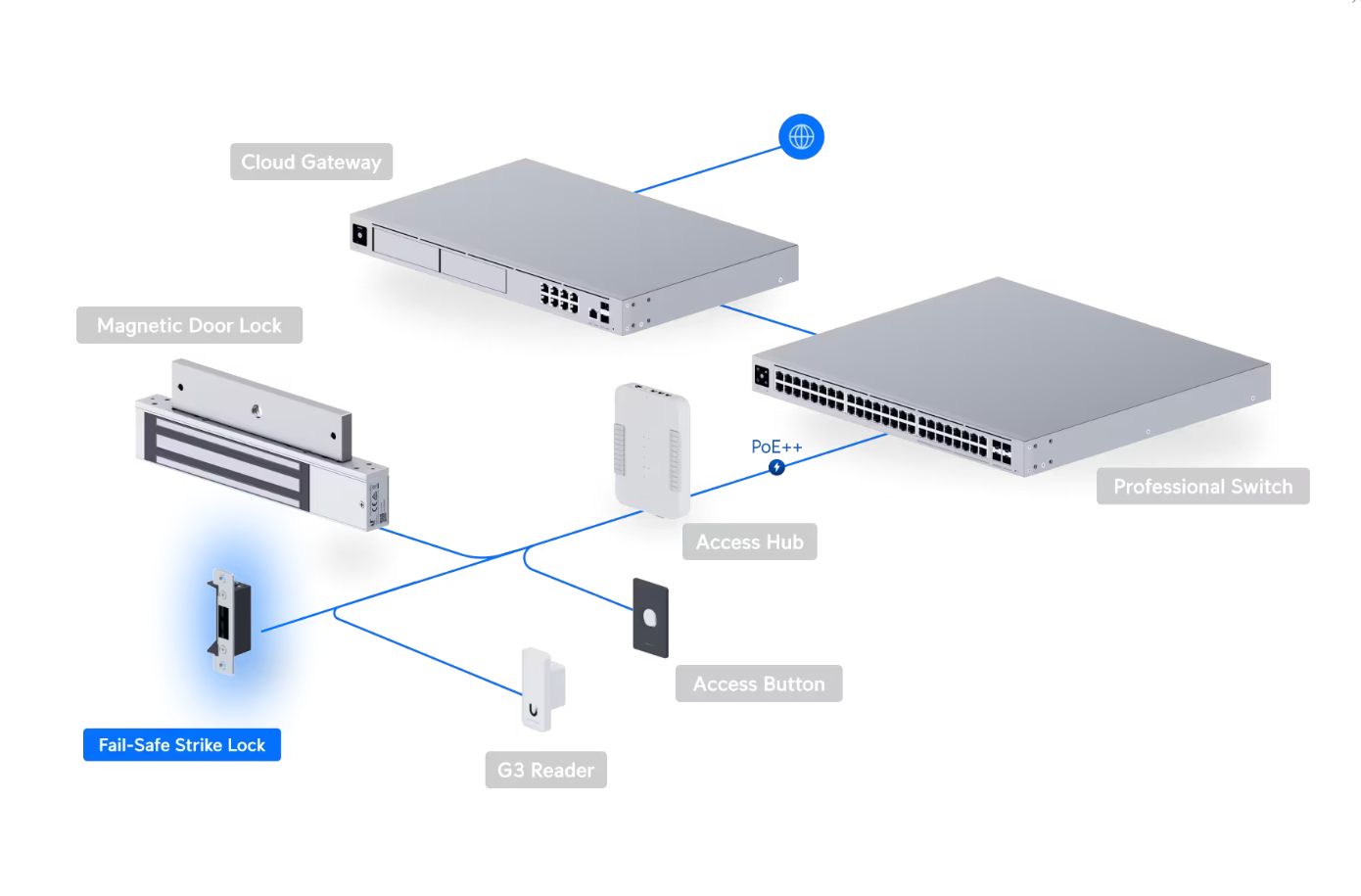

Fail-safe electric strike lock that connects to a UniFi Access Hub.
- UA-Hub-Door
- EAH-8
- UA-Hub-Door-Mini
- UA-Ultra
- UA-Hub-Gate
Specifications

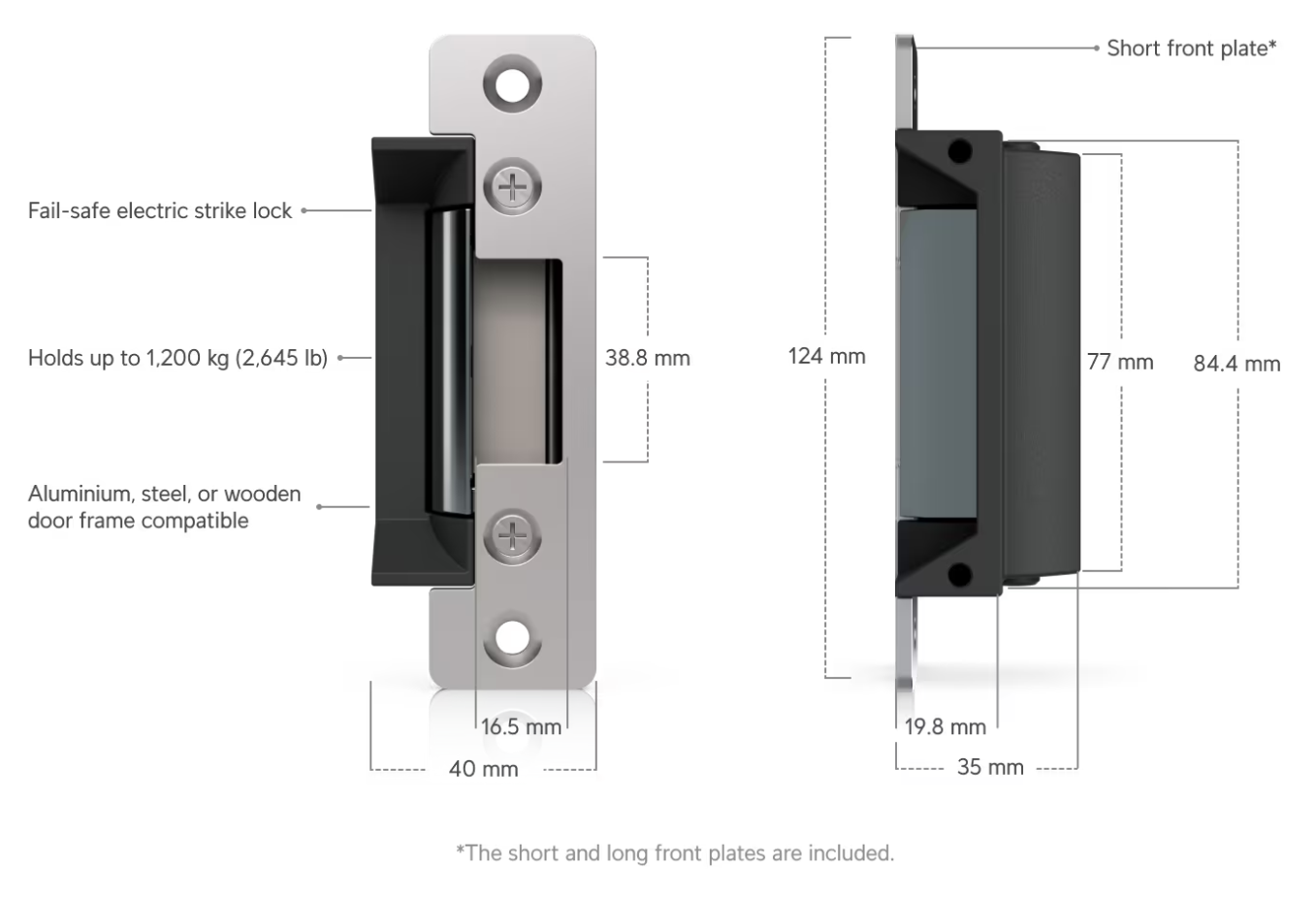

| Dimensions | Lock Body | 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") |
| Short Front Plate | 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") | |
| Long Front Plate | 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") | |
| Weight | Lock Body | 185 g (6.5 oz) |
| Short Front Plate | 50 g (1.8 oz) | |
| Long Front Plate | 130 g (4.6 oz) | |
| Materials | Construction | Lock body: Zinc alloy; Plates/latches: Stainless steel |
| Mechanical | Lock Type | Fail safe |
| Door Support | Single door (Wooden/Metal) | |
| Holding Force | 1,200 kg (2,645 lb) | |
| Mounting | Door frame recess mount | |
| Electrical | Power | 400mA ±10% @ 12V DC ±10% |
| Wiring | (1) 12V/NC (Red), (1) 12V/COM (Black) | |
| Door Status | Contact Type | Dry contact |
| Logic | Open: DPS/+ & DPS/- = Open; Closed: DPS/+ & DPS/- = Short | |
| Rating | Max. 30V DC, 0.1A | |
| Environment | Operating Temp | -10 to 60° C (14 to 140° F) |
| Storage Temp | -20 to 70° C (-4 to 158° F) | |
| Humidity | 5 to 90% noncondensing | |
| Compliance | Standards | NDAA Compliant, FCC, IC, CE |
| Humidity | 5 to 90% noncondensing | |
| Compliance | Standards | NDAA Compliant, FCC, IC, CE |
