Ubiquiti | SKU:
UACC-PanicBar

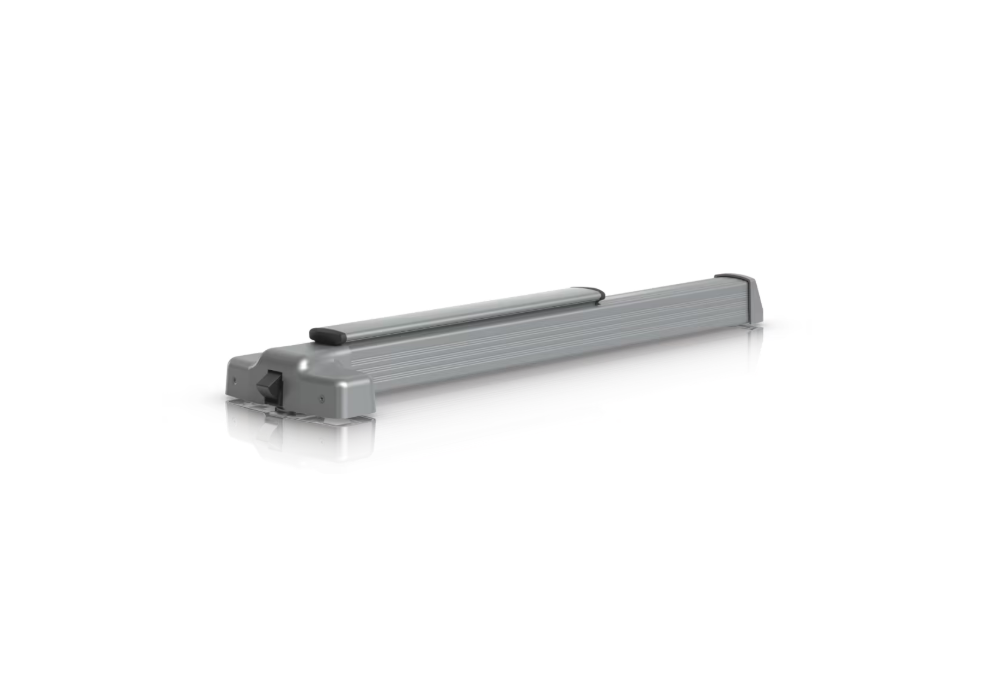

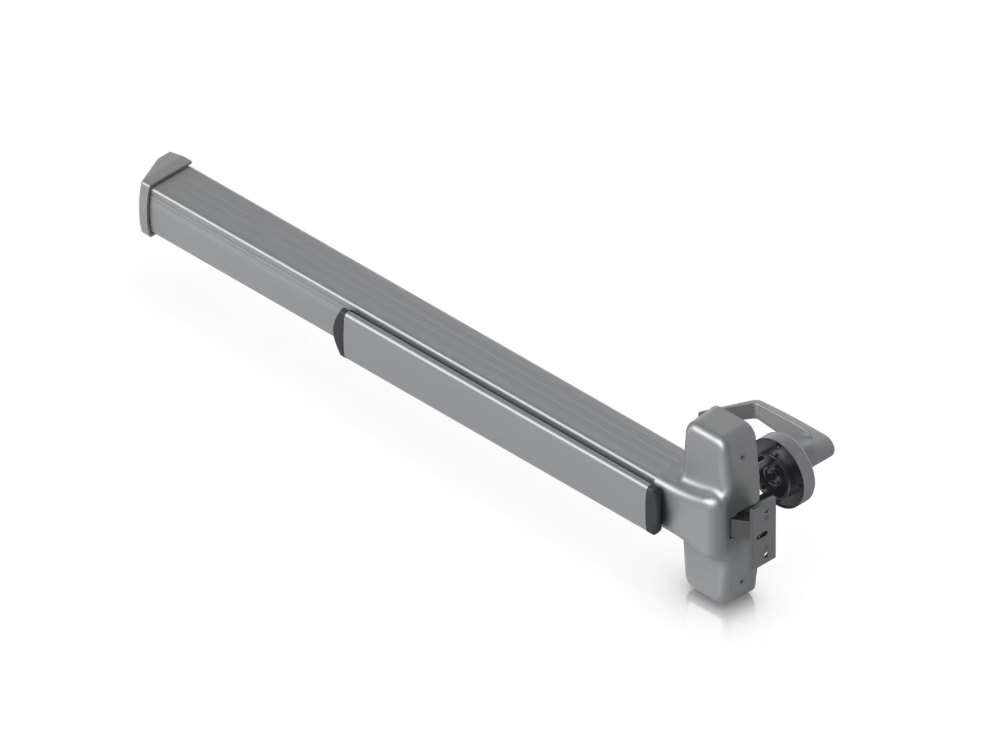

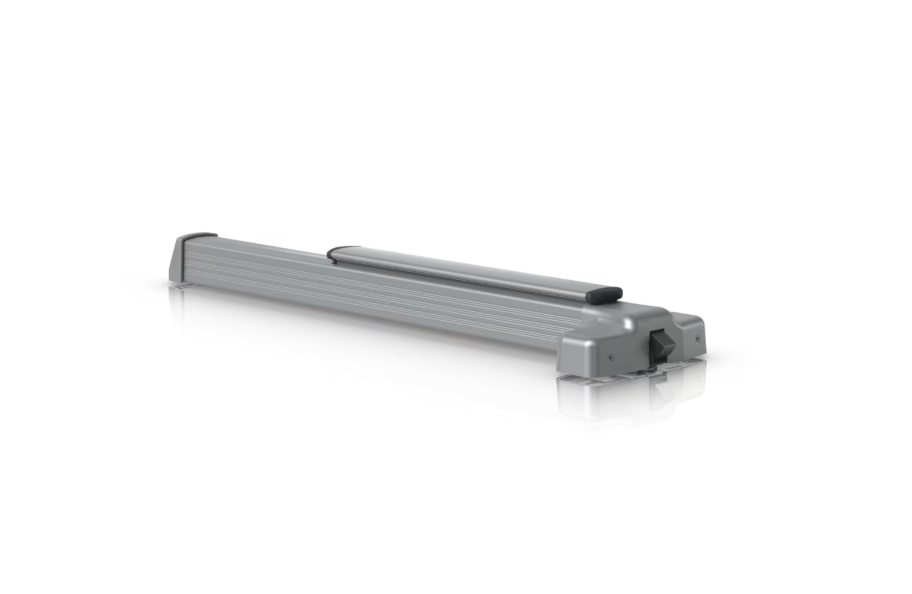

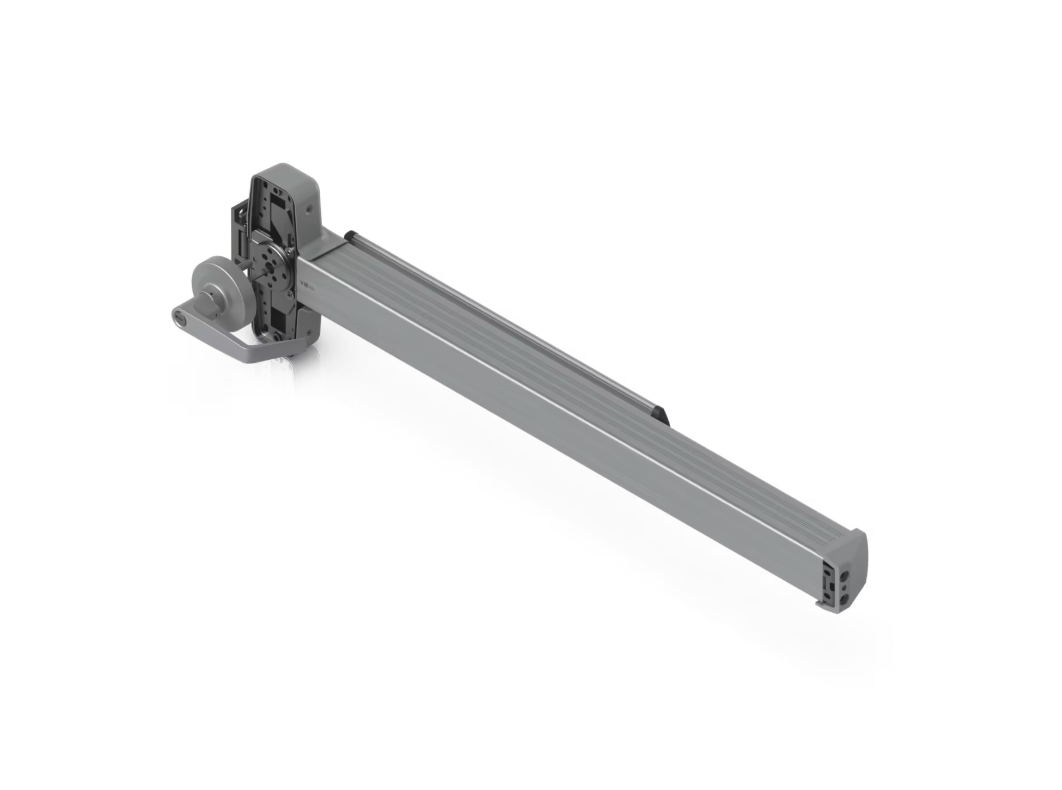

Ubiquiti UACC-PanicBar Panic Bar
Regular price
$399.00
Unit price
/
Unavailable
Ubiquiti UACC-PanicBar Panic Bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti UACC-PanicBar Panic Bar
Regular price
$399.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Ubiquiti UACC-PanicBar Panic Bar
Product Details
A single-latched bar installed on emergency exit doors, allowing quick and easy egress by pushing the bar to open the door during emergencies.
Specifications

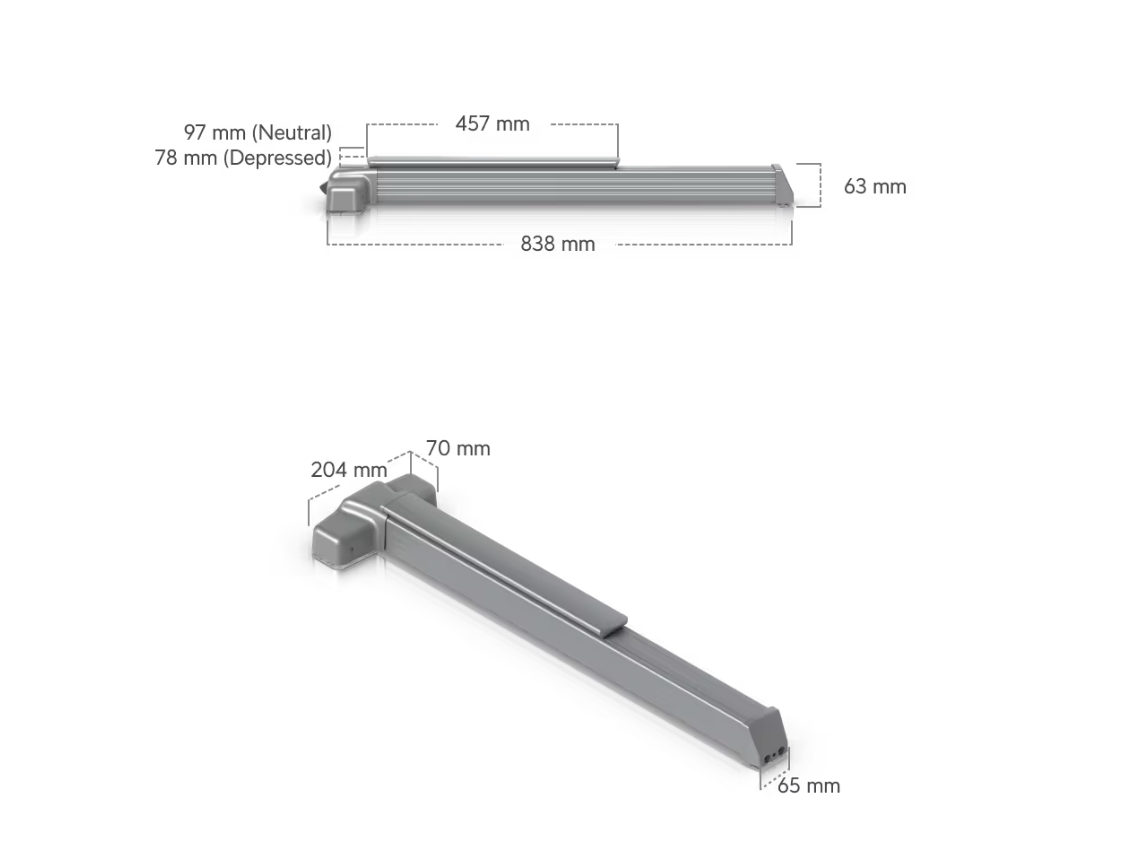

| Mechanical | Dimensions | 838 x 294 x 94 mm (33 x 11.6 x 3.7") |
| Weight | 5.8 kg (12.8 lb) | |
| Enclosure Material | Aluminum, Stainless Steel | |
| Handing | Non-handed, reversible for all functions/trims | |
| Installation | Supported Door Width | 3′ standard (for door widths 2′4″ to 3′ / 711–914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) metal or wood | |
| Minimum Stile | 4-1/4” (108 mm) | |
| Strike | For 3/4” (19 mm) stop | |
| Electrical | Connection | 2 lines for dry relay |
| Wiring Type | Dry output | |
| Contact Rating | Max. 30V DC, 1A | |
| Logic | Push = Short / Release = Open | |
| Compliance | Fire & Safety | UL 305, UL 10C, CAN/ULC-S132 |
| Performance | ANSI/BHMA A156.3 Grade 1 | |
| Accessibility | Meets California Building Code Sec. 11B-309.4 |
