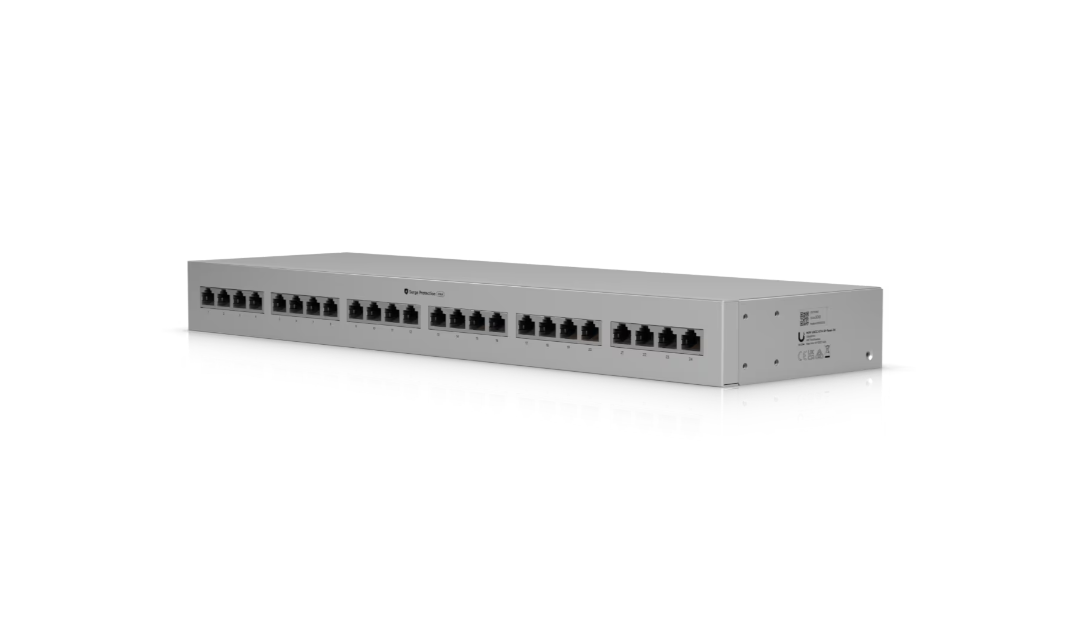

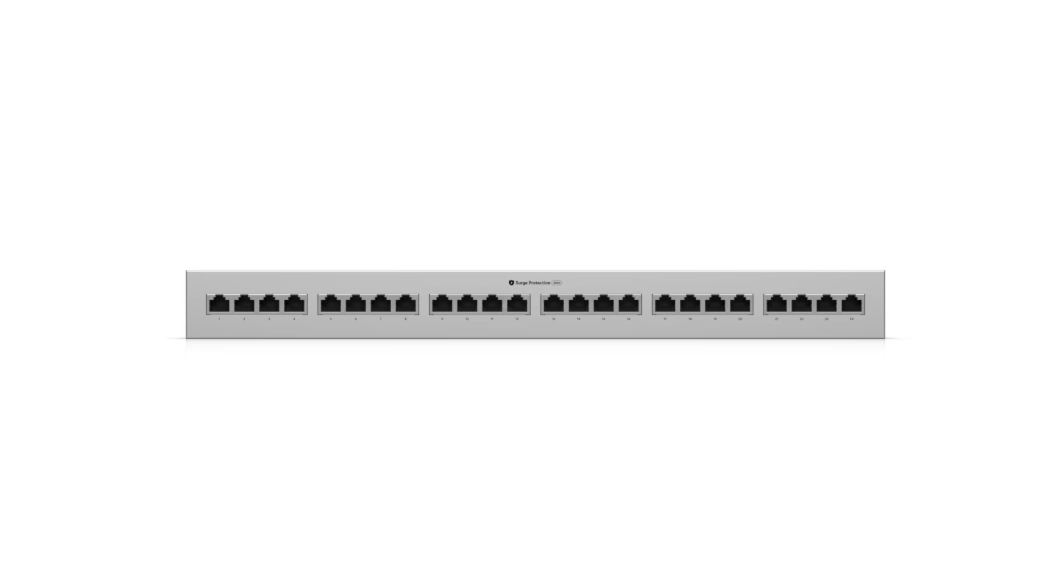

Ubiquiti UACC-ETH-SP-Panel-24 Ethernet Surge Protection
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
| Category | Feature | Details |
| Mechanical | Dimensions | 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7") |
| Weight | 2 kg (4.4 lb) | |
| Enclosure Material | SGCC steel | |
| Hardware | Networking Interface | (48) RJ45 female connectors |
| Data Line Protection | Up to 10 Gbps | |
| PoE Support | Yes (✓) | |
| DC Spark-Over Voltage | 90V @ 100V/s | |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs | |
| Discharge Current | 20kA | |
| Max. Insulation Resistance | 1G ohm @ 50V | |
| Max. Capacitance | 1.0 pF @ 1 MHz | |
| Protection | ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Environmental | Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Operating Humidity | 10 to 90% noncondensing |
