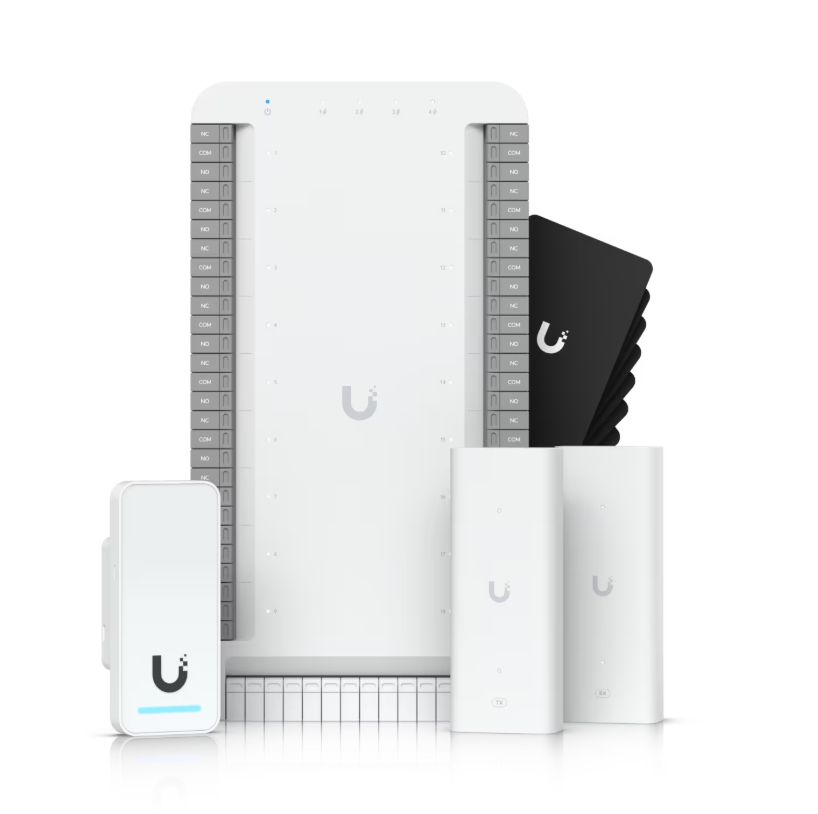

Ubiquiti UA-SK-Elevator Access Elevator Starter Kit
Product Details
Connects to in-elevator readers with PoE to authorize floor selection. Supports up to 18 floors with digital inputs for elevator car status and emergency.
Specifications
Overview

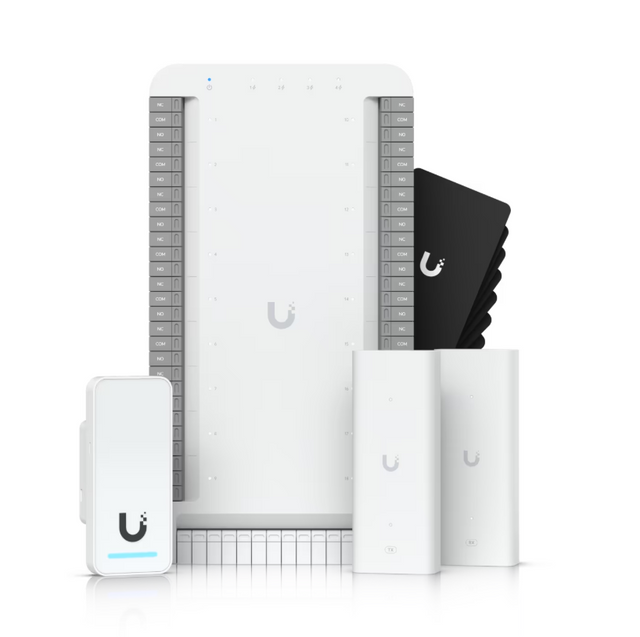

In the Box: (1) Elevator Hub (1) G2 Reader (2) 2-wire PoE extenders (10) Access Cards
Dimensions: 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
Power Method: PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight: 537 g (1.2 lb)
Enclosure Material: Polycarbonate
NDAA Compliant: ✓
Mounting Material: Polycarbonate
Networking Interface: (4) 10/100/1000 Base-T
PoE Interface: (1) PoE++ input, 50V DC, 1.2A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Management: (1) 10/100/1000 Base-T
Max. Power Consumption: 7W (Without PoE output)
Digital Input: (1) Emergency (1) Car position (5-bit) (1) Car status: Up/Down/Stop/Full (1) Door status: Open/Close
Outputs: (18) Relays Rating 30V DC/2A
ESD/EMP Protection
Air: ±8kV, contact: ±4kV
LEDs: B/W Learn More
Buttons: (1) Factory-reset Terminal blocks
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
Software Information: The software version can be checked at https://unifi.ui.com
Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access: ✓
Mobile Unlock: ✓
Handwave Request to Exit: ✓
Weatherproofing: IP55
NDAA Compliant: ✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight: 82 g (2.9 oz)
Enclosure Material: Polycarbonate, glass
Mount Material: Aluminum alloy
Mounting: In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use: ✓
Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
Ambient Operating Humidity: 5 to 90% noncondensing
Networking Interface: (1) 10/100 MbE RJ45 port
Connectivity: BLE 4.1 NFC
Power Method: PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 5W
Supported Voltage Range: 48V DC
ESD/EMP Protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor
Speaker: (1) Yes, 0.7W
LEDs: R/G/B/W Learn More
Button: (1) Factory-reset
NFC Read Range: < 30 mm (1.18'')
NFC Frequency: 13.56 MHz
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G2/UA-G2-Black, V02
Software Information: The software version can be checked at https://unifi.ui.com
Dimensions: 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
Weight: 5 g (0.18 oz)
Format: ISO 7810 ID-1
NFC Frequency: 13.56 MHz
NFC Technology: ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol
NDAA Compliant: ✓
Model: UACC-Extender-2Wire-PoE-Tx/Rx
Dimensions: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Weight: PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz)
Enclosure Material: Polycarbonate
Mounting Material: Polycarbonate
NDAA Compliant: ✓
Networking Interface: (1) 10/100 MbE (1) Homeplug AV
PoE Interface: PoE input: (1) PoE++, 50V DC, Max. 1.2A PoE output: (1) PoE+, 48V DC, 0.72A
Management: (1) 10/100 MbE
Power Method: PoE++
Max. Power Consumption: 3W (Without PoE output)
ESD/EMP Protection: Air: ±8kV, contact: ±4kV
LEDs: White
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Features
- (1) Elevator Hub
- (1) G2 Reader
- (2) 2-wire PoE extenders
- (10) Access Cards
