Ubiquiti | SKU:
U5G
Ubiquiti U5G UniFi 5G Backup
Regular price
$99.00
Unit price
/
Unavailable
Ubiquiti U5G UniFi 5G Backup is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti U5G UniFi 5G Backup
Regular price
$99.00
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description

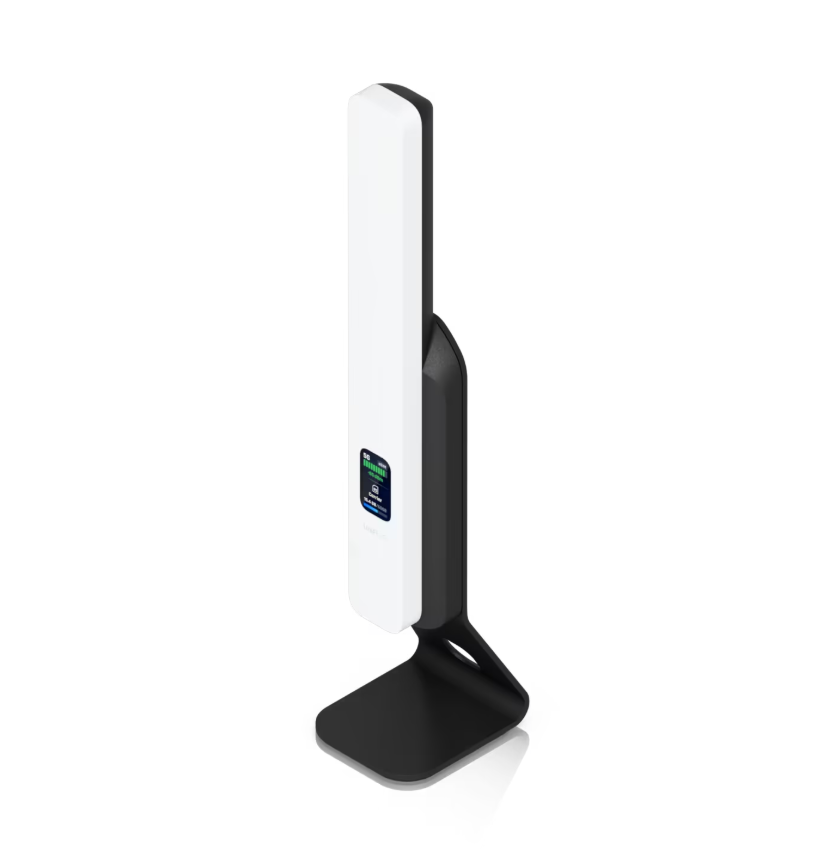

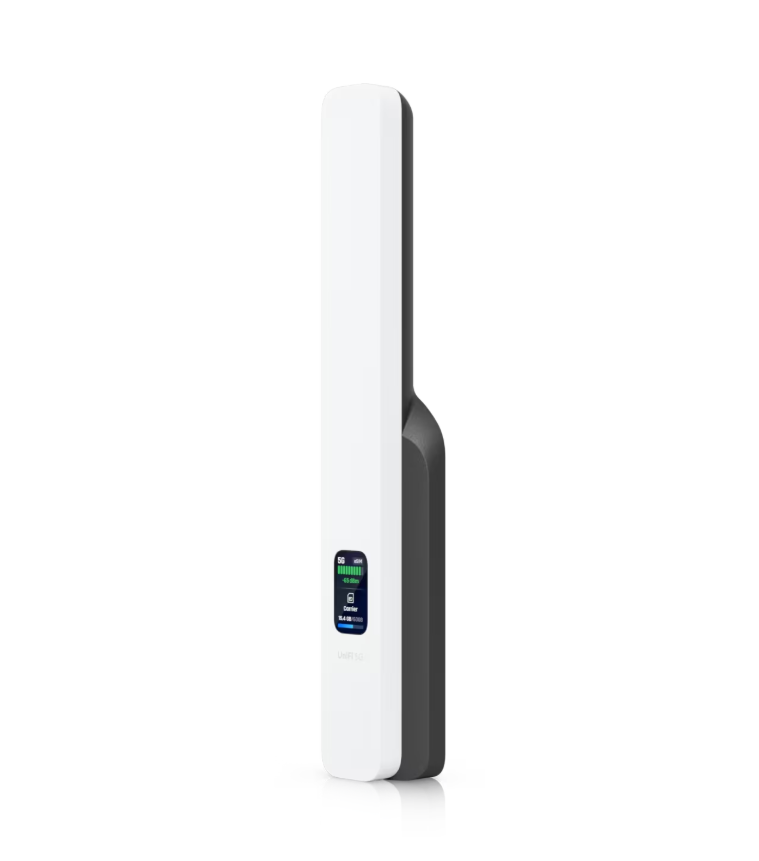

Ubiquiti U5G UniFi 5G Backup
Product Details

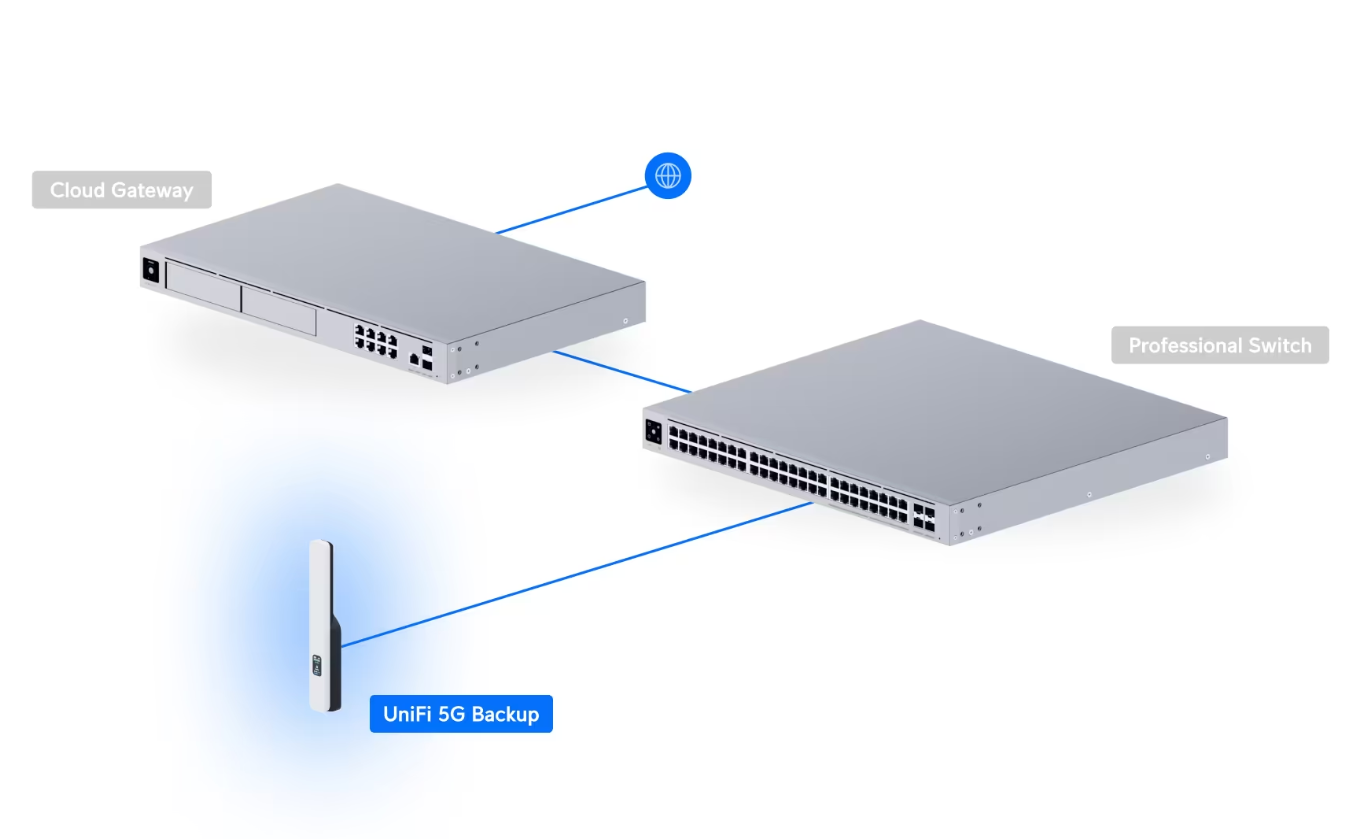

Compact PoE-powered 5G RedCap antenna system with versatile mounting that plugs into any UniFi PoE port to provide automatic internet backup.
Specifications
| Specification | Details |

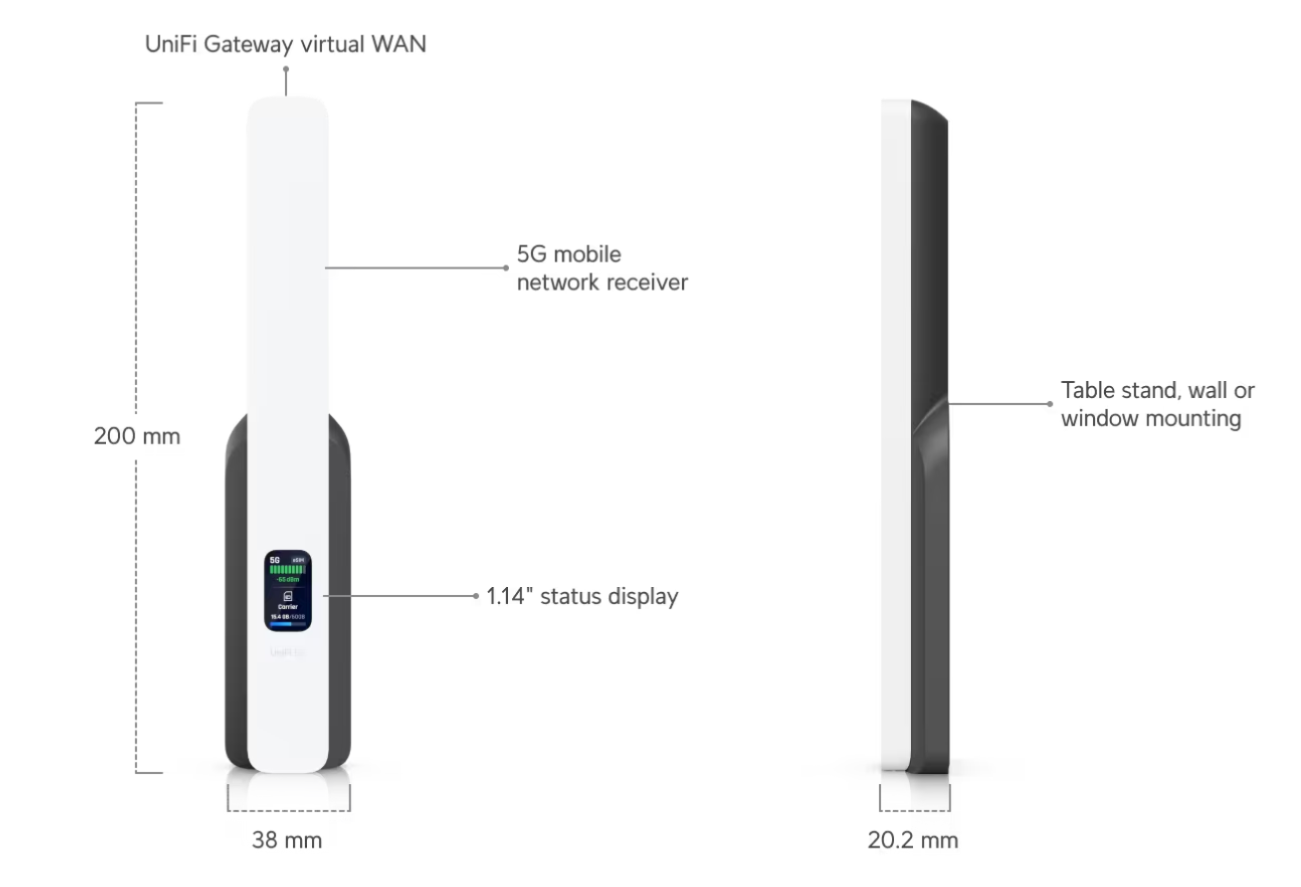

| Dimensions (Device) | 200 x 38 x 20.2 mm (7.9 x 1.5 x 0.8") |
| Dimensions (Table Stand) | 48.1 x 48 x 55.2 mm (1.9 x 1.9 x 2.2") |
| Networking Interface | (1) GbE RJ45 port, 5G RedCap and LTE |

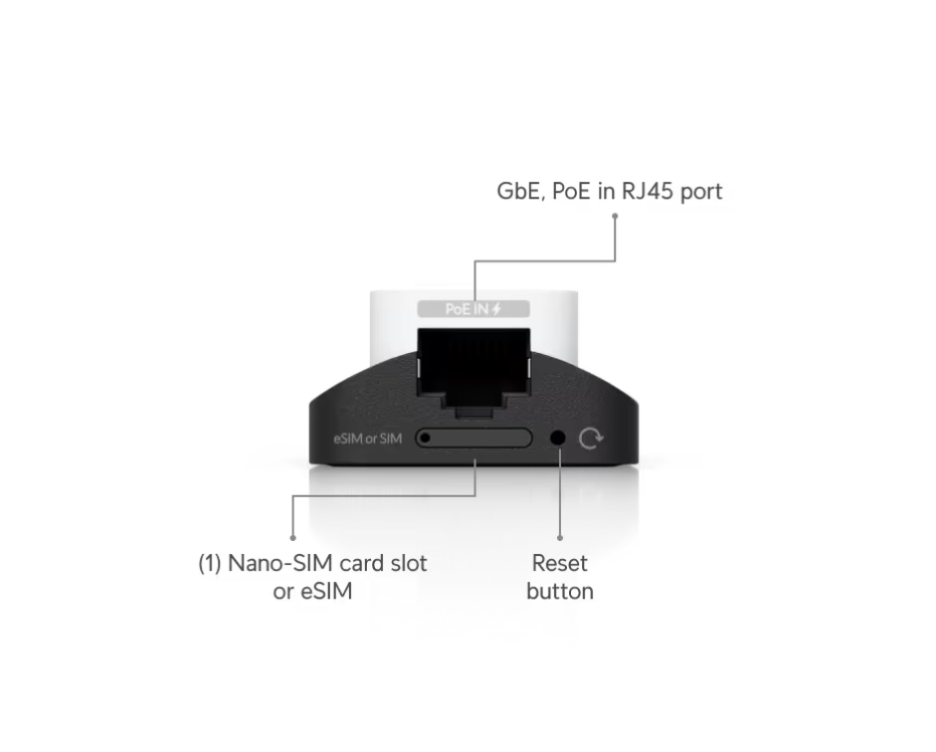

| SIM Support | (1) Nano-SIM (4FF), (1) eSIM |
| PoE Interface | (1) PoE input |
| Mounting Options | Desktop stand, wall, window mount (Included) |
| Weight (Device) | 122 g (4.3 oz) |
| Weight (Stand) | 138 g (4.9 oz) |
| Weight (Wall Mount) | 66 g (2.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Galvanized steel, silicone rubber |
| Management Interface | Ethernet |
| 5G NR Category | 5G RedCap |
| 5G NR Frequency Bands | n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41, n48, n66, n71, n77, n78 |
| 5G NR Max. TX Power | 23 dBm |
| 4G LTE Frequency Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41, B42, B43, B48, B66, B71 |
| 4G LTE Max. TX Power | HPUE power class 2: 26 dBm |
| Peak Data Speed (5G SA) | Downlink 220 Mbps / Uplink 120 Mbps |
| Peak Data Speed (4G LTE) | Downlink 195 Mbps / Uplink 100 Mbps |
| LTE Throughput Speed | Downlink 195 Mbps / Uplink 100 Mbps |
| Antenna Type | (2) Embedded omni-directional cellular antennas |
| Power Method | PoE |
| Display | 1.14" status display |
| Buttons | (1) Factory reset |
| Ambient Operating Temp. | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes (✓) |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile |
| UniFi Network Requirement | Version 10.4.57 and later |
| iOS Mobile App | UniFi iOS™ version 10.35.0 and later |
| Android Mobile App | UniFi Android™ version 10.38.2 and later |
