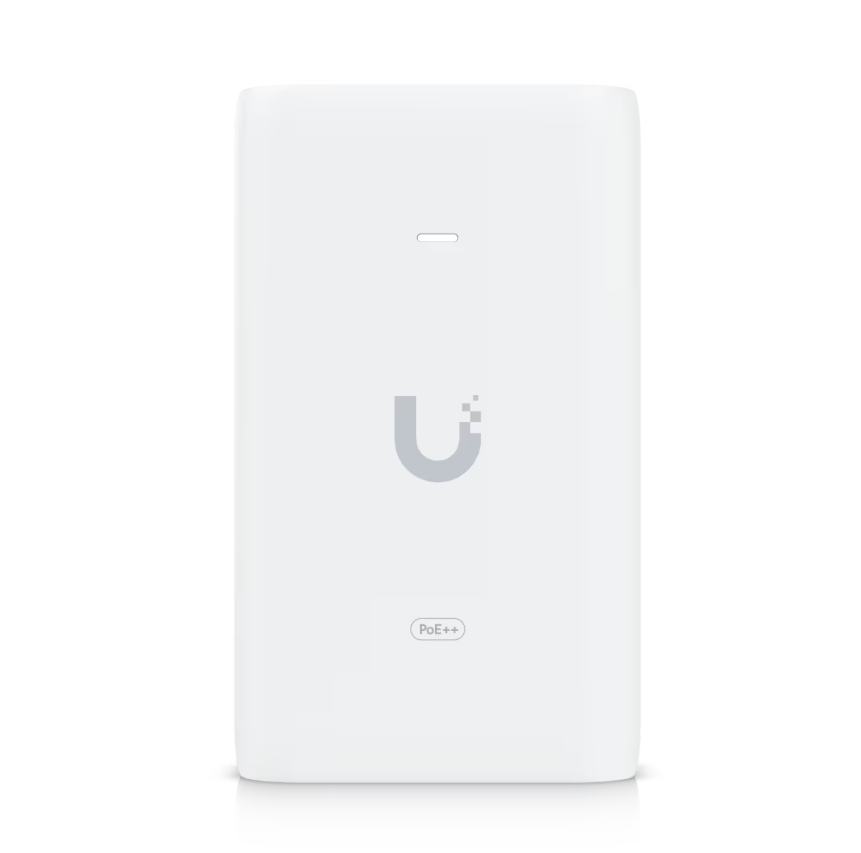

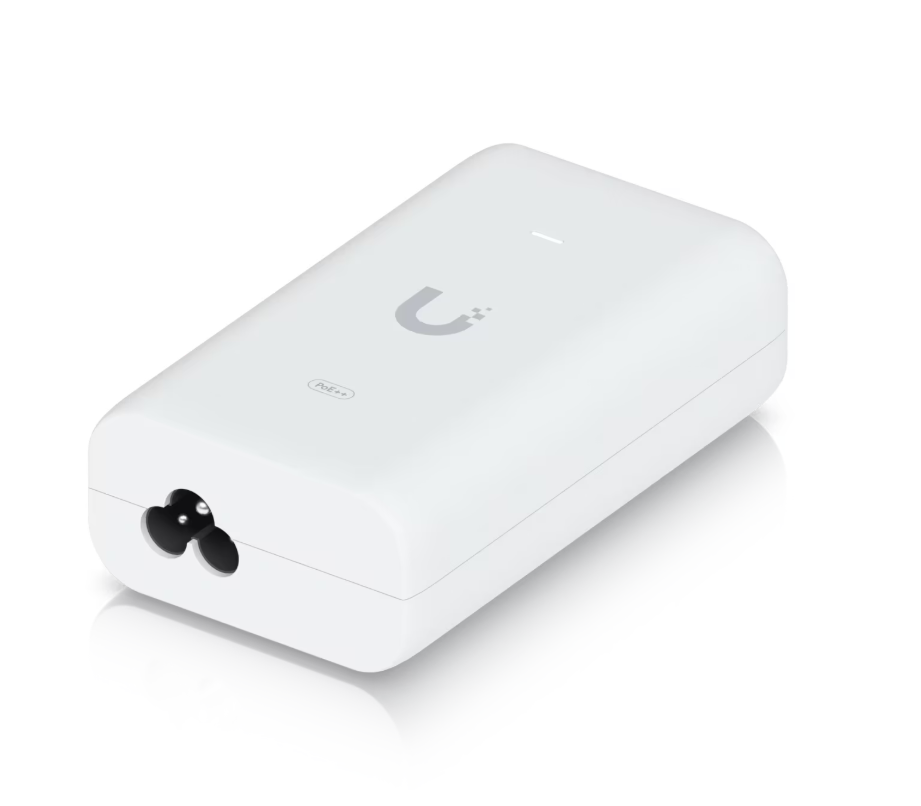

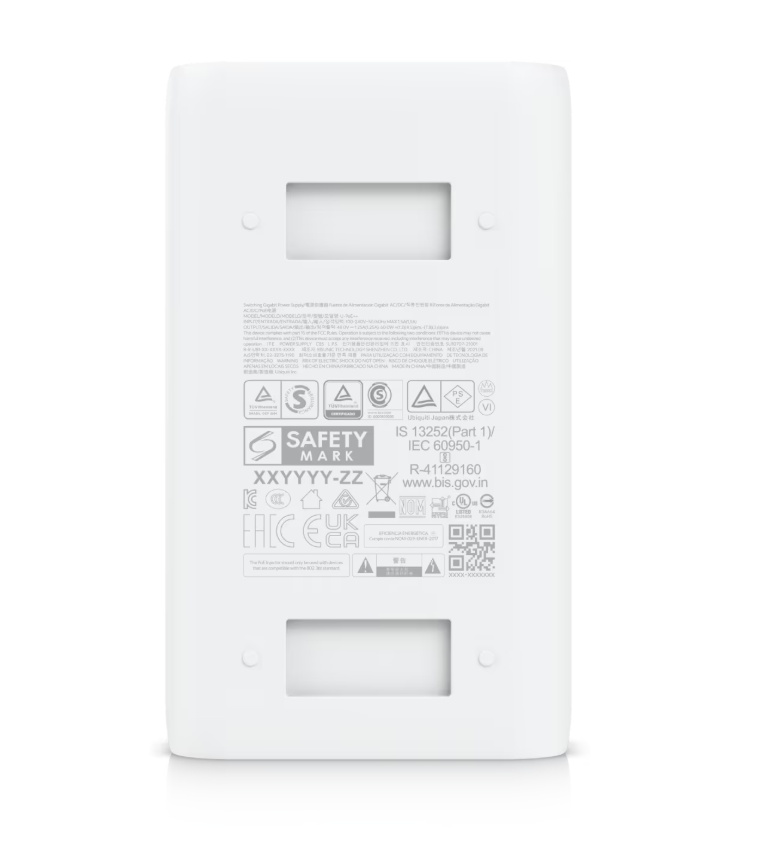

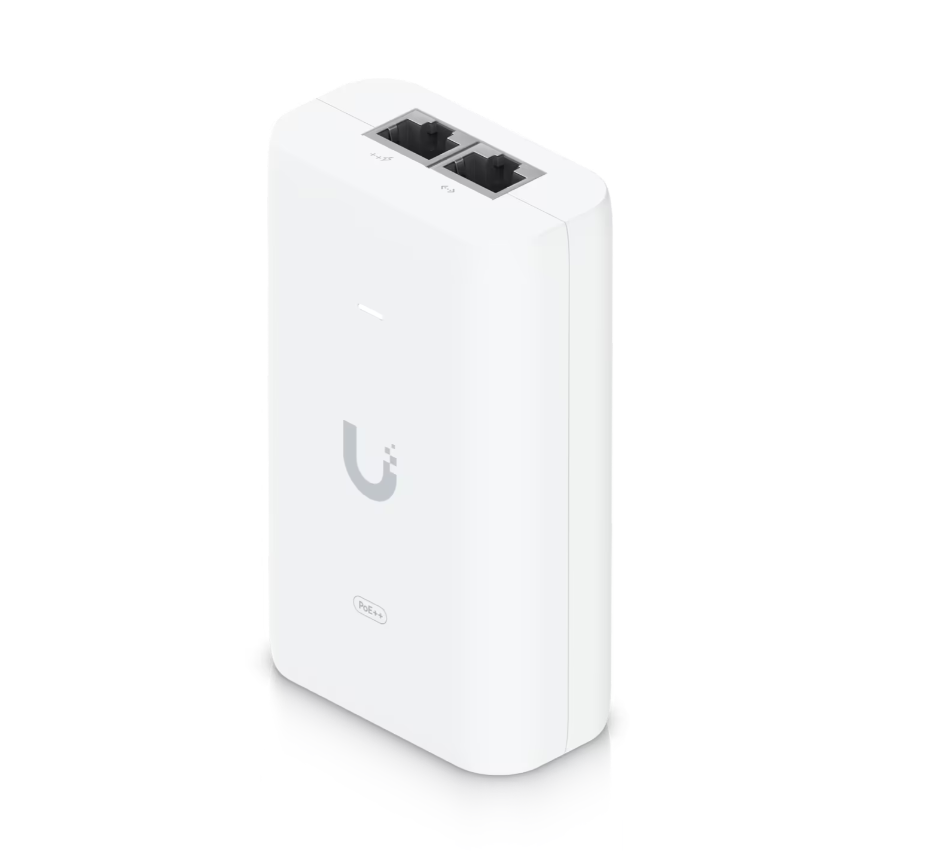

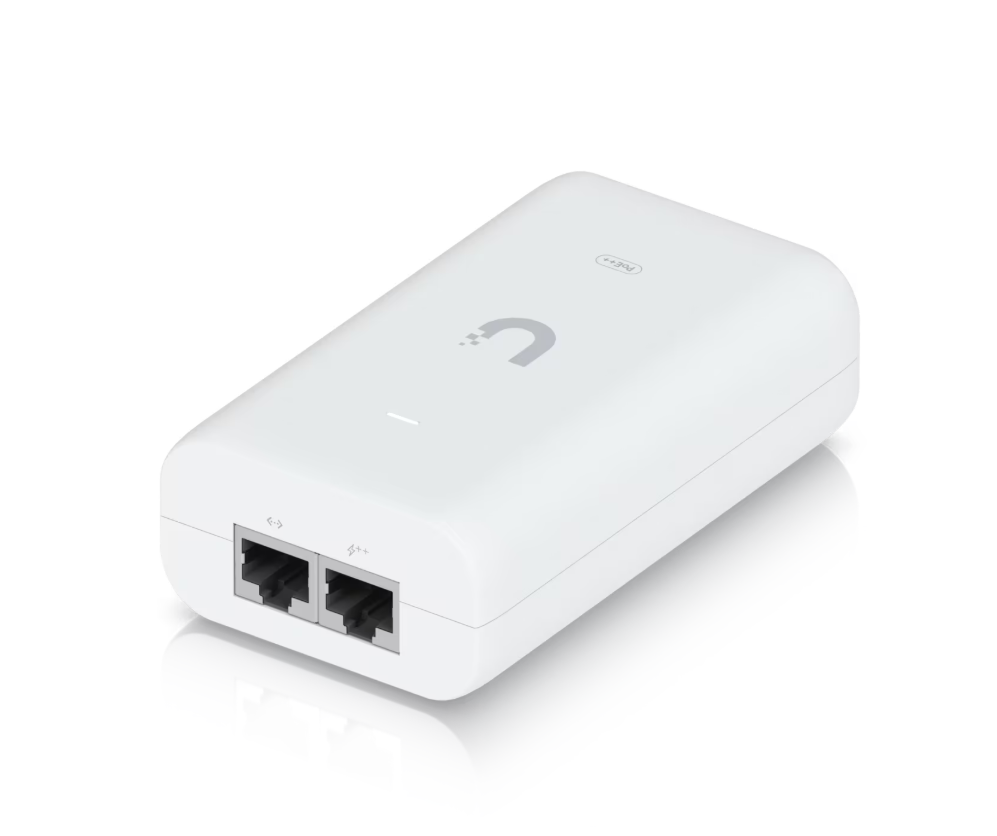

Ubiquiti U-PoE++ PoE++ Adapter (60W)
Ubiquiti U-PoE++ PoE++ Adapter (60W) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ubiquiti U-PoE++ PoE++ Adapter (60W)
Highlight title
Text to highlight a key feature of your product
Description
Description
Ubiquiti U-PoE++ PoE++ Adapter (60W)
Product Details
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Compatibility
- UA-G2-SK-Pro
- UA-Hub-Door
- UA-G2-SK
- UC-Display
- UA-SK-Elevator
Specifications
| Specification | Details |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC @ 1.25A |
| Max. PoE+ Wattage | 60W |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC / <200A peak @ 230V AC |
| Efficiency | 85+% |
| Gigabit LAN Port | Yes (✓) |
| Data In / PoE | RJ45 Shielded Socket |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Operating Temp. | 0 to 40° C (32 to 104° F) |
| Storage Temp. | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes (✓) |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| NDAA Compliant | Yes (✓) |
| Certifications | CE, FCC, IC, UL, CCC |
