Ubiquiti EAV-Bridge Enterprise Audio/Video Bridge
Product Details
PoE+ powered AV-over-IP transceiver that bridges 4K60 HDMI and professional XLR audio as either a source or destination.
Specifications
| Feature | Specification |

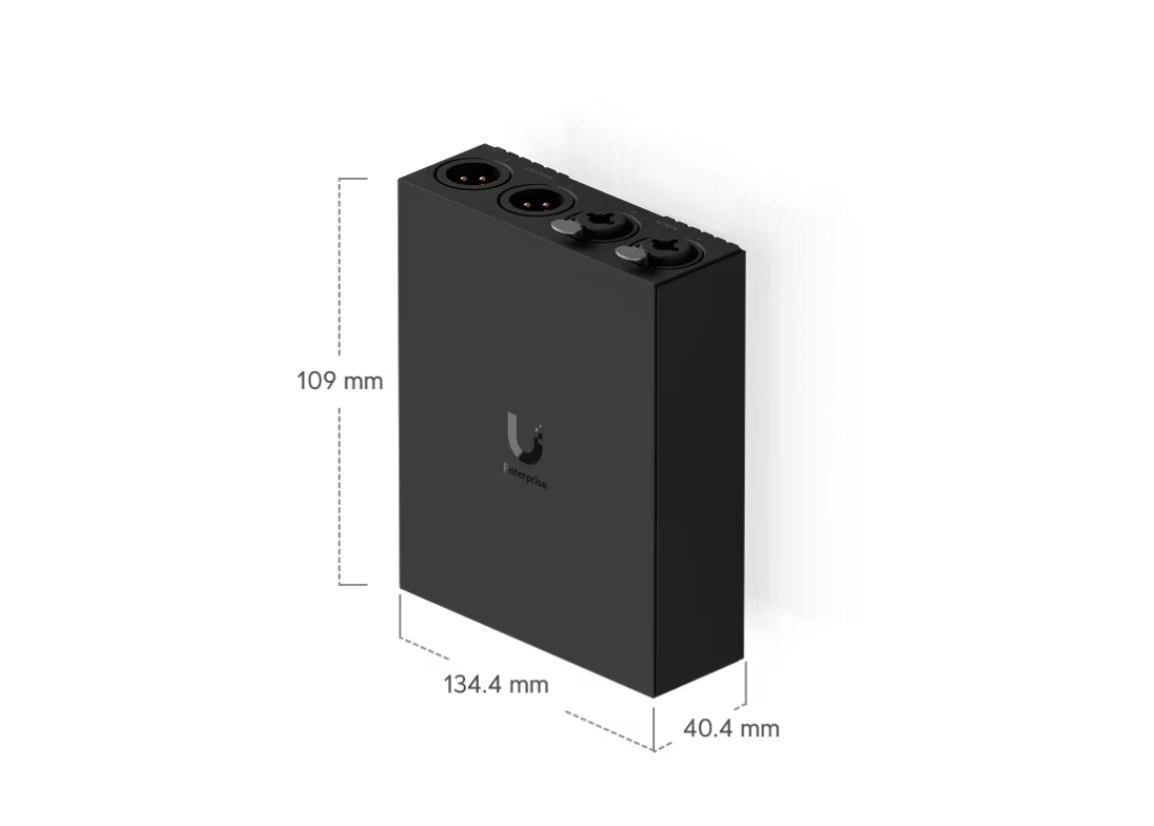

| Dimensions | 109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6") |
| Weight | 560 g (1.2 lb) |
| Enclosure Material | Aluminum |
| Mounting Options | DIN rail, Wall, Pole (1.5–2" / 38–50 mm diameter) |

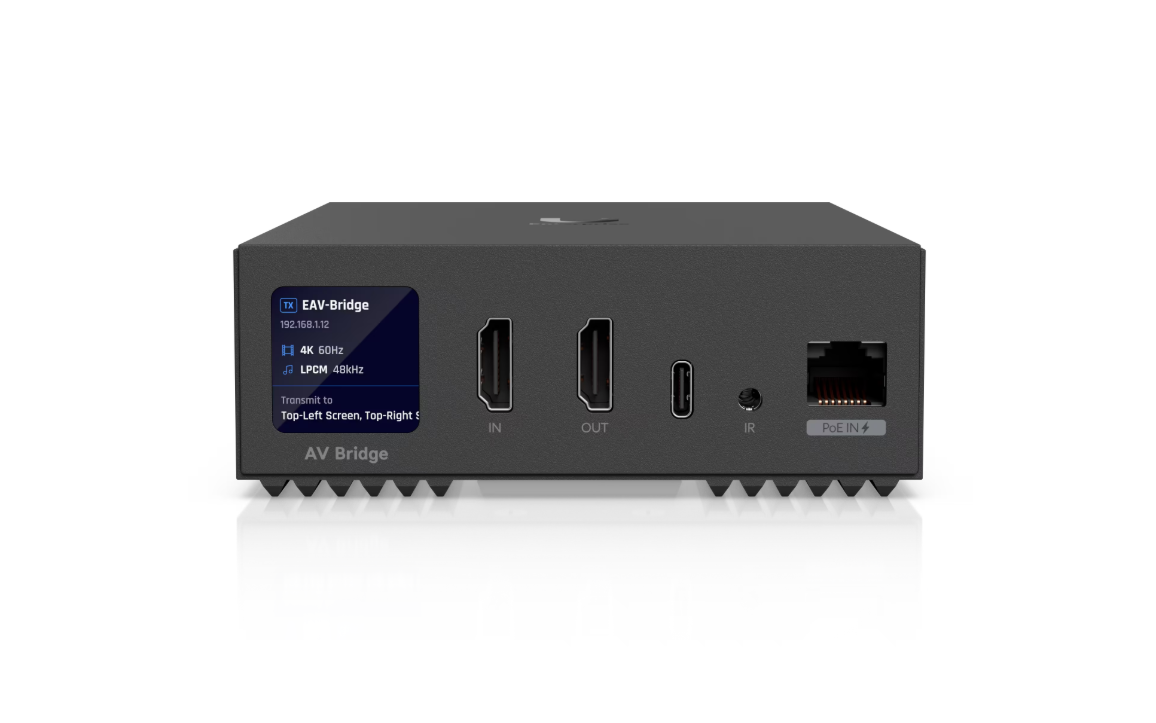

| Display | 1.3” Touchscreen LCM |
| Visual Indicators | Etherlighting™ (Ethernet port) |
Audio & Video Capabilities
| Category | Feature | Specification |

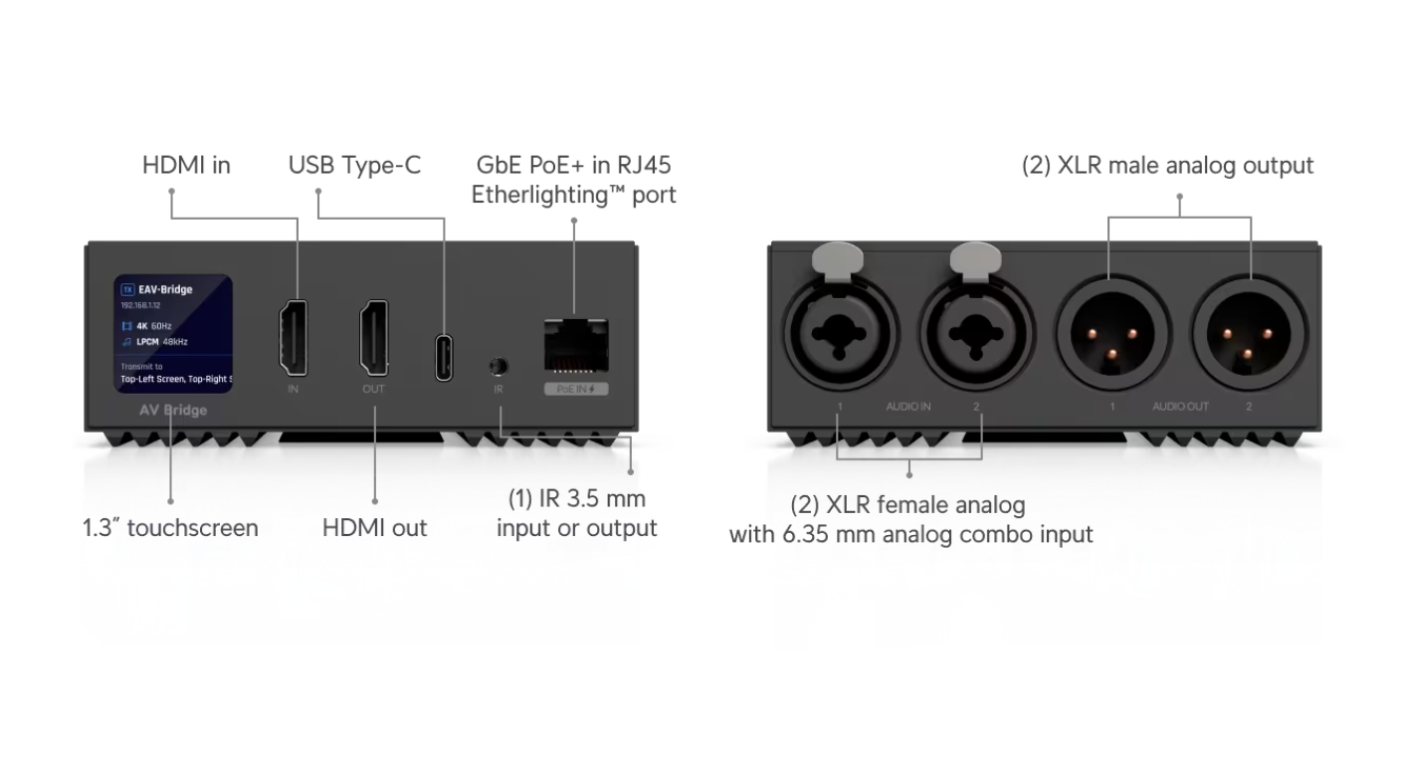

| Video I/O | HDMI | (1) HDMI 2.0 In / (1) HDMI 2.0 Out |
| Resolution | Max Support | 4K at 60 Hz (60 FPS) |
| Compatibility | 480p, 720p, 1080p, 4K | |

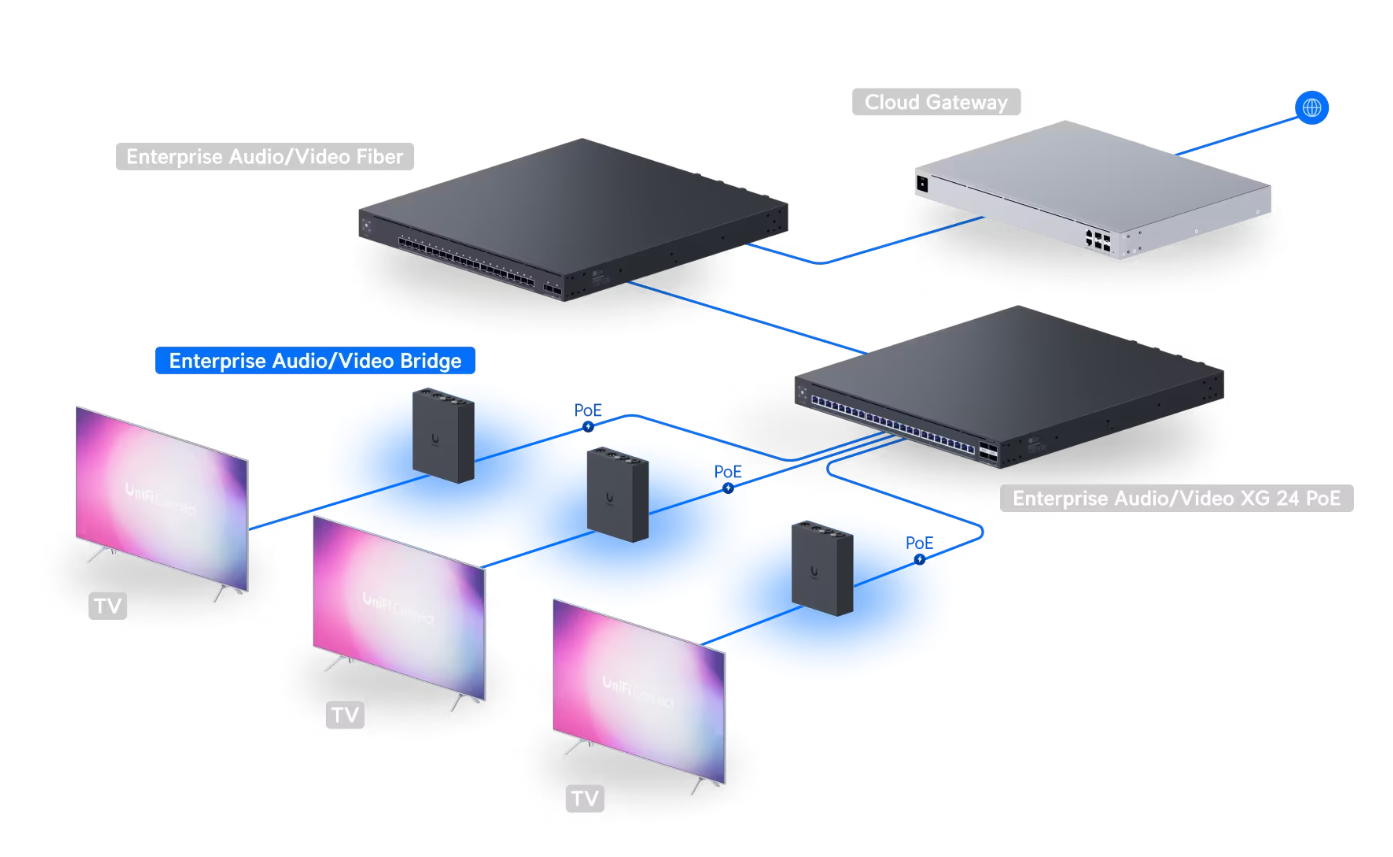

| Distribution | Configuration | 1-to-1, 1-to-N streaming; Up to 8x8 TV Wall |

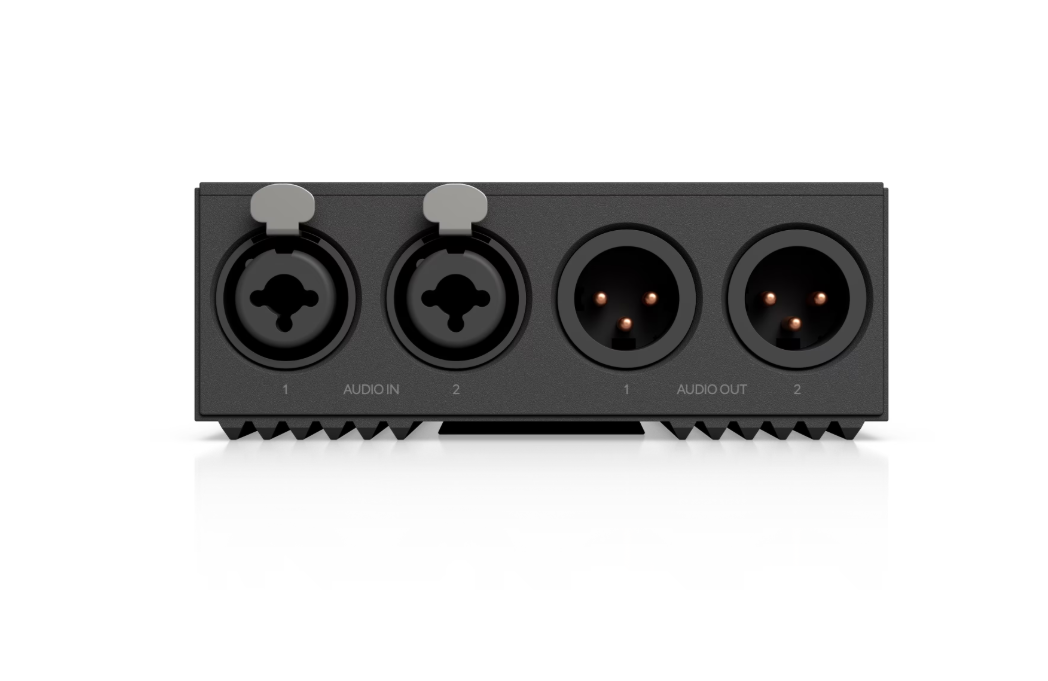

| Audio I/O | Analog Input | (2) XLR/6.35 mm Combo (Female) with 48V Phantom Power |
| Analog Output | (2) XLR (Male) | |
| Digital | HDMI In/Out (PCM Surround Support) | |
| Audio Performance | Frequency Response | 20 Hz – 20k Hz ±0.5dB |
| Output Mode | Mono / Stereo |
Connectivity & Hardware
| Feature | Specification |
| Networking | (1) GbE RJ45 PoE+ In with Etherlighting™ |
| USB Port | (1) USB Type-C (5V, 1A) |
| IR Interface | (1) 3.5 mm Input/Output |
| Power Method | PoE+ |
| Max Power Draw | 14W |
| Button | Factory Reset |
Environmental & Compliance
| Feature | Specification |
| Operating Temp | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 90% noncondensing |
| Standards | NDAA Compliant |
| Certifications | FCC, IC, CE |
