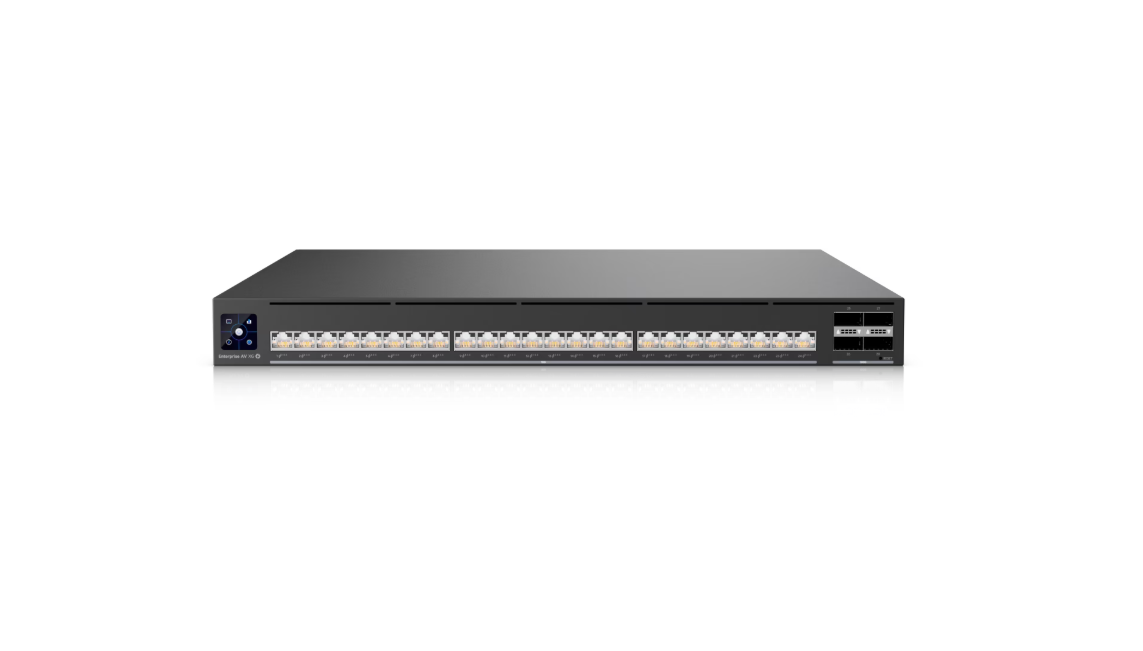

Ubiquiti EAV-XG-24-PoE (2150W) Enterprise Audio/Video XG 24 PoE
Product Details

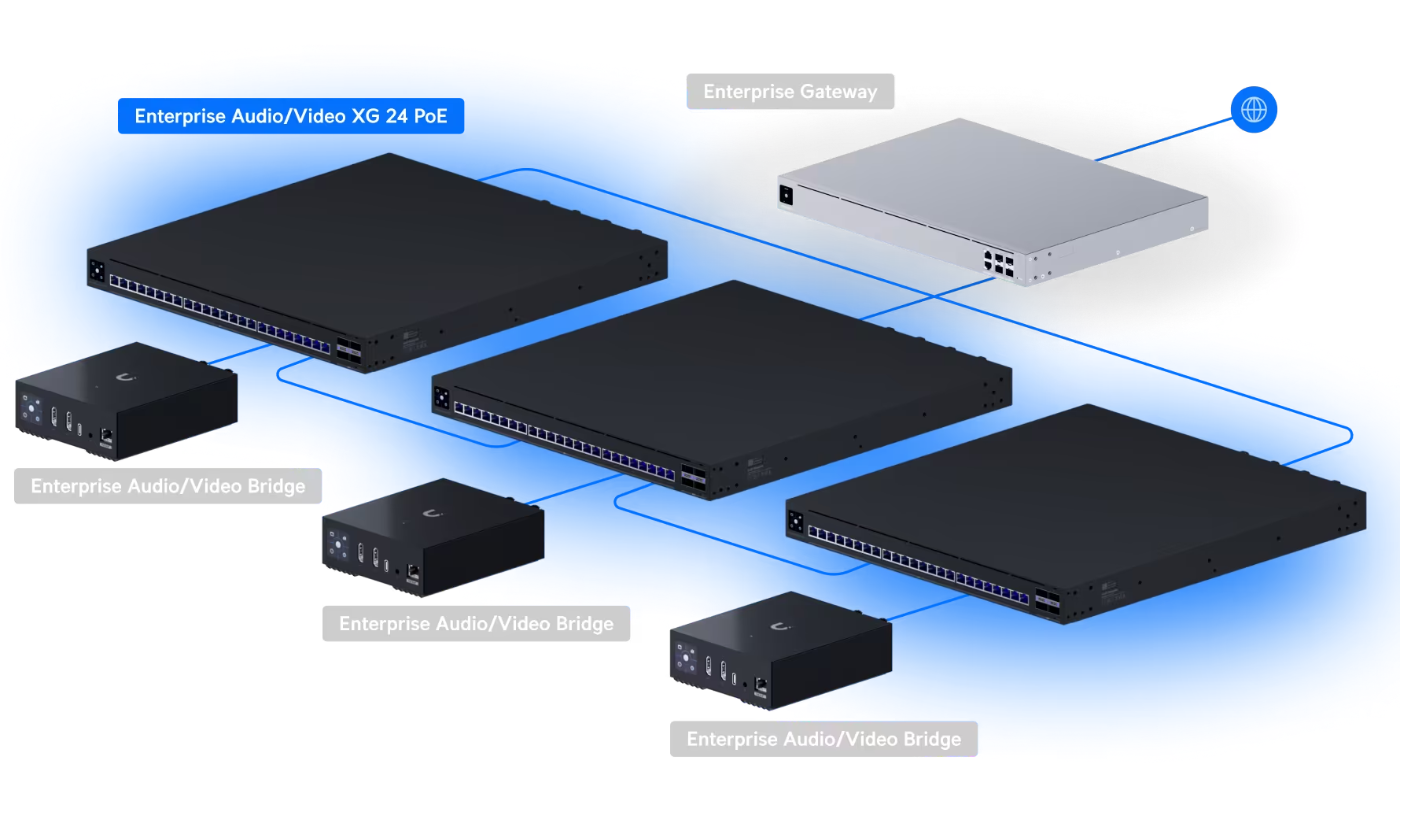

Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.
Note. 2,150W total PoE availability requires Shared Mode (coming soon).

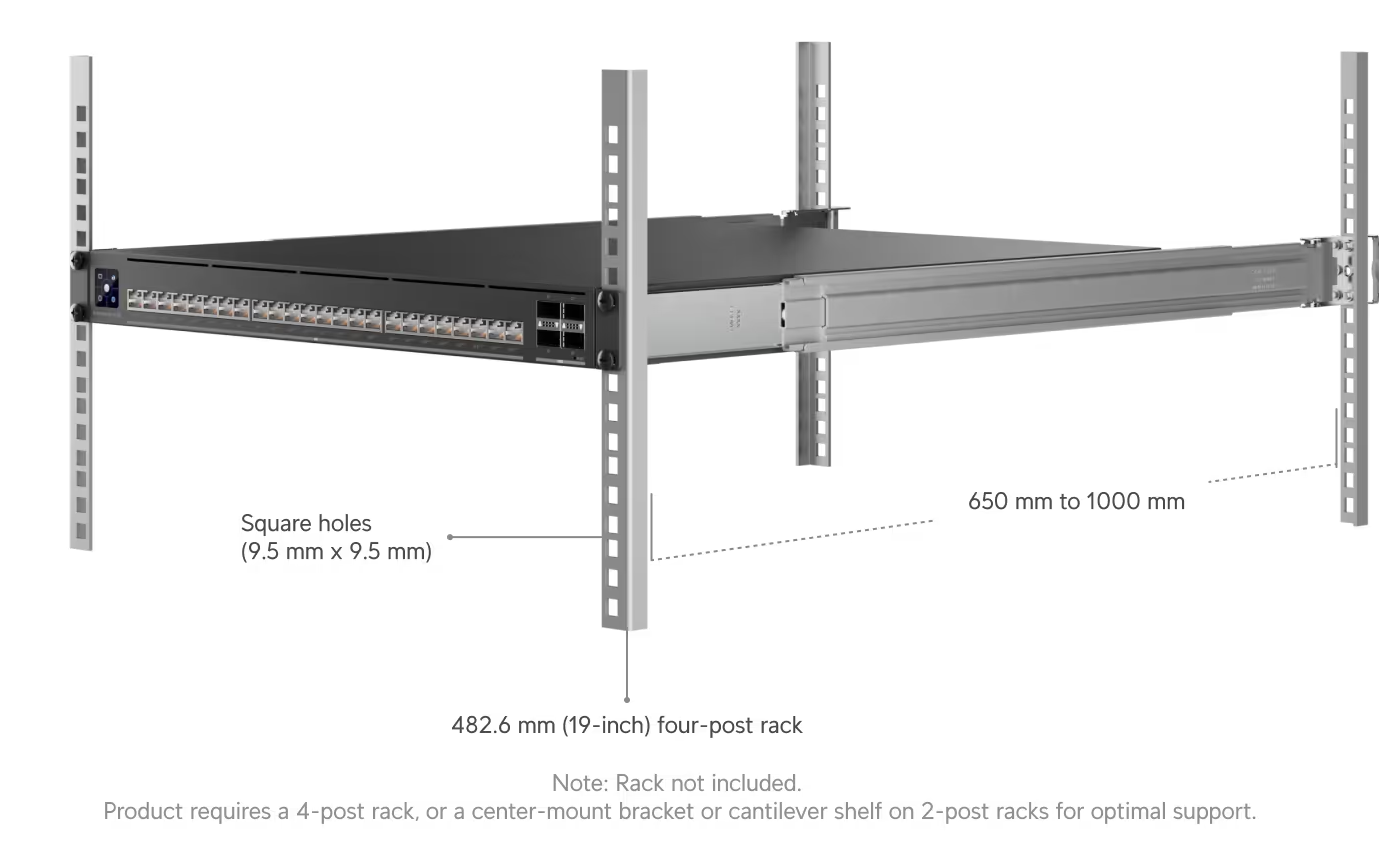

Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Specifications
| Category | Feature | Specification |

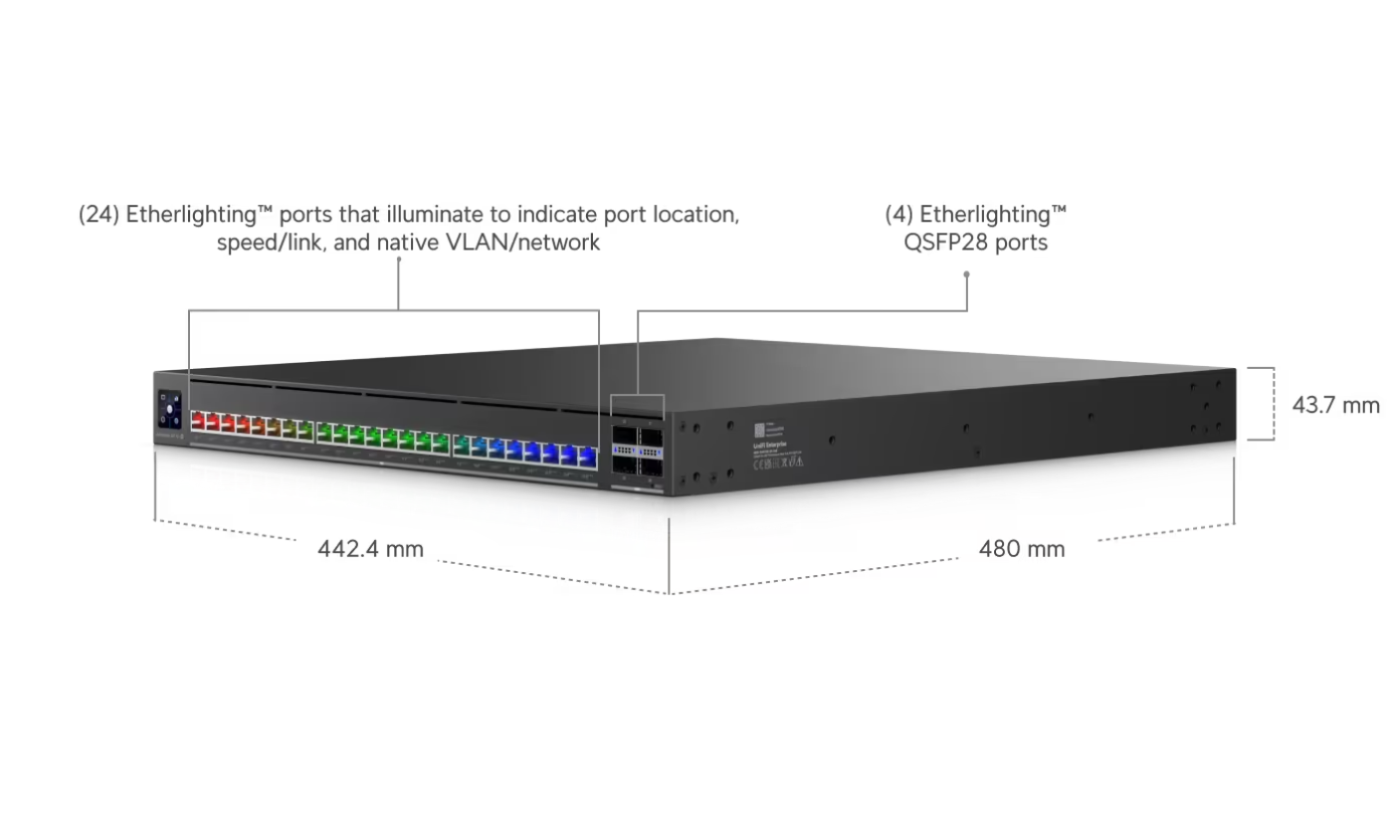

| Physical | Dimensions | 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7") |
| Weight | 9.85 kg (21.7 lb) / 9.95 kg (21.9 lb) with brackets | |
| Enclosure Material | SGCC Steel | |
| Form Factor | 1U Rack Mount (Full-Depth) | |

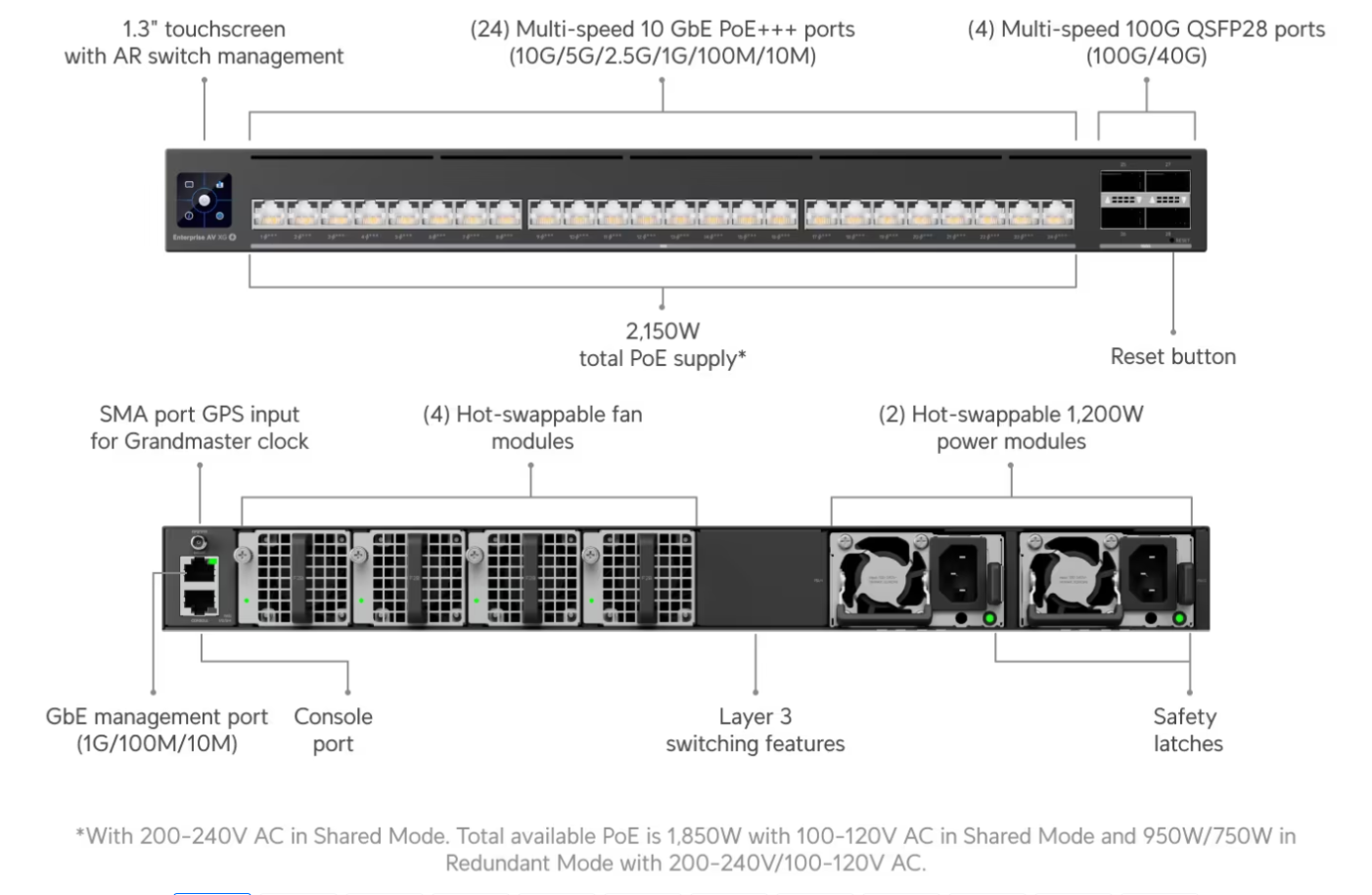

| Port Layout | 10 GbE RJ45 | 24 Ports (All PoE+++) |
| 100G QSFP28 | 4 Ports | |
| 1 GbE RJ45 | 1 Management Port | |
| Console | 1 Serial / 1 SMA | |
| Display | LCM | 1.3" Touchscreen |
| Visuals | Etherlighting™ | Supported (Ethernet & QSFP28) |
PoE & Power Delivery
| Feature | Details |
| PoE Standards | PoE (15.4W), PoE+ (30W), PoE++ (60W), PoE+++ (90W) |
| Max. PoE Availability | Shared Mode: 2,150W (200-240V) / 1,850W (100-120V) |
| Redundant Mode: 1,050W (200-240V) / 850W (100-120V) | |
| Power Supply | (2) Hot-swappable 1,200W AC/DC modules |
| Power Consumption | 150W (Excluding PoE) / 2,400W (Full PoE Load) |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
Performance & Layer 3 Capabilities
| Performance Metric | Value |
| Switching Capacity | 1,280 Gbps |
| Non-Blocking Throughput | 640 Gbps |
| Forwarding Rate | 810 Mpps |
| MAC Address Table | 32,000 |
| Packet Buffer | 8 MB |
| IPv4 Routes | 256,000 |
| ARP Entries | 128,000 |
| Static Routes | 512 |
| L3 Features | DHCP Server/Relay, Inter-VLAN Routing, Static Routing |
Layer 2 & Pro AV Features
| Category | Supported Features |
| Standard L2 | STP/RSTP, LACP, Jumbo Frames, LLDP-MED, IGMP Snooping |
| Pro AV | PTPv2, SyncE, Advanced IGMP (Querier/Fast Leave) |
| AV Profiles | Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Security | 802.1X, DHCP Snooping, Port Isolation, Storm Control, MAC/IP ACLs |
| Management | Ethernet, AR (Augmented Reality), Serial Console |
Environmental & Compliance
| Feature | Details |
| Cooling | (4) Hot-swappable fan modules |
| Operating Temp | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| ESD Protection | Air: ± 12KV, Contact: ± 8KV |
| Compliance | NDAA Compliant, CE, FCC, IC |
