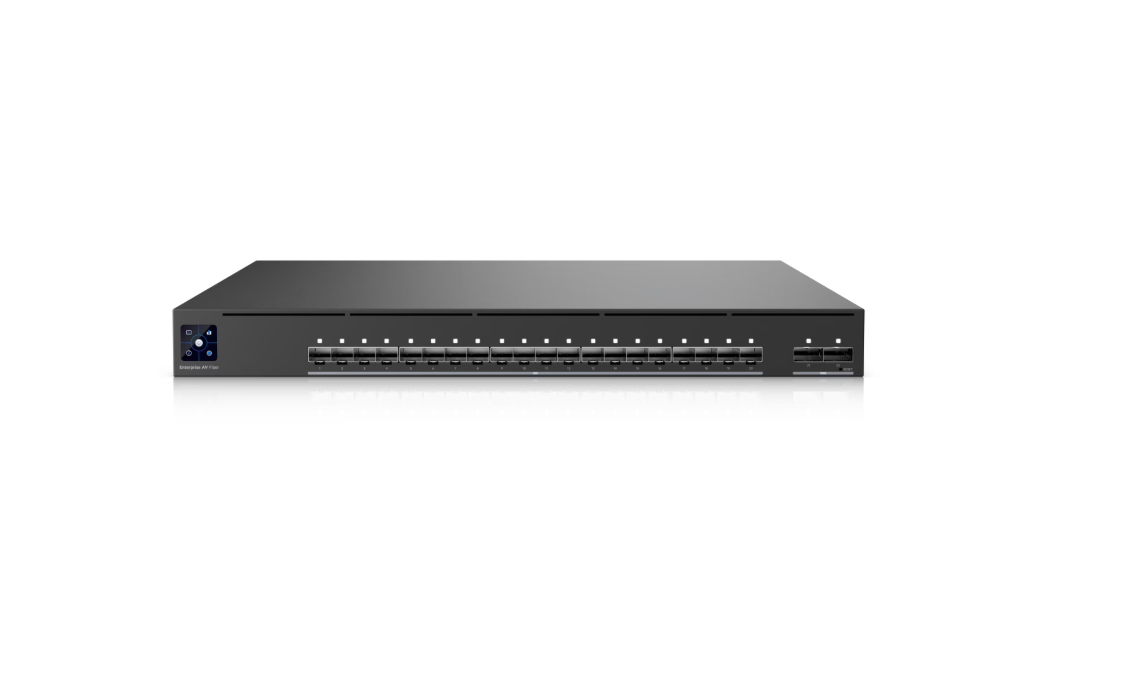

Ubiquiti EAV-Fiber Enterprise Audio/Video Fiber
Product Details

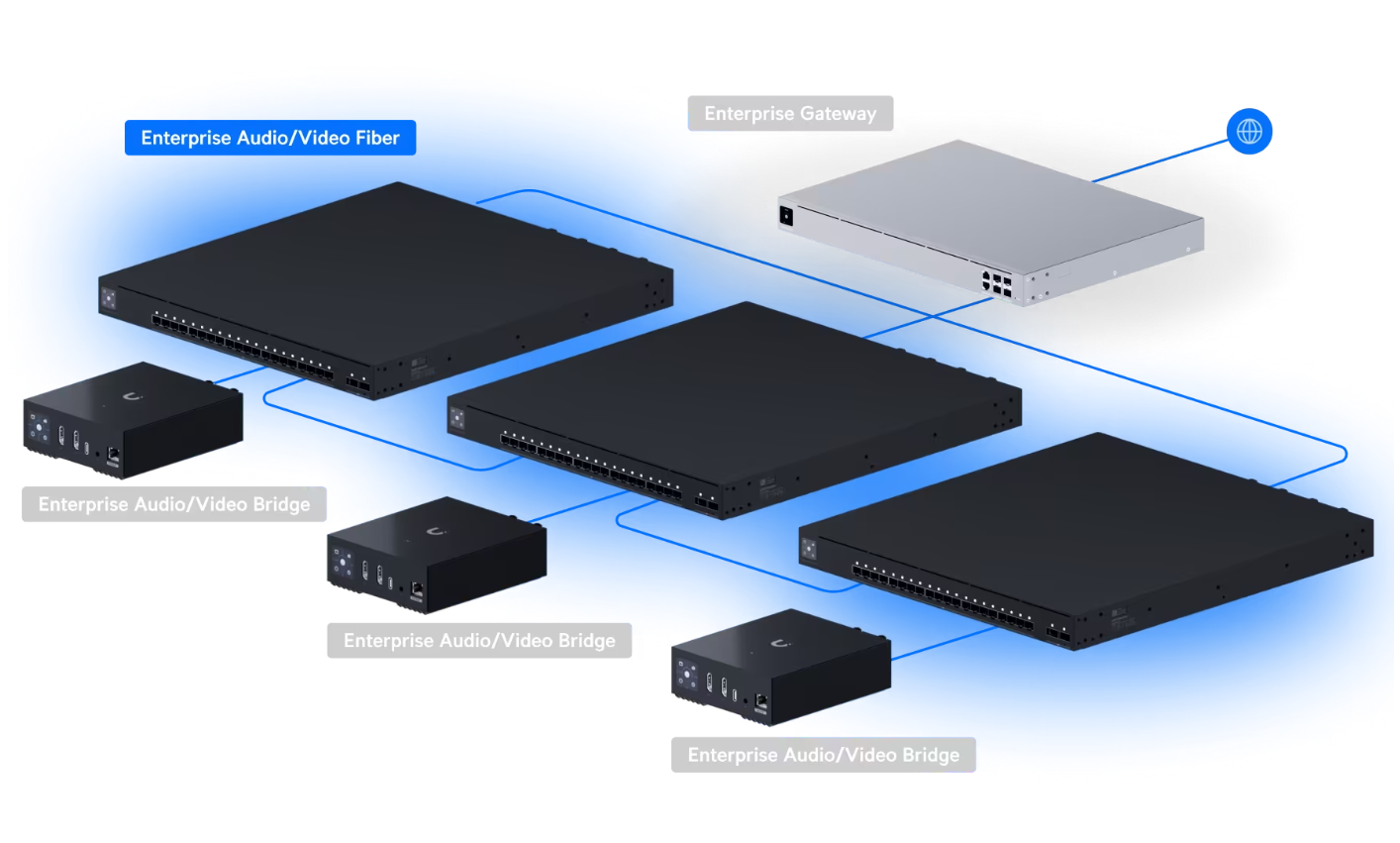

Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.

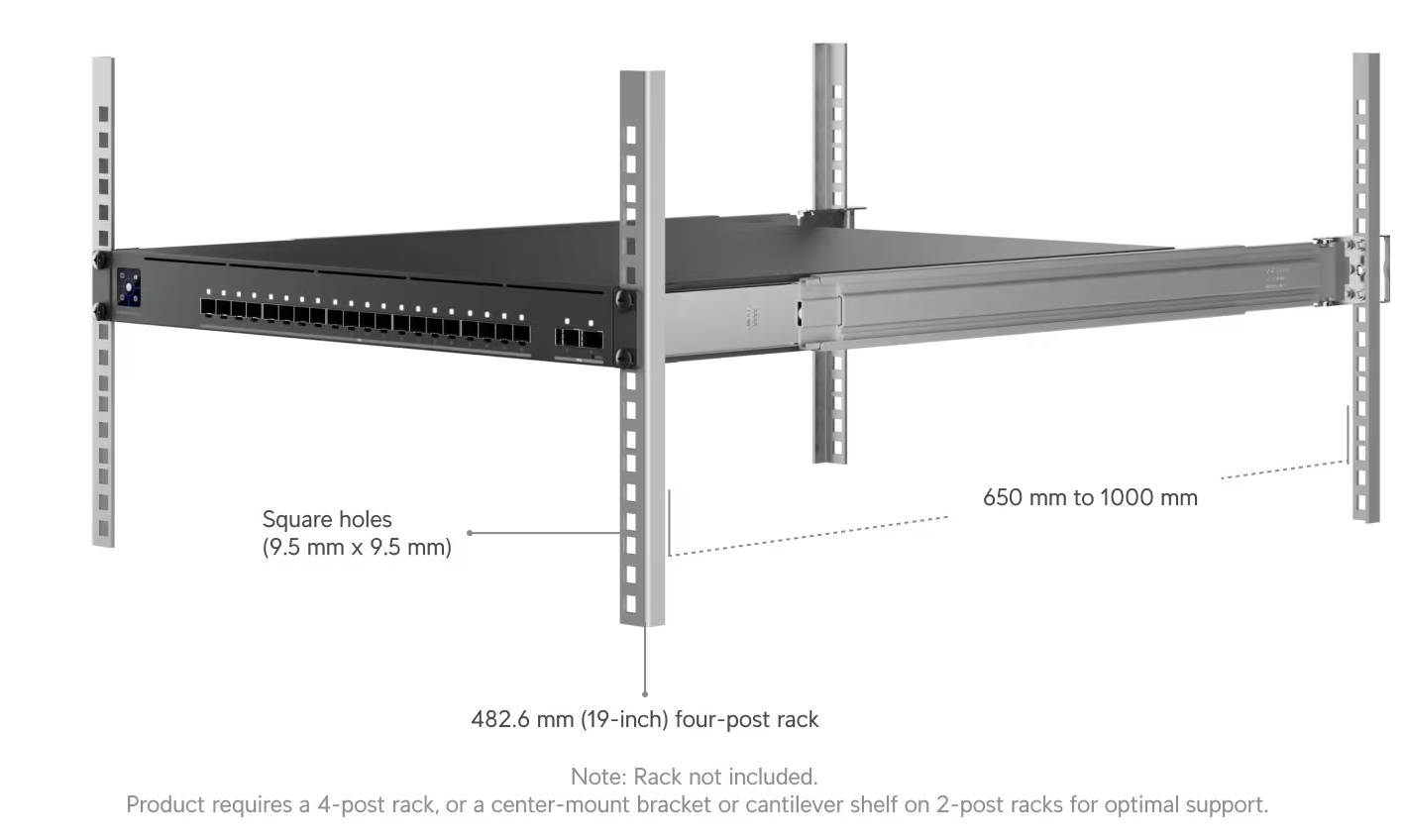

Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Features
| Feature Set | Capability | Support |
| Layer 3 | Inter-VLAN / Static Routing | ✓ |
| DHCP Server / Relay | ✓ | |
| Layer 2 | STP / RSTP | ✓ |
| LACP Port Aggregation | ✓ | |
| IGMP Snooping / Querier | ✓ | |
| Jumbo Frames / LLDP-MED | ✓ | |
| Loop Protection | ✓ | |
| Pro AV | AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| SyncE / PTPv2 | ✓ | |
| Security | 802.1X Control | ✓ |
| DHCP Snooping / Guarding | ✓ | |
| ACLs (IPv4 & MAC) | 256 / 256 | |
| Device / Port Isolation | ✓ | |
| Storm Control / Rate Limiting | ✓ |
Specifications

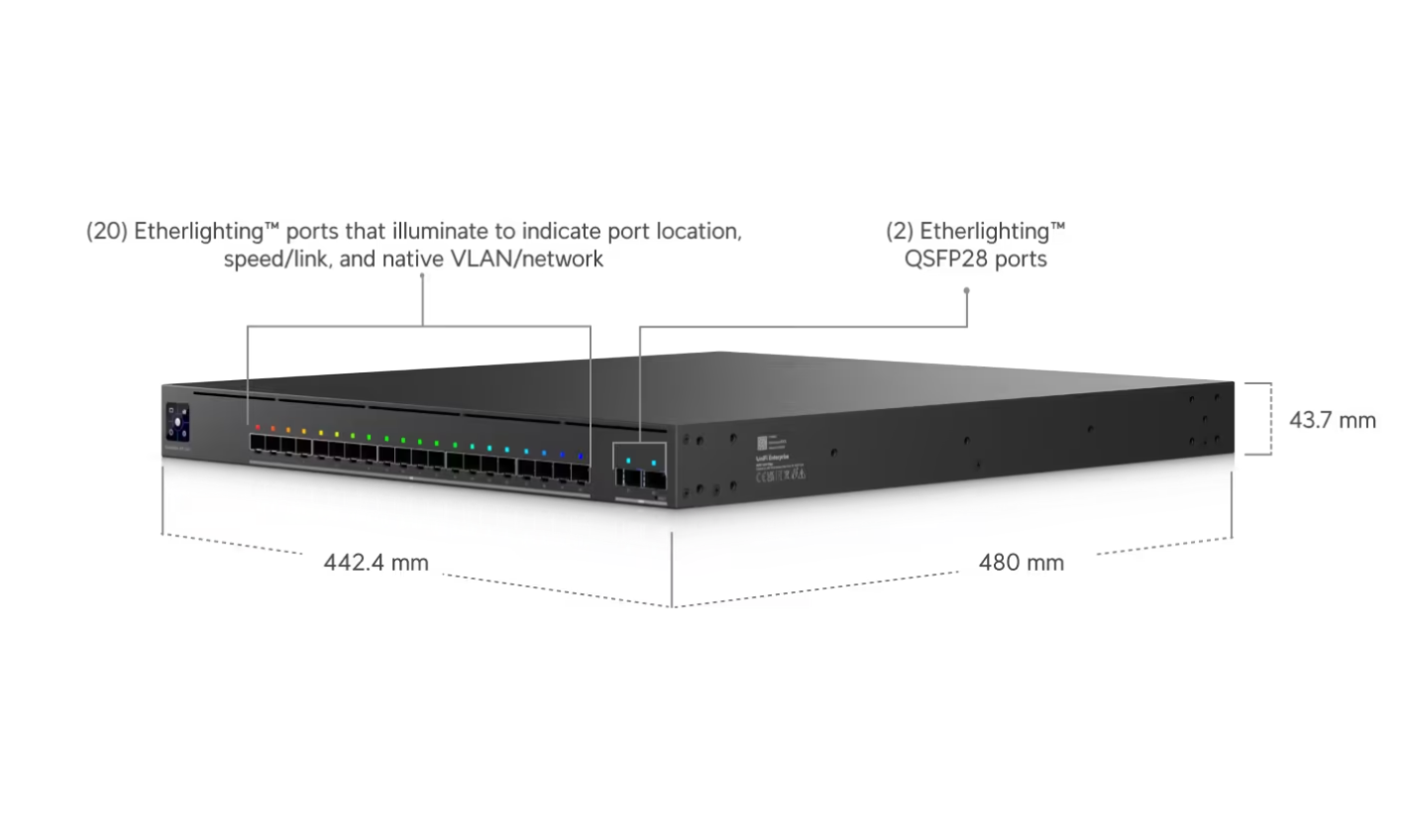

| Physical | Dimensions | 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7") |
| Weight | 8.95 kg (Without brackets) / 9.05 kg (With brackets) | |
| Enclosure / Mount Material | SGCC steel | |
| Form Factor | Rack Mount (1U, Full-Depth) | |

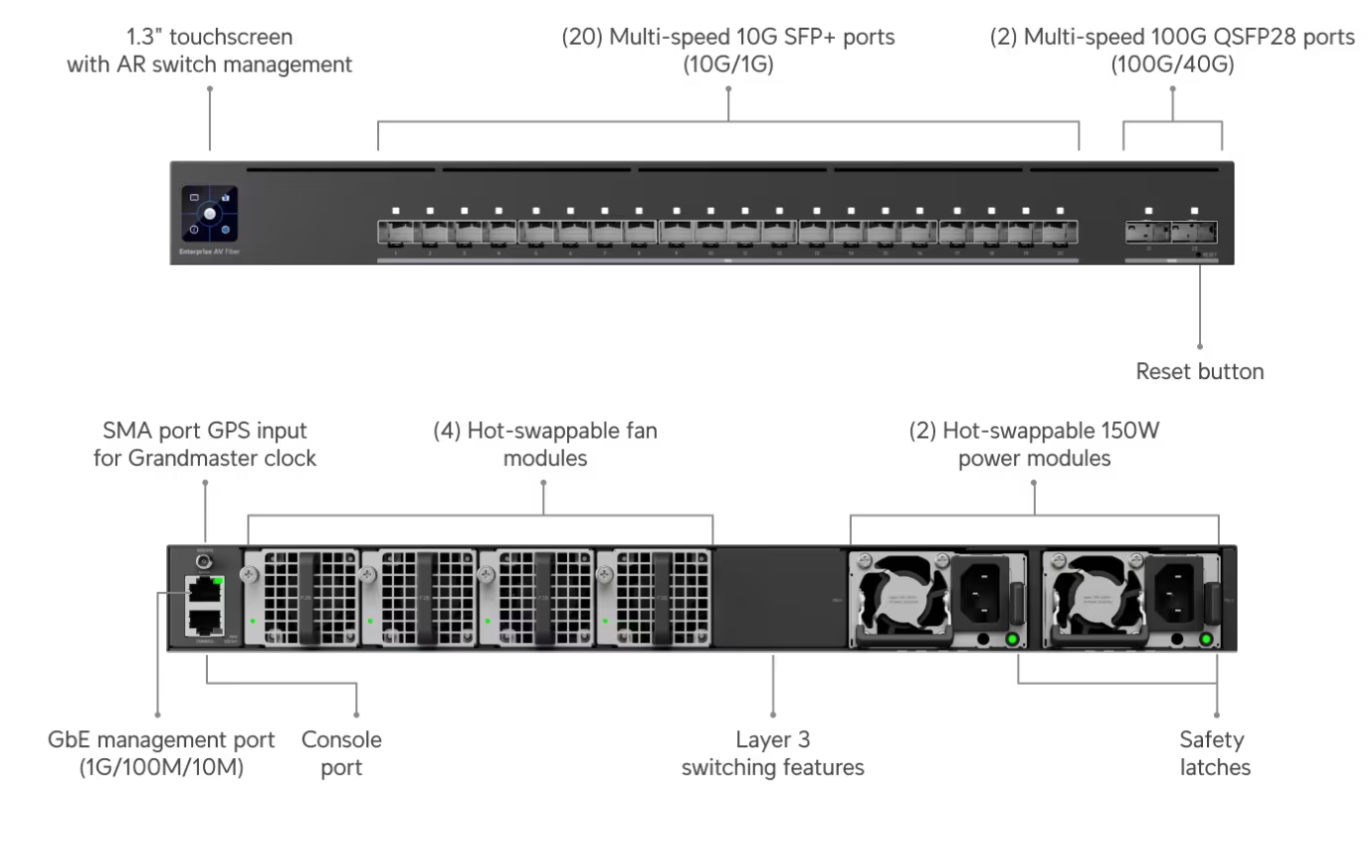

| Port Layout | 1 GbE RJ45 | 1 (10/100/1000M) |
| 10G SFP+ | 20 (1G/10G) | |
| 100G QSFP28 | 2 (40G/100G) | |
| Console / SMA | 1 / 1 | |
| Performance | Switching Capacity | 800 Gbps |
| Non-Blocking Throughput | 400 Gbps | |
| Forwarding Rate | 595 Mpps | |
| Packet Buffer | 8 MB | |
| MAC Address Table | 32,000 | |
| Supported VLANs | 1,000 | |
| L3 Tables | ARP Entries | 128,000 |
| IPv4 Routes | 256,000 | |
| IPv4 Static Routes | 512 | |
| Redundancy | Power Supply | (2) Hot-Swappable 150W AC/DC PSUs |
| Cooling | (4) Hot-Swappable Fans |
Electrical, Environmental & Management
| Category | Feature | Specification |
| Power | Max Power Consumption | 150W |
| Voltage Range | 100–240V AC | |
| Heat Dissipation | 512 BTU/hr | |
| Management | Interface | Ethernet, Serial Console, AR |
| Display | 1.3" Touchscreen LCM | |
| Visuals | Etherlighting™ | SFP+ and QSFP28 Ports |
| Status LEDs | Ethernet, PSU, Fan | |
| Environment | Operating Temp | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing | |
| ESD Protection | Air: ± 12KV, Contact: ± 8KV | |
| Compliance | Standards | NDAA Compliant, CE, FCC, IC |
