Ubiquiti Access Point U7 Mesh

Name: Ubiquiti Access Point U7 Mesh
Brand: Ubiquiti
SKU: U7-Mesh
Price: 199.00 USD
Availability: InStock

$199.00

Ubiquiti Access Point U7 Mesh is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

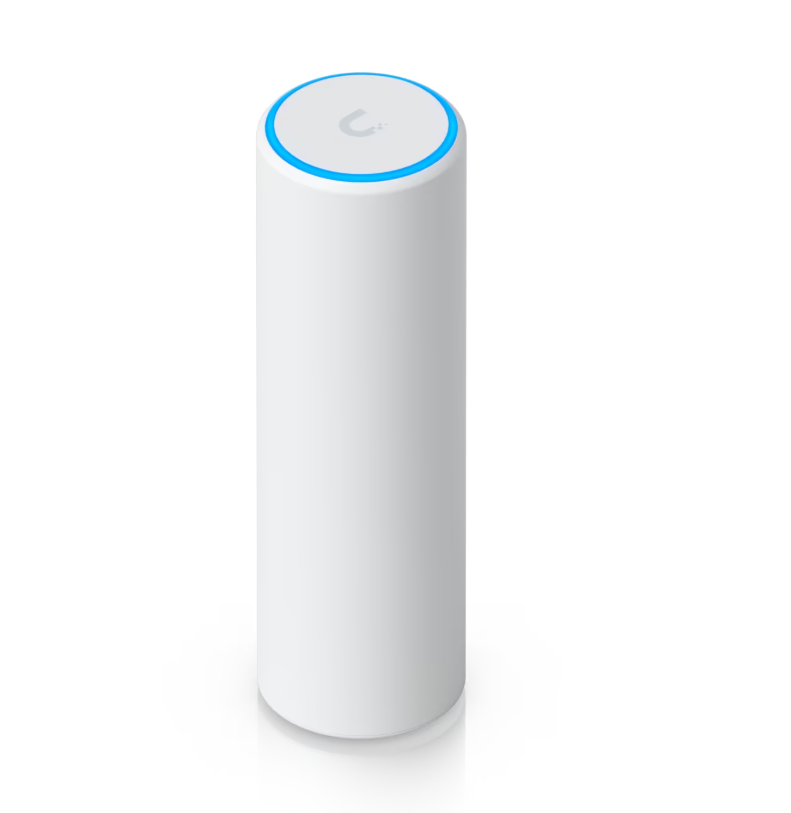

Ubiquiti Access Point U7 Mesh

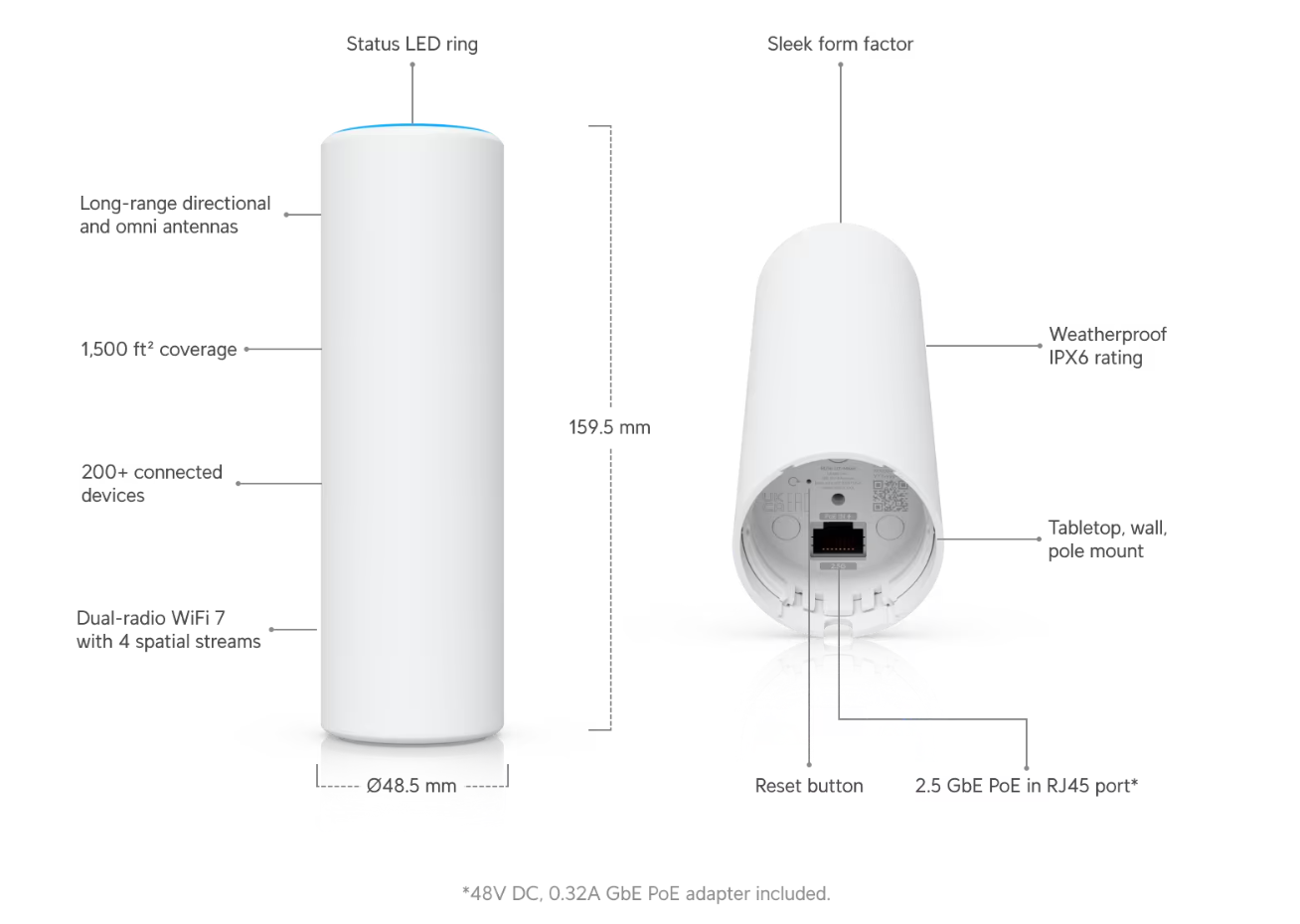

Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.

Mechanical	Dimensions	170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
	Weight	1.2 kg (2.6 lb)
	Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
	Weatherproofing	IPX6
	Wind Survivability	74.6 N at 200 km/h (16.8 lbf at 125 mph)
Hardware	Networking Interface	(1) 1/2.5 GbE RJ45 port

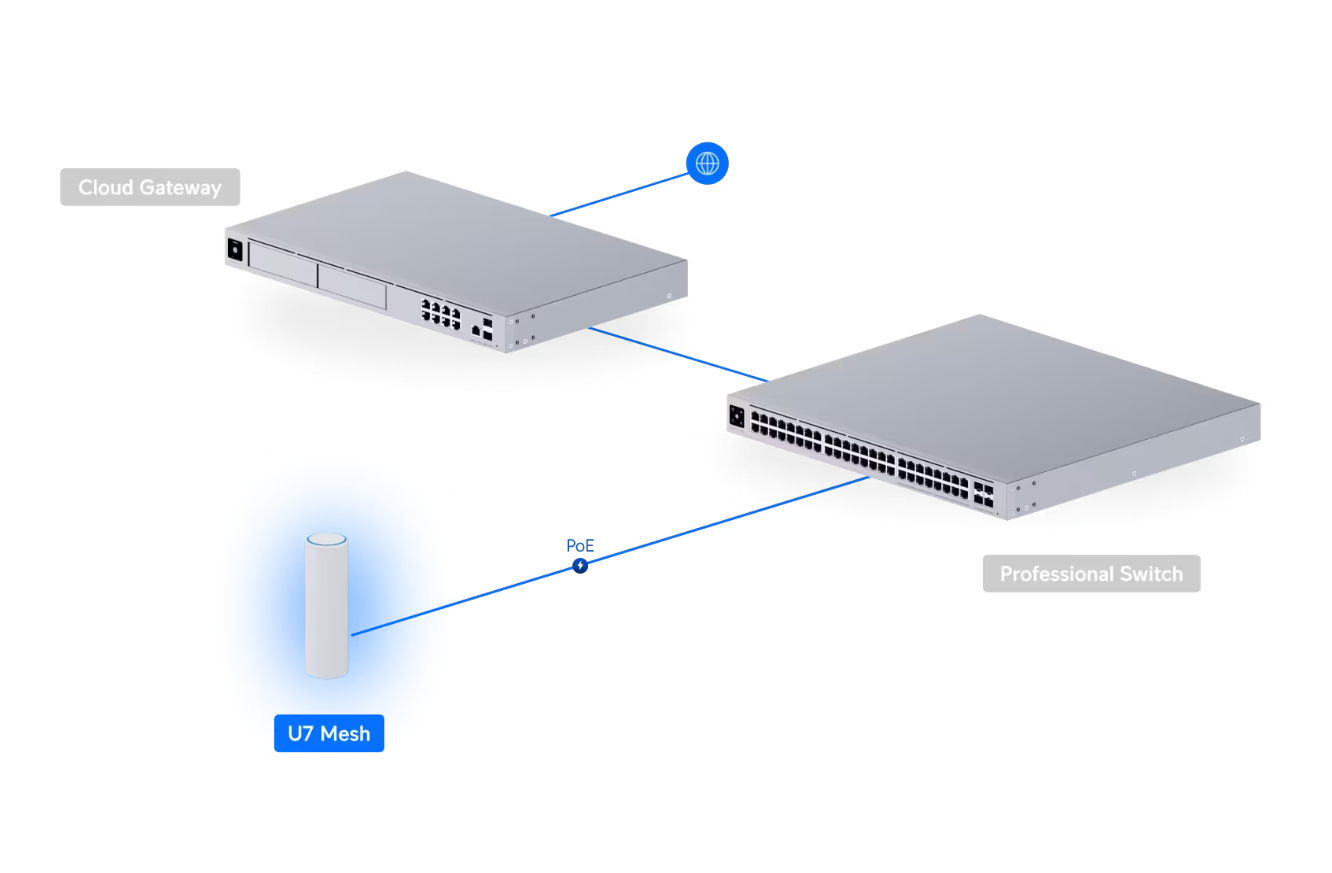

	Power Method	PoE+
	Power Supply	UniFi PoE Switch (Supported Voltage: 42.5–57V DC)
	Max. Power Consumption	19W
	LEDs	(1) Power: White/Blue; (4) Mesh signal: Blue

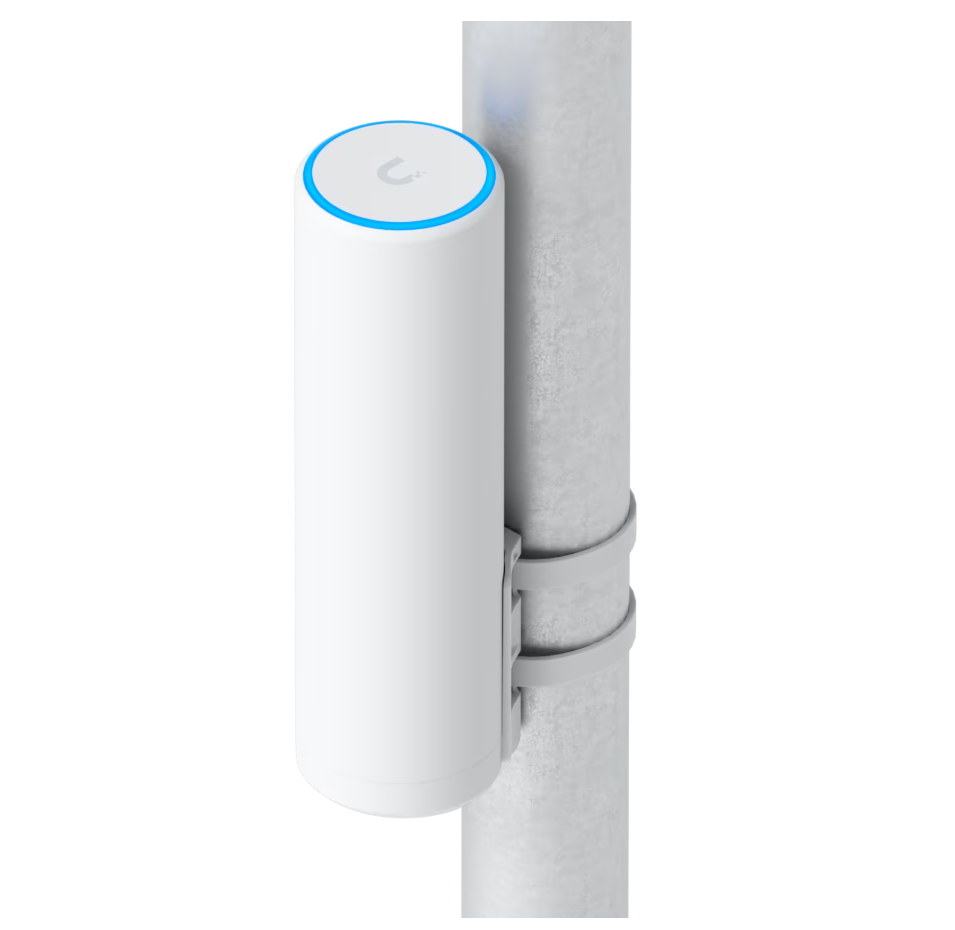

	Mounting	Wall, Pole, Ceiling (Mounts included)
Performance	WiFi Standard	WiFi 7 (802.11be)
	Spatial Streams	4
	MIMO (2.4 / 5 GHz)	2 x 2 / 2 x 2 (DL/UL MU-MIMO)
	Max. Data Rate (5 GHz)	4.3 Gbps (BW240)
	Max. Data Rate (2.4 GHz)	688 Mbps (BW40)
	Max. TX Power	5 GHz: 26 dBm / 2.4 GHz: 23 dBm
	Coverage Area	465 m² (5,000 ft²) with Internal Directional Antenna
Antennas	Internal Directional	5 GHz: 12.5 dBi (45°) / 2.4 GHz: 8 dBi (90°)
	External Omni	5 GHz: 4 dBi / 2.4 GHz: 3 dBi (RP-SMA)
Software	Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
	BSSID	8 per radio
	Advanced Features	Mesh, Band Steering, 802.11r/k/v, Passpoint, VLAN
	Captive Portal	Custom Branding, Vouchers, Payment, Guest Isolation
	App Requirements	UniFi Network: v8.3+; iOS: v10.20.2+; Android: v10.21.7+
