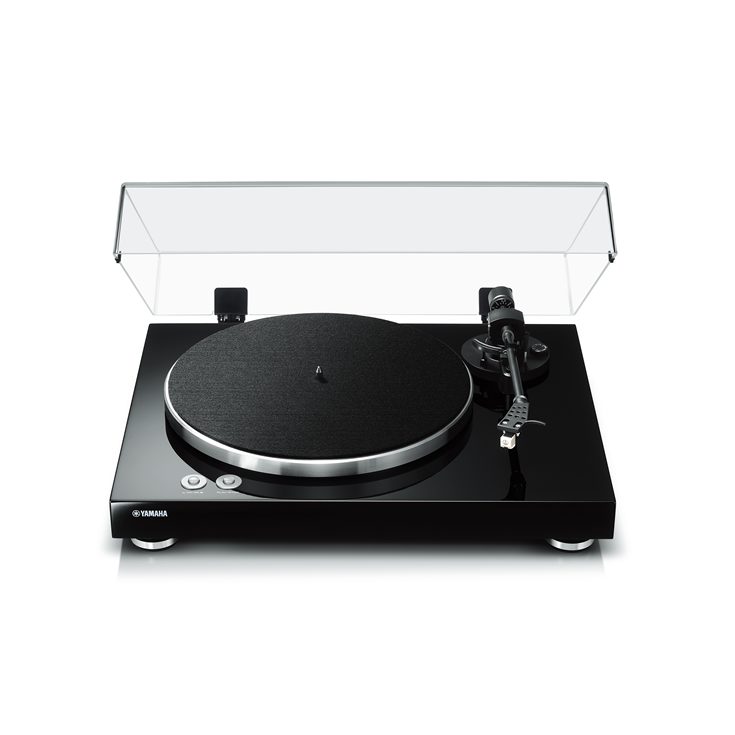

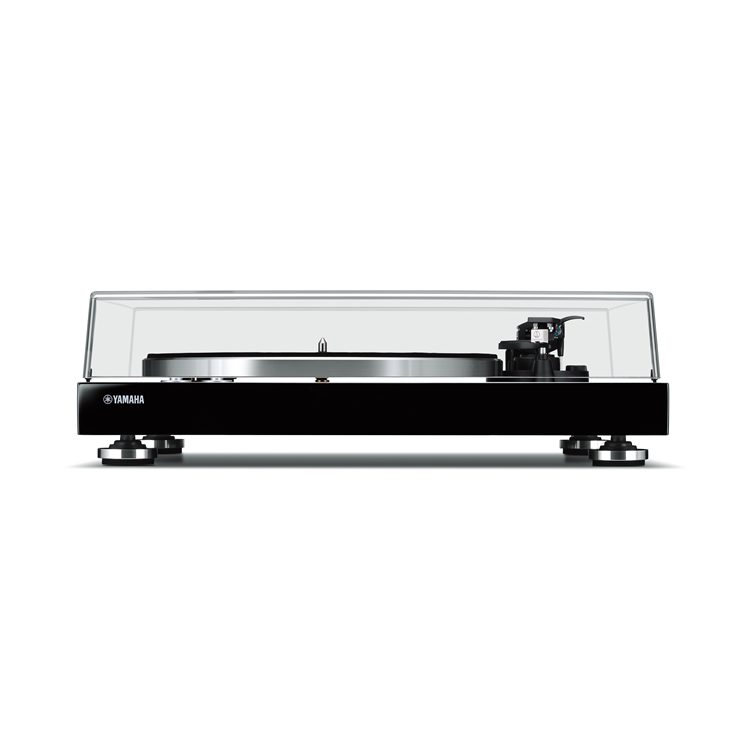

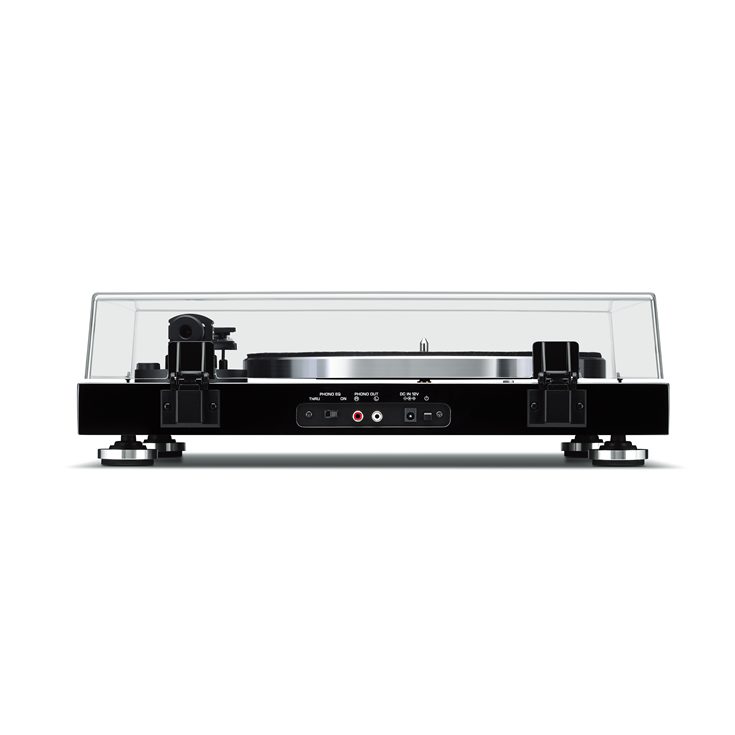

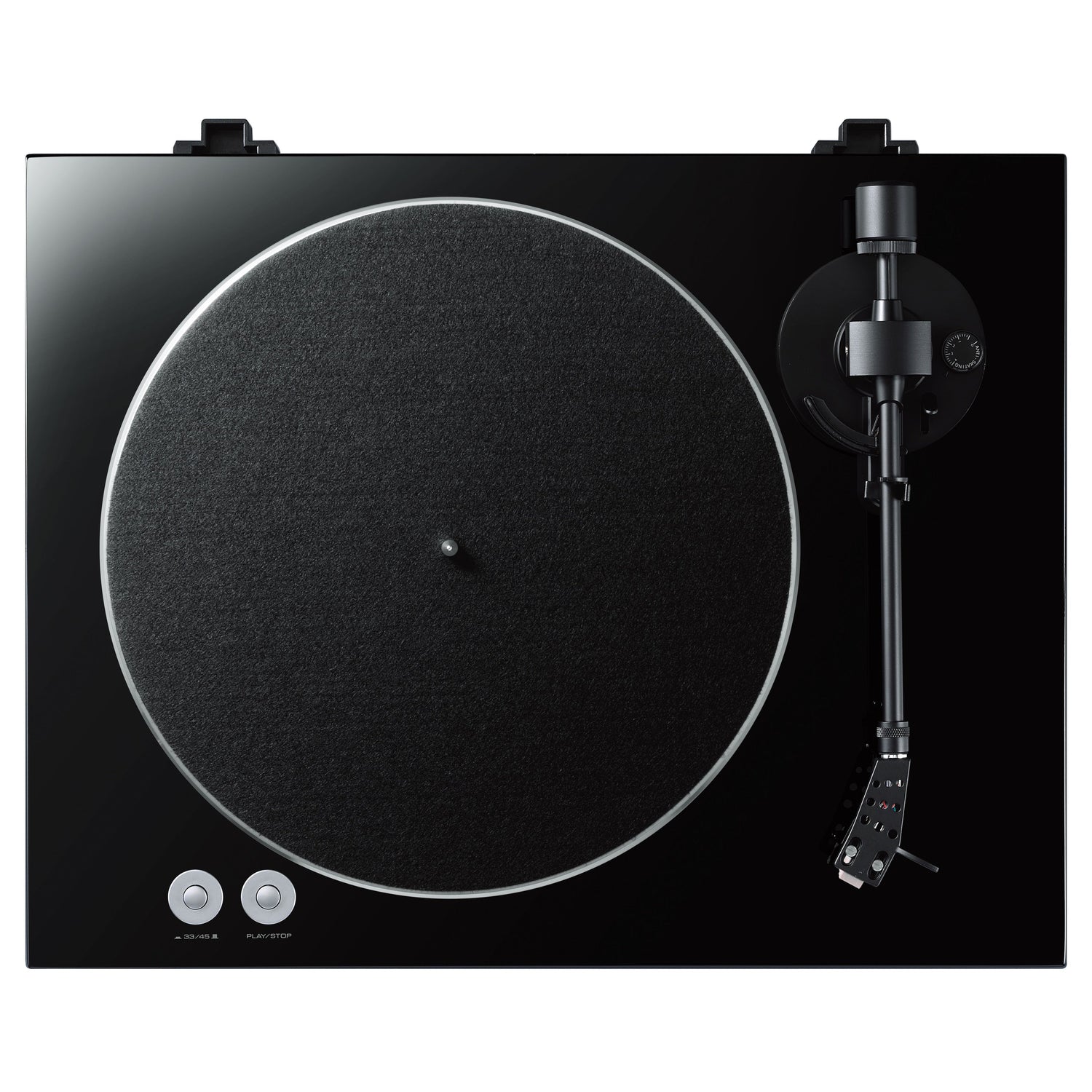

Yamaha TT-S303 Turntable
Create a listening experience with the Yamaha TT-S303 turntable. Yamaha heritage and a modern aesthetic designed to let you hear every detail in your vinyl collection. Pair with other Yamaha Hi-Fi components for exceptional sound and streaming capabilities.
- Static balanced straight tonearm creates accurate stylus pressure for accurate tracking and sound reproduction
- A rigid cabinet with large internal loss suppresses unnecessary vibration
- Belt-driven high inertia platter with DC motor to achieve stable rotation
- Built-in Phono Preamp for line or Phono output
- Yamaha piano black finish that shows off your style and your records
| TT-S303 | ||
|---|---|---|
| Turntable | Drive Method | Belt drive |
| Motor | DC motor | |
| Rotation Speed | 33-1/3 rpm, 45 rpm | |
| Rotation Speed Variation | ±2% | |
| Wow And Flutter | 0.2% | |
| Platter | Aluminium die-cast (Diameter 30 cm) | |
| Output Level | 140 mV (-17 dBV, with RIAA EQ), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) | |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) | |
| Tonearm | Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm | |
| Overhang | 19 mm | |
| Stylus Pressure Adjustment Range | 0-4 g | |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) | |
| Attached Cartridge | Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) | |
| Stylus Pressure | 3.5 ± 0.5 g | |
| Cartridge Weight | 5.0 ± 0.3 g | |
| Cartridge Height | 17.0 ± 0.7 mm | |
| Headshell Weight | 10 g (including screws, nuts and wires) | |
| Audio Specifications | Output Terminal | RCA: 1 (PHONO) |
| General | Power Consumption | 1.5 W |
| Standby Power Consumption | 0.1 W | |
| Dimension (W×H×D) | 17-3/4” x 5-3/8” x 14-1/2” | |
| Weight | 10.6 lbs. | |
