TRENDnet | SKU: TPE-TG160H

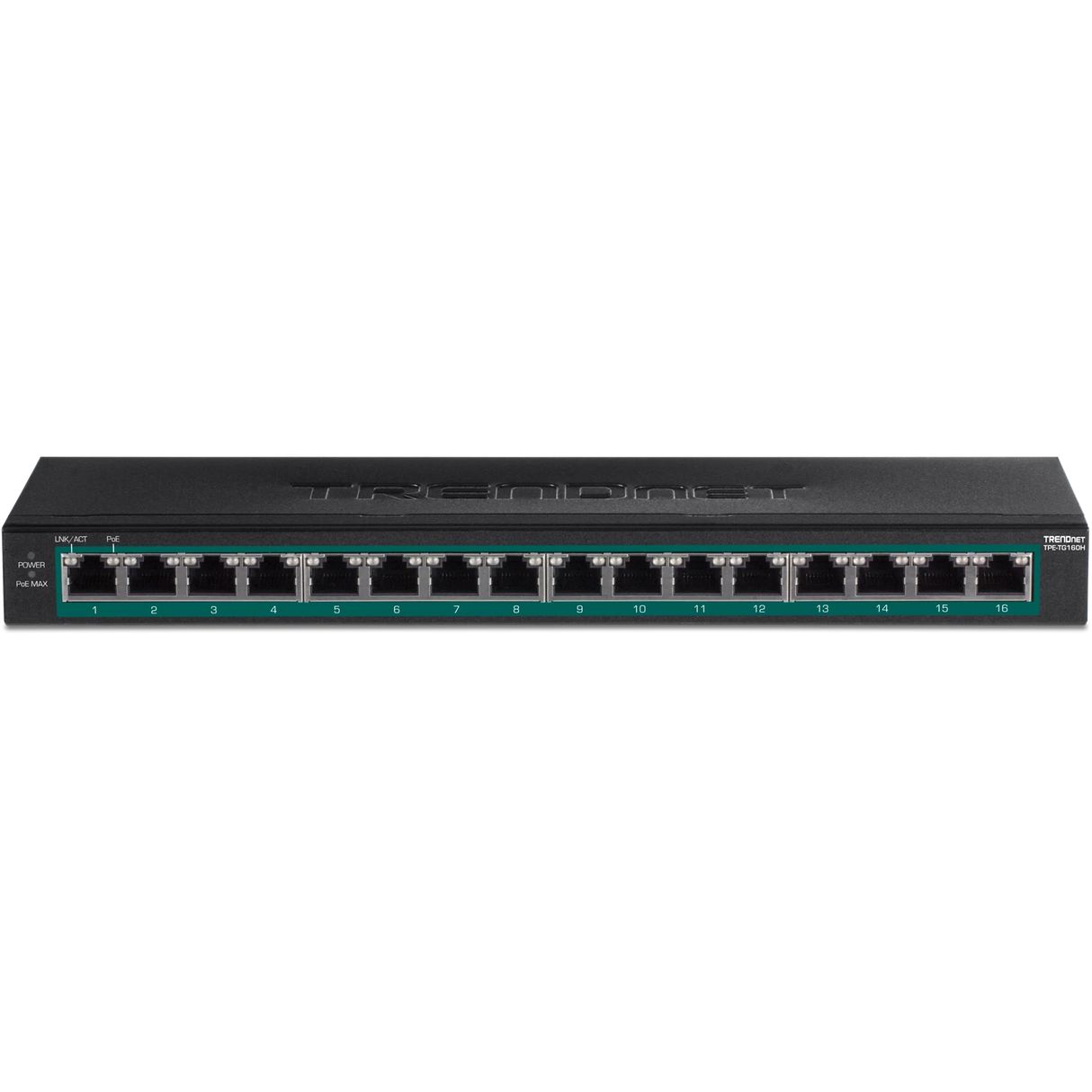

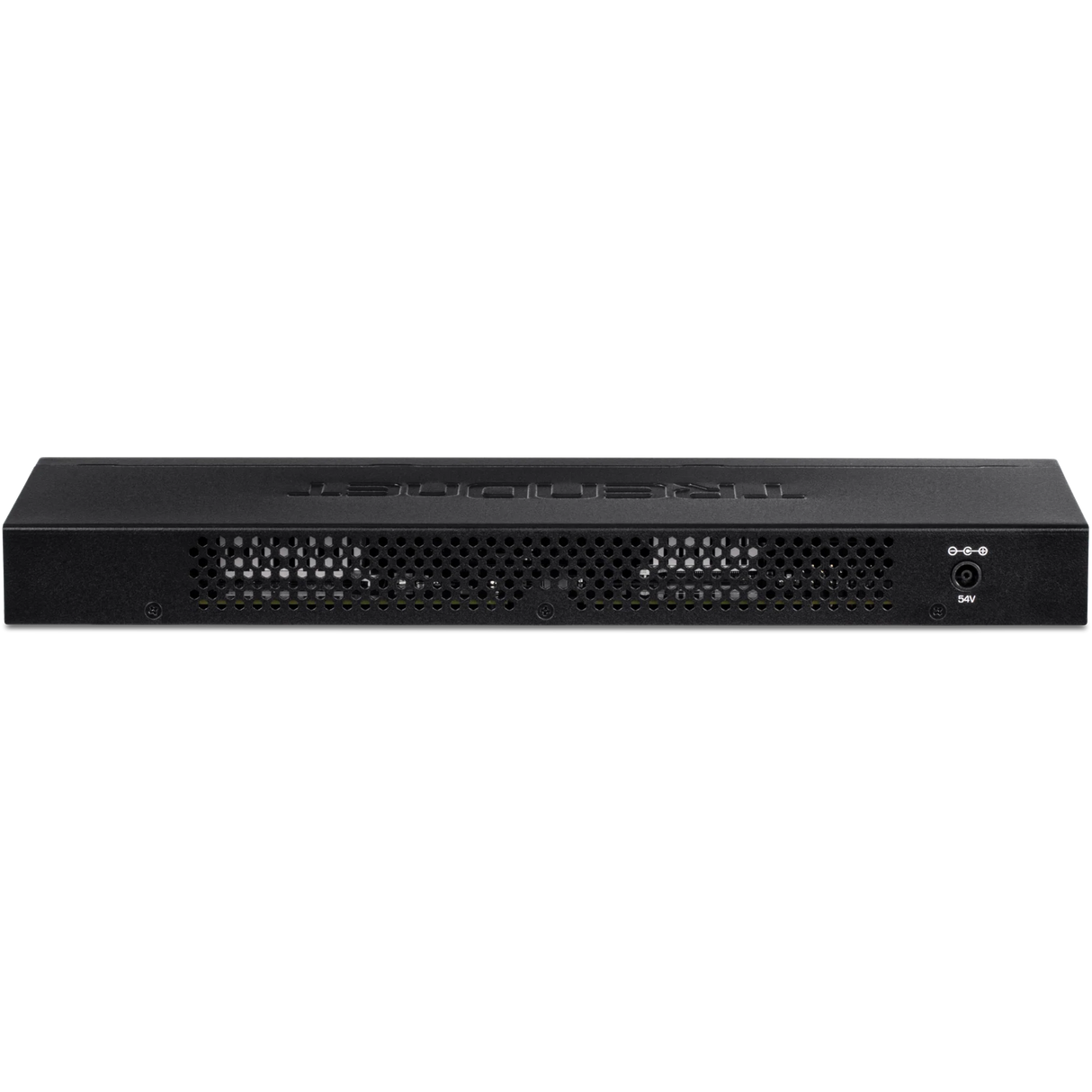

TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch, 123W PoE Budget

Name: TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch, 123W PoE Budget
Brand: TRENDnet
SKU: TPE-TG160H
Price: 169.99 USD
Availability: InStock

$169.99

TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch, 123W PoE Budget is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch

NDAA/TAA Compliant

Product Details

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. These fanless PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables.

With PoE technology, users only need one set of cables to deliver both data and power. Connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's fanless PoE+ switches.

Features

16 x Gigabit PoE+ ports
32Gbps switching capacity
123W PoE power budget
IEEE 802.3af/at compliant
Fanless design eliminates operating noise
Reduces equipment cost by delivering data and power over existing network cables
1U 19” rack mountable with brackets included
External power supply
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

Specifications

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	16 x Gigabit PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 512KB Switch Fabric: 32Gbps MAC Address Table: 8K entries Forwarding rate: 23.8Mpps (64-byte packet size) Jumbo Frame: 10KB
Power	Input: 100 – 240V AC, 50/60Hz, DC 54V/2.78A Max. consumption: 12.8W (no PD)
PoE	PoE budget: 123W PoE Mode A: Pins 1, 2, 3, and 6 for power Over current protection Short circuit protection
MTBF	988,148 hours
Operating Temperature	0° – 45° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	286 x 102 x 27mm (11.3 x 4 x 1 in.)
Weight	0.9kg (2 lbs.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG160H
Quick Installation Guide

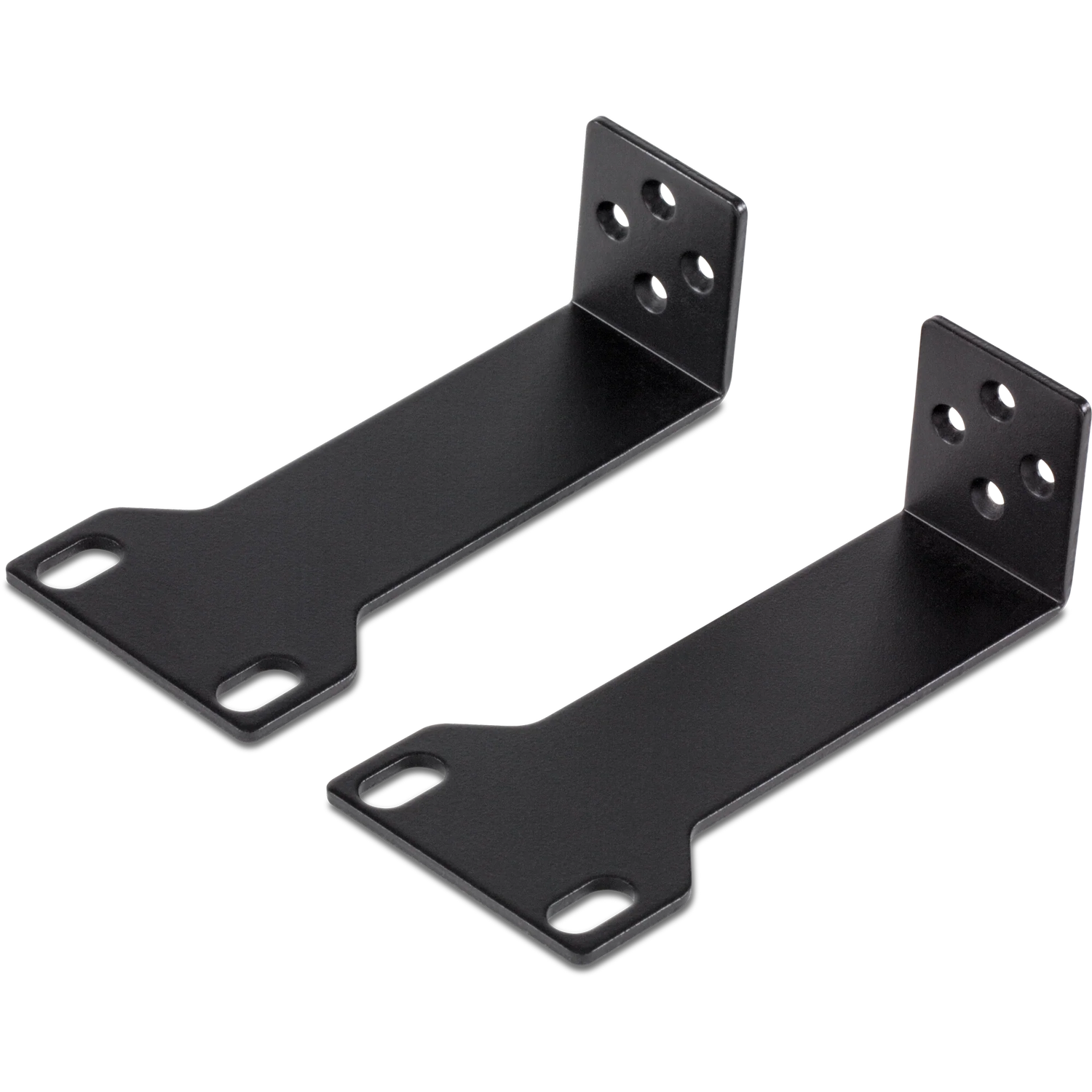

Rack mount kit
Power Adapter (54V, 2.78A)
