TRENDnet  |  SKU: TPE-TG51g

TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Switch (60W)

$49.99

TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Switch (60W) is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

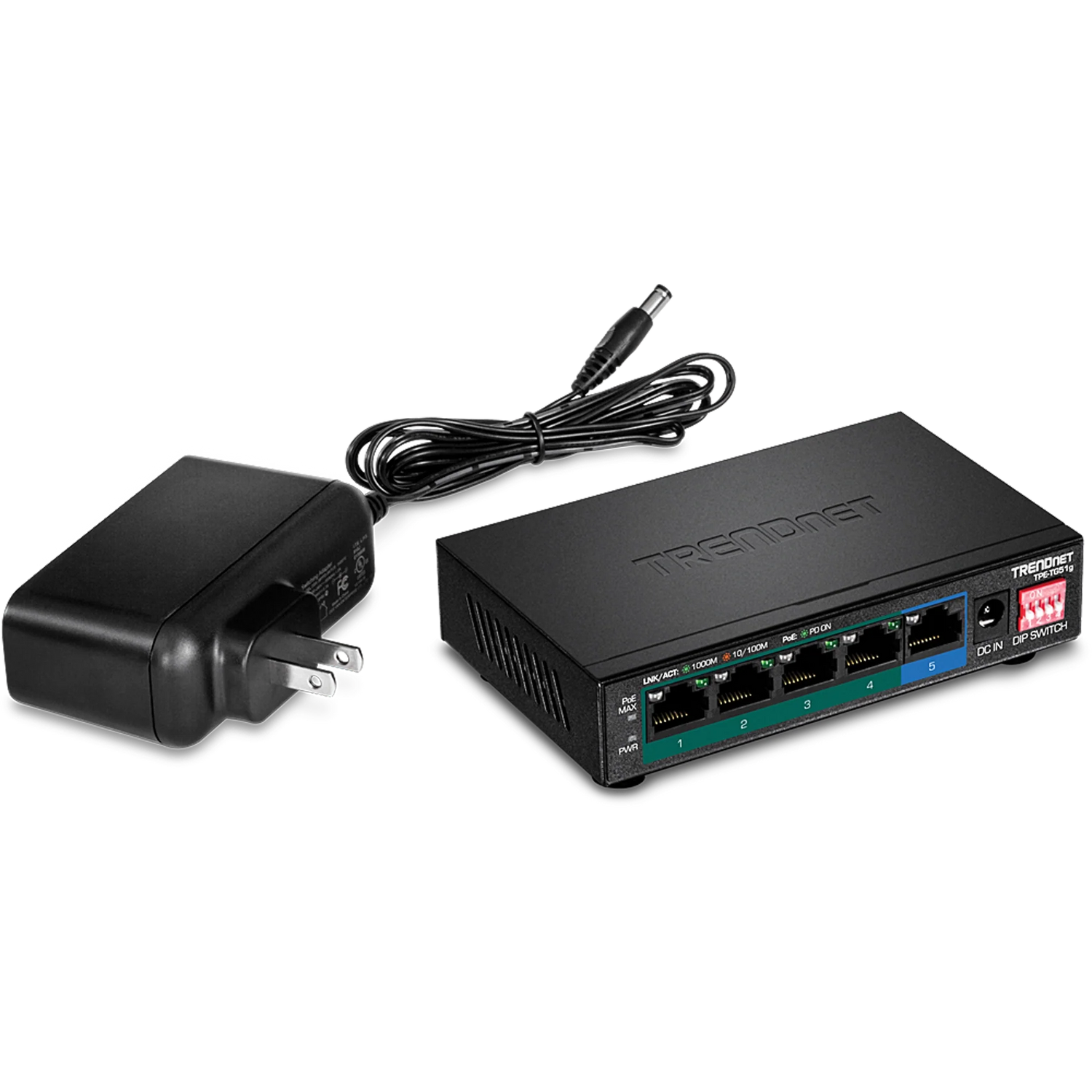

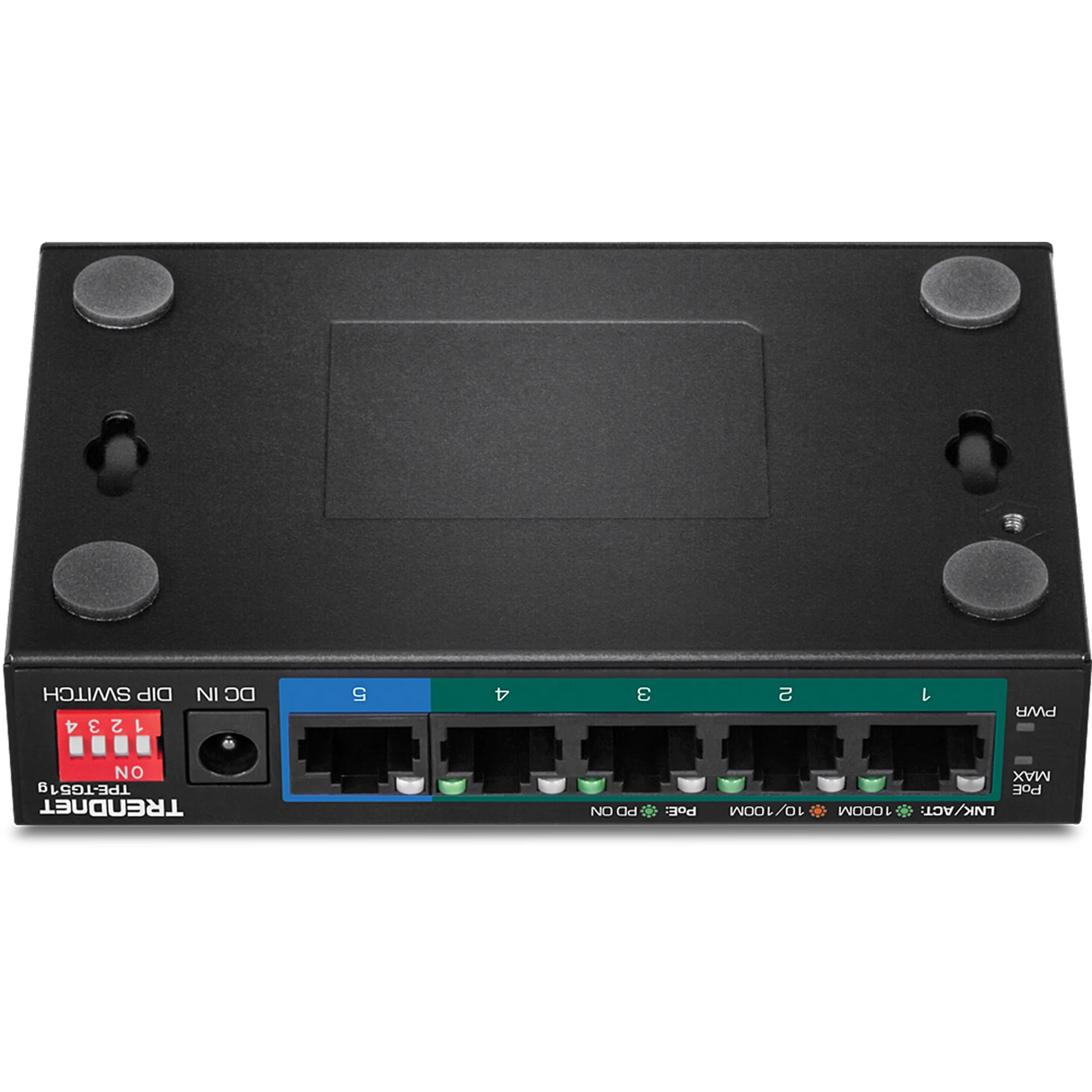

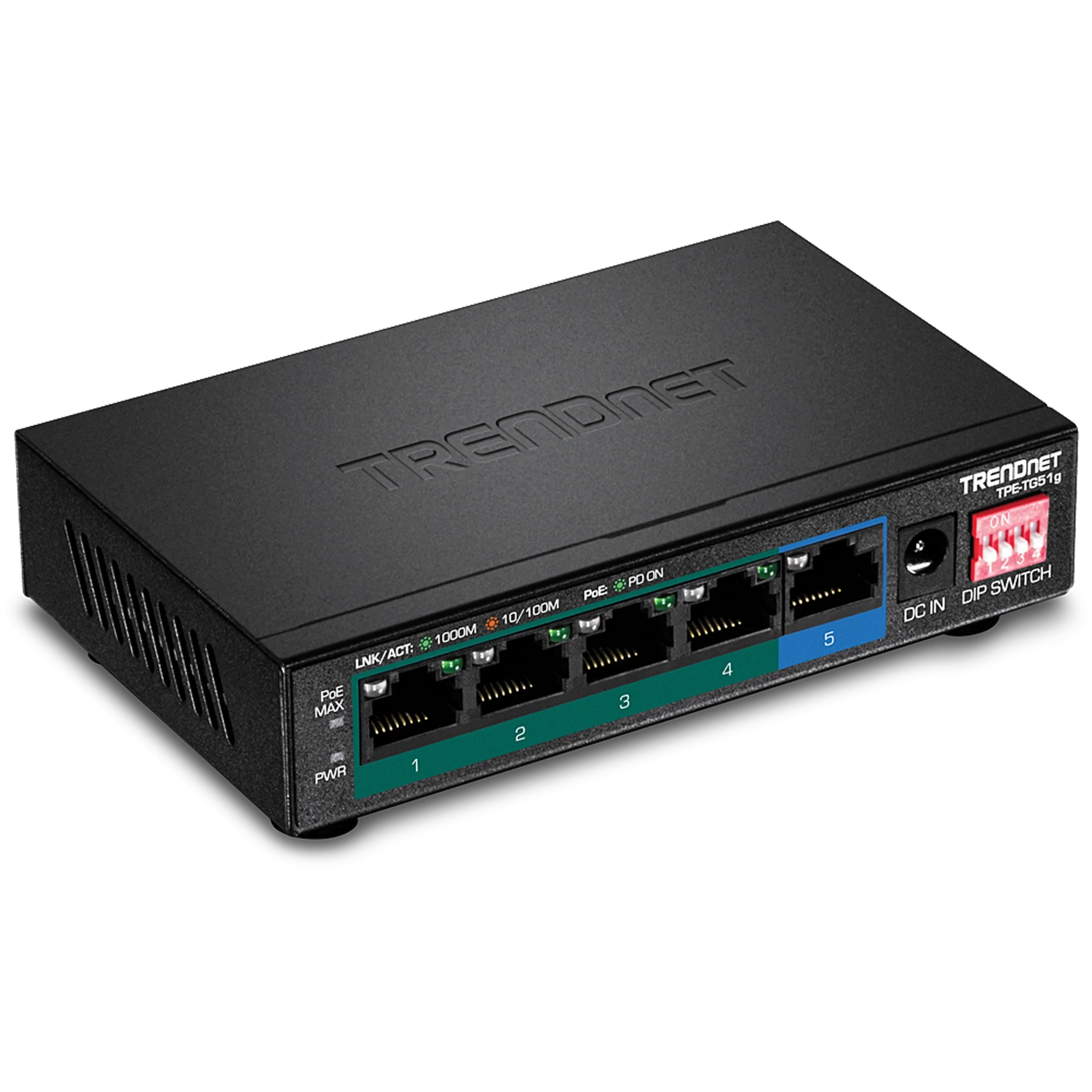

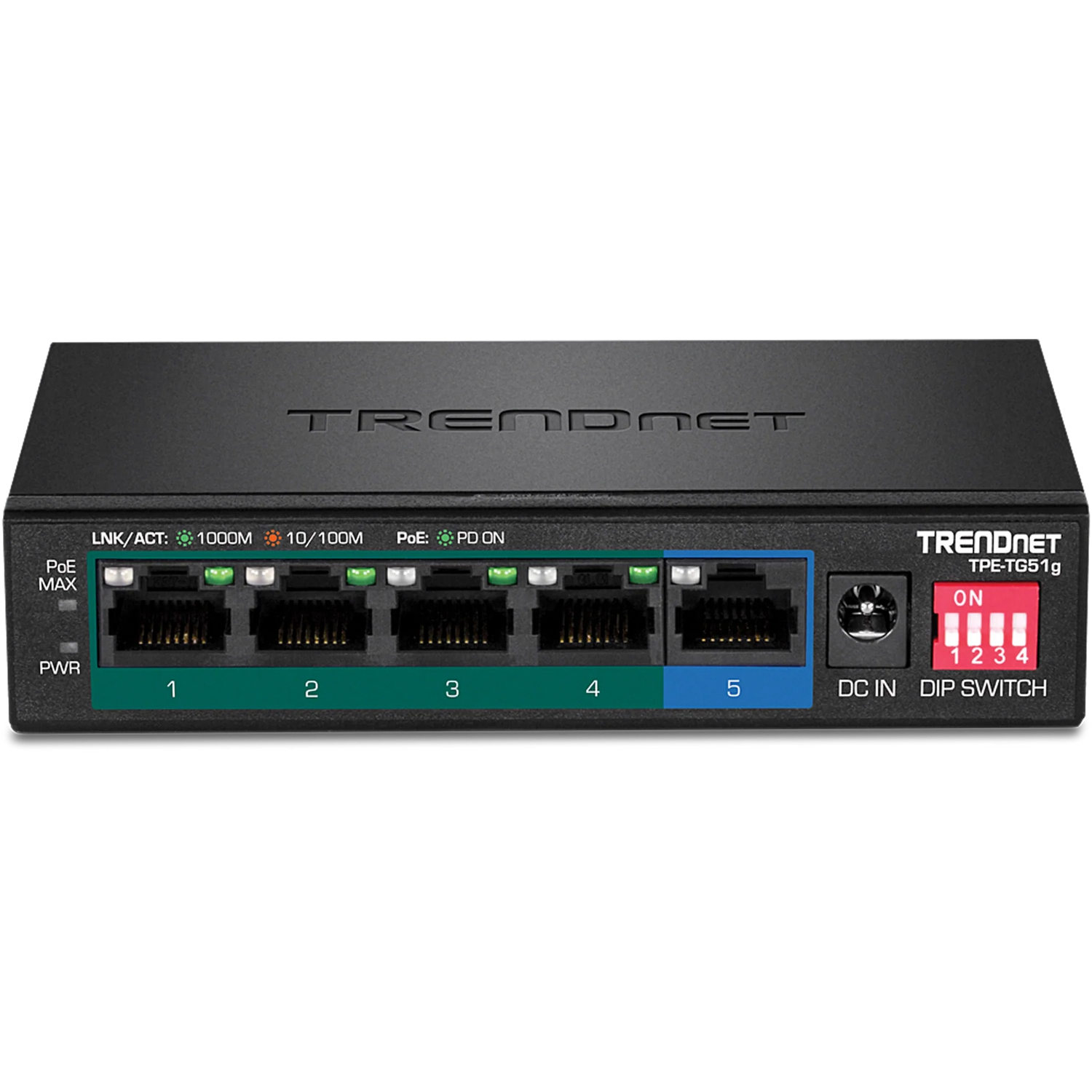

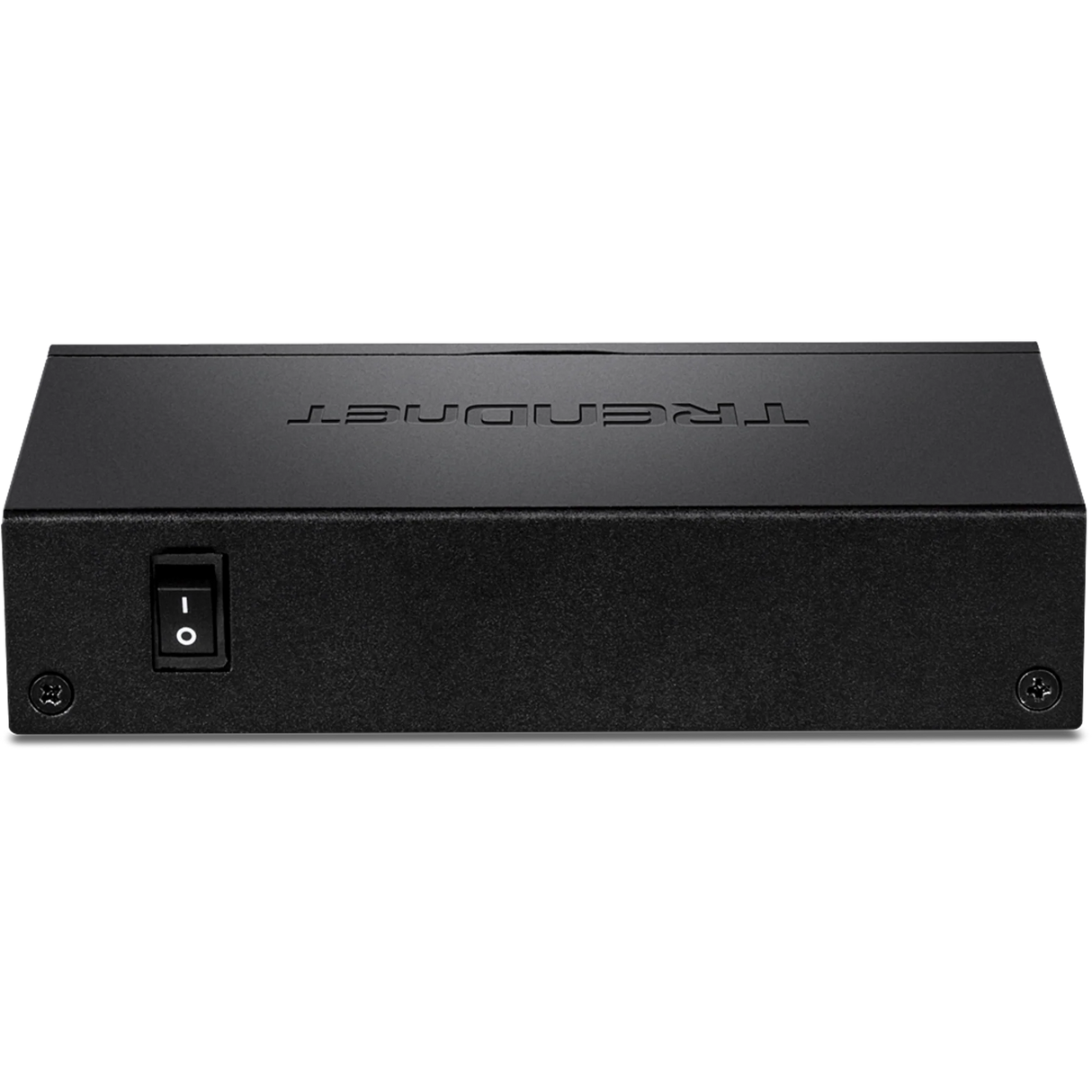

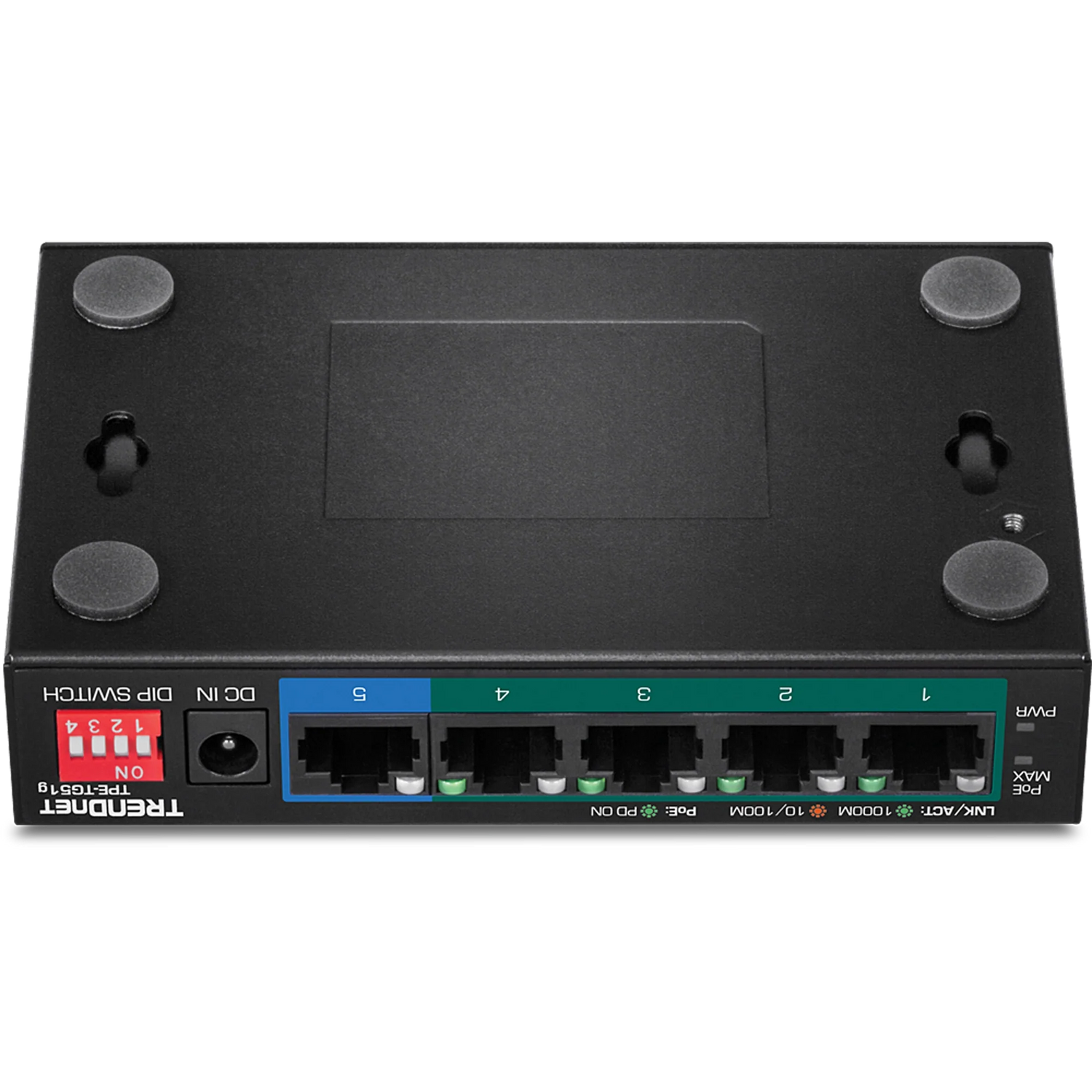

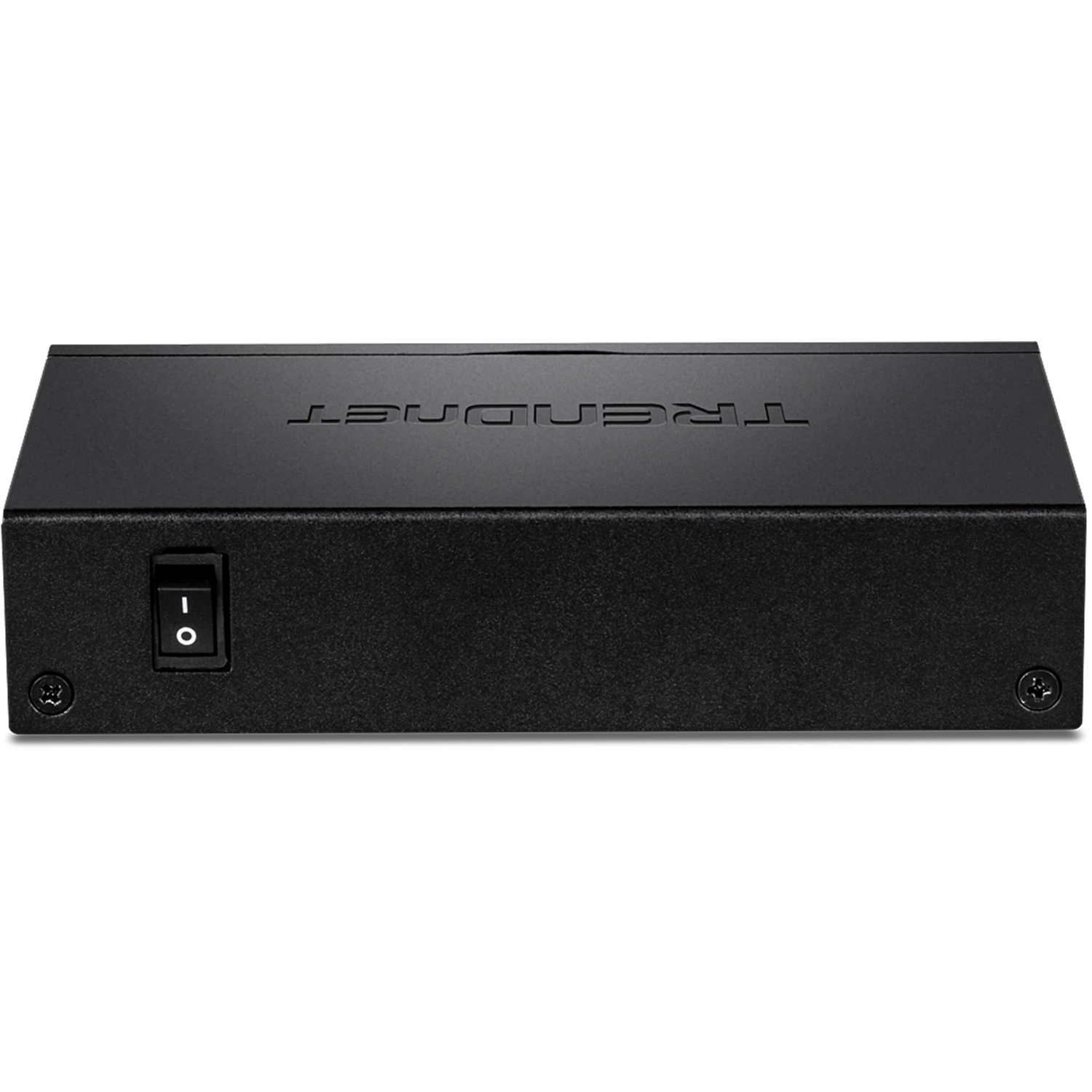

TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Switch (60W)

NDAA/TAA Compliant

Product Details

TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.

Features

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 60W PoE power budget
  • Extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 10Gbps switching capacity
  • Compact metal switch
  • Wall mountable design
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • DIP switch
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 10Gbps
  • RAM Buffer: 128KB
  • MAC Address Table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)
  • Wall mountable
DIP Switch
Switch Status Function
1 OFF Ports 1 & 2: Default gigabit PoE+
ON Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps
2 OFF Ports 3 & 4: Default gigabit PoE+
ON Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps
3 OFF VLAN port isolation disabled
ON VLAN port isolation on ports 1-4
4 OFF QoS disabled
ON QoS Enabled: Video & Voice – High Priority
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 54V DC, 1.3A external power adapter
  • Max. consumption: 64.3W
PoE
  • PoE budget: 60W
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
Weight
  • 246g (8.68 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-TG51g
  • Quick Installation Guide
  • Power adapter (55V DC, 1.3A)
