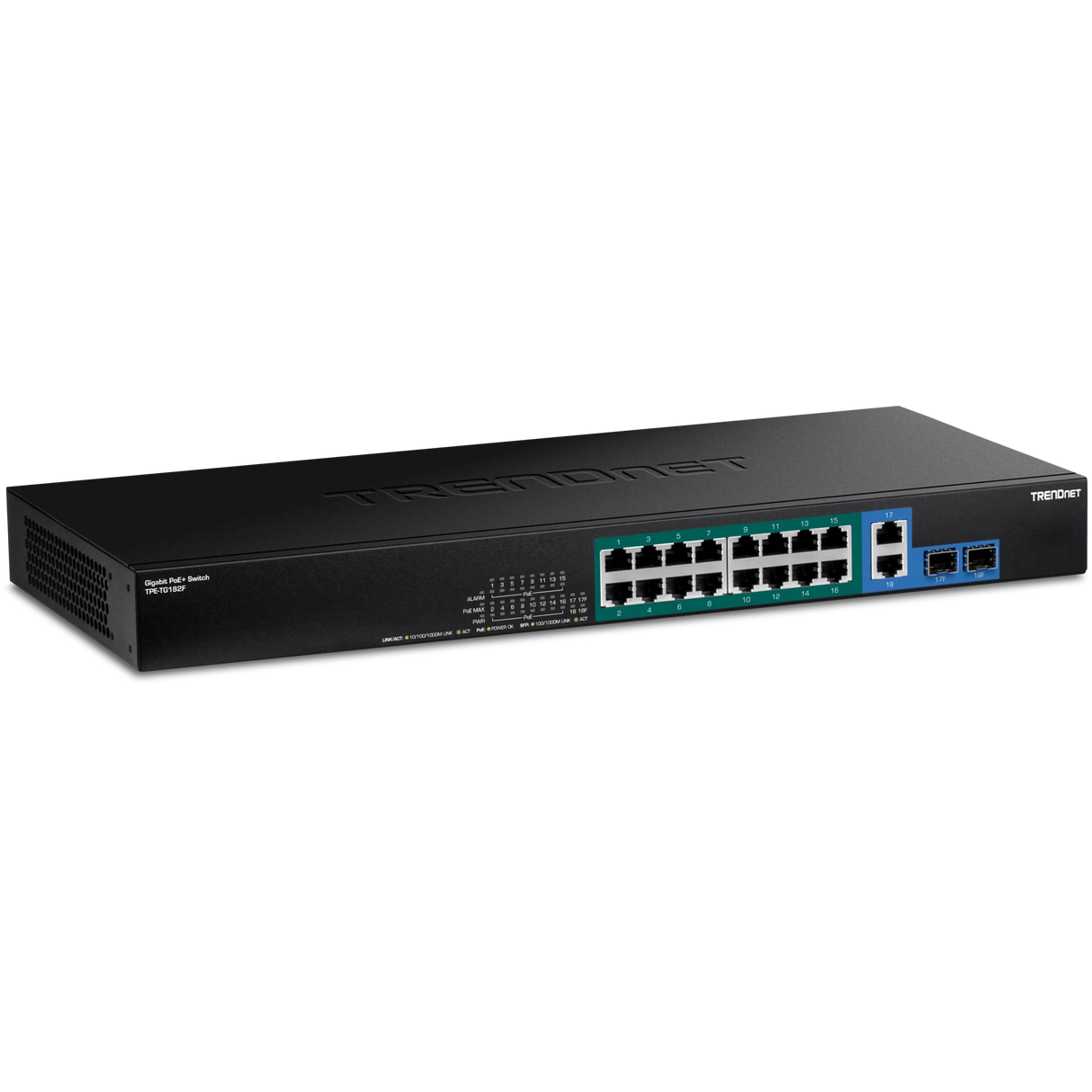

TRENDnet TPE-TG182F 18-Port Gigabit High-Power PoE+ Switch, 440W PoE Budget

Name: TRENDnet TPE-TG182F 18-Port Gigabit High-Power PoE+ Switch, 440W PoE Budget
Brand: TRENDnet
SKU: TPE-TG182F
Price: 399.99 USD
Availability: InStock

$399.99

TRENDnet TPE-TG182F 18-Port Gigabit High-Power PoE+ Switch, 440W PoE Budget is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TPE-TG182F 18-Port Gigabit High-Power PoE+ Switch, 440W PoE Budget

NDAA/TAA Compliant

Product Details

TRENDnet’s 18-Port Gigabit High-Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable, high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE+ switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and other PoE+ systems.

Specifications

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p IEEE 802.3af IEEE 802.3at
Device Interface	16 x Gigabit PoE+ ports 2 x Shared Gigabit ports (RJ-45 or SFP) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switch Fabric: 36Gbps RAM Buffer: 4.1M MAC Address Table: 8K entries Forwarding Rate: 26.78Mpps (64-byte packet size) Jumbo Frames: 9KB
Power	Input: 110-240V AC, 50/60Hz, internal power supply Max. consumption: 480W
PoE	PoE budget: 440W Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Smart Fan/Acoustics	Quantity: 2 Noise Level: 61 dBA (max.)
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 196 x 44mm (17.4 x 7.7 x 1.7 in.)
Weight	3kg (6.1 lbs.)
Certifications	CE FCC LVD ETL
Warranty	Lifetime Warranty*

Features

16 x Gigabit PoE+ ports
2 x Shared Gigabit ports (RJ-45 or SFP)
36Gbps switching capacity
Internal power supply
440W PoE power budget
Reduces equipment cost by delivering data and power over existing network cables
Sturdy 19” rack mountable metal housing with included brackets
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG182F
Quick Installation Guide
Rackmount kit
Power cord (1.5m/5 ft.)
