TRENDnet  |  SKU: TPE-LG80

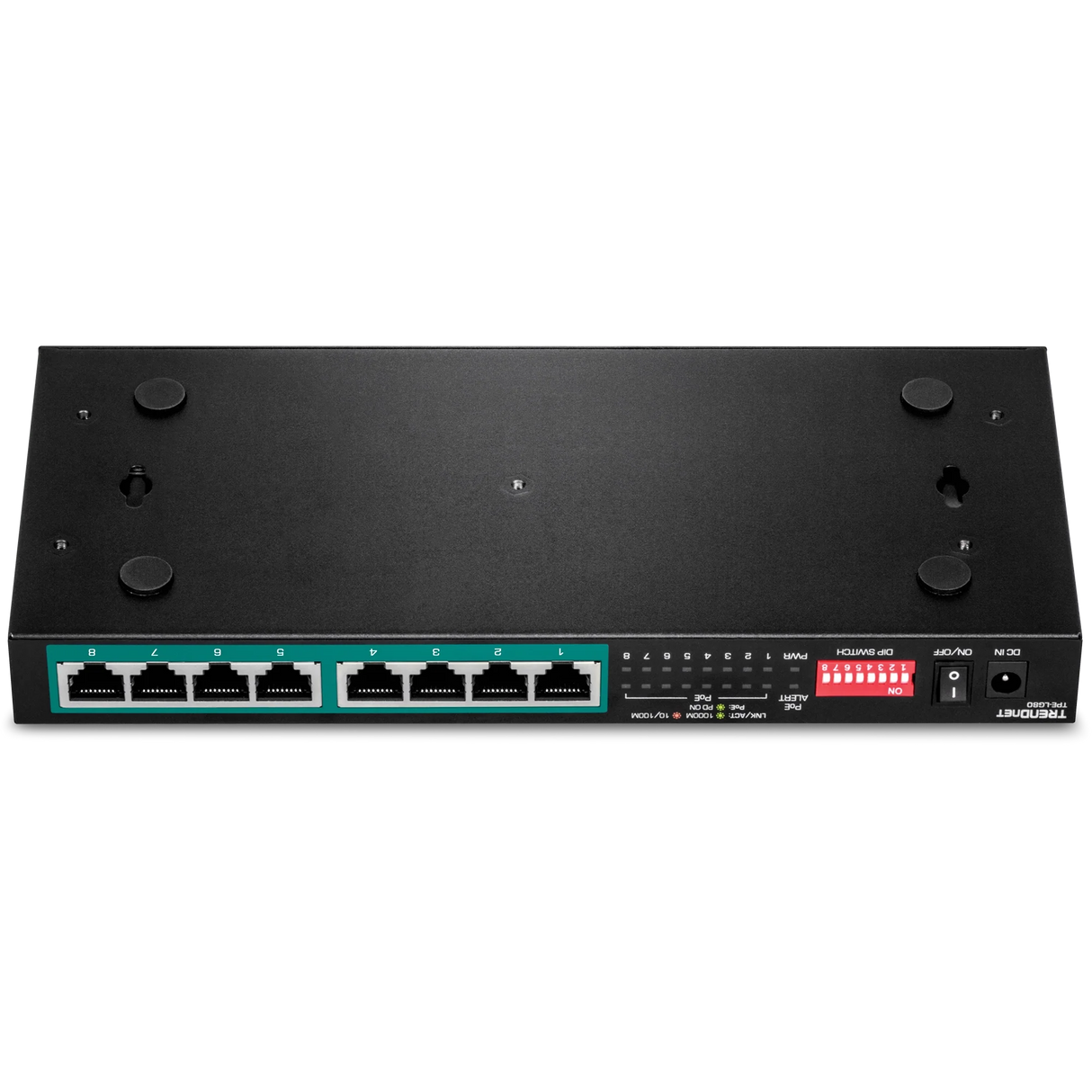

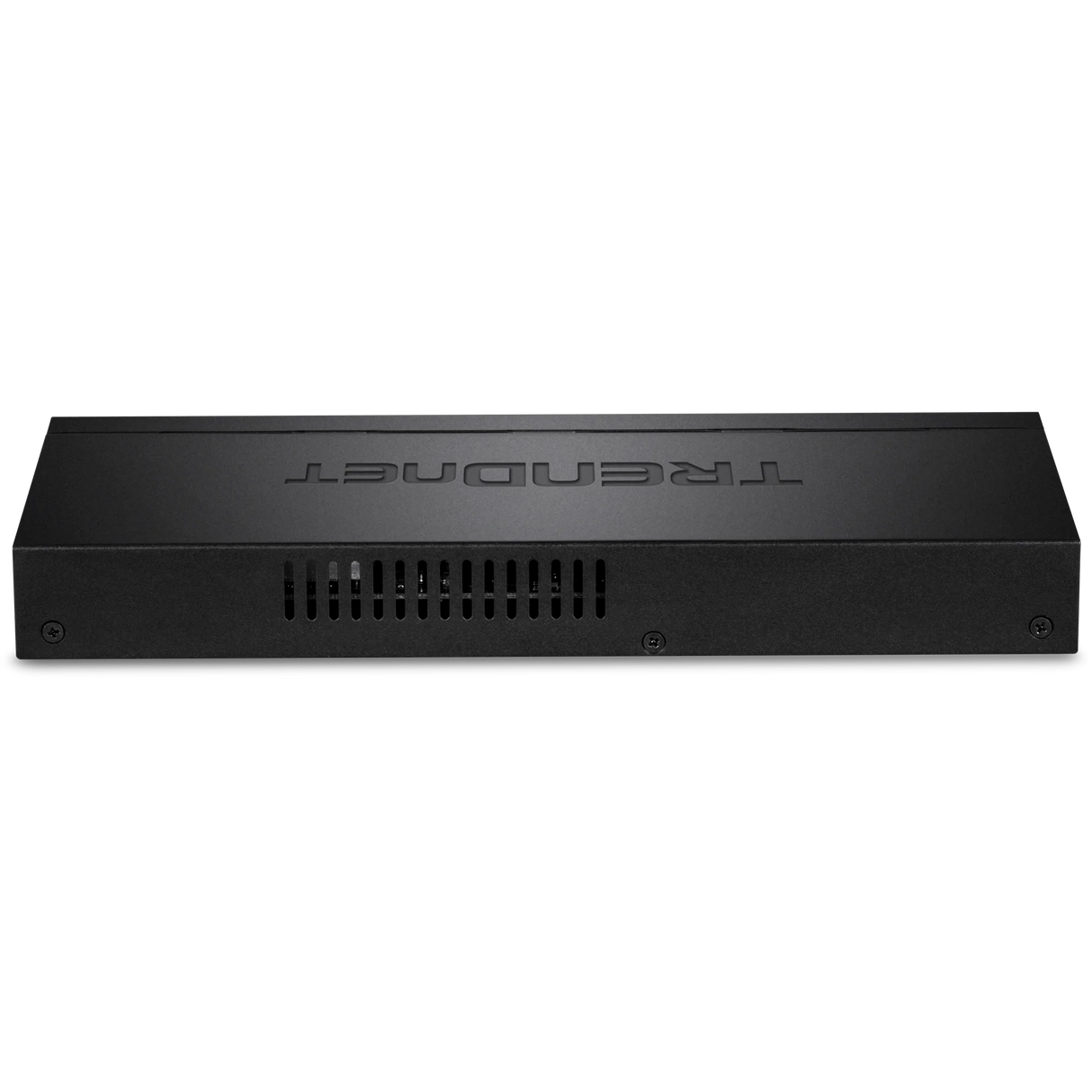

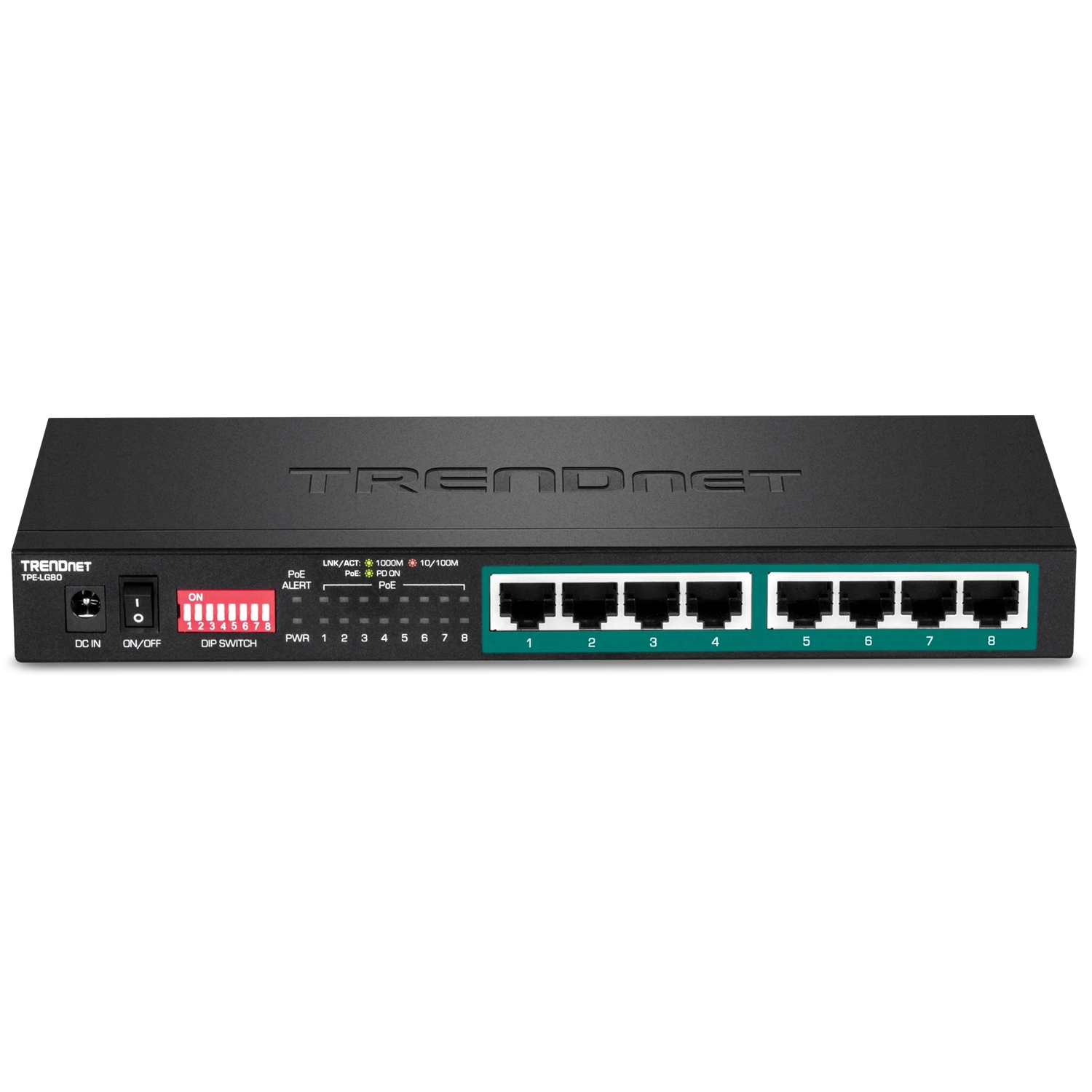

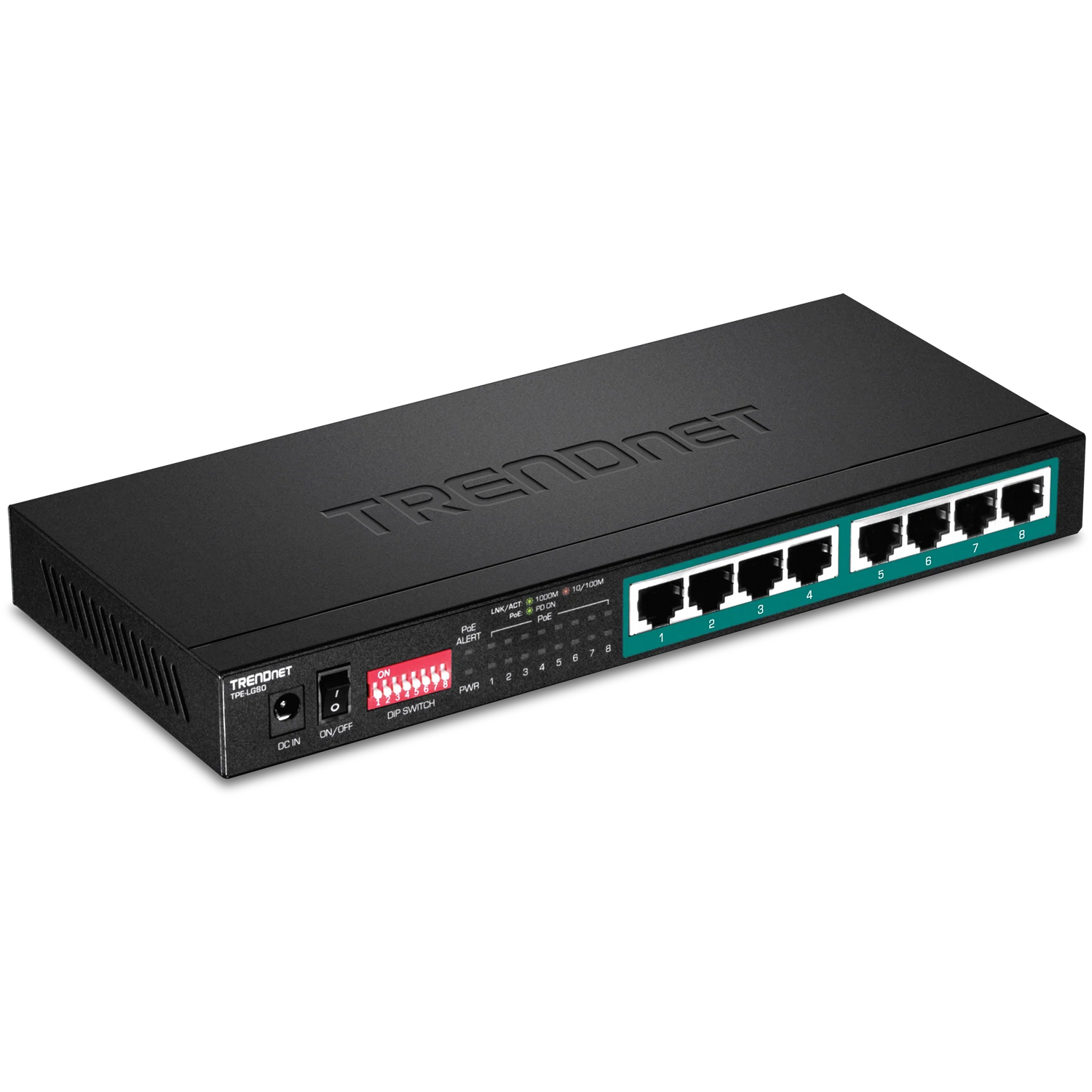

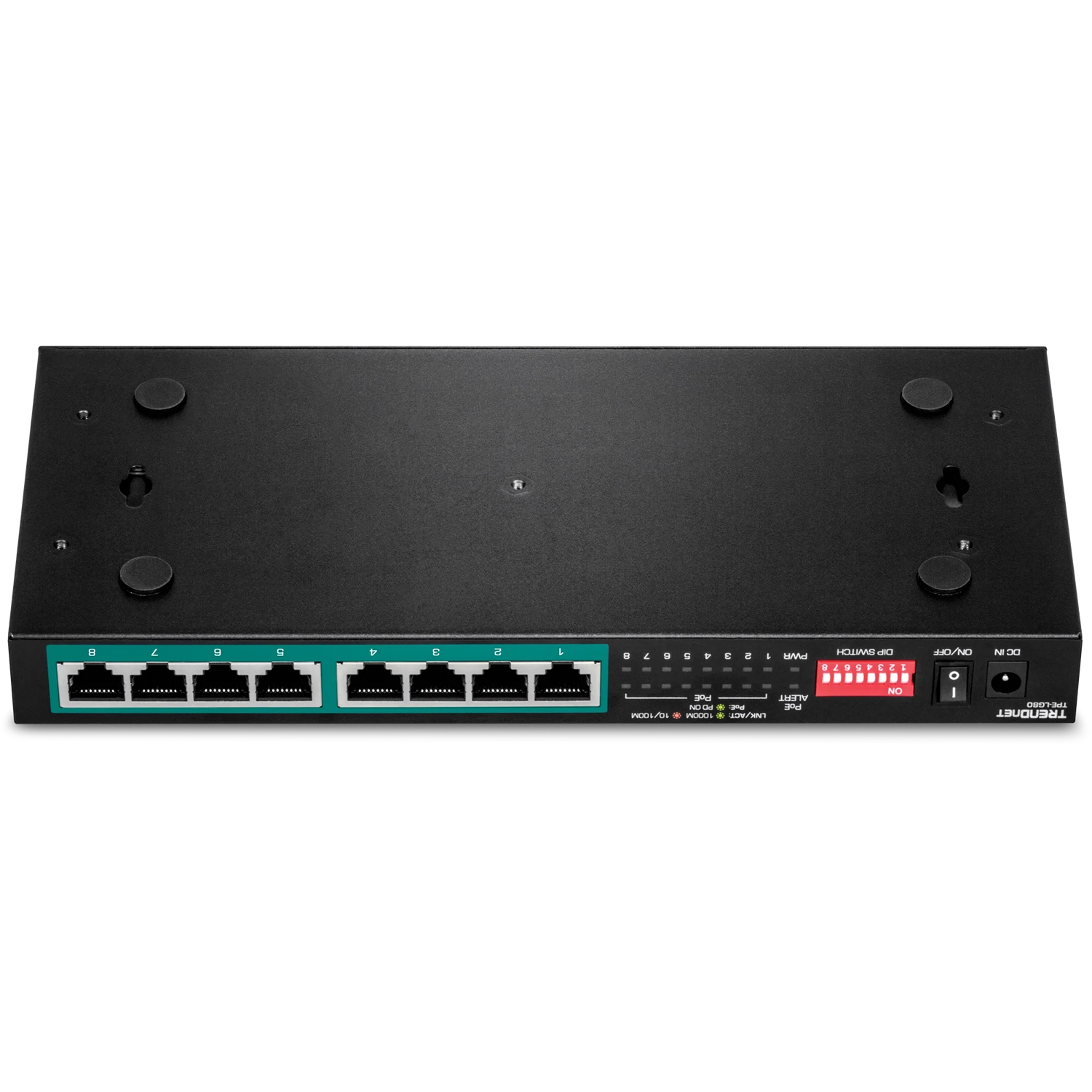

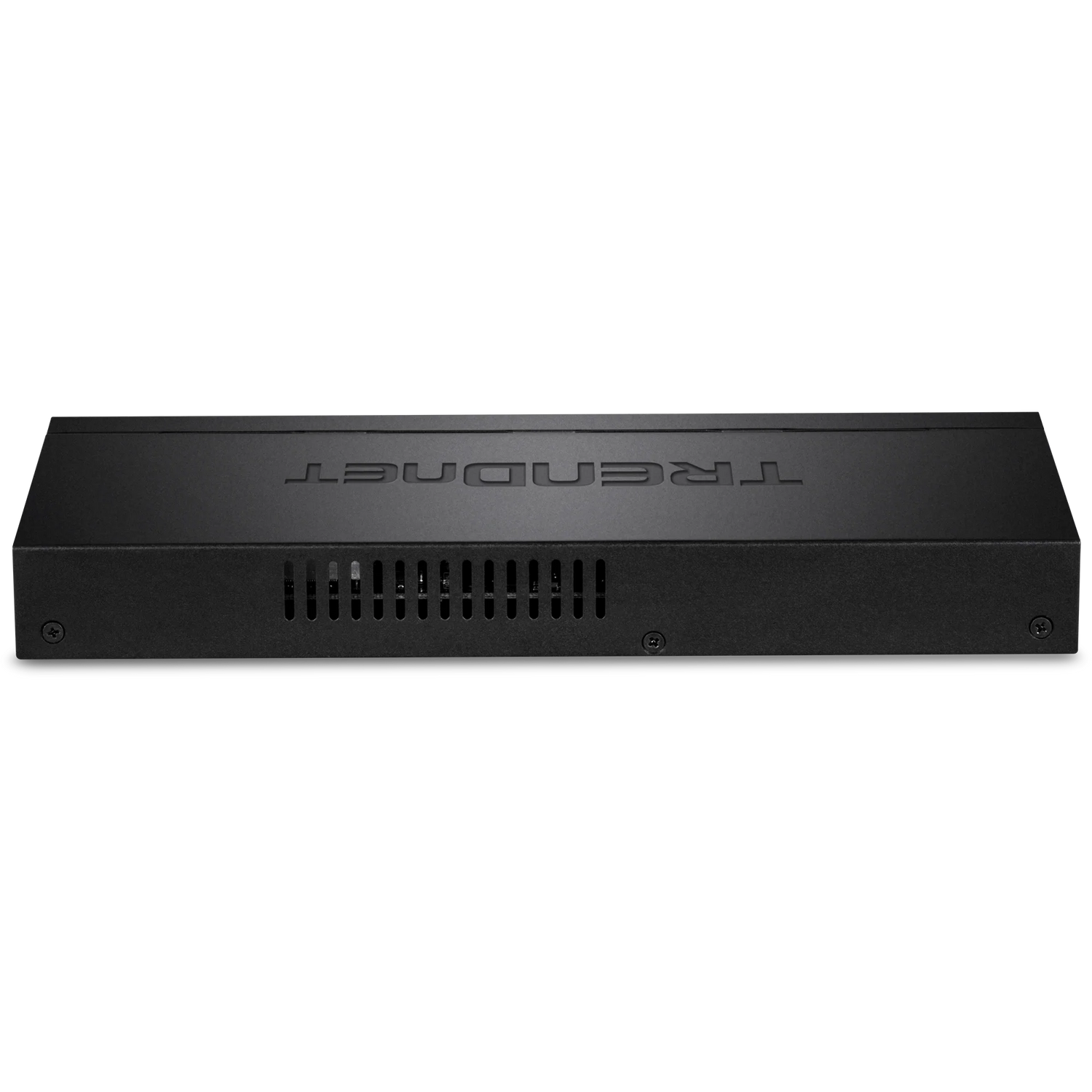

TRENDnet TPE-LG80 8-Port Gigabit Long Range PoE+ Switch

$77.99

TRENDnet TPE-LG80 8-Port Gigabit Long Range PoE+ Switch is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TPE-LG80 8-Port Gigabit Long Range PoE+ Switch

NDAA/TAA Compliant

Product Details

The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit PoE+ ports
  • LED indicators
  • DIP switch
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 16Gbps
  • RAM Buffer: 192KB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)
  • Wall mountable
DIP Switch
Switch Status Function
1 OFF Ports 1 & 2: Default gigabit PoE+
ON Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps
2 OFF Ports 3 & 4: Default gigabit PoE+
ON Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps
3 OFF VLAN port isolation disabled
ON VLAN port isolation on ports 1-4
4 OFF QoS disabled
ON QoS Enabled: Video & Voice – High Priority
5 OFF Port 5: Default gigabit PoE+
ON Port 5: Long range PoE+ up to 200m at 10Mbps
6 OFF Port 6: Default gigabit PoE+
ON Port 6: Long range PoE+ up to 200m at 10Mbps
7 OFF Port 7: Default gigabit PoE+
ON Port 7: Long range PoE+ up to 200m at 10Mbps
8 OFF VLAN port isolation disabled
ON VLAN port isolation on ports 5-7
*DIP Switch 3 & 8 cannot be enabled at the same time
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 55V DC, 1.3A external power adapter
  • Max. consumption: 70.6W
PoE
  • PoE budget: 65 Watts
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40 °C (32° – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.)
Weight
  • 592g (20.9 oz.)
Certifications
  • CE
  • FCC
Warranty

Features

  • Easy installation
  • 8 x Gigabit PoE+ ports
  • Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 16Gbps switching capacity
  • 65W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

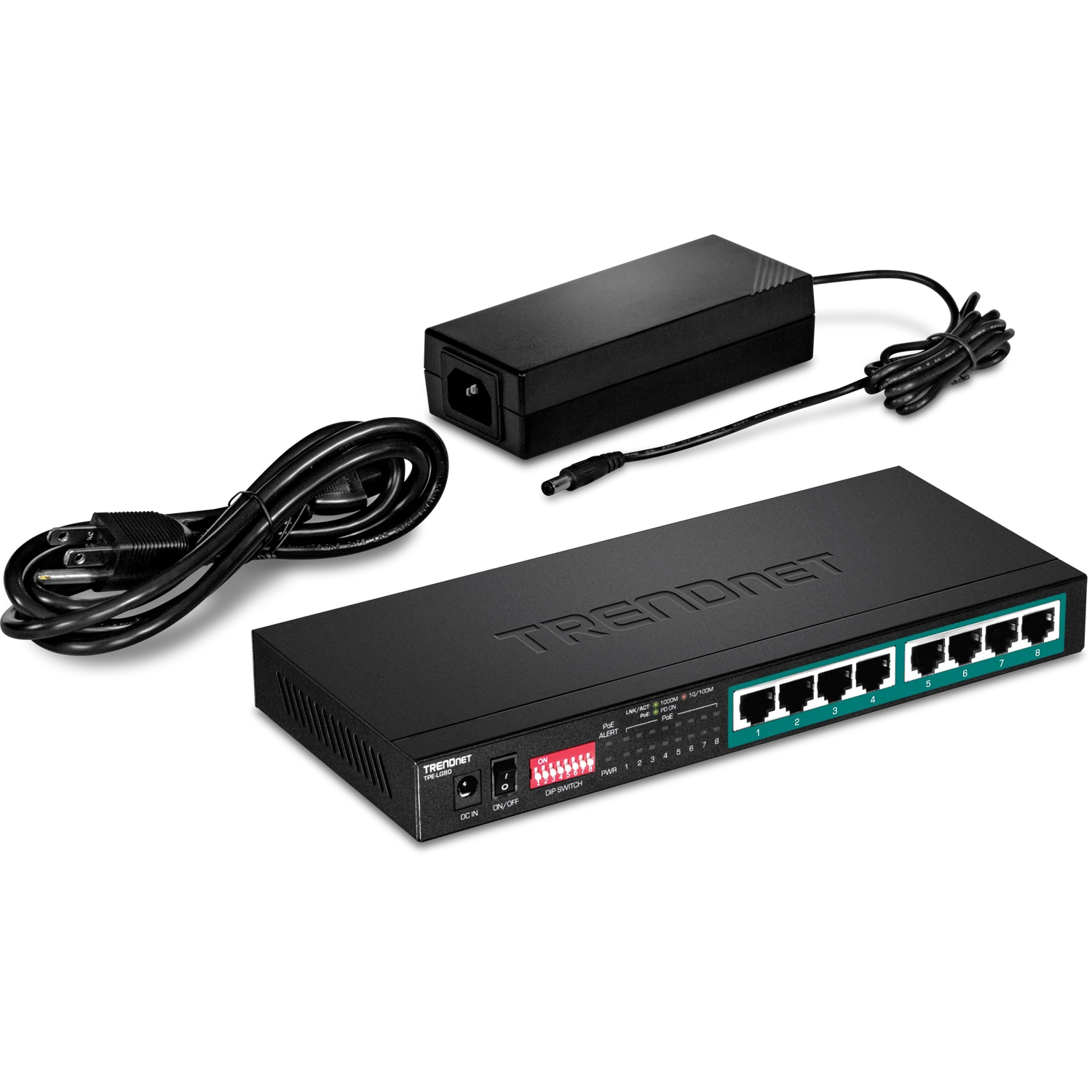

PACKAGE CONTENTS
  • TPE-LG80
  • Quick Installation Guide
  • Power brick (55V DC, 1.3A)
  • Power cord (1.8m/6 ft.)
