TRENDnet  |  SKU: TPE-LG50

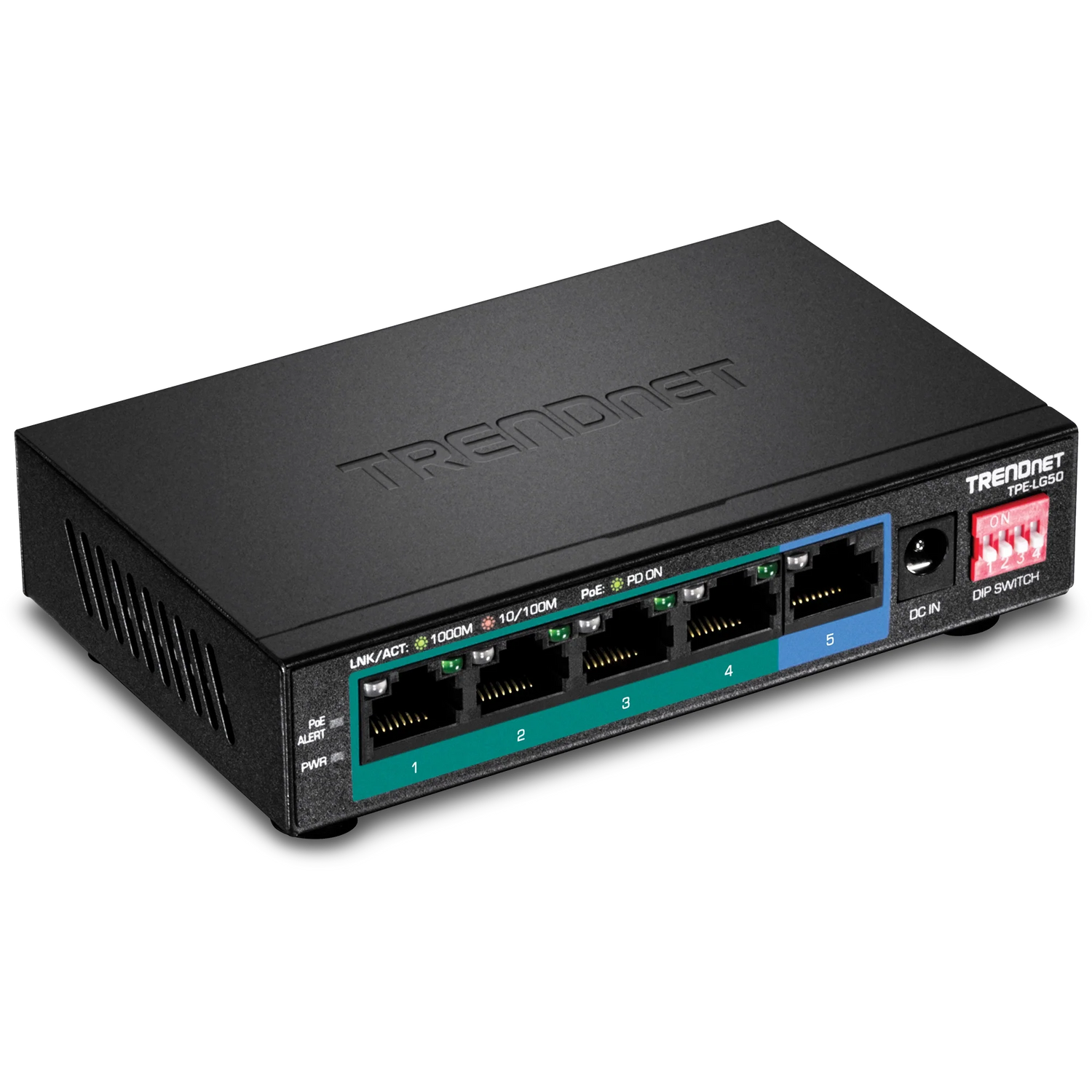

TRENDnet TPE-LG50 5-Port Gigabit Long Range PoE+ Switch

$46.99

TRENDnet TPE-LG50 5-Port Gigabit Long Range PoE+ Switch is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TPE-LG50 5-Port Gigabit Long Range PoE+ Switch

NDAA/TAA Compliant

Product Details

The 5-Port Gigabit Long Range PoE+ Switch, model TPE-LG50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points, VoIP phones, and IP Cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 32W PoE budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at

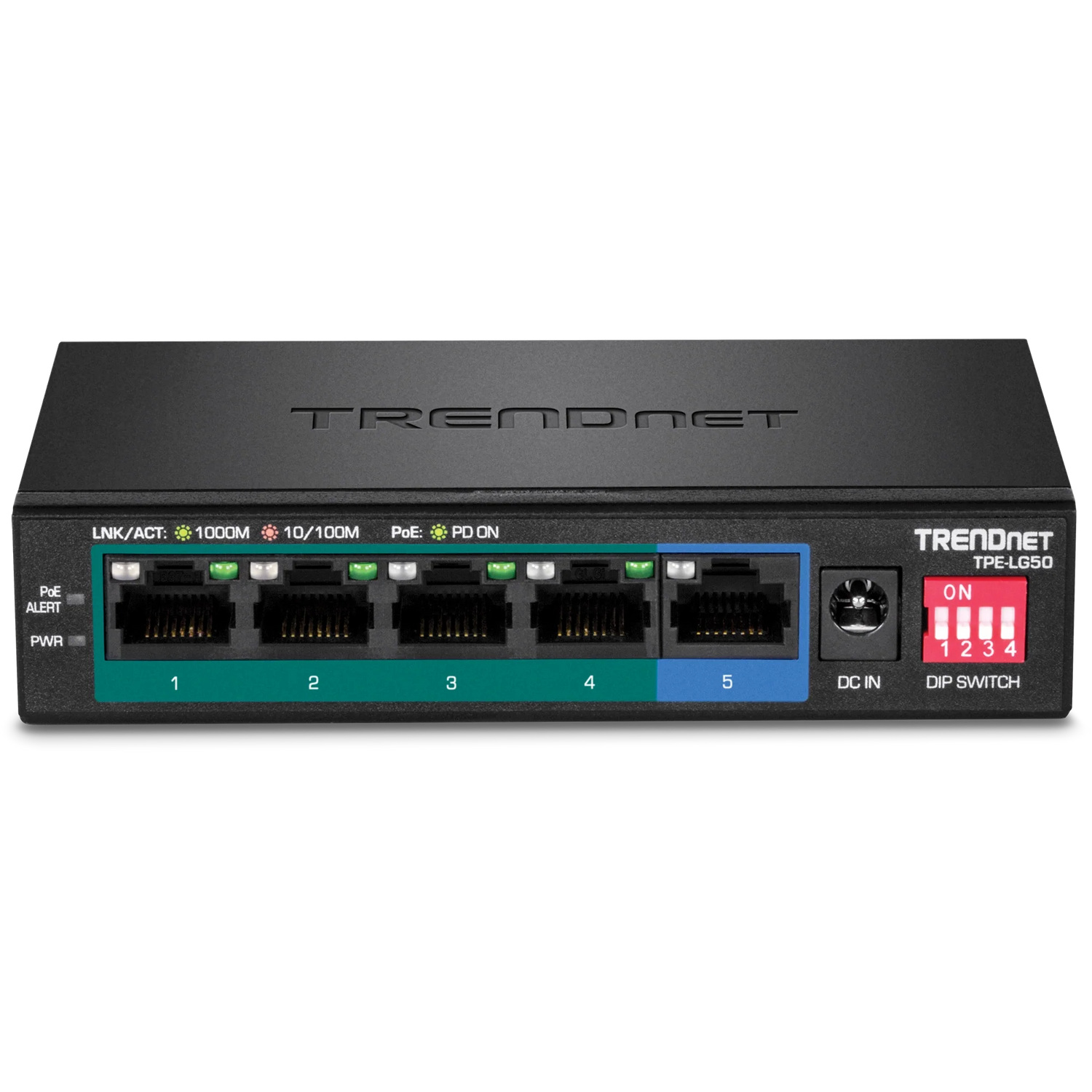

Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • DIP switch
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 10Gbps
  • RAM Buffer: 128KB
  • MAC Address Table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)

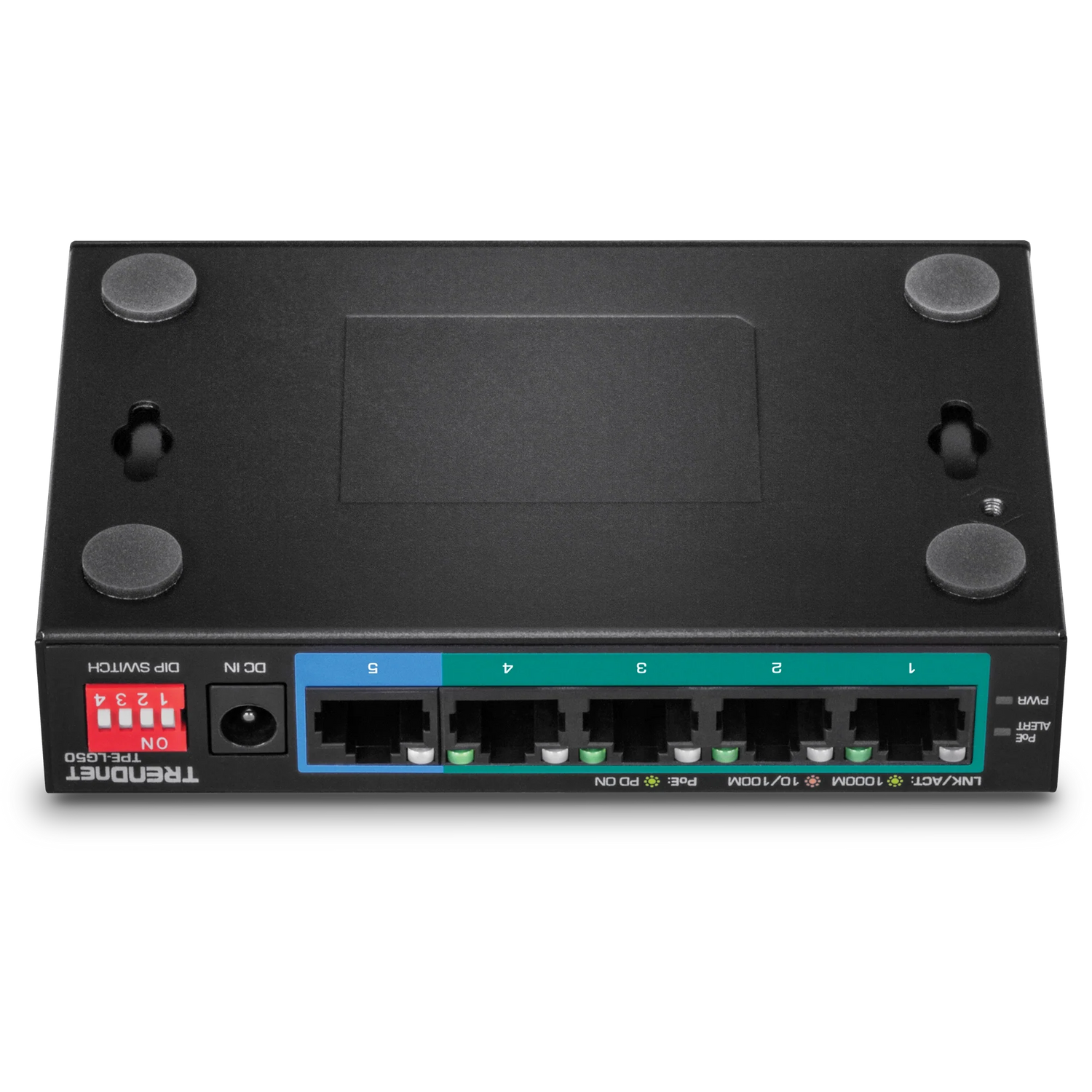

  • Wall mountable
DIP Switch
Switch Status Function
1 OFF Ports 1 & 2: Default gigabit PoE+
ON Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps
2 OFF Ports 3 & 4: Default gigabit PoE+
ON Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps
3 OFF VLAN port isolation disabled
ON VLAN port isolation on ports 1-4
4 OFF QoS disabled
ON QoS Enabled: Video & Voice – High Priority
Power
  • Input: 100 – 240 V AC, 50/60Hz, 1.2A
  • Output: 54V DC, 0.7A external power adapter
  • Max. consumption: 36.3W
PoE
  • PoE budget: 32W
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40 °C (32° – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
Weight
  • 246g (8.68 oz.)
Certifications
  • CE
  • FCC

Features

  • Easy installation
  • 4 x Gigabit PoE+ ports and 1 x Gigabit port
  • Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 10Gbps switching capacity
  • 32W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-LG50
  • Quick Installation Guide

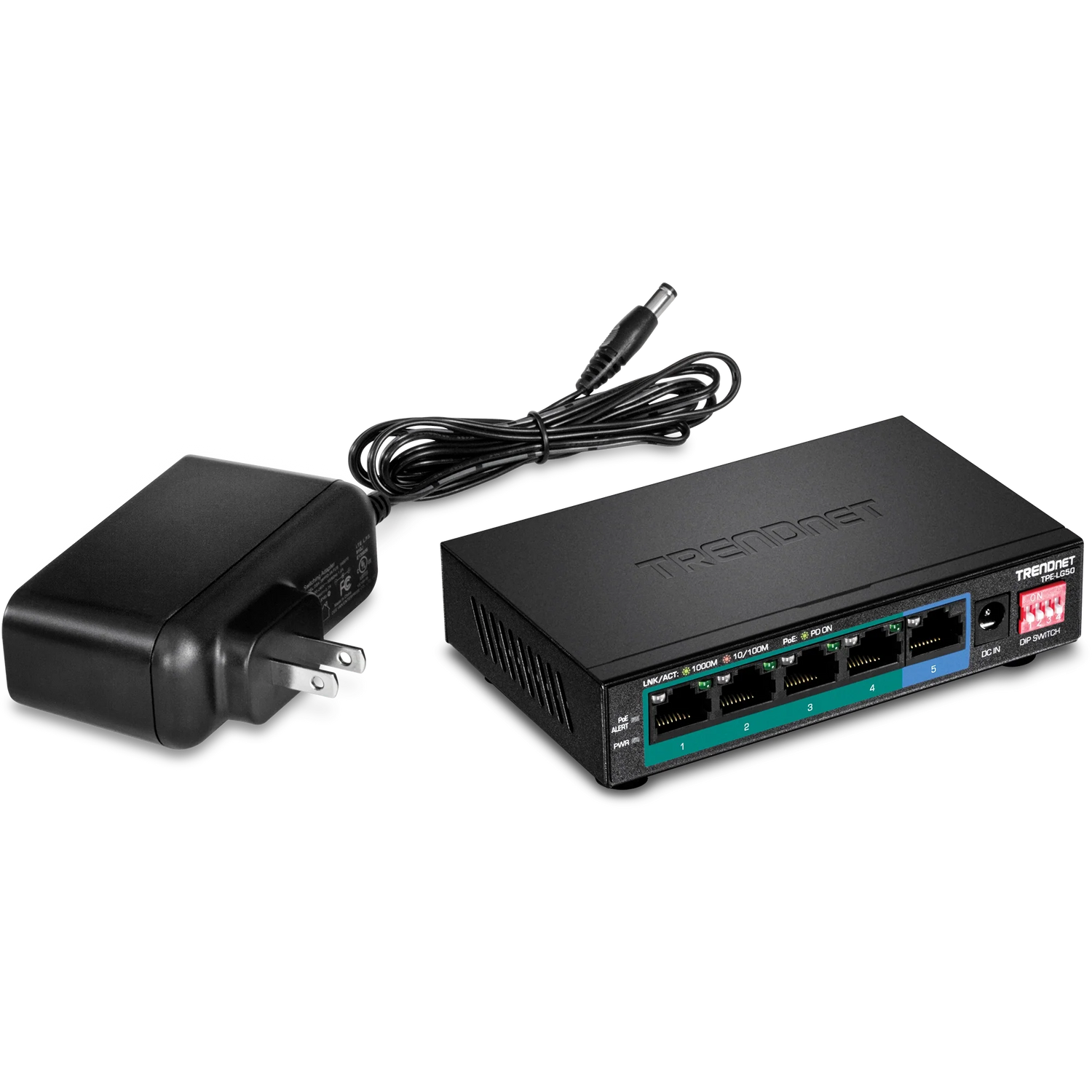

  • Power adapter (54V DC, 0.7A)
