TRENDnet  |  SKU: TPE-BG380

TRENDnet TPE-BG380 8-Port 2.5G PoE++ Switch

Regular price $239.99

TRENDnet TPE-BG380 8-Port 2.5G PoE++ Switch is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

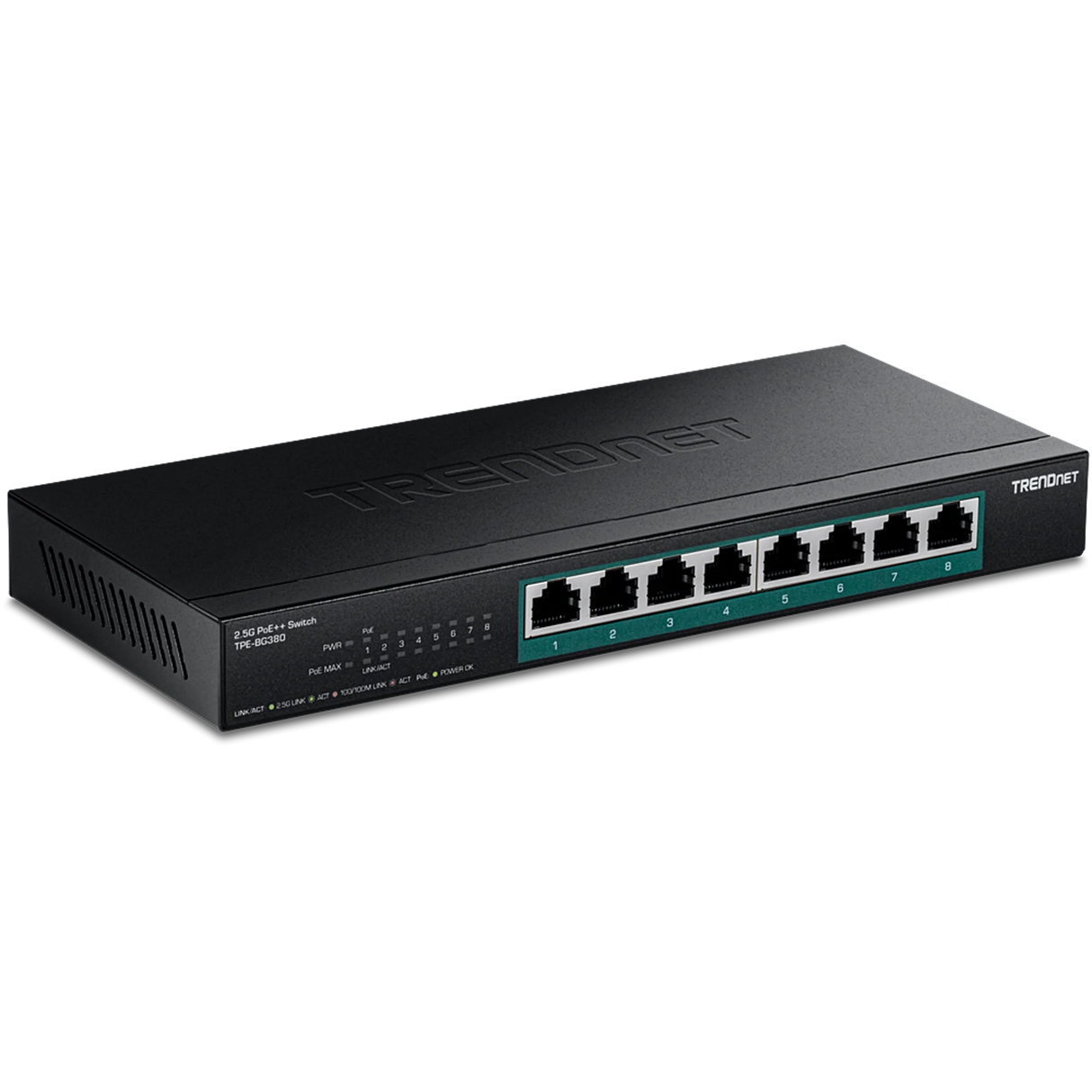

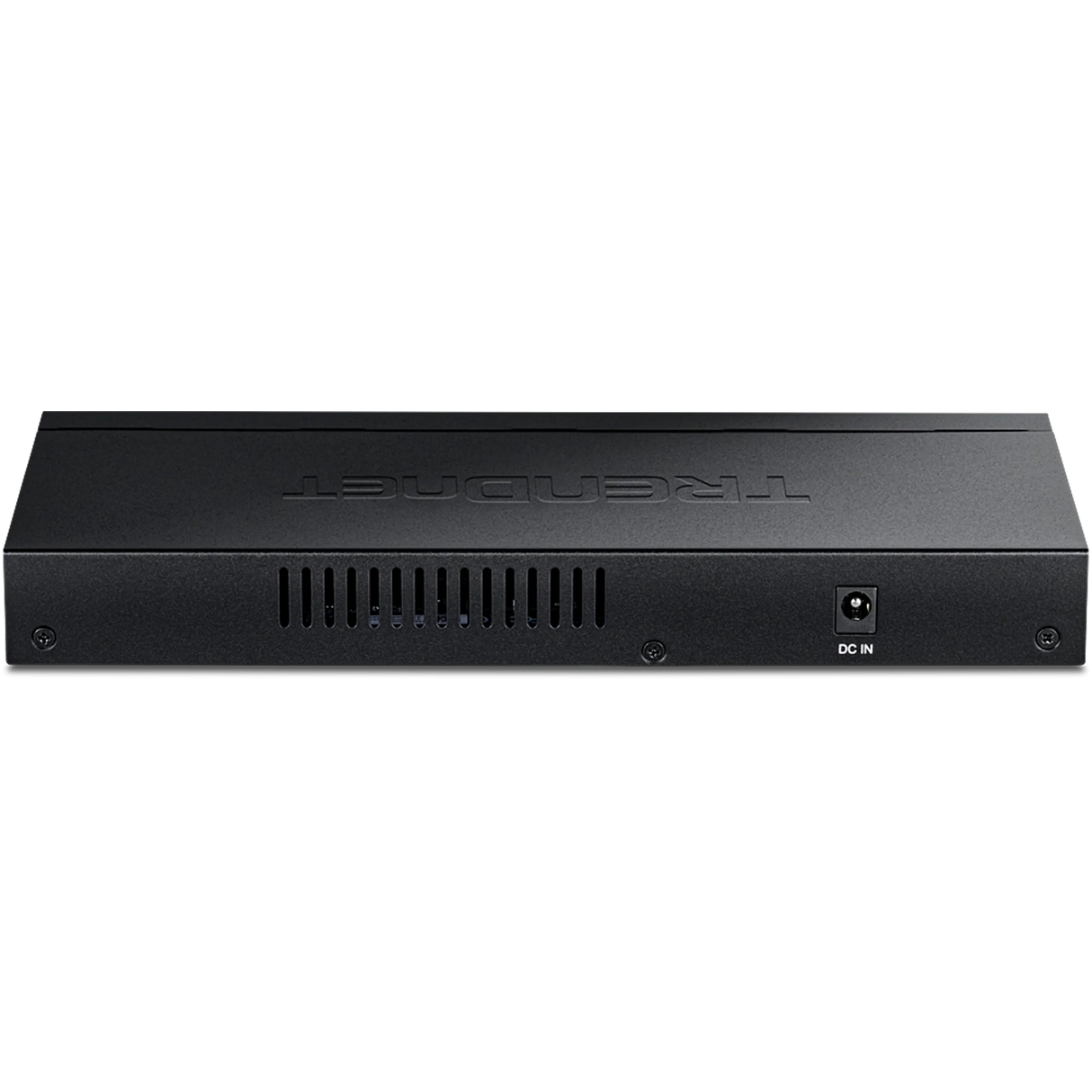

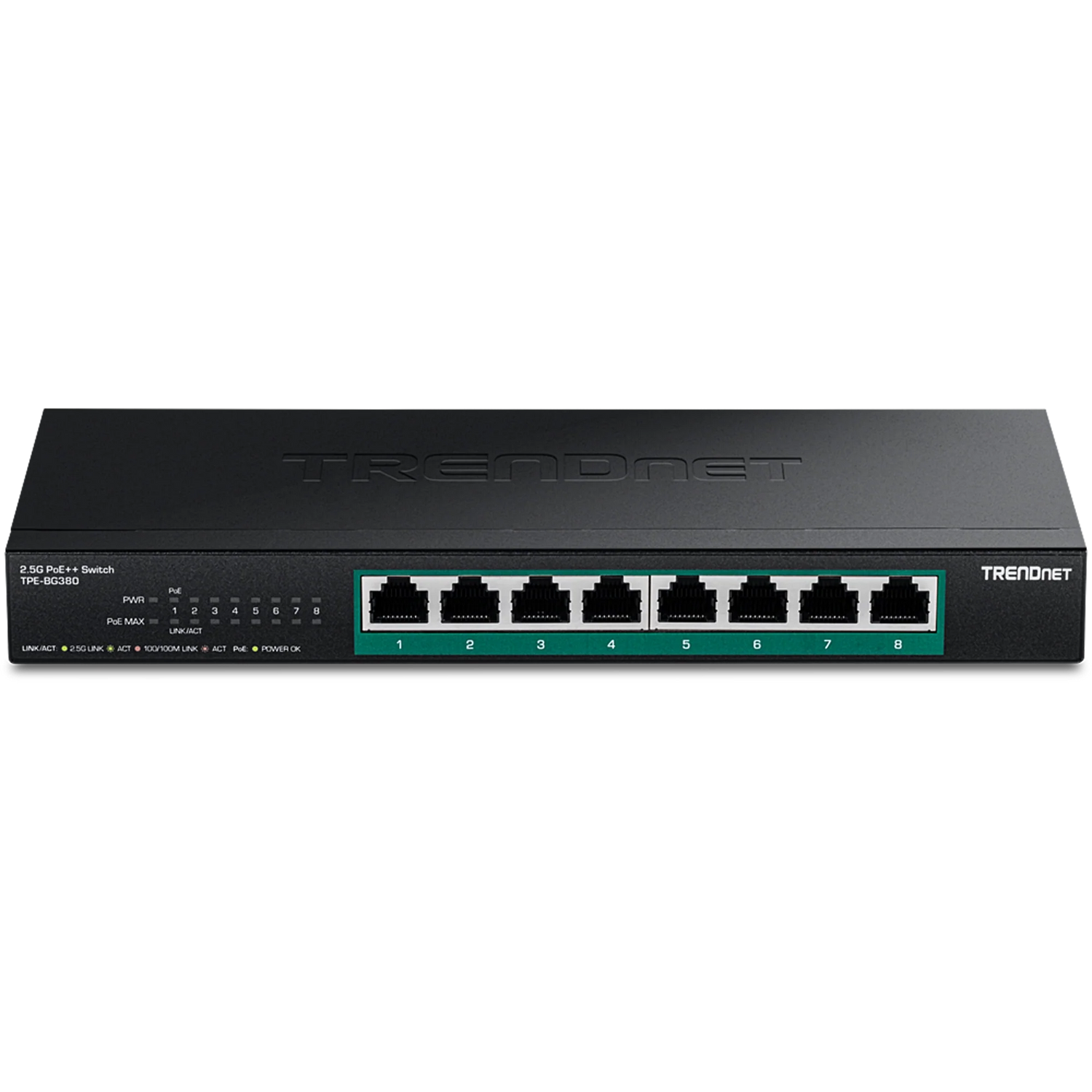

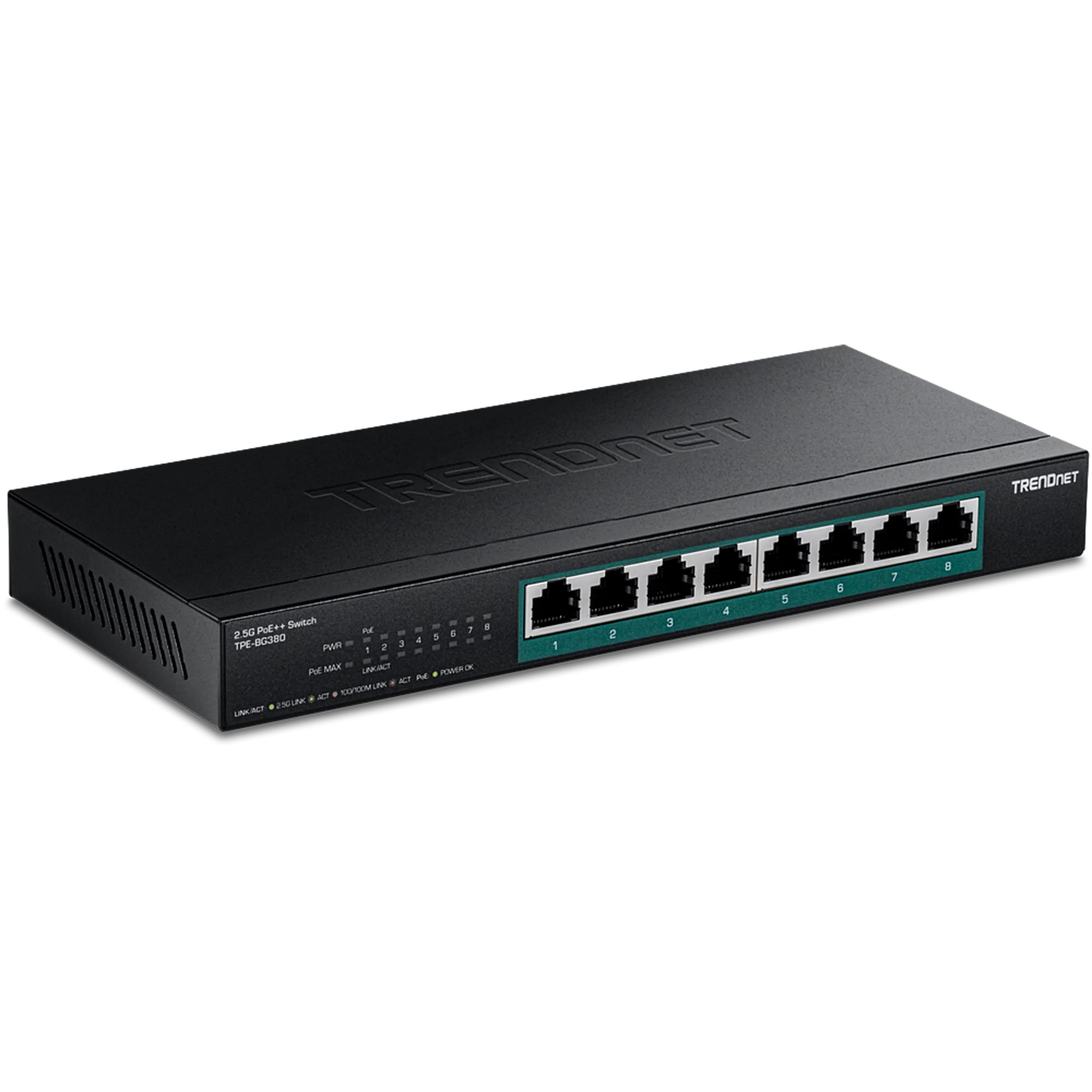

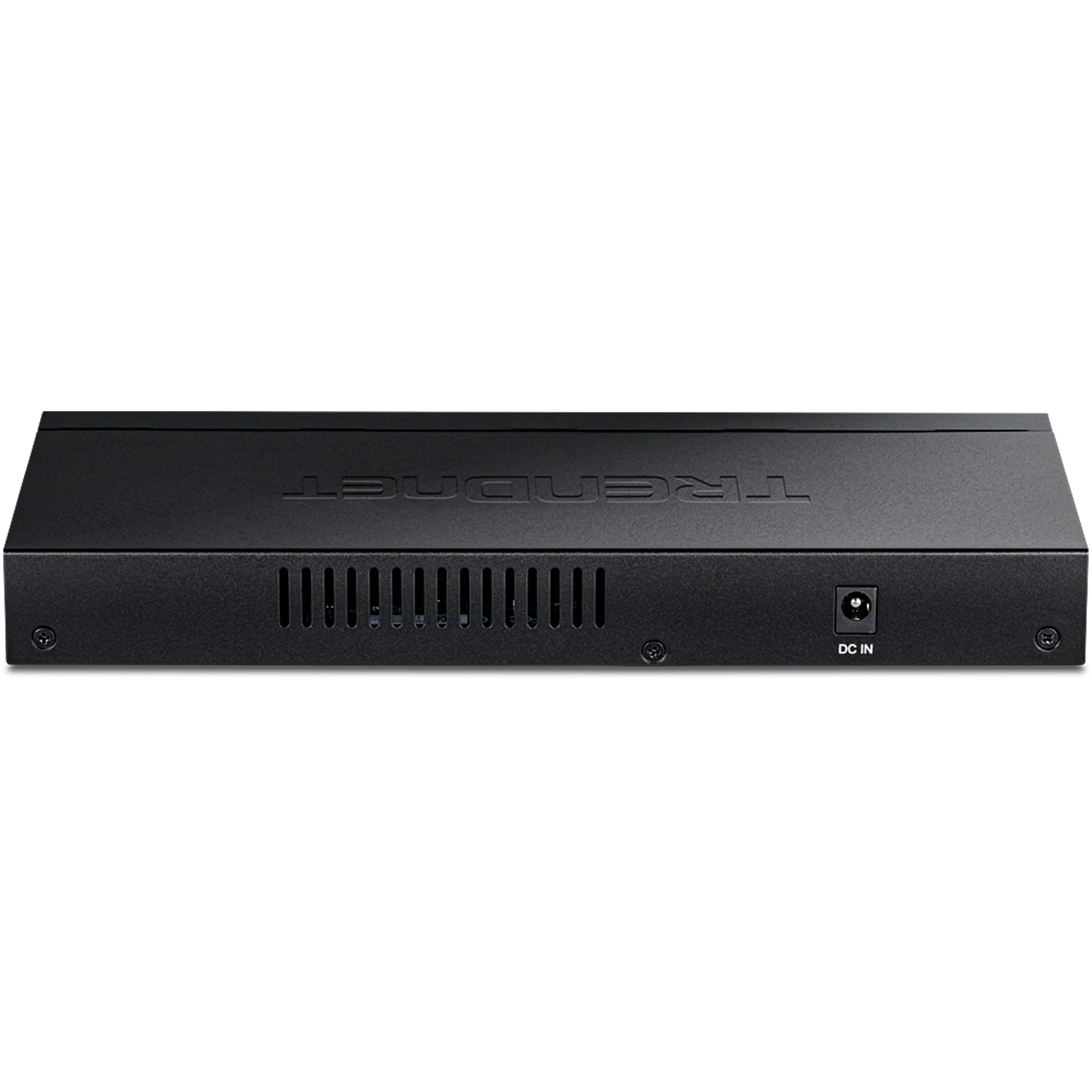

TRENDnet TPE-BG380 8-Port 2.5G PoE++ Switch

Product Details

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.

TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.

Features

  • 8 x 2.5G PoE++ ports
  • 230W PoE power budget
  • Backwards compatible with 10/100/1000Mbps devices
  • Compatible with existing Cat5e or better cabling
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • 40Gbps switching capacity
  • IEEE 802.3bz (2.5G) compliant
  • Supports IEEE 802.3af/at/bt
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 8 x 2.5GBASE-T PoE++ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Data RAM Buffer: 1 MB
  • Switch Capacity: 40Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 29.76Mpps (64-byte packet size)
  • Jumbo Frame: 12KB
Special Features

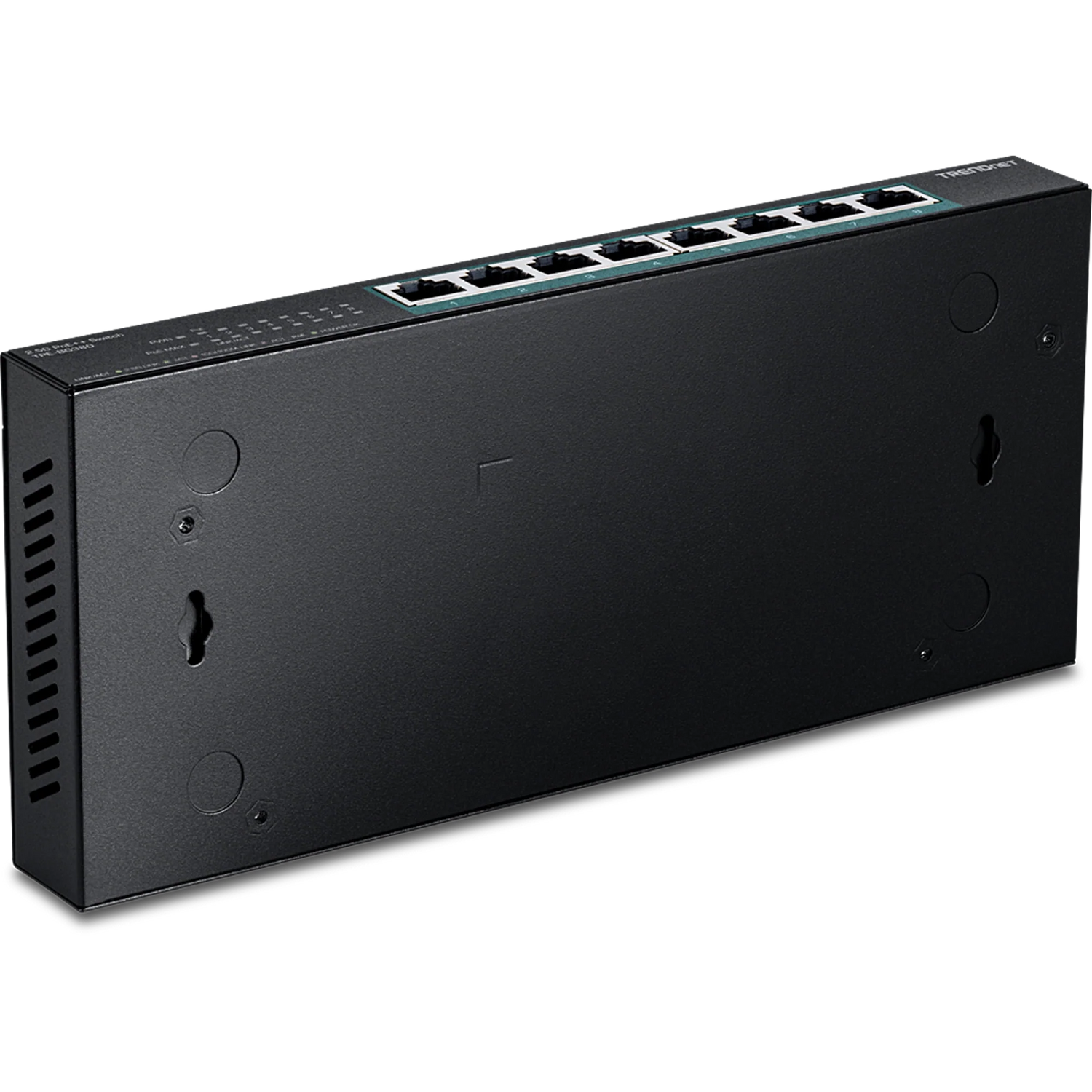

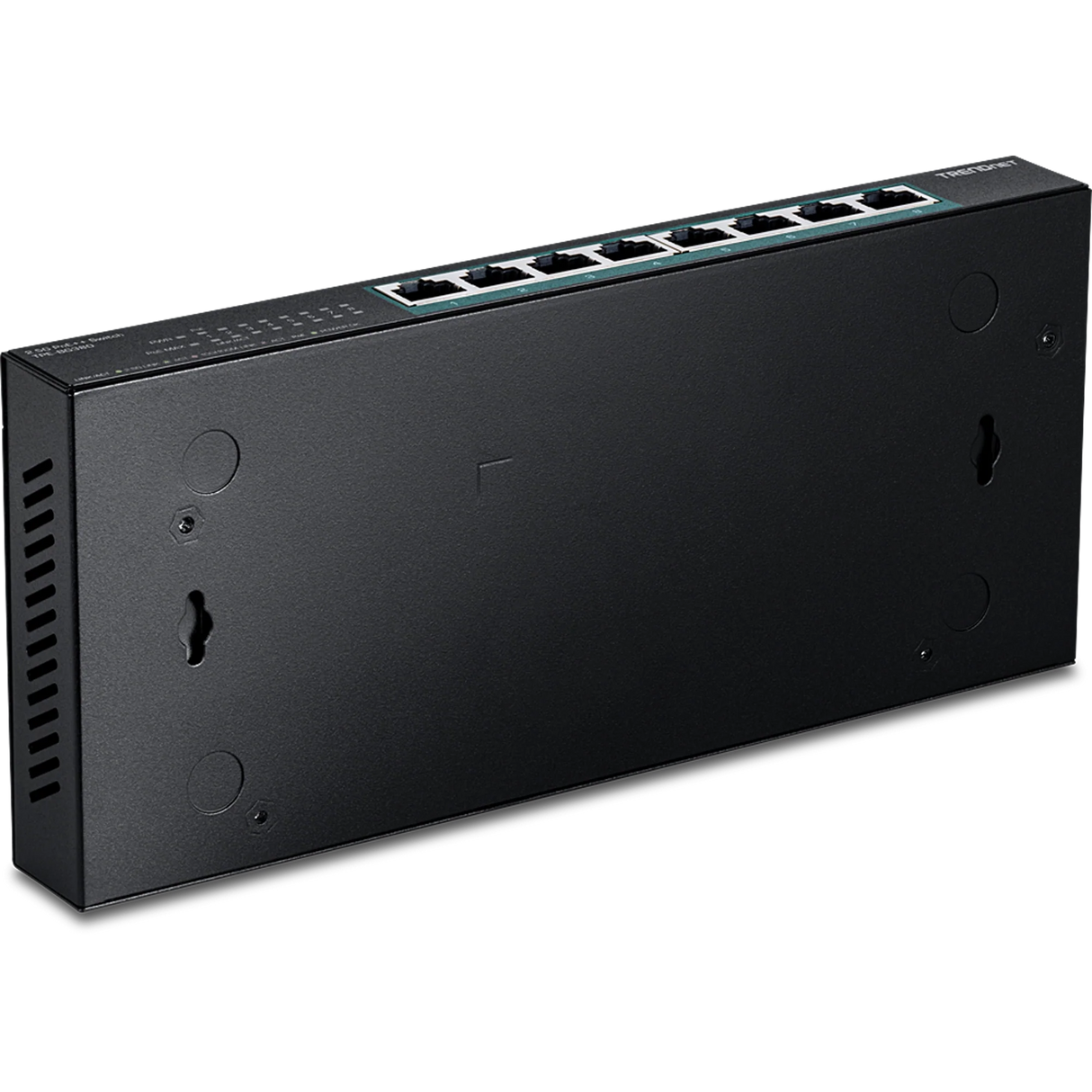

  • Wall Mountable
  • Fanless
Power
  • Input: 100 – 240V AC, 50/60Hz 3.9A
  • Output: 54V/4.7A
  • Max. consumption: 9.5W (no PD)
PoE
  • PoE budget: 230W
  • PoE++: Up to 95W per port
  • Pins 1, 2, 7, 8 for power - and pins 3, 6, 4, 5 for power +
  • Over current protection
  • Short circuit protection
MTBF
  • 288,800 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.13 x 1.06 in.)
Weight
  • 716g (1.57 lbs.)
Certifications
  • CE
  • FCC
Warranty

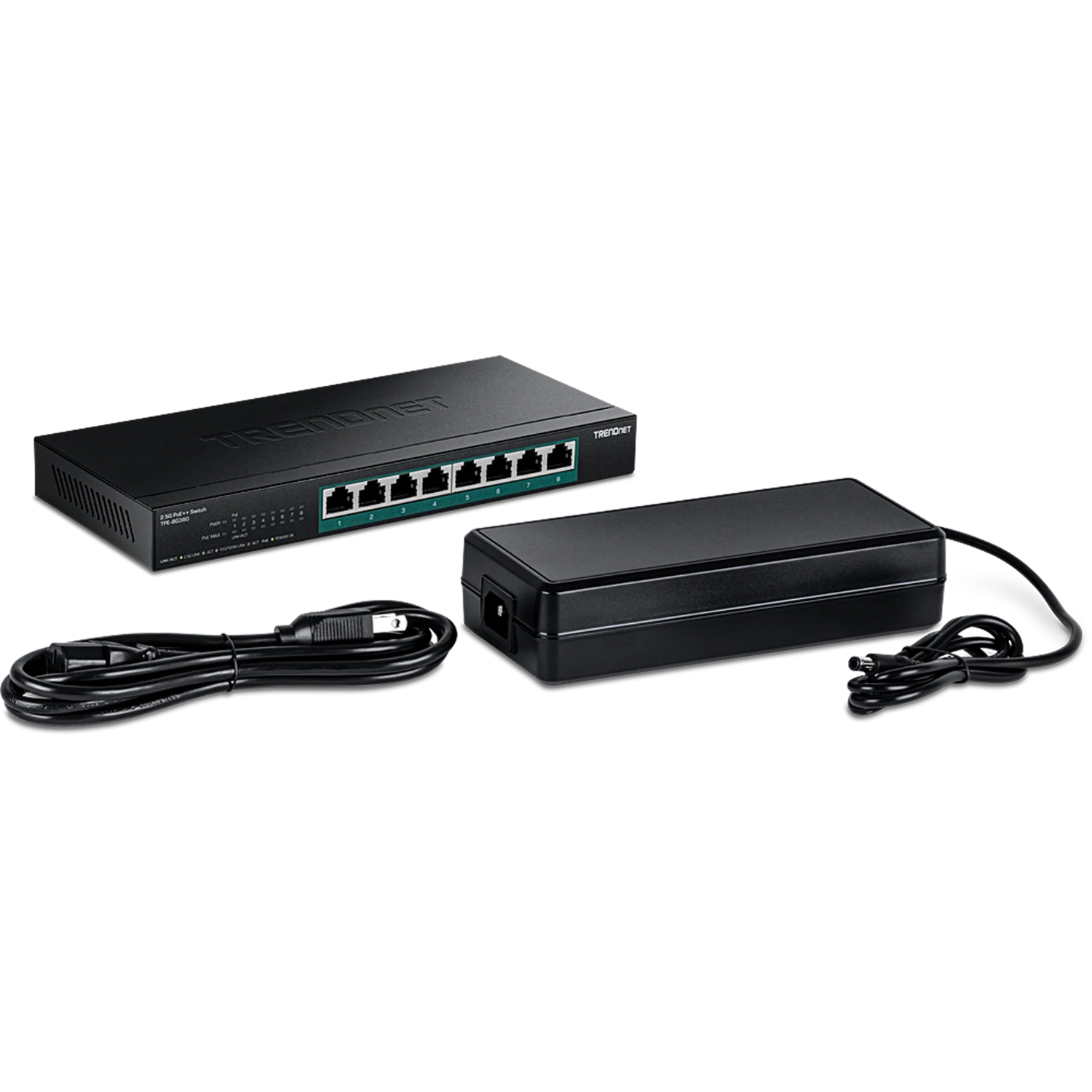

PACKAGE CONTENTS

  • TPE-BG380
  • Quick Installation Guide
  • Power brick (54V, 4.7A)
  • Power cord (1.5m / 4.9 ft.)
