TRENDnet TPE-BG102G 10-Port Gigabit PoE++ Switch

Name: TRENDnet TPE-BG102G 10-Port Gigabit PoE++ Switch
Brand: TRENDnet
SKU: TPE-BG102g
Price: 279.99 USD
Availability: InStock

$279.99

TRENDnet TPE-BG102G 10-Port Gigabit PoE++ Switch is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

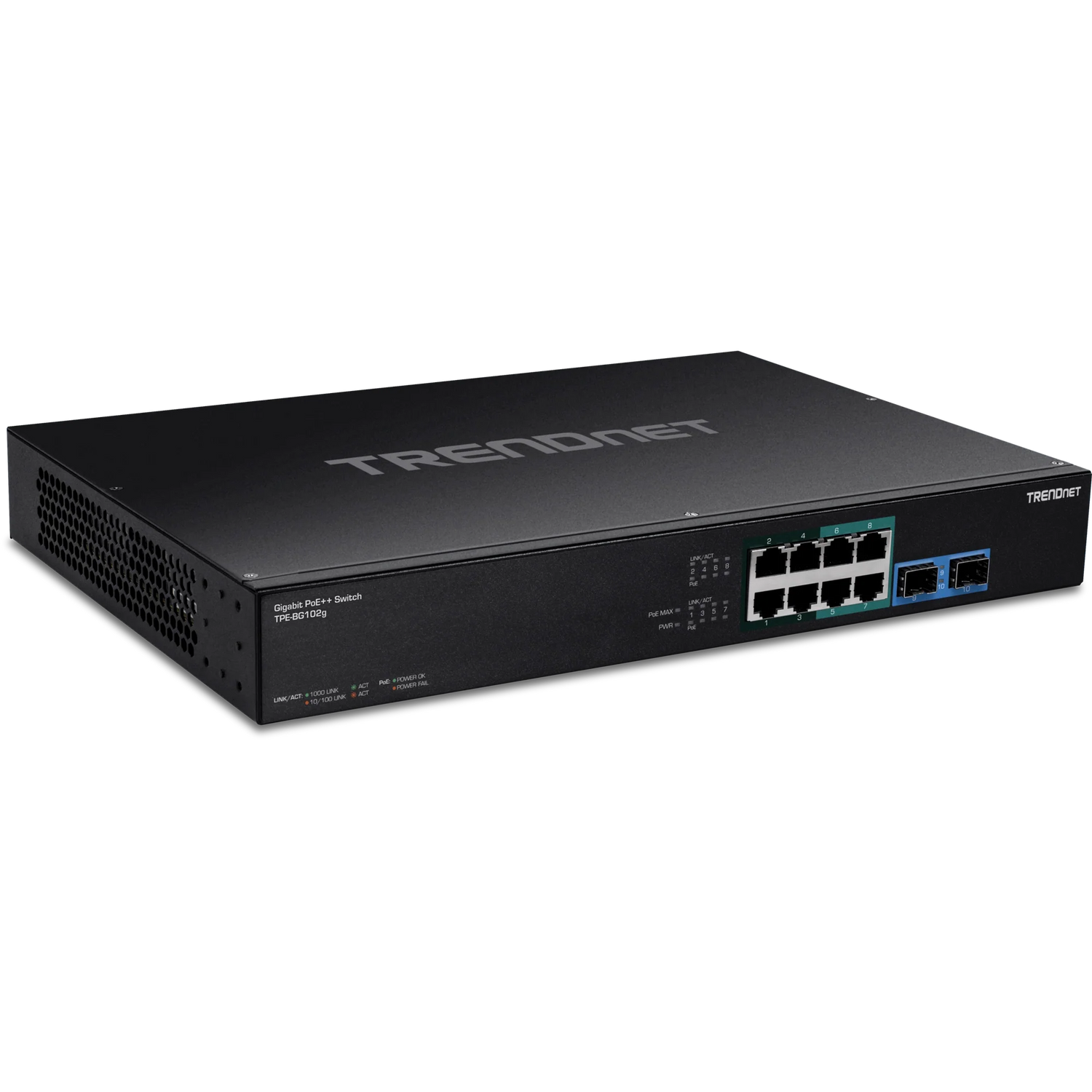

TRENDnet TPE-BG102G 10-Port Gigabit PoE++ Switch

NDAA/TAA Compliant

Product Details

TRENDnet’s Unmanaged Gigabit PoE++ Switches provide high bandwidth performance, ease of use, and reliability. These IEEE 802.3bt compliant switches feature a sturdy 1U 19” rack mountable metal housing with mounting brackets included. These high power PoE++ switches also offer SFP slots for long distance fiber network applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged high power PoE++ switches by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Easily network PoE devices such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with these high power PoE++ switches.

Specifications

Standards	IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt

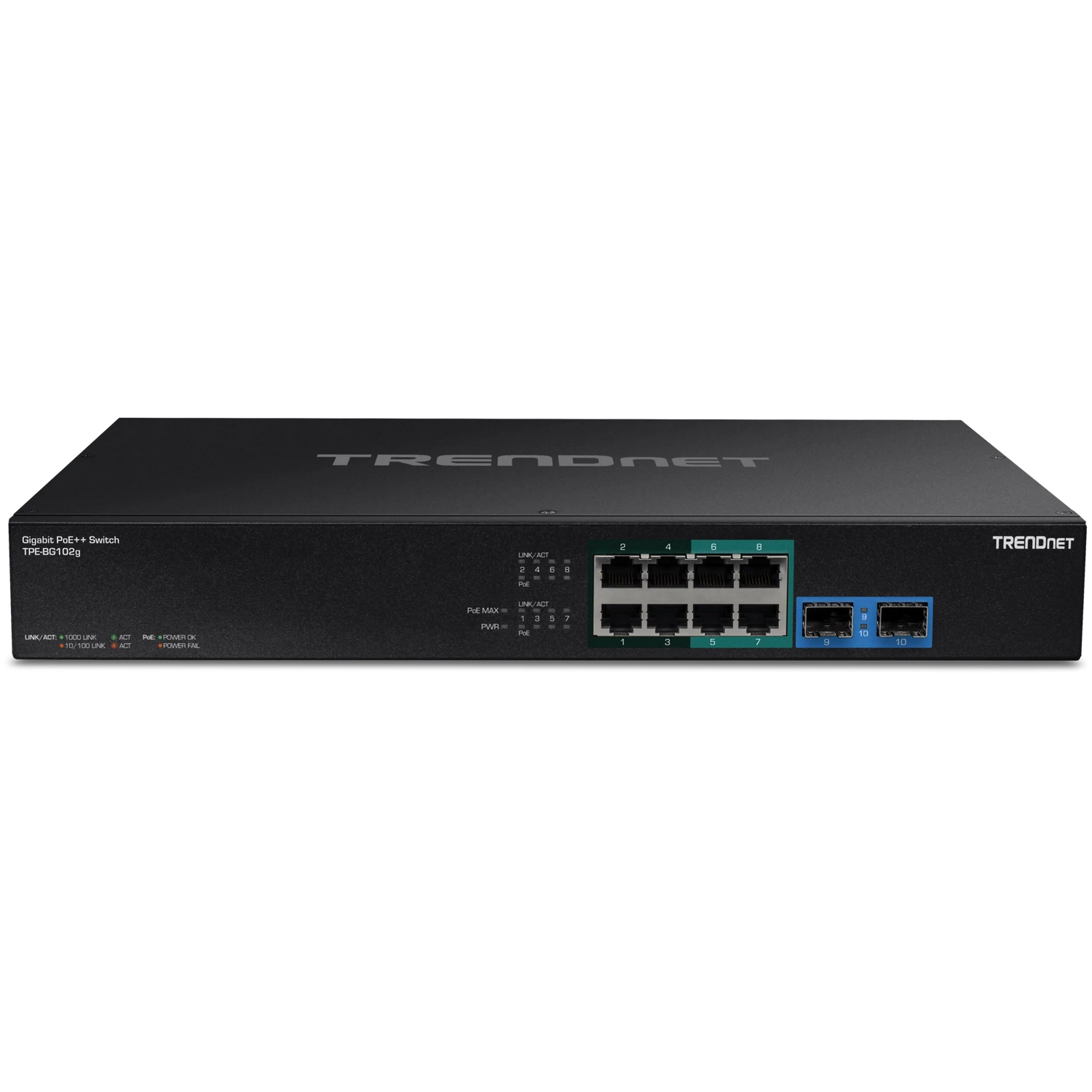

Device Interface	4 x Gigabit PoE++ ports 4 x Gigabit PoE+ ports 2 x Gigabit SFP Slots LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) Fiber: 2000Mbps (full duplex)
Performance	Switch Fabric: 20Gbps RAM Buffer: 512KB MAC Address Table: 8K entries Forwarding Rate: 14.88Mpps (64-byte packet size) Jumbo Frames: 9KB

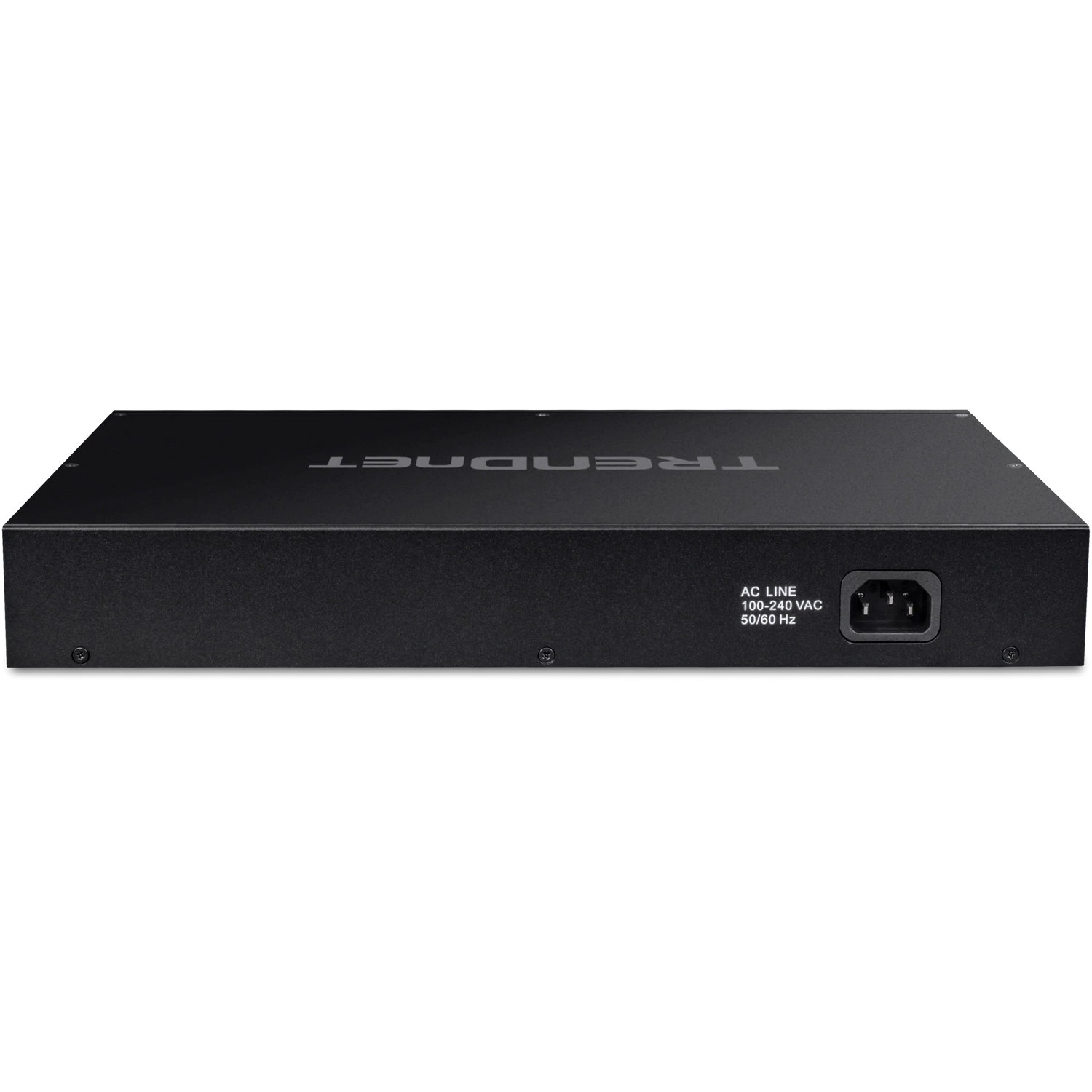

Power	Input: 100-240V AC, 50/60Hz, internal power supply Max. Consumption: 280W
PoE	PoE budget: 240W Port 1 – 4: up to 95W Port 5 – 8: up to 30W
MTBF	427,588 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	330 x 230 x 44mm (13 x 9.0 x 1.7 in.)
Weight	1.7kg (3.74 lbs.)
Certifications	CE FCC ETL
Warranty	Lifetime Warranty*

Features

4 x Gigabit PoE++ ports (up to 95W)
4 x Gigabit PoE+ ports (up to 30W)
2 x Gigabit SFP Slots
240W PoE power budget
20Gbps switching capacity
Internal power supply
Sturdy 1U 19” rack mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

PACKAGE CONTENTS

TPE-BG102g
Quick Installation Guide
Rackmount kit
Power Cord
