TRENDnet  |  SKU: TEG-S762

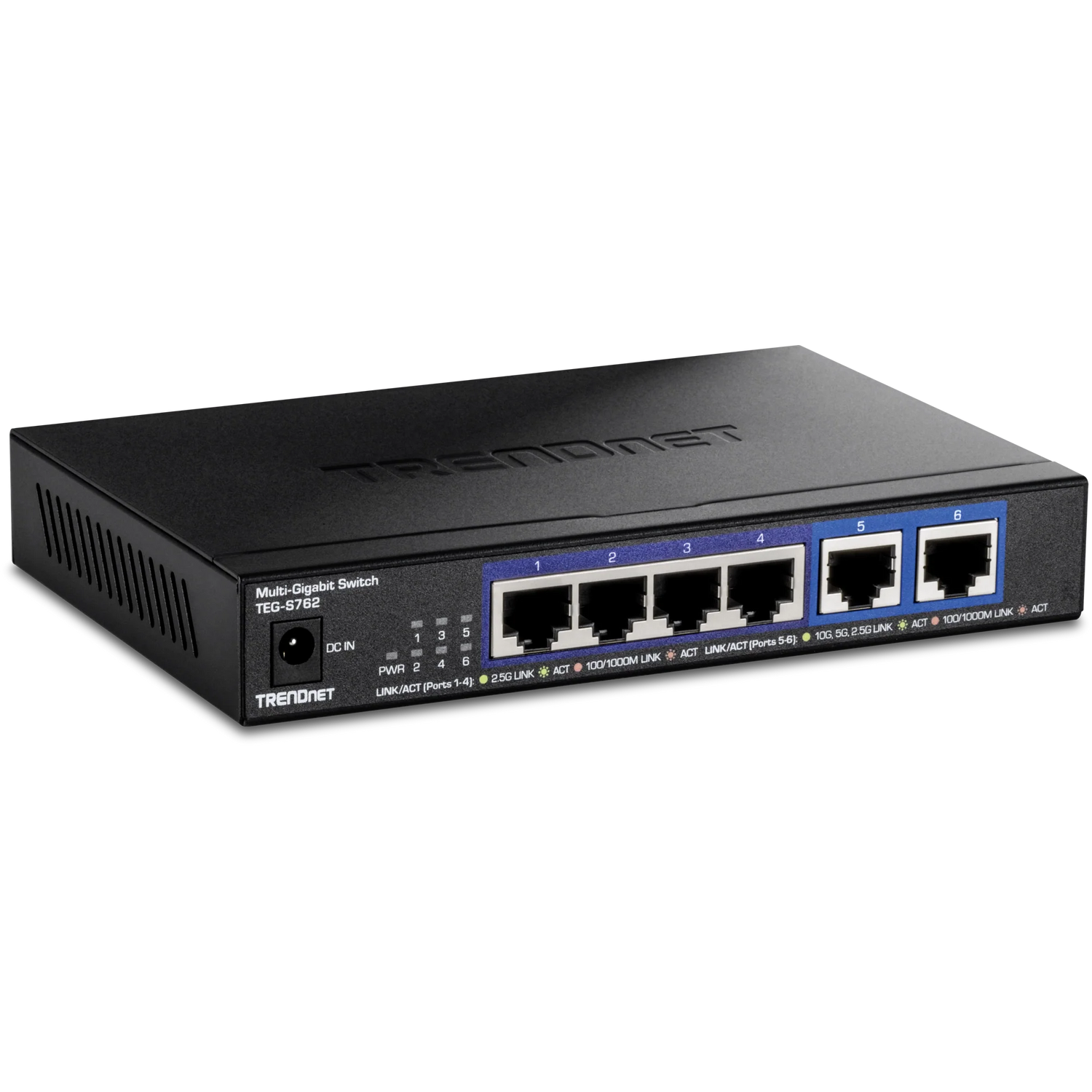

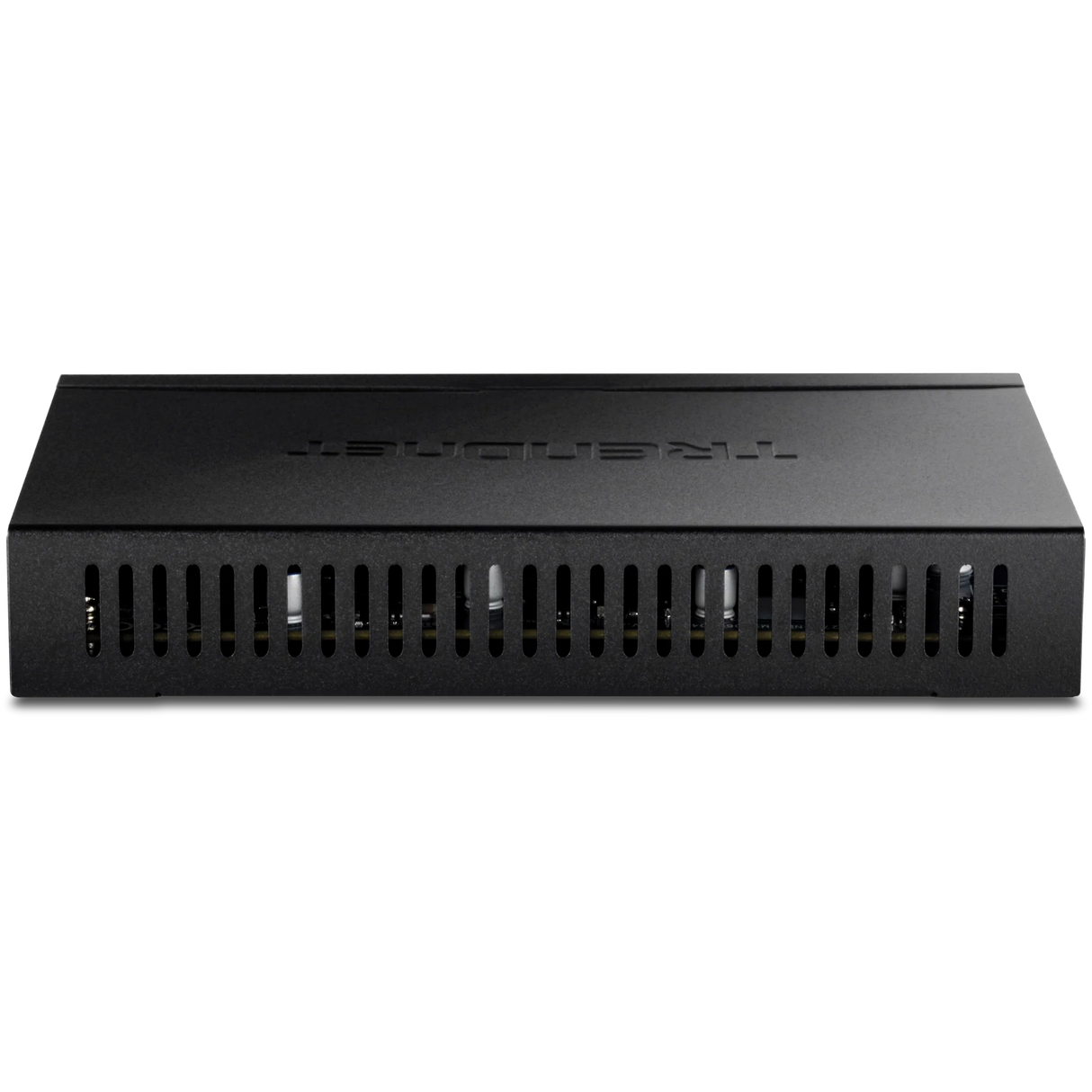

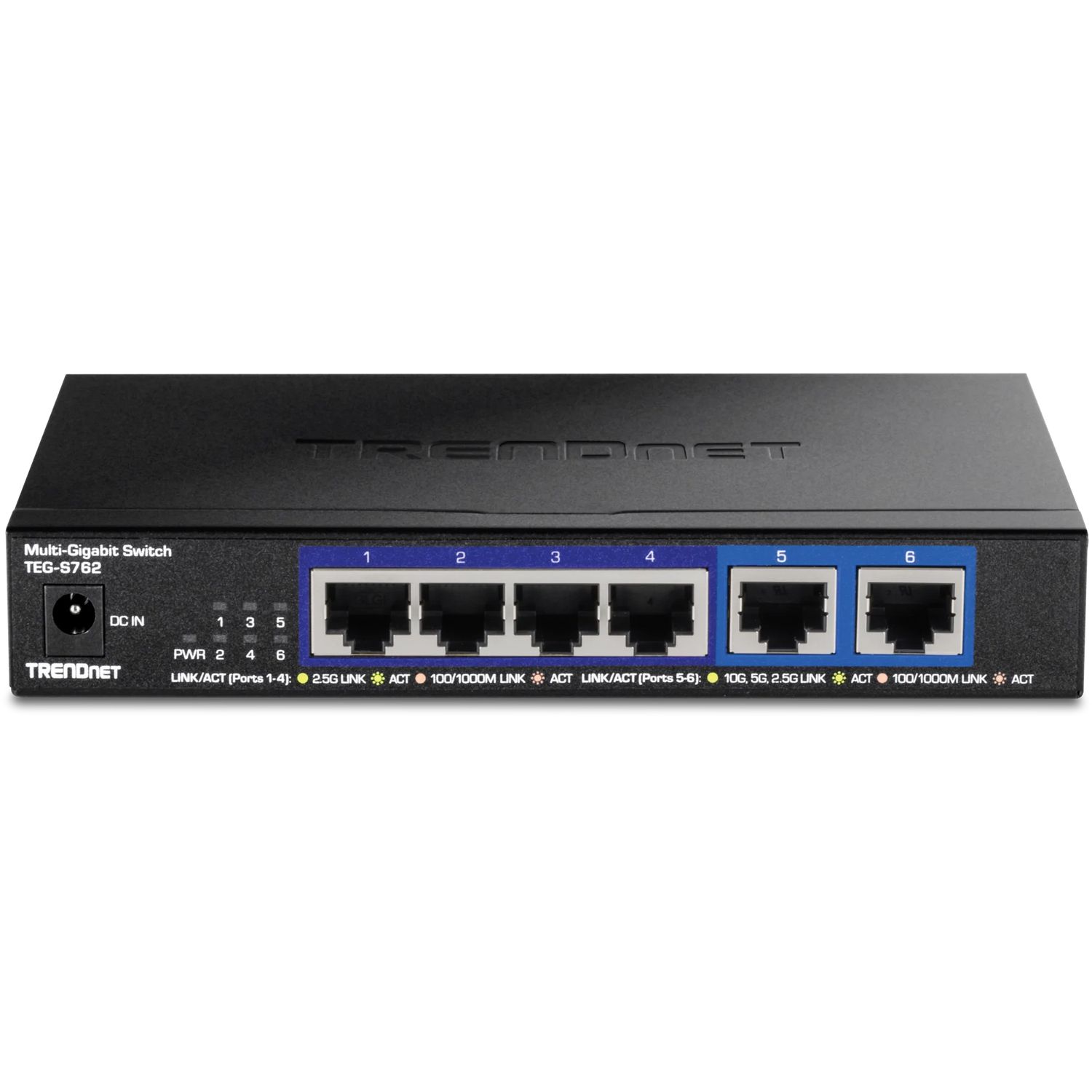

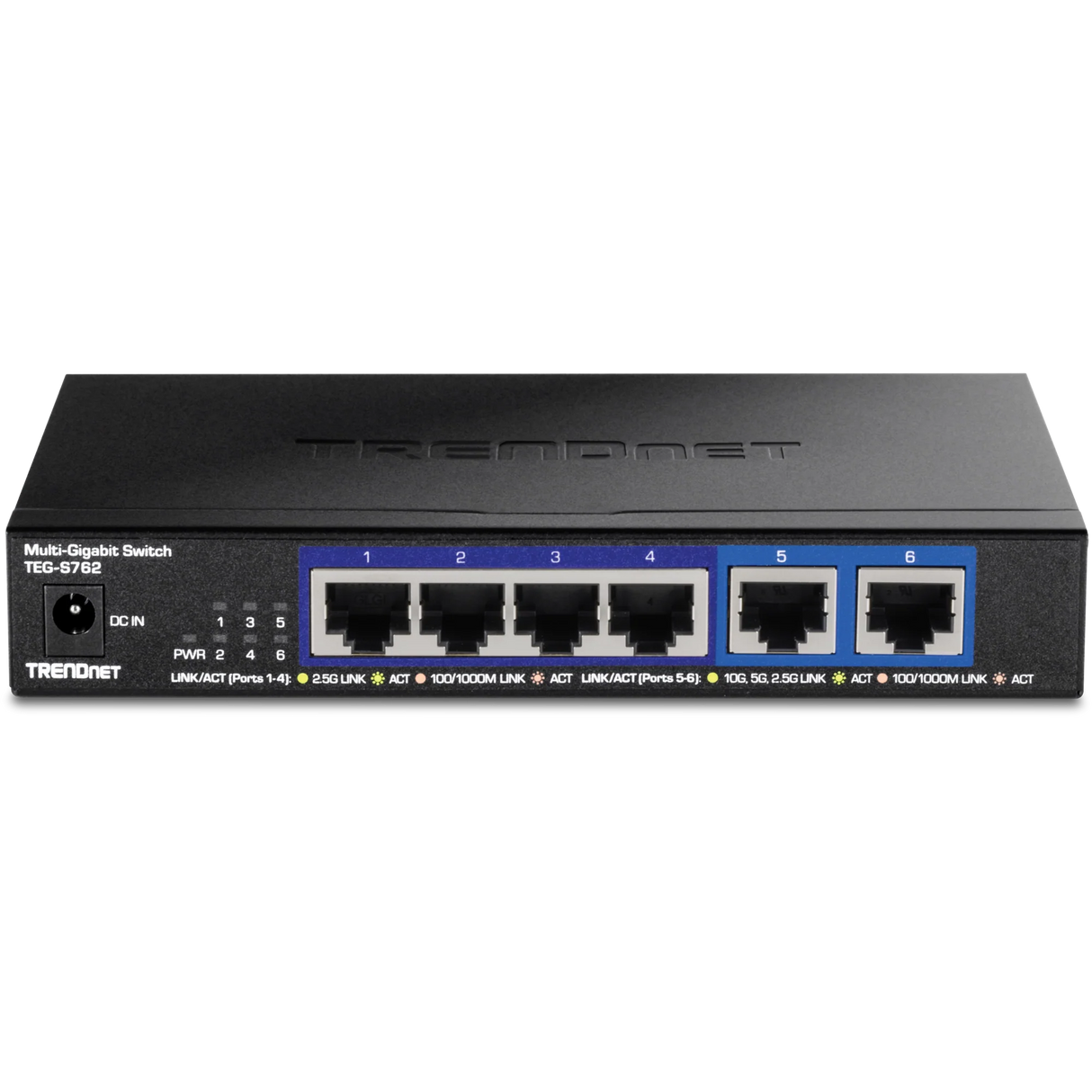

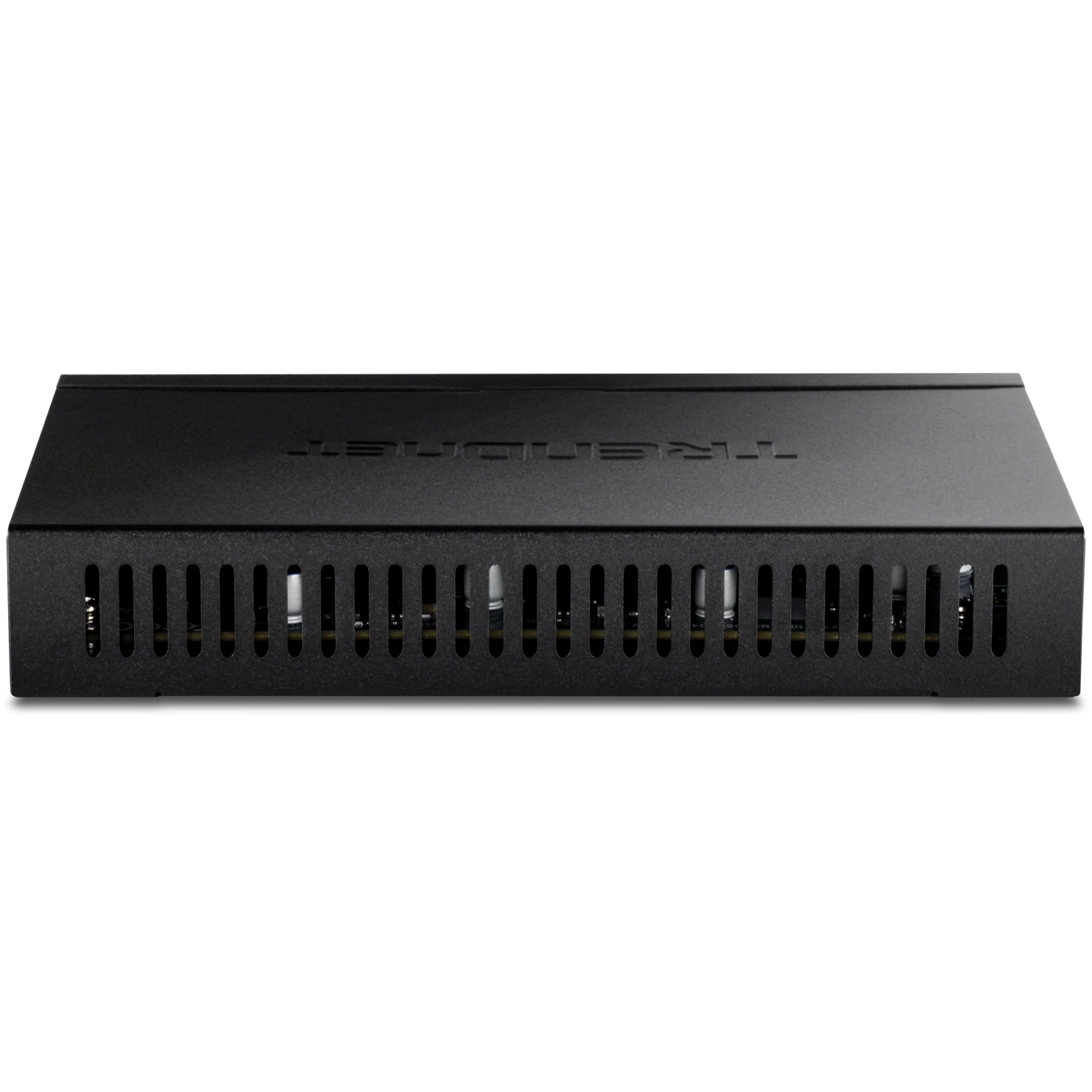

TRENDnet TEG-S762 6-Port Multi-Gig Switch

Regular price $119.99

TRENDnet TEG-S762 6-Port Multi-Gig Switch is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TEG-S762 6-Port Multi-Gig Switch

NDAA/TAA Compliant

Product Details

TRENDnet’s 6-Port Multi-Gig Switch, model TEG-S762, is a multi-gig switch that provides advanced, high-bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. It features a sturdy compact metal housing and fanless design. This multi-gig switch is a cost-effective switch solution for high-speed 10 gigabit network connections.

Specifications

Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
  • IEEE 802.1x
Device Interface
  • 4 x 2.5G ports (1Gbps/2.5Gbps)
  • 2 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switch fabric: 60Gbps
  • RAM buffer: 1MB
  • MAC address table: 4K entries
  • Jumbo frames: 12KB
  • Forwarding mode: store and forward
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Power
  • Input: 90 – 264 VAC, 47/63 Hz
  • Output: 12V, 1A
  • Max. Consumption: 13.37W
MTBF
  • 524,503 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 160 x 110 x 26mm (6.3 x 4.3 x 1 in.)
Weight
  • 0.5kg (1.12 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

Features

  • 4 x 2.5G RJ-45 ports
  • 2 x 10G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • 60Gbps switching capacity
  • Fanless design for silent operation

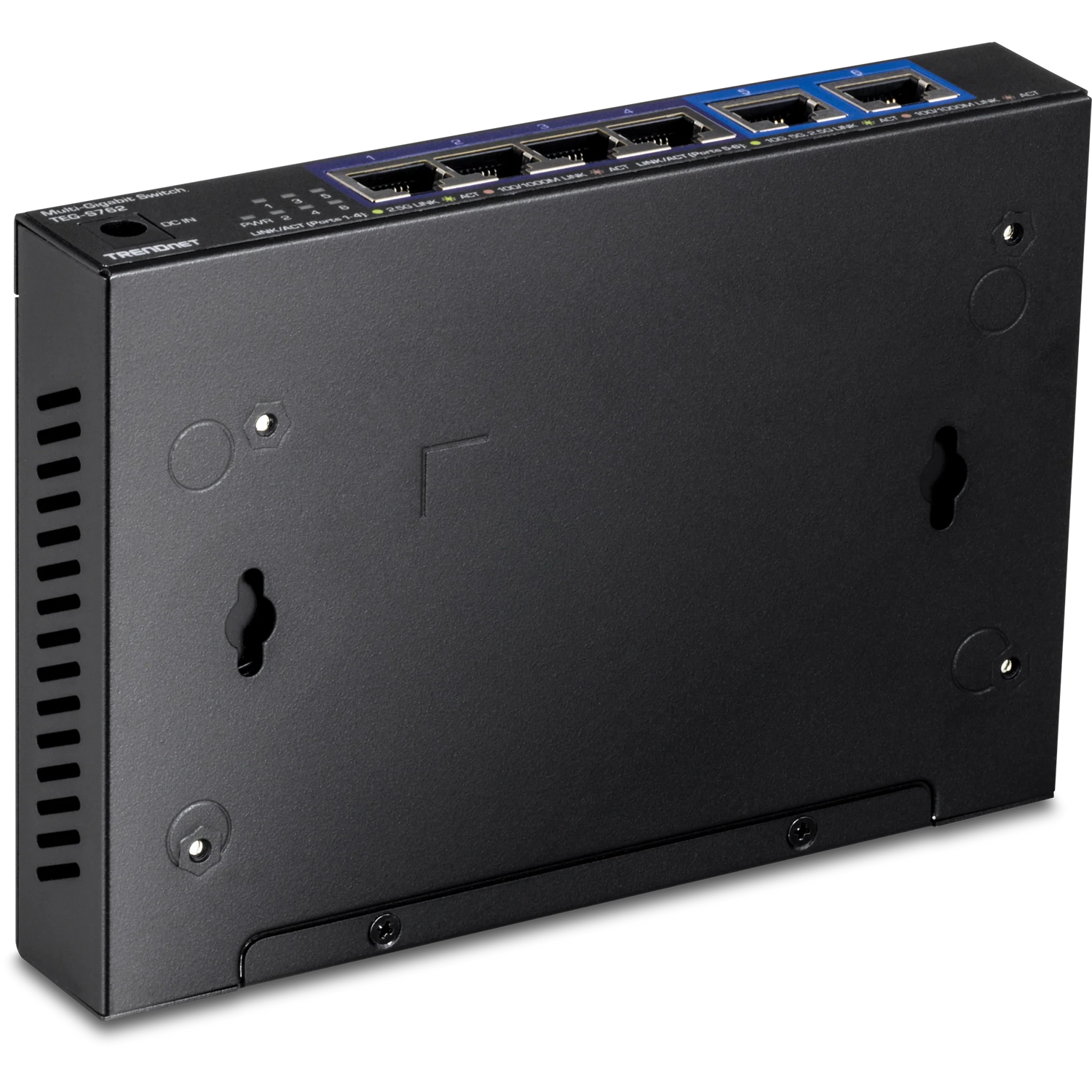

  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-S762
  • Quick Installation Guide
  • Power adapter (12V, 1A)
