TRENDnet  |  SKU: TEG-S750

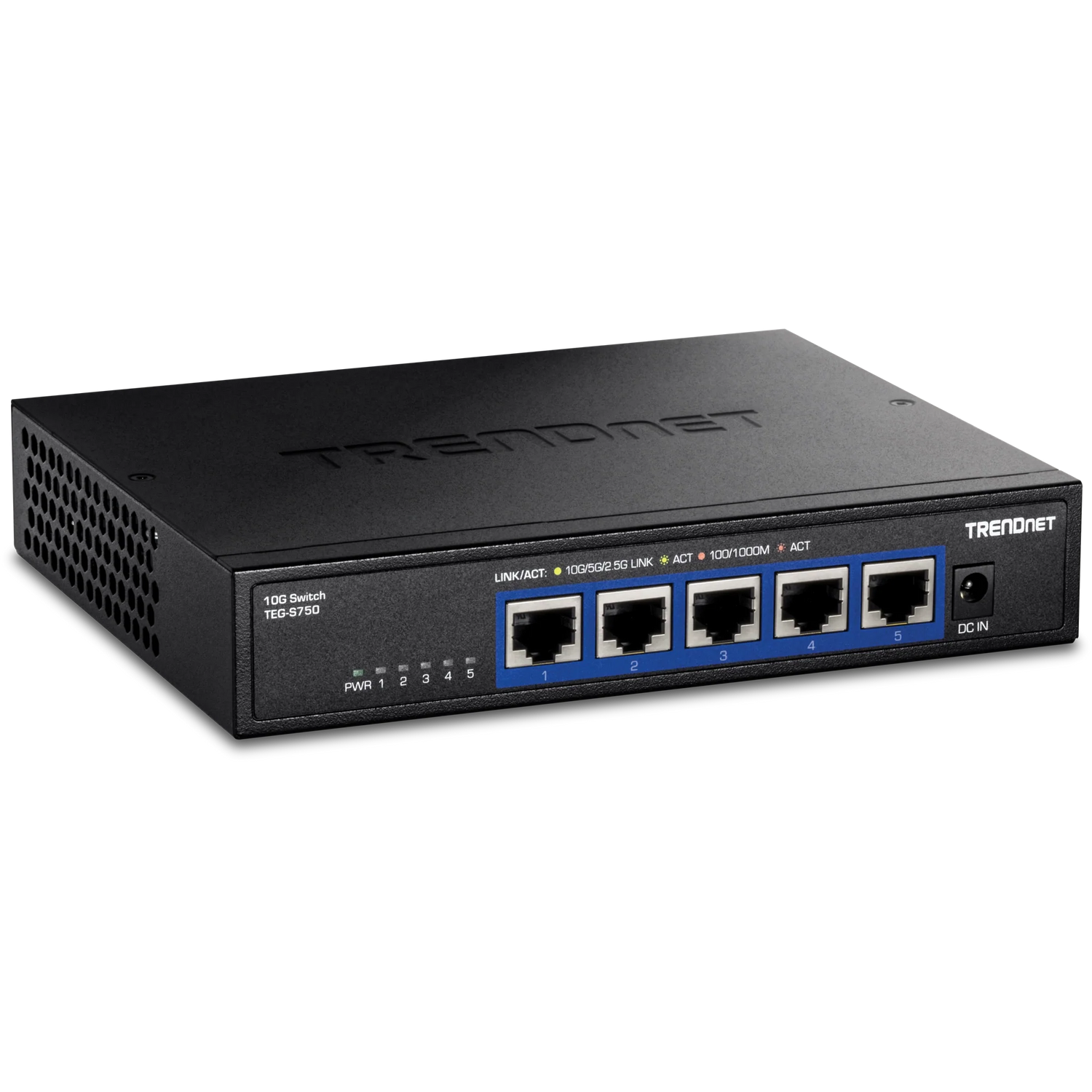

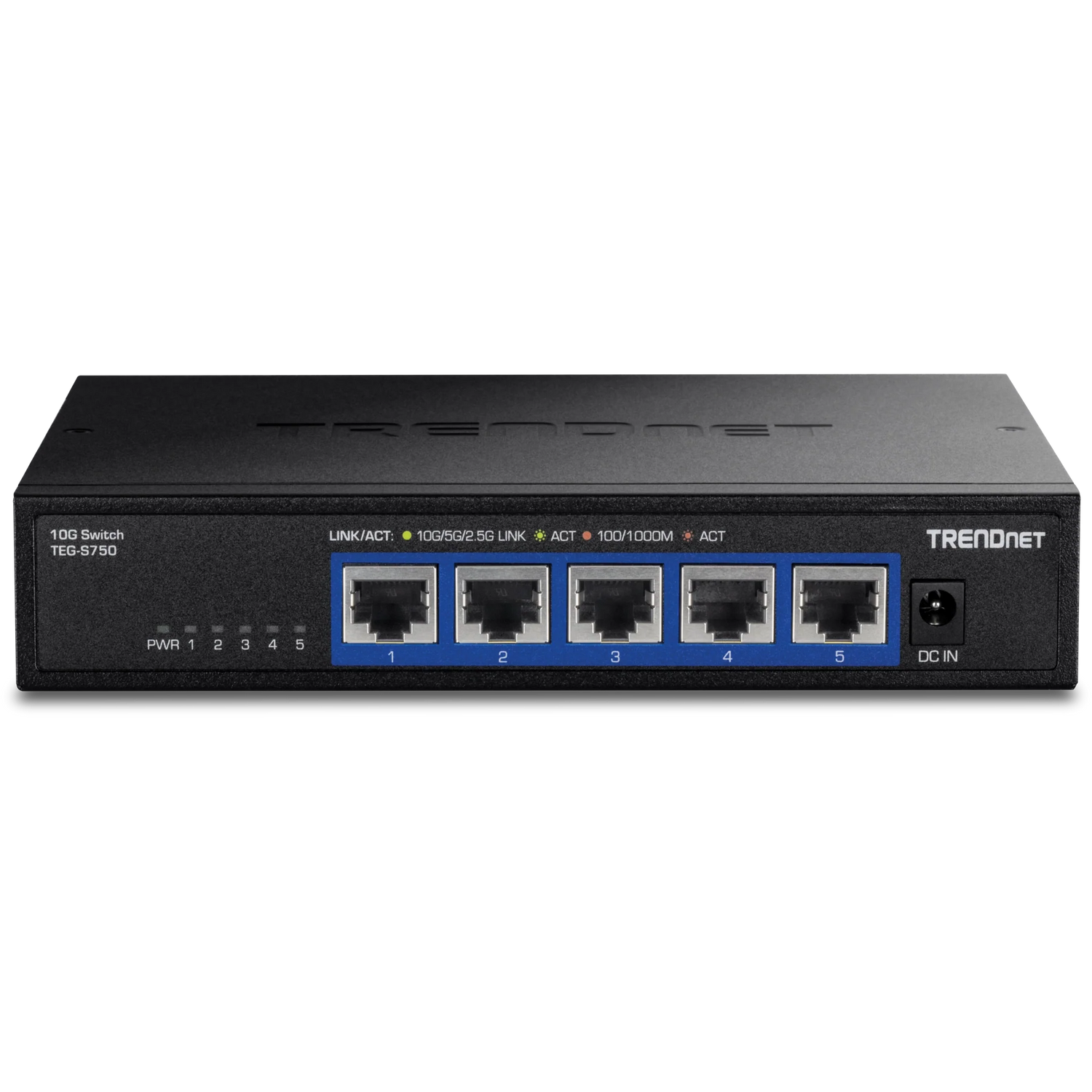

TRENDnet TEG-S750 5-Port 10G Switch

Regular price $259.99

TRENDnet TEG-S750 5-Port 10G Switch is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TEG-S750 5-Port 10G Switch

NDAA/TAA Compliant

Product Details

TRENDnet’s 5-Port 10G Switch, model TEG-S750, provides advanced high bandwidth performance, ease of use, and reliability. The TEG-S750 10G switch features five dedicated 10G ports for high-speed network connections with a 100Gbps switching capacity. With a sturdy compact metal housing and fanless design, the 10G switch is a reliable and cost-effective switch solution for high-speed 10 Gigabit network connections. This versatile unmanaged 10G switch also supports 2.5G-BASE-T connections for faster throughput over your existing Cat5e cabling (or better).

Specifications

Standards
  • IEEE 802.1x
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 5 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switching fabric: 100Gbps
  • RAM buffer: 2MB
  • MAC address table: 16K entries
  • Jumbo frames: 12KB
  • Forwarding mode: store and forward
  • Forwarding rate: 74.4Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 12V, 3A
  • Max. consumption: 22.75W
MTBF
  • 521,600 hours
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° C – 40° C (-4° F – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 180 x 145 x 33mm (7 x 5.7 x 1.3 in.)
Weight
  • 2.2kg (4.85 lbs.)
Certifications
  • CE
  • FCC
  • IC
  • LVD
  • UKCA
Warranty


Features

  • 5 x 10G RJ-45 ports
  • Supports IEEE 802.3bz 2.5G BASE-T over Cat5e cabling (or better)
  • Supports IEEE 802.3an 10G BASE-T over Cat6A cabling (or better)
  • 100Gbps switching capacity
  • Fanless design for silent operation
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-S750
  • Quick Installation Guide
  • Power Adapter (12V, 3A)
  • Wall mount kit
