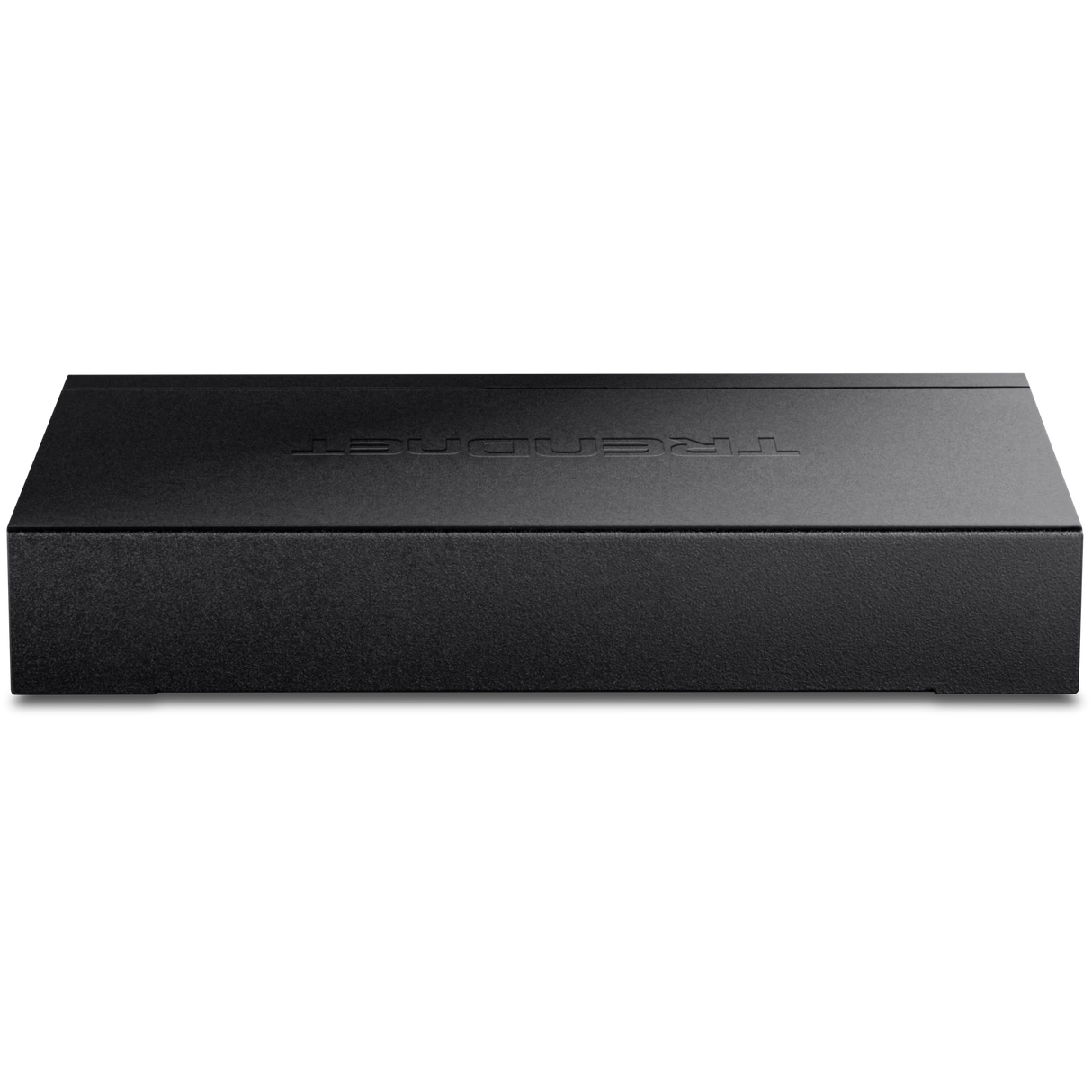

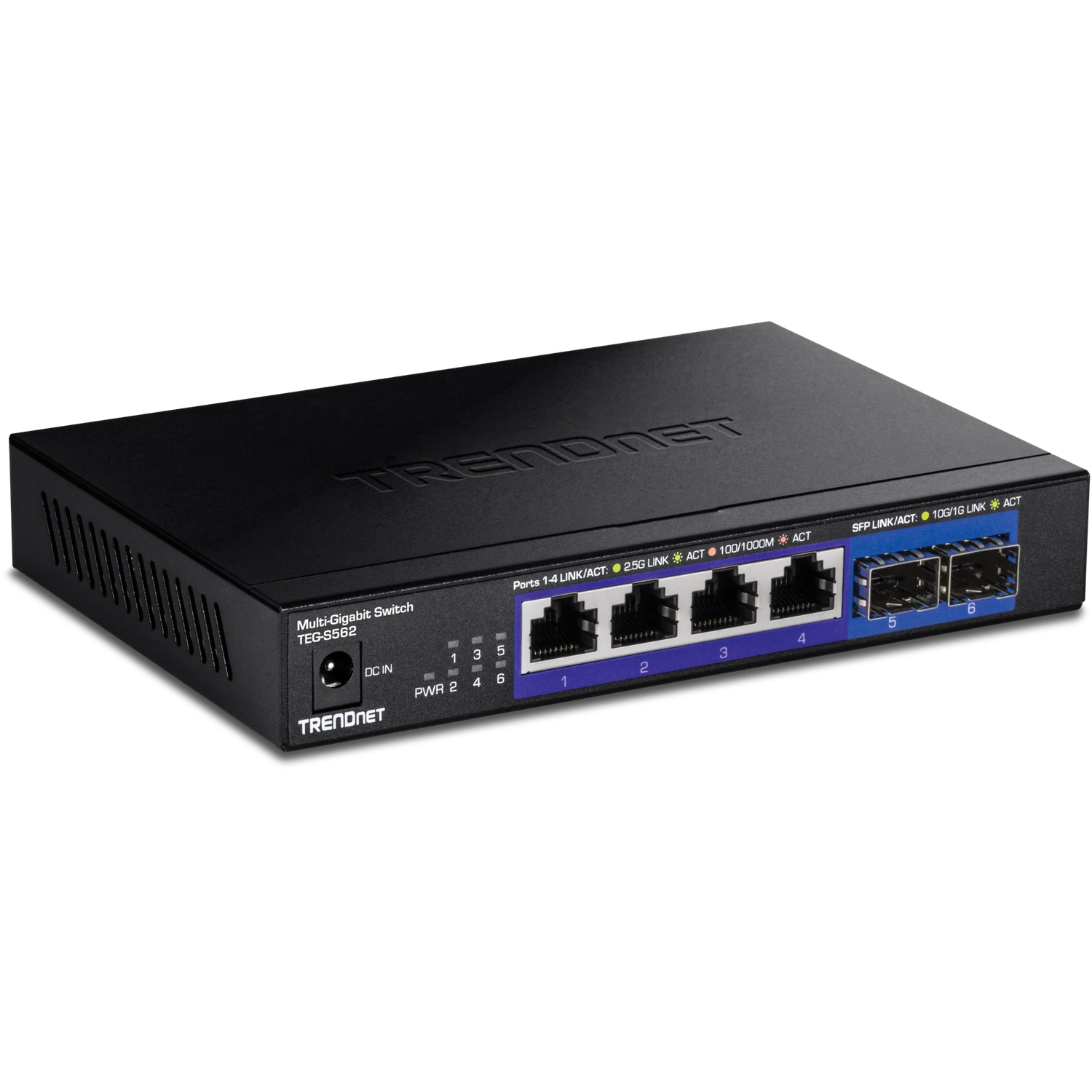

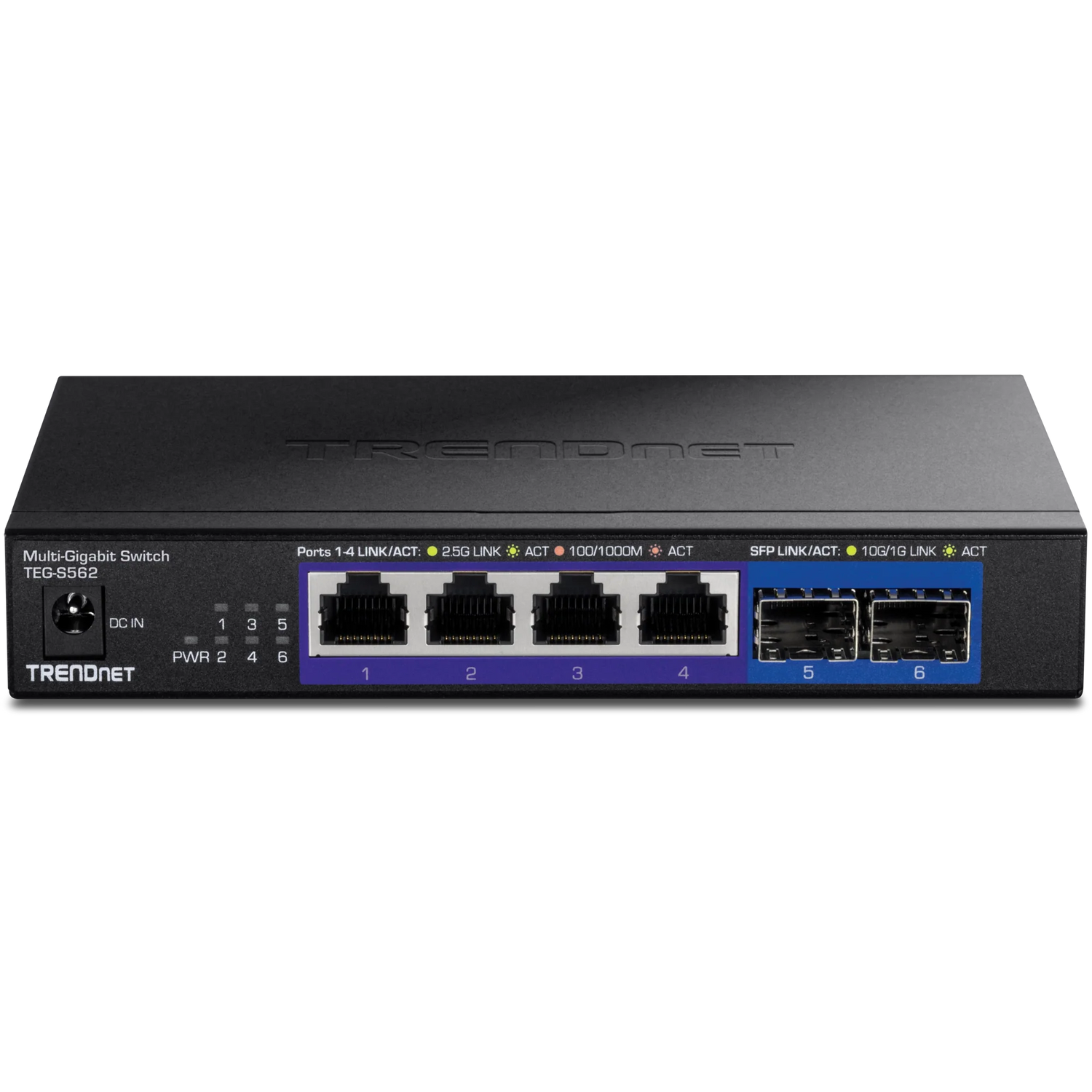

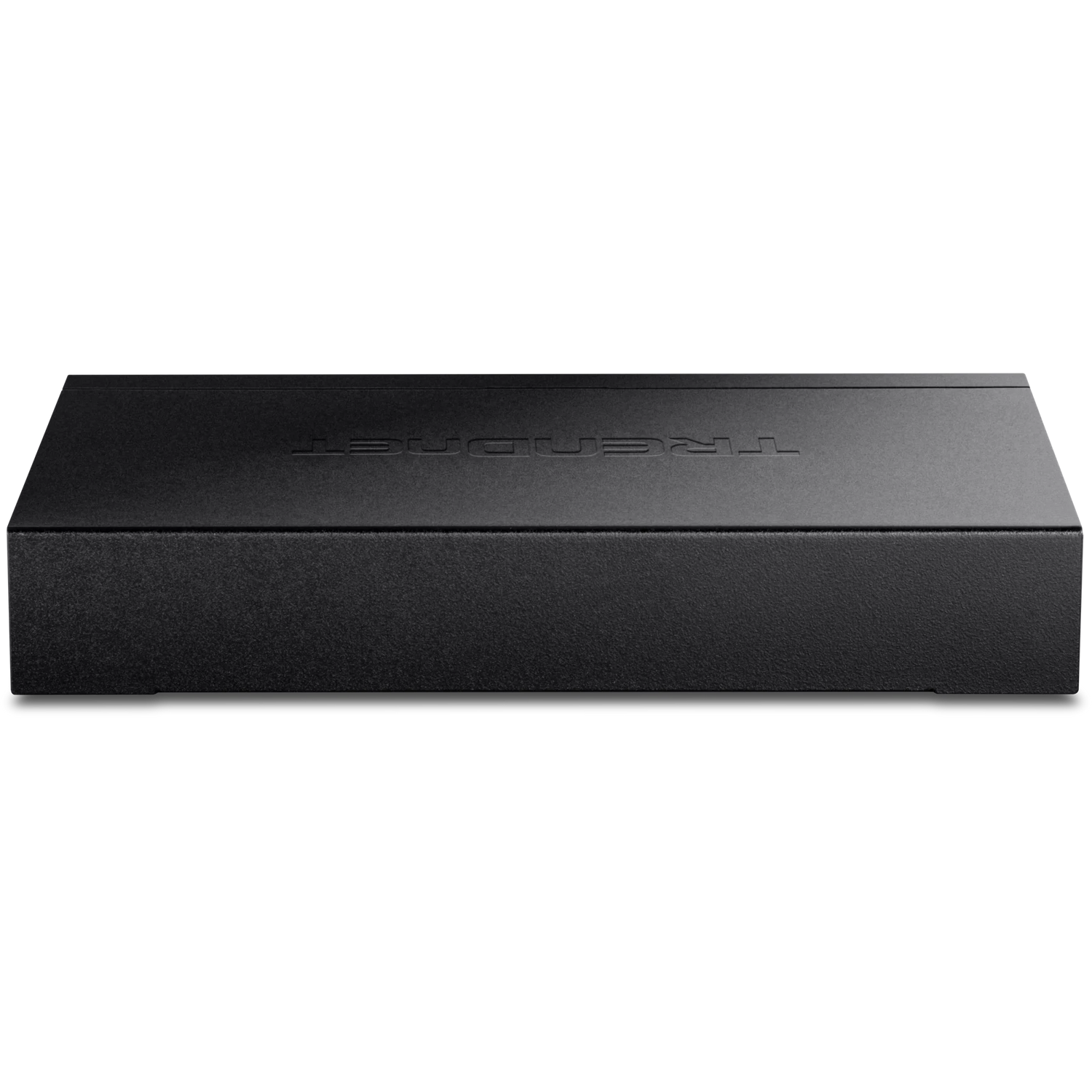

TRENDnet TEG-S562 6-Port Unmanaged Multi-Gig Switch

Name: TRENDnet TEG-S562 6-Port Unmanaged Multi-Gig Switch
Brand: TRENDnet
SKU: TEG-S562
Price: 69.99 USD
Availability: InStock

$69.99

TRENDnet TEG-S562 6-Port Unmanaged Multi-Gig Switch is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TEG-S562 6-Port Unmanaged Multi-Gig Switch

Product Details

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged Multi-Gigabit Switches. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.

Specifications

Standards	IEEE 802.3ab IEEE 802.3ae IEEE 802.3an IEEE 802.3bz IEEE 802.1x
Device Interface	4 x 2.5G ports (1Gbps/2.5Gbps) 2 x 10G SFP+ ports (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 60Gbps RAM buffer: 1MB MAC address table: 4K entries Jumbo frames: 12KB Forwarding mode: Store and forward Forwarding rate: 44.64Mpps (64-byte packet size)
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V, 1A Max. consumption: 5.86W
MTBF	1,079,150 hours @25°
Fan / Acoustics	Fanless
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	160 x 110 x 26mm (6.2 x 4.3 x 1 in.)
Weight	0.4 kg (1 lbs.)
Certifications	CE FCC LVD
Warranty	Lifetime Warranty*

Features

4 x 2.5GBASE-T ports
2 x 10G SFP+ ports
IEEE 802.3bz (2.5G) compliant
IEEE 802.3ae (SFP+) compliant
Backwards compatible with 100/1000BASE-T devices
60Gbps switching capacity
Compact fanless design eliminates noise

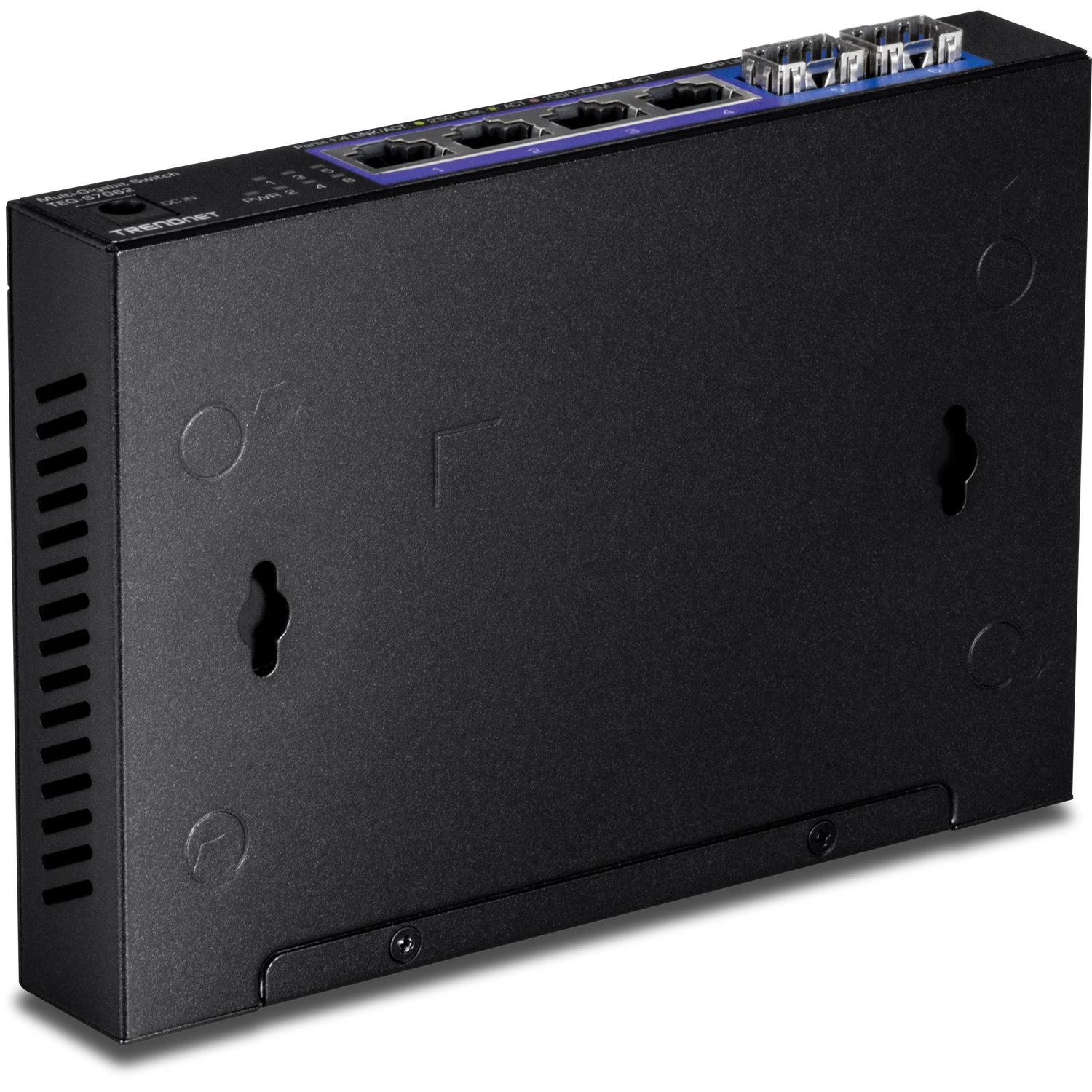

Wall mountable for installation flexibility
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

PACKAGE CONTENTS

TEG-S562
Quick Installation Guide
Power adapter (12V, 1A)
