TRENDnet TEG-S5061 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port

Name: TRENDnet TEG-S5061 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port
Brand: TRENDnet
SKU: TEG-S5061
Price: 69.99 USD
Availability: InStock

$69.99

TRENDnet TEG-S5061 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TEG-S5061 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port

NDAA/TAA Compliant

Product Details

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port. These multi-gig network switches come equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ port for long-distance fiber networking. Each multi-gig switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable switches are cost-effective solutions to increase your network’s throughput.

Specifications

Standards	IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3az IEEE 802.3bz
Device Interface	5 x 2.5GBASE-T ports (1Gbps/2.5Gbps) 1 x 10G fiber SFP+ port (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Gigabit: 2000Mbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex) SFP: 2Gbps (full duplex) SFP+ 20Gbps (full duplex)
Performance	Switching Capacity: 45Gbps RAM Buffer: 1MB MAC Address Table: 4K entries Forwarding Rate: 33.8Mpps (64-byte packet size) Jumbo Frames: 12KB
Special Features	Wall mountable
Power	Input: 100 – 240V AC, 50/60 Hz, 0.5A Output: 12V DC, 1A external power adapter Max. Consumption: 9.5W
Fan/Acoustics	Fanless design
MTBF	674,176 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	160 x 110 x 26mm (6.29 x 4.33 x 1.02 in.)
Weight	414g (14.6 oz.)
Certifications	FCC CE
Warranty	Lifetime Warranty*

Features

5 x 2.5G RJ-45 ports
1 x 10G fiber SFP+ port
Compatible with existing Cat5e or better cabling
Backward compatible Ethernet speeds of 1000Mbps
Backward compatible of SFP speeds of 1000Mbps
Fanless design eliminates noise

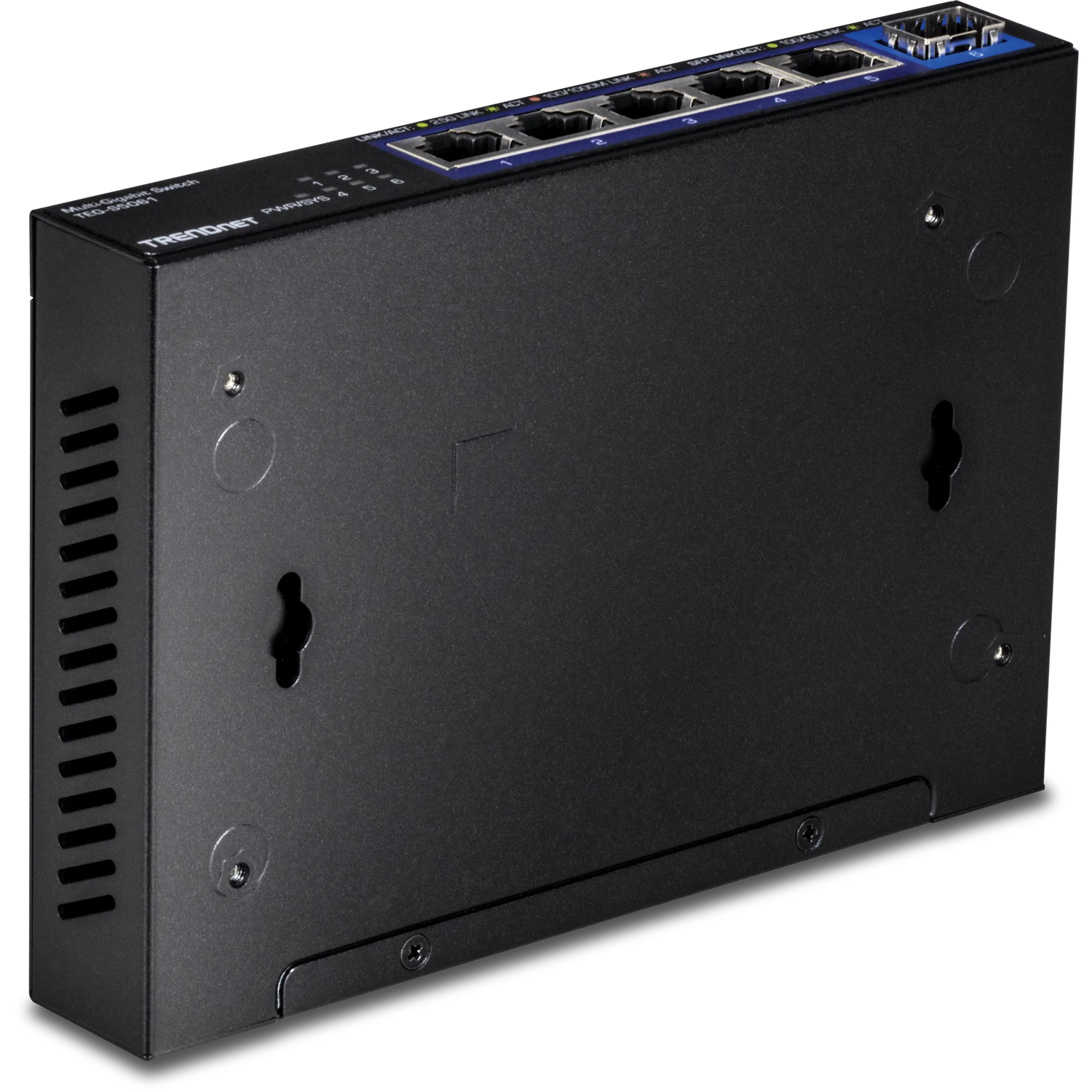

Wall mountable for installation flexibility
45Gbps switching capacity
IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

PACKAGE CONTENTS

TEG-S5061
Quick Installation Guide
Power adapter (12V DC, 1A)
