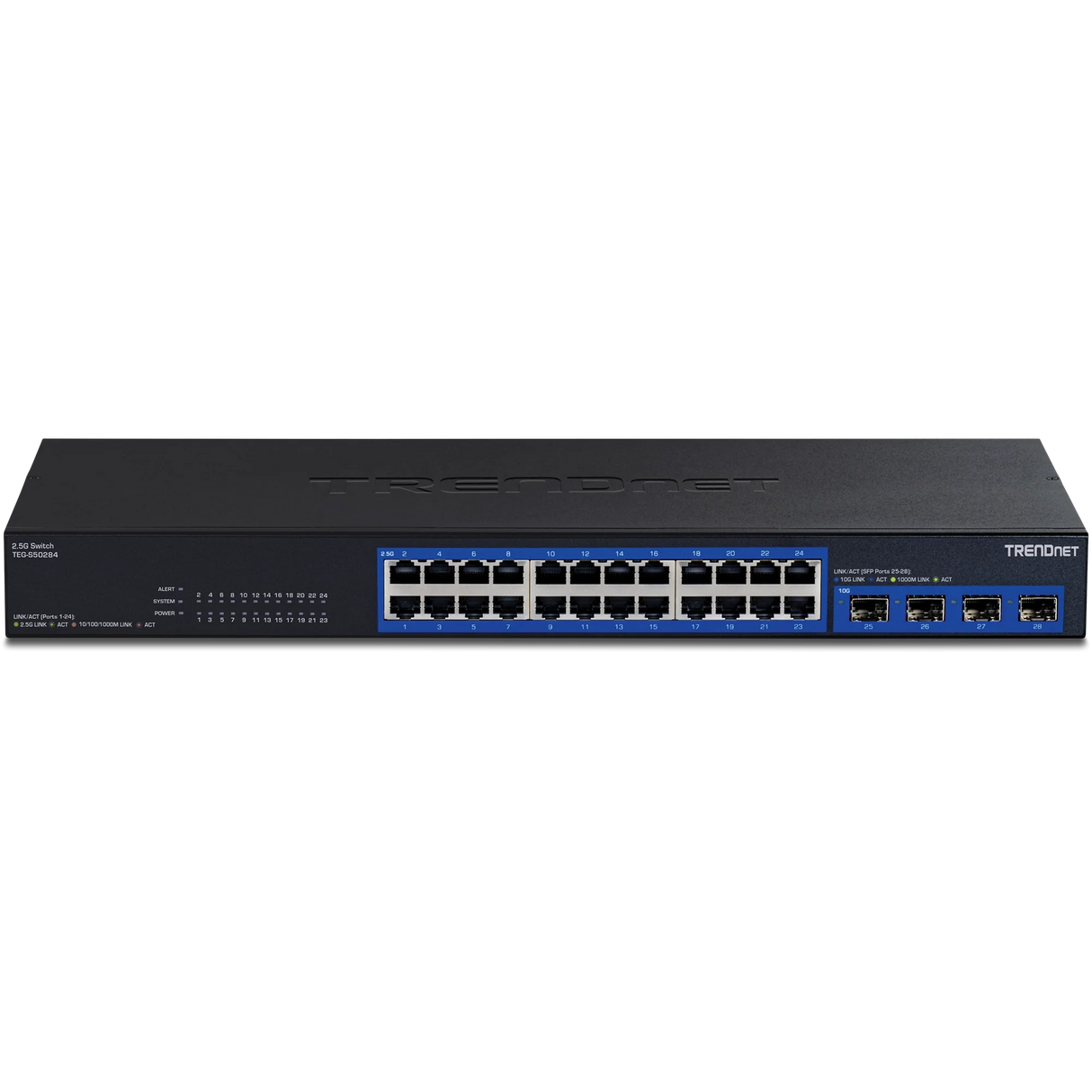

TRENDnet TEG-S50284 28-Port 2.5G Switch with 10G SFP+ Ports

Product Details

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 28-Port 2.5G Switch with 10G SFP+ Ports, model TEG-S50284. This multi-gigabit network switch comes equipped with 2.5GBASE-T RJ-45 and 10G SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e cabling or 10Gbps over fiber cabling. This high-speed switch features a durable metal enclosure, and the smart fans lower energy consumption by auto adjusting fan speed based on the switch’s cooling needs. The included rackmount brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

Specifications

Standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3az IEEE 802.3bz
Device Interface	24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps) 4 x 10G SFP+ ports (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switching Capacity: 200Gbps RAM Buffer: 2MB Jumbo Frames: 12KB MAC Address Table: 32K entries Forwarding Rate: 148.8Mpps (64-byte packet size)
Special Features	Rack mountable VLAN Passthrough ESD 6kV for ethernet ports
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V DC, 5A Max. Consumption: 38.88W
Fan/Acoustics	Quantity: 2 Smart fans
MTBF	426,000 hours @ 25° C
Operating Temperature	0° – 50° C (32° – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
Weight	2890g (6.37lbs)
Certifications	FCC CE LVD
Warranty	Lifetime Warranty*

Features

24 x 2.5G RJ-45 ports
4 x 10G SFP+ ports
Compatible with existing Cat5e or better cabling
Smart fans auto adjusts the fan speed based on cooling needs
Rack mountable or wall mountable for installation flexibility
200Gbps switching capacity
IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

PACKAGE CONTENTS

TEG-S50284
Quick Installation Guide
Rackmount kit
Power cord (1.5m / 5 ft.)
