TRENDnet  |  SKU: TL2-G244

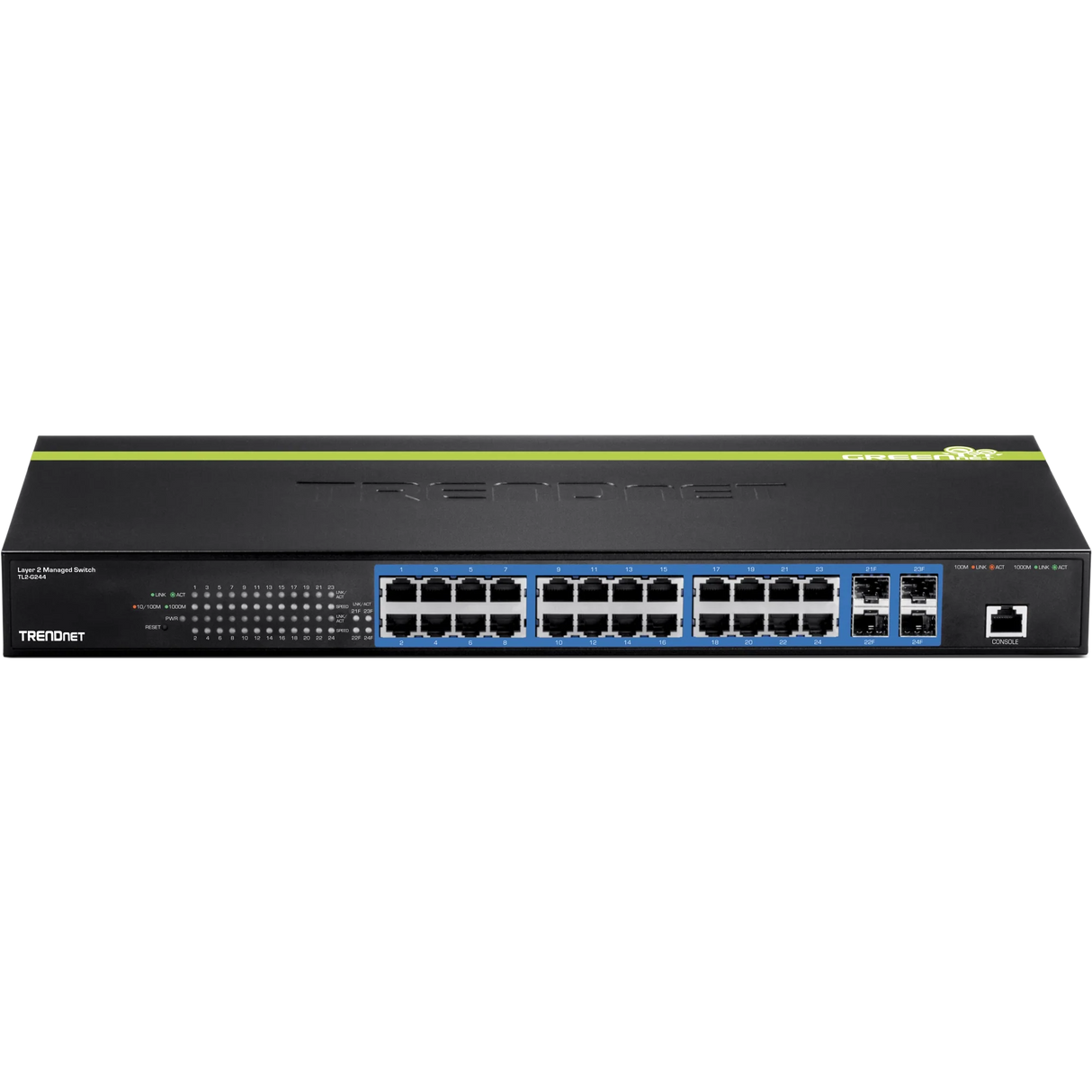

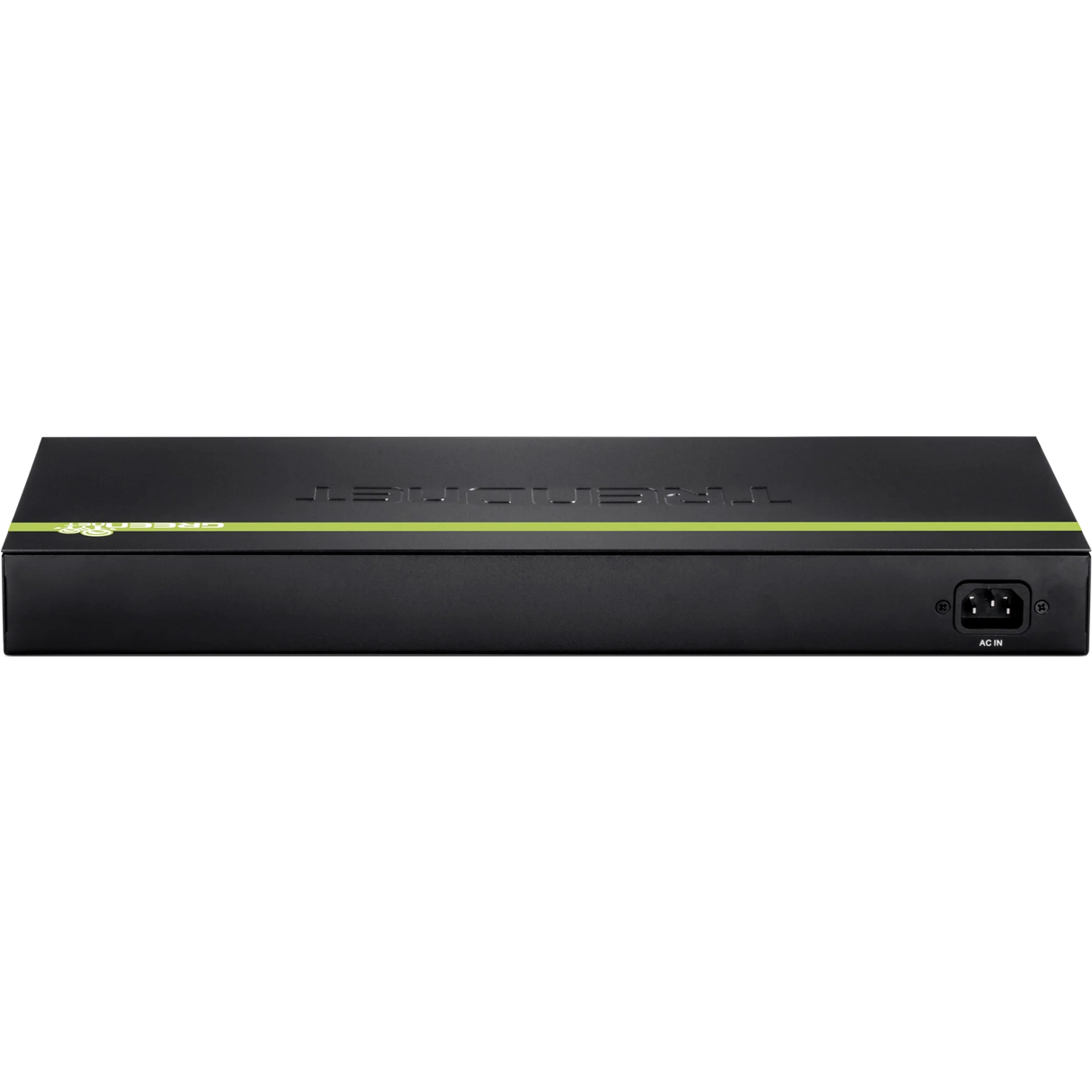

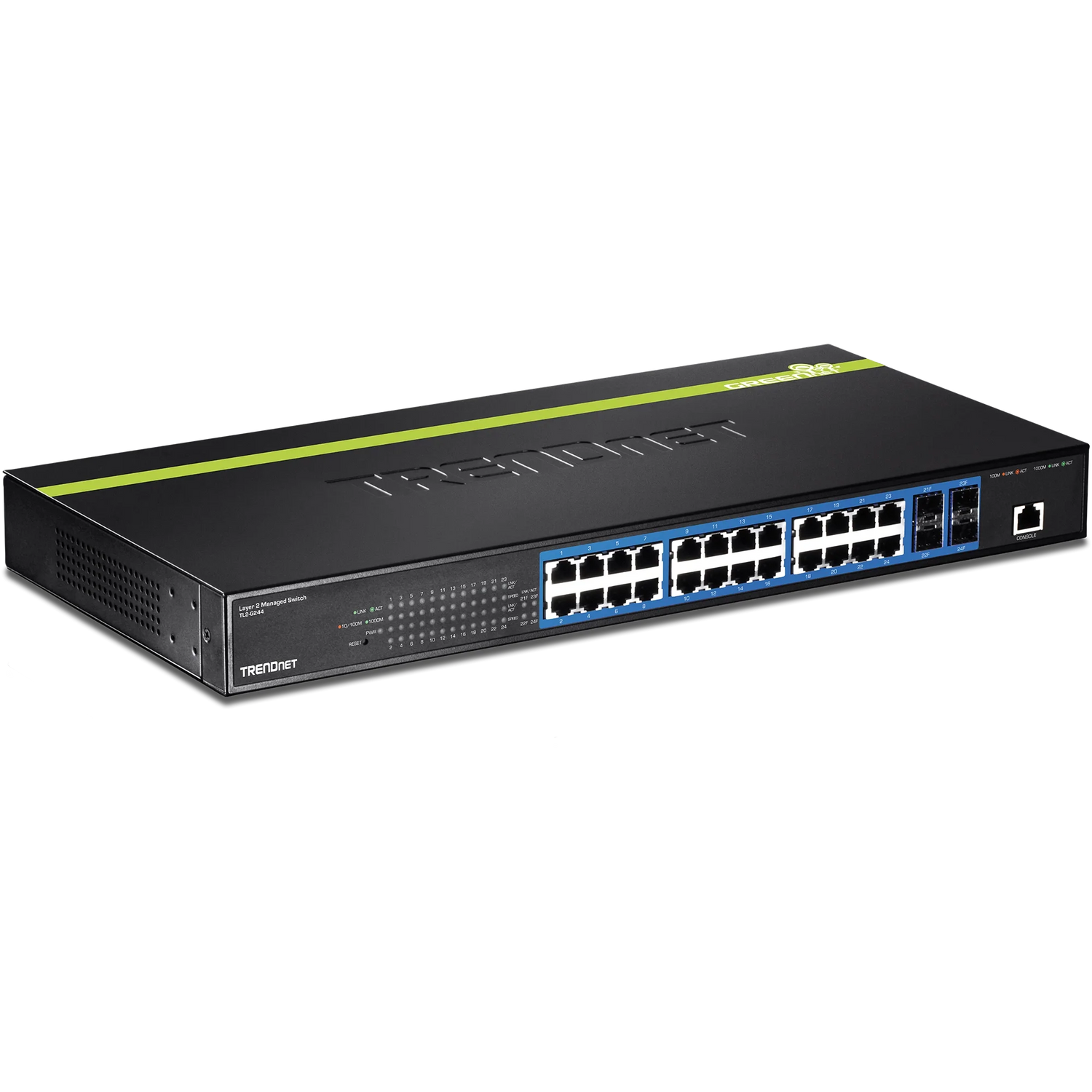

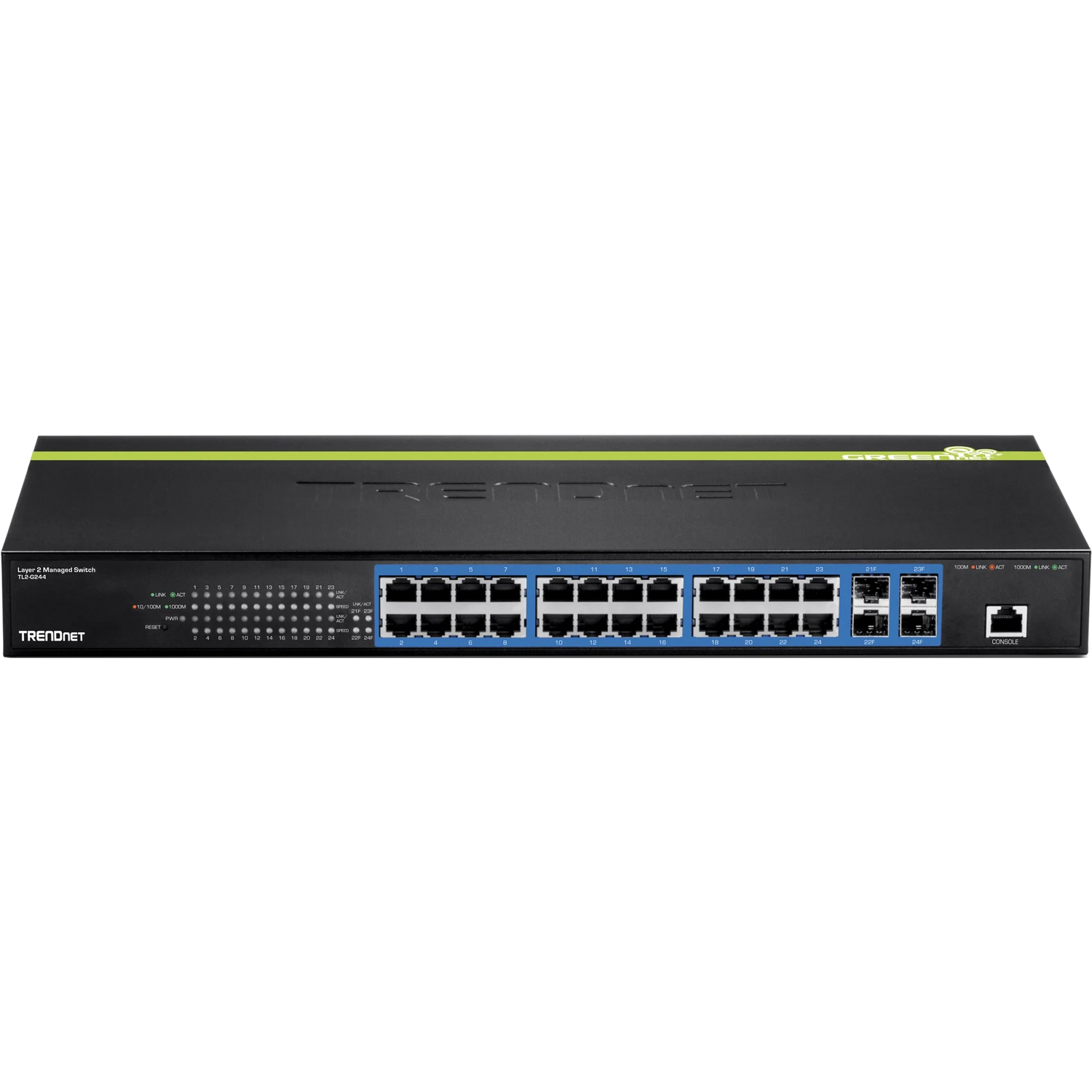

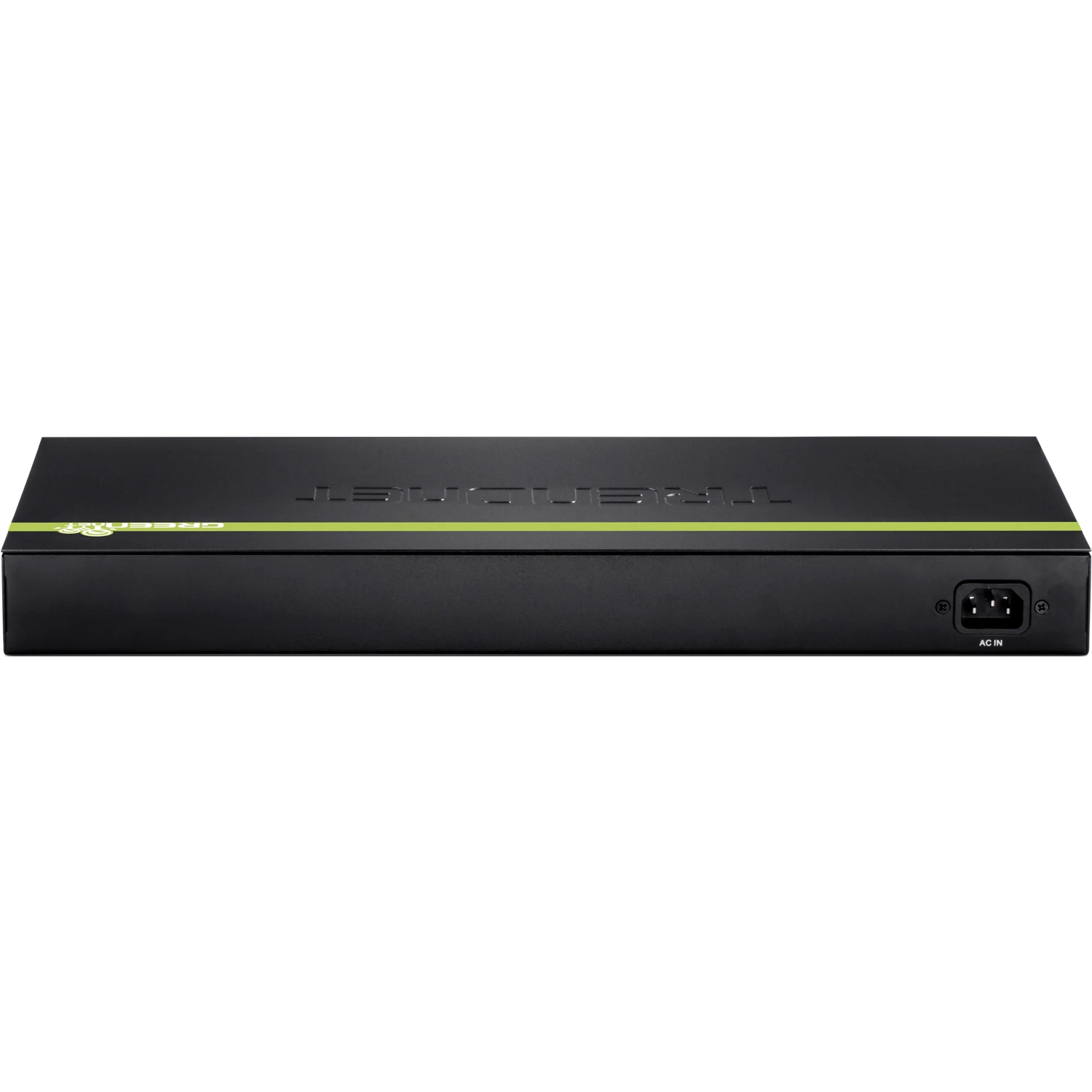

TRENDnet TL2-G244 24-Port Gigabit Managed Layer 2 Switch

$246.99

TRENDnet TL2-G244 24-Port Gigabit Managed Layer 2 Switch is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TL2-G244 24-Port Gigabit Managed Layer 2 Switch

NDAA/TAA Compliant

Product Details

TRENDnet's 24-Port Gigabit Managed Layer 2 Switch, model TL2-G244, has 24 x Gigabit ports, 4 x shared SFP slots, a console port, and an advanced Layer 2 management feature set. This IPv6 ready switch offers traffic management, troubleshooting, access control, and monitoring features needed to build a SMB network.

Specifications

Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
Device Interface
  • 24 x Gigabit ports (ports 1-24)
  • 4 x Shared SFP slots (shared with ports 21-24)
  • 1 x Console Port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Performance
  • Switch fabric: 48 Gbps
  • RAM buffer: 1 MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10 KB
  • HOL Blocking Prevention
  • Forwarding rate: 35.7 Mpps (64-byte packet size)
Management
  • CLI (Console)
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP
  • Virtual Cable Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB
  • MIB II RFC 1213
  • Bridge MIB RFC 1493
  • Bridge MIB Extension RFC 2674
  • SNMPv2 MIB RFC 1907
  • Ethernet Interface MIB RFC 1643
  • Ethernet –like MIB RFC 2863
  • Interface Group MIB RFC 2233
  • MIB Traps Convention RFC 1215
  • RMON MIB RFC 1757, RFC 2819
  • 802.1p MIB RFC 2674
  • RADIUS Client Authentication MIB RFC 2618
  • LLDP-MIB IEEE 802.1ab
  • Ping MIB RFC 2925, RFC 4560
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • Multiple management VLAN assignment
  • Asymmetric VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3 (per VLAN)
  • Static Multicast Address
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • One to one
Access Control
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial In User Authentication
  • DHCP Snooping (per VLAN)
  • Loopback Detection
  • Duplicated Address Detection
  • Trusted Host
  • Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • DSCP (IPv4 only)
  • IPv6 Address (IPv6 only)
Compatibility
  • Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Special Features
  • Fanless Design
  • IPv6
  • 802.3az power saving
  • Rack mountable
Power
  • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
  • Consumption: 15 Watts (max.)
Fan / Acoustics
  • Quantity: 0
  • Noise Level: 0 dB(A) (max.)
MTBF
  • 806,202 hours
Operating Temperature
  • 0 – 45°C (32 - 113°F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
  • Rack mountable 1U height
Weight
  • 2.8 kg (6.2 lbs.)
Certifications
  • CE
  • FCC
Warranty

Features

  • Command Line and console inputs supported
  • SNMP (v1, v2c, v3), 802.1X, RSTP, and MSTP support
  • Supports Port Trunking, Mirroring, IGMP, Static and Dynamic VLAN, RMON, and more
  • Private/Voice VLAN, QoS, and bandwidth controls
  • 24 x Gigabit ports
  • 4 x shared SFP slots and a console port
  • 48 Gbps switching capacity
  • Fanless design
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TL2-G244
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power cord (1.8 m / 6 ft.)
  • Console cable (1.8 m / 6 ft.)
  • Rack mount kit
