TRENDnet TEG-S327 7-Port Multi-Gig Switch

NDAA/TAA Compliant

Product Details

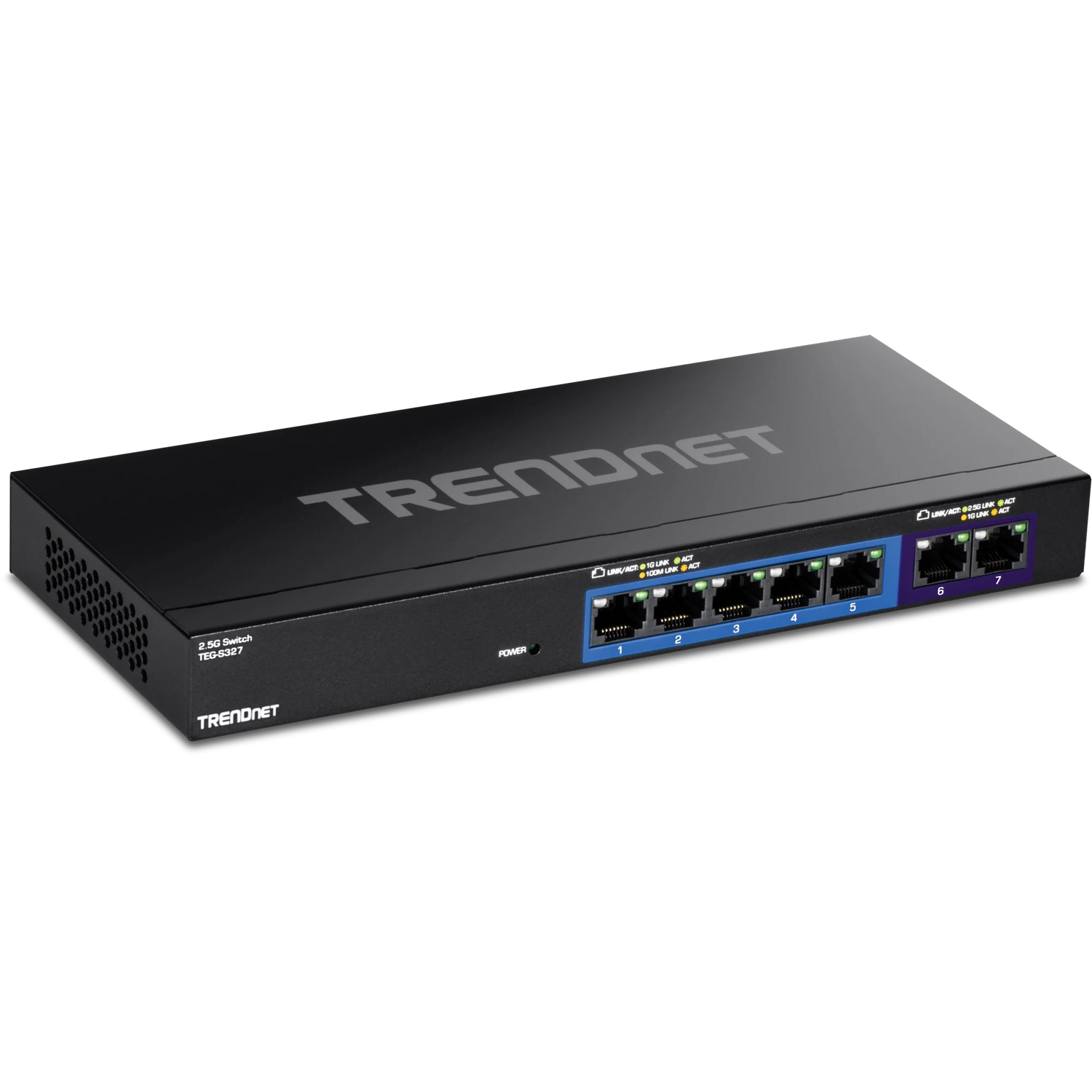

TRENDnet’s 7-Port Multi-Gig Switch, model TEG-S327, is an affordable 2.5G switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TEG-S327 multi-gig switch offers two dedicated 2.5G ports and five dedicated 1G ports for high-speed network connections with a 20Gbps switching capacity. With a sturdy compact metal housing and fanless design, this multi-gig switch is a cost-effective switch solution for high-speed network connections.

Specifications

Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3bz

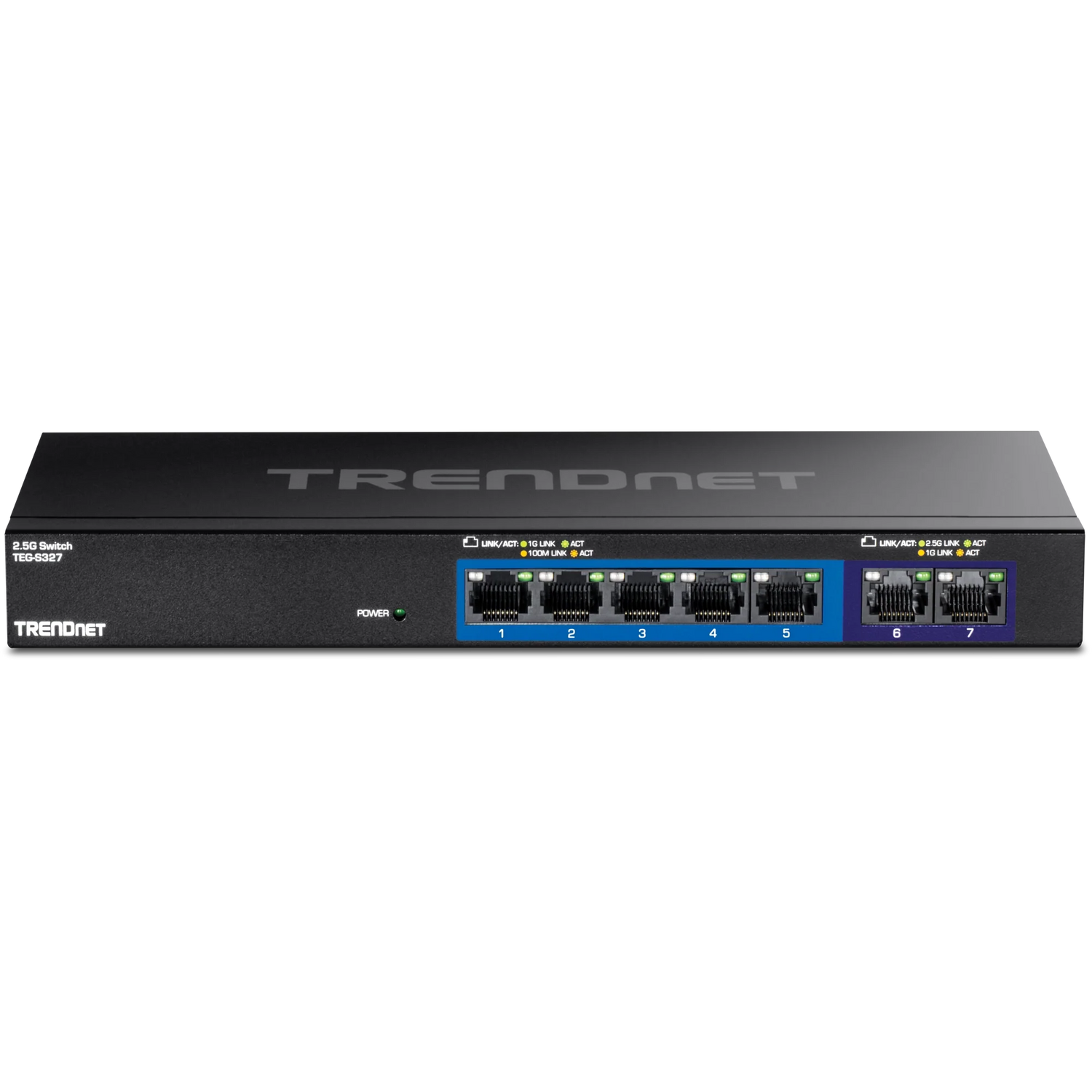

Device Interface
  • 5 x Gigabit ports
  • 2 x 2.5GBASE-T ports (1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Switching Capacity: 20Gbps
  • RAM Buffer: 384KB
  • MAC Address Table: 2K entries
  • Forwarding Rate: 14.88Mpps (64-byte packet size)
  • Jumbo Frames: 15KB
Special Features

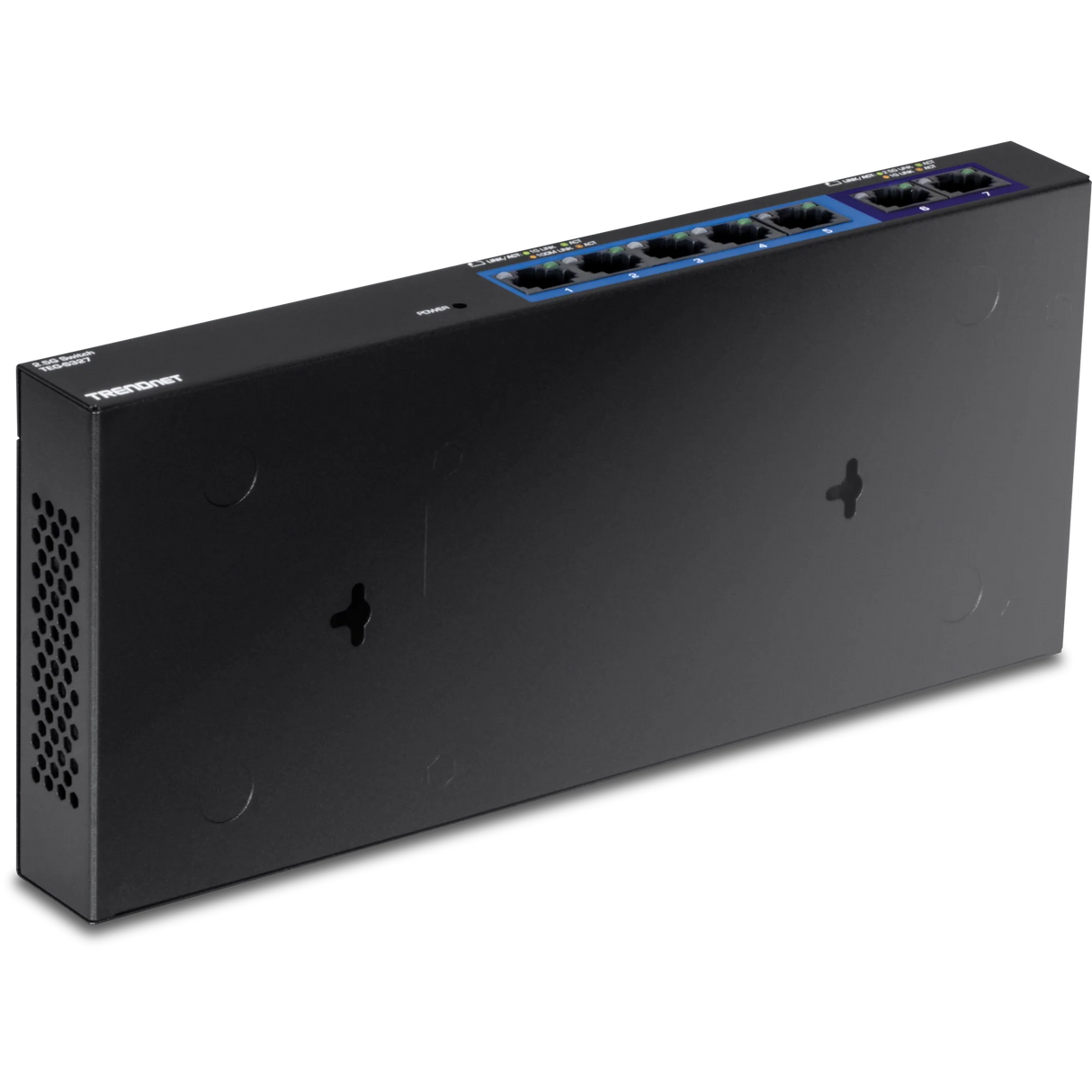

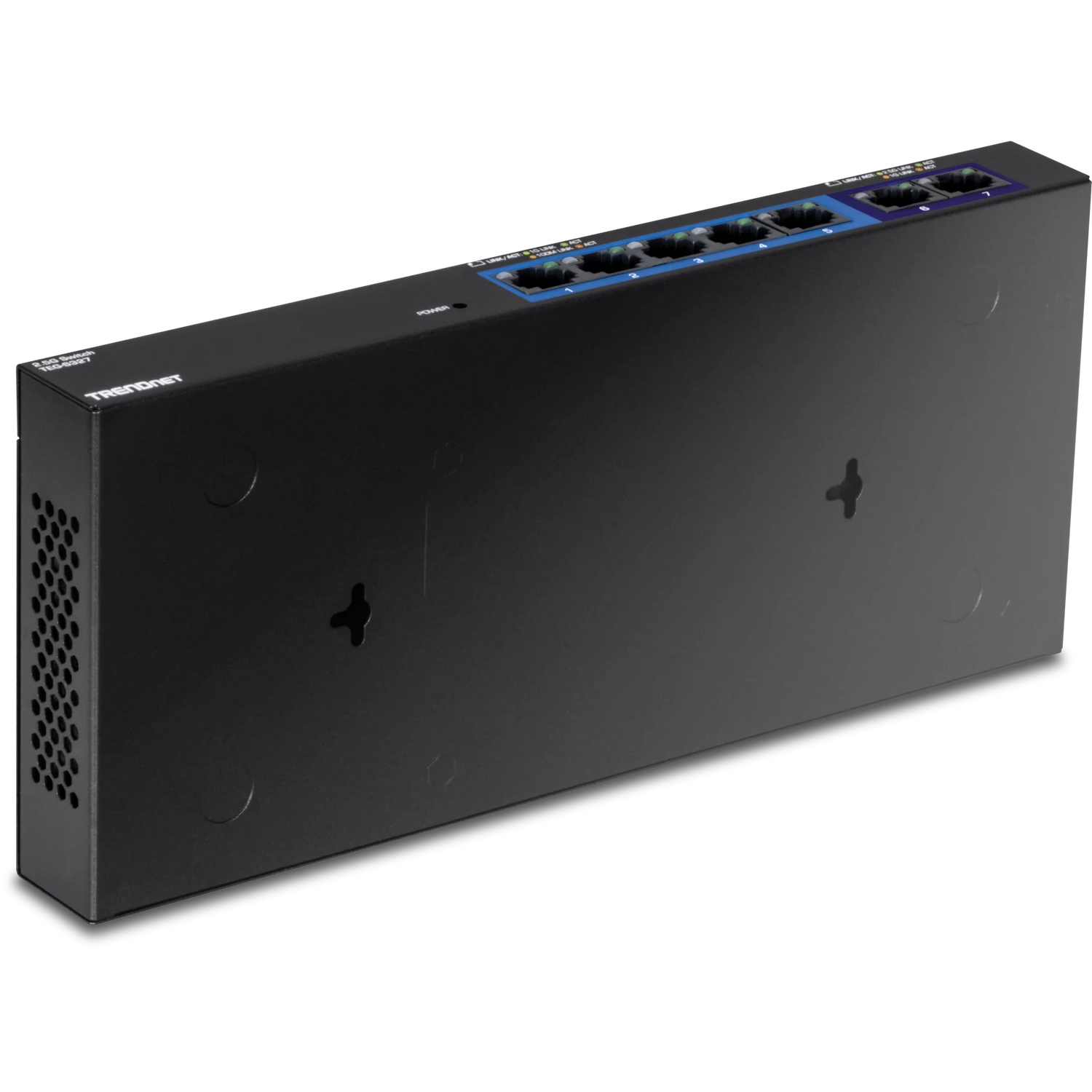

  • Wall mountable
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.5A
  • Output: 12V DC, 1A external power adapter
  • Max. Consumption: 6W
Fan/Acoustics
  • Fanless design
MTBF
  • 674,176 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 240 x 105 x 26mm (9.44 x 4.13 x 1.02 in.)
Weight
  • 542g (19.11 oz.)
Certifications
  • FCC
Warranty

Features

  • 5 x 1G RJ-45 ports
  • 2 x 2.5G RJ-45 ports
  • Easy installation, no configuration required
  • Compatible with existing Cat5e or better cabling
  • 20Gbps switching capacity
  • 2.5G ports are backwards compatible with 100/1000Mbps devices
  • Fanless design for silent operation
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

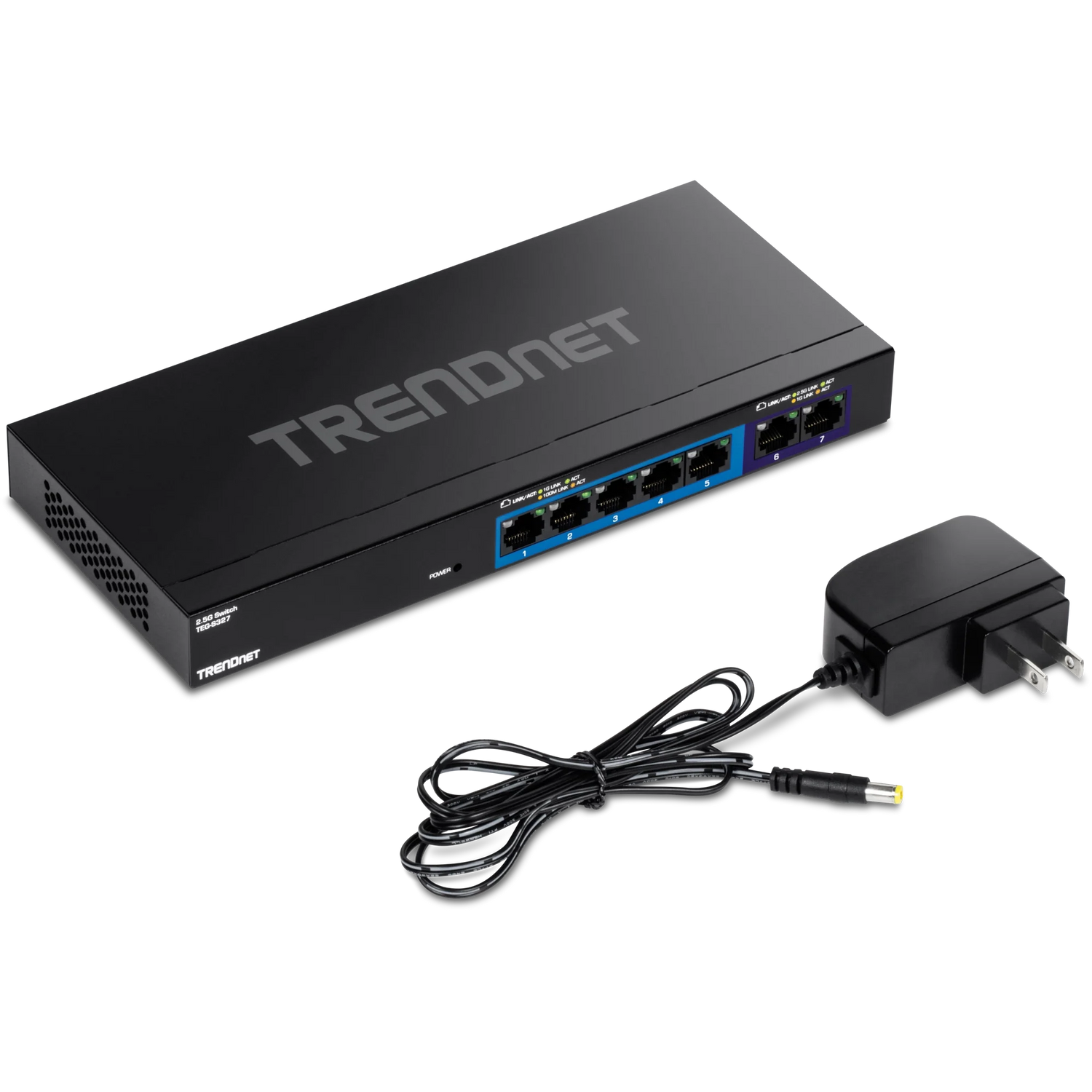

PACKAGE CONTENTS

  • TEG-S327
  • Quick Installation Guide
  • Power adapter (12V DC, 1A)
