TRENDnet  |  SKU: TEG-3524S

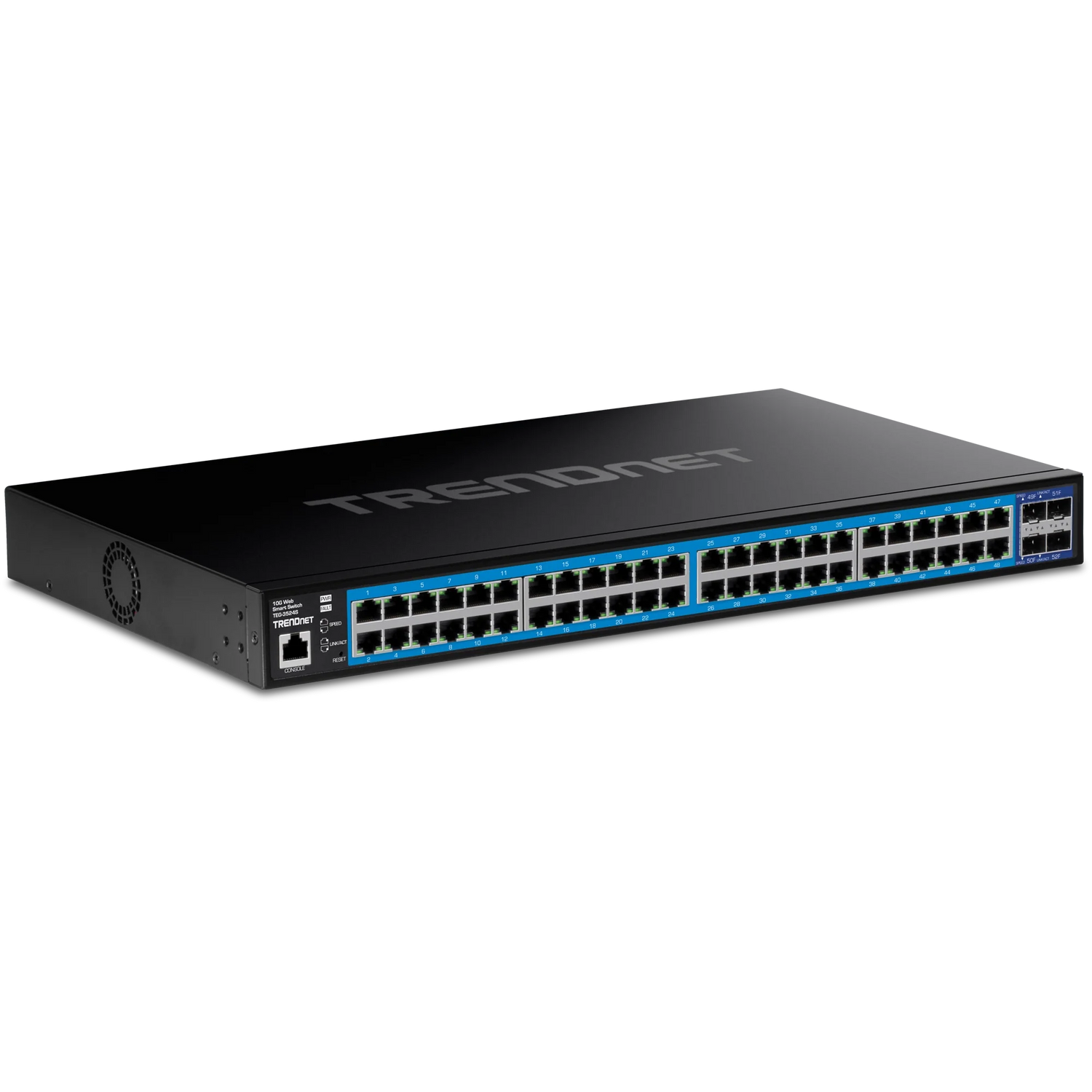

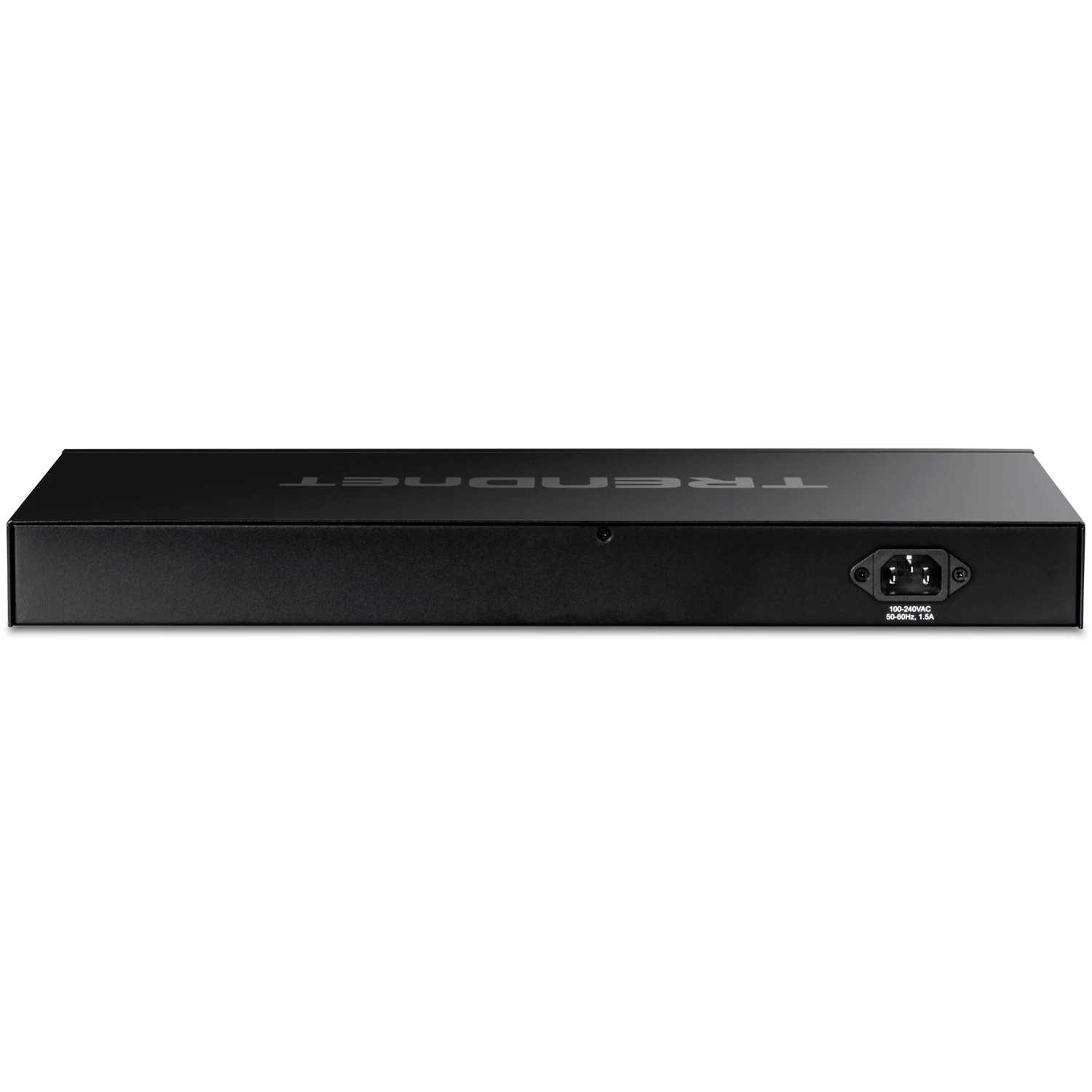

TRENDnet TEG-3524S 52-Port Gigabit Web Smart Switch with 10G SFP+ ports

$429.99

TRENDnet TEG-3524S 52-Port Gigabit Web Smart Switch with 10G SFP+ ports is backordered and will ship as soon as it is back in stock.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

TRENDnet TEG-3524S 52-Port Gigabit Web Smart Switch with 10G SFP+ ports

NDAA/TAA Compliant

Product Details

TRENDnet’s Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today’s SMB networks. These managed switches with SFP+ ports each come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these managed switches with 10G SFP+ ports powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These gigabit managed switches come equipped with RJ-45 ports that provide gigabit speeds over your existing Cat5e or better cabling. The gigabit managed switches also each offer four dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The strategic design of the switches lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable managed switches with SFP+ ports offer cost-effective solutions to increase your network’s throughput.

Specifications

Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3az
Device Interface
  • 48 x Gigabit ports
  • 4 x 10G SFP+ ports
  • 1 x RJ-45 console port (out-of-band)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • SFP: 2000Mbps (full duplex)
  • SFP+: 20Gbps (full duplex)
Performance
  • Switch fabric: 176Gbps
  • RAM buffer: 2MB
  • MAC Address Table: 32K entries
  • Jumbo Frames: 10KB
  • HOL Blocking Prevention
  • Forwarding rate: 130.95Mpps (64-byte packet size)
Management
  • CLI (Telnet / SSHv2)
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP and LLDP-MED
  • Virtual Cable Diagnostics Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
  • Dual image and configuration
MIB
  • RMON MIB RFC 1271
  • LLDP MIB IEEE 802.1ab
  • RFC 1213 MIB II
  • RFC 1643 Ethernet intf MIB
  • RFC 1493 bridge MIB
Spanning Tree
  • IEEE 802.1d STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3 (per VLAN)
  • MLD Snooping v1, v2
  • IGMP fast leave
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • Many to one
Access Control
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial-In User Authentication
  • DHCP Snooping
  • Loopback Detection
  • Trusted Host
  • Denial of Service (DoS)
  • IP MAC port binding
  • Block unknown multicast
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • TOS (IPv4 only)
  • IPv4 Address and Mask (IPv4 only)
  • IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features
  • IPv4 / IPv6 static routing
  • IP interfaces: Up to 6
  • Routing table entries: Up to 32 (IPv4 / IPv6)
  • ARP table (up to 128 entries)
  • Inter-VLAN routing
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 20.85W
Fan/Acoustics
  • Quantity: 1
  • Smart Fan
  • Noise Level: 38.6 dBa (max.)
MTBF
  • 175,750 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 440 x 255 x 44mm (17.32 x 10.04 x 1.73 in.)
Weight
  • 3.408kg (7.51 lbs.)
Certifications
  • CE
  • FCC
Warranty

Features

  • 48 x Gigabit ports
  • 4 x 10 SFP+ ports
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • 176Gbps switching capacity
  • IEEE 802.3ae (SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TEG-3524S
  • Quick Installation Guide
  • Power cord (1.5m / 5 ft.)
  • Console cable (1m / 3.28ft.)
  • Rackmount brackets
