TOA | SKU:
ZM-104A

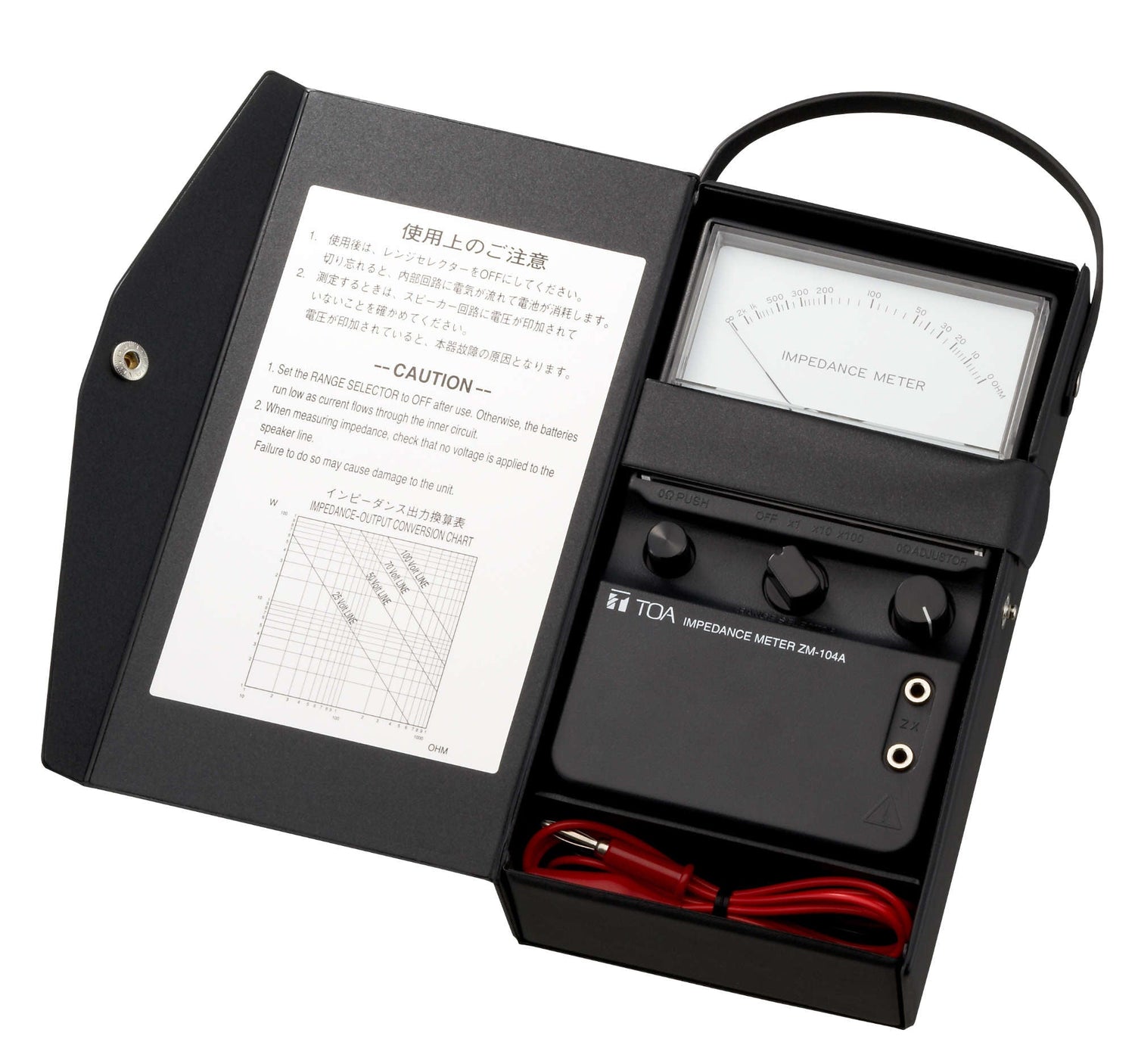

TOA ZM-104A Impedance Meter
Regular price
$623.98
Unit price
/
Unavailable
TOA ZM-104A Impedance Meter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
TOA ZM-104A Impedance Meter
Regular price
$623.98
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
TOA ZM-104A Impedance Meter
Product Details
The TOA ZM-104A Impedance Meter can measure the rough impedance value of speaker lines easily in the same manner as a circuit tester measures resistance.
Features
- For easy and exact measurement of speaker impedances including long cable length
- Battery driven for mobile use (4 Mignon (AA) batteries)
- One set of batteries for 30 - 60 hours operation time (depending on the measurement range)
- Graphic conversion table impedance-power
- Oscillator generates 1 kHz frequency
- Measurement range of 5 to 100 kΩ
- Comes with a case and one set of test leads
Specifications
Power Source R6 x 4 (1.5 V DC x 4)
Current Consumption 39 mA
Reading Direct reading meter, unit: Ω
Measurement Range
x 1 range: 5 Ω - 1 kΩ
x 10 range: 50 Ω - 10 kΩ
x 100 range: 500 Ω - 100 kΩ
x 10 range: 50 Ω - 10 kΩ
x 100 range: 500 Ω - 100 kΩ
Oscillation Frequency 1 kHz, ±10 %
Battery Life When Continuously Used
x 1 range: 30 h
x 10 range and x 100 range: 60 h
x 10 range and x 100 range: 60 h
Operating Temperature -5 ℃ to +40 ℃ (23 ℉ to 104 ℉)
Dimensions
122 (W) x 222 (H) x 70 (D) mm (4.80" x 8.74" x 2.76") (carrying case)
110 (W) x 180 (H) x 58 (D) mm (4.33" x 7.09" x 2.28") (unit only)
110 (W) x 180 (H) x 58 (D) mm (4.33" x 7.09" x 2.28") (unit only)
Finish ABS resin, black
Weight 730 g (1.61 lb) (including carring case, without batteries)
Included Accessories Test leads …1 set
Measurement Category CAT I
