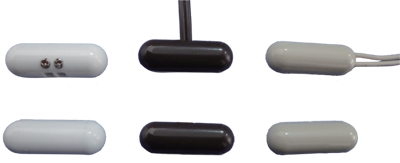

Tane Surface Mnt "Pill Shape" w/Side Lead TANE - PILL SL
Product Details
1.1″L×.37″W×.19″H Surface Mount Type W/Center Leads, Side Lead or Terminal Connects
- Contact Size: 1.1″L×.37″W×.19″H
(27.8mm×9.5mm×4.75mm) - Standard Magnet Size: 1.1″L×.37″W×.19″H
(27.8mm×9.5mm×4.75mm) - Standard Gap: .5″(12.5mm)
- Colors: White, Brown, Tan
- 12″(305mm) 22 AWG Leads Standard
- “TC” Version No Leads
Specifications
Part Number: Tane Pill SL
Gap Inch: .5* (12.5)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
