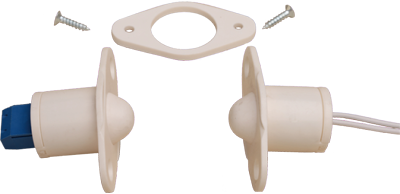

Tane Stubby ¾” Ball Button Shorter length with terminal connection TANE - 22 TC
Product Details
.73″(18.5mm) Stubby “Button Ball” Reed Contact
- Contact Size:
TANE-22: .73″×1.21″(18.5mm×30.7mm)
TANE-22 TC: .73″×1.6″(18.5mm×40.7mm) - Standard Magnet Size: NA
- Standard Gap: NA
- Colors: White, Brown
- 12″(305mm) 22 AWG Leads Standard TANE-22
- Longer leads available.
- TANE-22 TC: Terminal Connect
Specifications
Part Number: TANE-22 TC
Gap Inch (mm): NA
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 1
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC24/DC24
Max. Switching Current (A): 0.1
