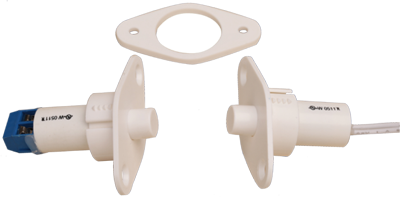

Tane Push Button Reed Contact PB - 52
Product Details
.75″(19mm) Reed Push-Button Jamb-Switch
- Contact Size:
PB-52: .75″×1.7″(19mm×43.3mm)
PB-52 TC: .75″×1.73″(19mm×44mm) - Standard Magnet Size: NA
- Standard Gap: NA
- Colors: White, Brown
- 12″(305mm) 22 AWG Leads Standard PB-52
- Longer leads available.
- PB-52 TC: Terminal Connect, No Leads.
Specifications
Part Number: PB-52
Gap Inch (mm): NA
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
