Tane Overhead with 10 way adjustable L-Bracket & 36" armored cable pinned and glued into contact MET - 44WG - 36
Product Details

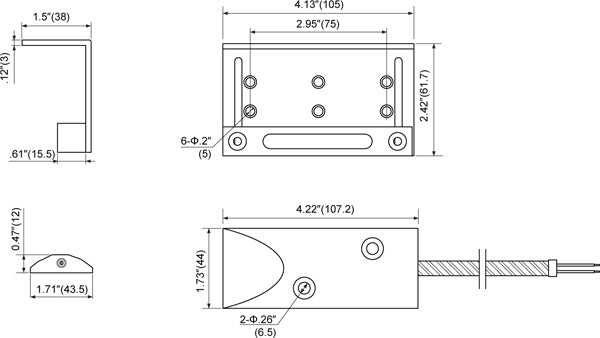

4.22″L×1.73″W×.47″H Surface Mount Armored Commercial Type
- Contact Size: 4.22″L×1.73″W×.47″H
(107.2mm×44mm×12mm) - Standard Magnet Size: 4.13″L×2.42″W×1.5″H
(105mm×61.7mm×38mm) - Standard Gap: 2″(50mm)
- Colors: Aluminum Case
-
36″(915mm) Armored Leads Available
Specifications
Part Number: MET-44 WG - 36
Gap Inch (mm): 2″(50)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
